1w 3w 5w 7w High Quality Low Price 1407 3v 9v 12v 15v 23v Ac Cob Led Chip Light
- $0.04 / >=500 pieces
- 500 pieces
- Guangzhou Baicheng Technology Co., Ltd.
- Guangdong, China
- Mr bocheng ji
Product Detail
| Origin: | Guangdong, China | Service 2: | Support sample service |
| Viewing angle(°): | 120 | type: | COB LED chip, COB LED |
| Power Consumption: | 0.4 | Color temperature (CCT): | 2700-6000K |
| Working temperature(℃): | -20 - 80 | Warranty (year): | 2 years |
| port: | Guangzhou/Shenzhen/Shanghai | Storage temperature(℃): | -40 - 110 |
| Product Size: | 14x7mm | Input voltage (V): | 3-23V |
| Service 1: | Support customized service | strength: | 1W, 3W, 5W, 7W |
| Light attenuation (%): | 0.03 | Supply capacity: | 1,000,000 pieces per month |
| Working hours (hours): | 30000 | Luminous flux (lm): | 90-100 lumens/watt |
| Product weight (kg): | 0.5 | Lighting Solutions Services: | Lighting and Circuit Design, LitePro DLX Layout, Auto CAD Layout |
| Supported dimmers: | Yes | Chip material: | Ingen |
| Color temperature: | 2700-6000K | Luminous color: | white |
| Luminous efficacy (lm/w): | 100 | Color rendering index (Ra): | Post-90s |
| Packaging Details: | Packaging is the default packaging, product packaging can be negotiated sample packaging is the default packaging | Lifespan (hours): | 30000 |
| payment terms: | Western Union, T/T | brand: | Juxin (Sanxin) |
video description

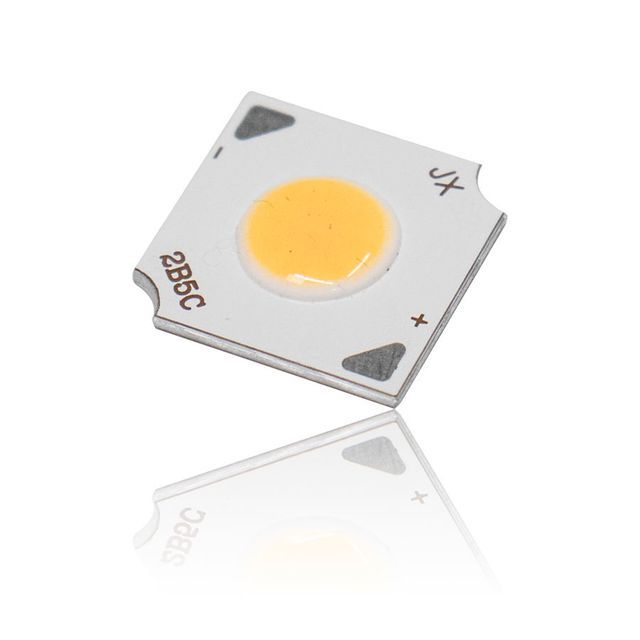

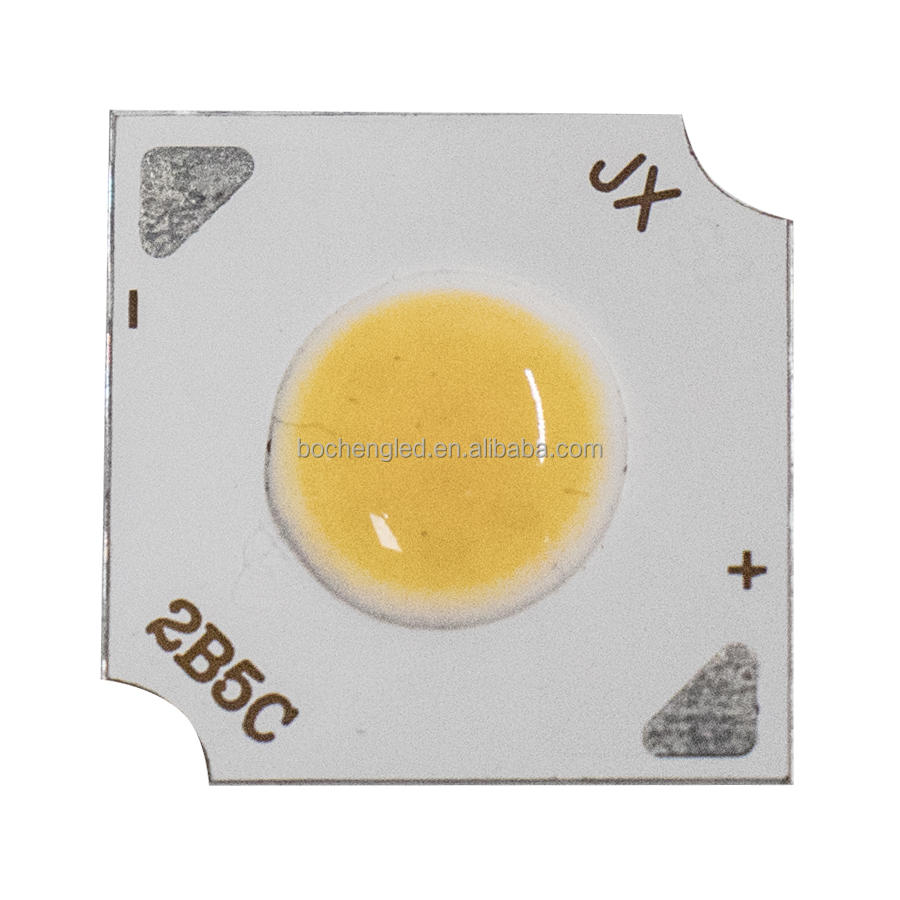

1407 1-7W COB 280mA 3-23V 2700-6000K Customized Ra 70 80 90 LED COB chip in LED spotlight
Specification
model | size | strength | electricity | Voltage | Lumens/CRI |
1407(1304) | Square: 14*14mm Round: 7mm | 1W | 280mA (1021 chip) | 3.0V-3.2V | 90-100LM/W Ra80 |
3W | 280mA (1021 chip) | 9.0V-12V | 90-100LM/W Ra80 | ||
5W | 280mA (1021 chip) | 15-17V | 90-100LM/W Ra80 | ||
7W | 1500mA (1021 chip) | 21V-23V | 90-100LM/W Ra80 |
COB LED chips use a large number of series-parallel chips to achieve the effects of high brightness, high lumens, and high color rendering index. Chips are directly bonded and packaged on the entire substrate, that is, N chips are inherited and integrated on the internal substrate for packaging.
Advantages of COB LED chips:
1. Using substrate thermoelectric distribution, good heat dissipation performance
2. Compact COB achieves high power efficiency and is convenient for customers to use
3. High reliability and high cost performance: low thermal resistance packaging structure, the fastest heat conduction speed, uniform distribution of light surface, and long life of the light source.
4. High power, high lumen, high quality, high CRI and luminous flux
5. Compared with traditional lighting fixtures, it can save energy by 80%
6. Easy to install and use, safe and reliable
Advantages of COB LED chips:
1. Using substrate thermoelectric distribution, good heat dissipation performance
2. Compact COB achieves high power efficiency and is convenient for customers to use
3. High reliability and high cost performance: low thermal resistance packaging structure, the fastest heat conduction speed, uniform distribution of light surface, and long life of the light source.
4. High power, high lumen, high quality, high CRI and luminous flux
5. Compared with traditional lighting fixtures, it can save energy by 80%
6. Easy to install and use, safe and reliable
