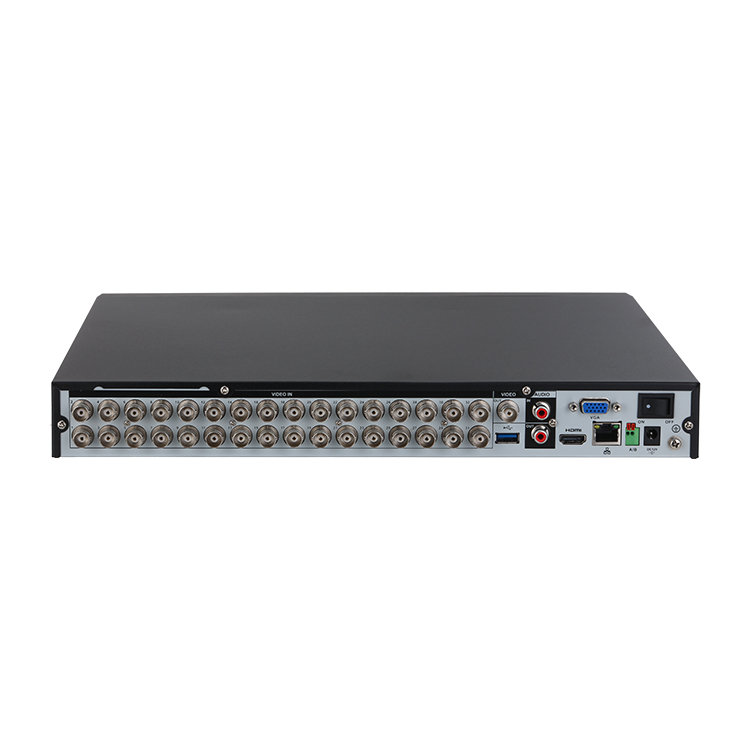

Face recognition digital video recorder system XVR5232AN-4KL-I3 5 in 1 Dahua 32-way XVR

Product Detail

Origin:Zhejiang, Chinapayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
brand:DahuaFace recognition:support
port:Shenzhenmodel:XVR5232AN-4KL-I3
Built-in hard disk:2 SATA ports, up to 16TB capacityIP camera input:32 channels
Video Compression:AI coding; Smart H.265+; H.265; Smart H.264+; H.264UI:1 channel HD MI, 1 channel VGA
product name:Face Detection and Recognition Digital Video SystemSupply capacity:10000 pieces per day
Analog camera input:32 channels, BNCPackaging Details:Original packaging. Face recognition digital video recorder system XVR5232AN-4KL-I3 5 in 1 Dahua 32-way XVR
solve:4K, 6MP, 5MP, 4MP, 3MP, 2MPWarranty:3 years
Perimeter protection:support
Face recognition digital video recorder system XVR5232AN-4KL-I3 5 in 1 Dahua 32-way XVR
Product Description
XVR5232AN-4KL-I3
32CH Penta-brid 4K-N/5MP 1U 2HDDs WizSense Digital Video Recorder
> H.265+/H.265 dual stream video compression.
> Support 32-channel AI encoding.
> Support HDCVI/AHD/TVI/CVBS/IP video input.
> Up to 32 IP camera inputs, up to 8MP each; maximum 128 Mbps incoming bandwidth.
> Perimeter protection of up to 12 channels of video streams (analog channels).
> Up to 32 video streams (analog channels) SMD plus.
> Up to 6 video streams (analog channels) face recognition.
> IoT and POS functionality.
Product parameters
system
main processor
Industrial Grade Processor
operating system
Embedded Linux
Operation interface
network; local GUI
perimeter protection
Recorder Peripheral Performance AI (Number of Channels)
Advanced model: 6 channels, 10 IVS per channel
General model: 12 channels, 10 IVS per channel
Face Detection
facial attributes
Gender; Age Class; Glasses; Expression; Mask; Beard
Recorder AI face detection performance (number of channels)
6 channels (up to 12 face images/s per channel))
face recognition
Face database capacity
Up to 10 face databases with a total of 20,000 face images. Name, gender, date of birth, address, certificate type, certificate number,
Each face picture can add country and region and state
Recorder AI face recognition performance (number of channels)
6 channels
patch plus
Recorder's SMD Plus
32 channels: secondary filtering for people and vehicles, reducing false alarms caused by leaves, rain, and light conditions
Change
audio and video
Analog camera input
32 BNC ports, support HDCVI/AHD/TVI/CVBS automatic detection
camera input
1. CVI: 4K@25/30fps; 6 MP@20 frame/sec; 5 MP@25 frame/sec; 4 MP@25/30 frame/sec; 1080p@25/30 frame/sec; 720p@25/30 frame/second; 720p@50/60 frame/second.
2. TV picture: 4K@15fps; 5 MP@20 frame/second; 4 MP@25/30 frame/second; 3 MP@25/30 frame/second; 1080p@25/30 frame/second; 720p@25/ 30 frames per second.
3. Full HD: 4K@15 frames/s; 5 MP@20 frames/s; 4 MP@25/30 frames/s; 3 MP@25/30 frames/s; 1080p@25/30 frames/s; 720p @25/30 frames per second.
IP camera input
Up to 32 channels of IPC access
32 channels (analog channel to IP channel)
Incoming Bandwidth: 128 Mbps, Recording Bandwidth: 128 Mbps and Outgoing Bandwidth: 128 Mbps
coding ability
mainstream:
4K@(1fps-7fps); 6 MP@(1fps-10fps); 5 MP@(1fps-12fps); 4K-N, 4MP, 3MP@(1fps-15fps); 4M-N, 1080p, 720p, 960H,
D1,CIF@(1fps–25/30fps);
Sub stream: 960H@(1fps–15fps); D1/CIF@(1 fps–25/30fps)
dual stream
Yes
video bitrate
32 kbps–6144 kbps
audio sample
8 kHz, 16 bits
audio bitrate
64kbps
video output
1 HDMI, 1 VGA
HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720
Graphics card: 1920×1080, 1280×1024, 1280×720
*Configurable synchronous/heterogeneous video source output of VGA and HDMI.
multi-display
1/4/8/9/16/25/36
Third-party camera access
ONVIF; Panasonic; Sony; Axis; Yes; Samsung
compression standard
video compression
AI coding; Smart H.265+; H.265; Smart H.264+; H.264
audio compression
G.711a; G.711u; Phase change modulator
network
Network protocol
HTTP; HTTPS; Internet Protocol/Internet Protocol; IPv4; Real Time Transport Protocol; Internet Protocol; Mail Transfer Protocol;
Mobile access
operating system; Android
Interoperability
ONVIF 21.12; computer vision
browser
Chrome, IE9 or higher, Firefox
network mode
single address mode
recording playback
recording mode
General purpose, motion detection; smart; alarm; cash register
recording playback
1/4/9/16
backup method
USB devices and networks
play mode
Instant playback, normal playback, event playback, tag playback, smart playback (face and motion detection)
storage
disk group
Yes
alarm
general alert
motion detection; video loss; tampering; local alarm
Abnormal alarm
No disk; storage error; disk full; camera offline; IP conflict; MAC conflict
Intelligent alarm
face detection; face recognition; perimeter protection
Alarm linkage
Record; snapshot (panorama); external alarm output of industrial computer; access controller; voice prompt; buzzer; log; preset; email
port
TV out
1 channel
audio input
1 channel RCA
32 channels BNC (coaxial audio)
Audio output
1 channel RCA
two-way dialogue
Yes (shares the same audio input as the first channel)
Hard disk interface
2 SATA interfaces, the maximum capacity of each disk is 16TB. The maximum hard disk capacity varies with the ambient temperature.
RS-485
1 port for PTZ control
USB
2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
hdmi
1
graphics card
1
Network port
1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
power supply
DC 12V, 5A
energy consumption
<32 W (without HDD)
net weight
2.50 kg (5.52 lbs)
gross weight
4.10 kg (9.04 lbs)
Product Size
375.0 mm × 334.4 mm × 53.0 mm (14.76'' × 13.17'' × 2.09'') (W × D × H)
Package Size
449.0 mm × 170.0 mm × 421.0 mm (17.68'' × 6.70'' × 16.58'') (W × D × H)
Operating temperature
–10 °C to +55 °C (14 °F to +131 °F)
Working humidity
10%–90% (relative humidity)
Install
Rack or Desktop
certified
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
