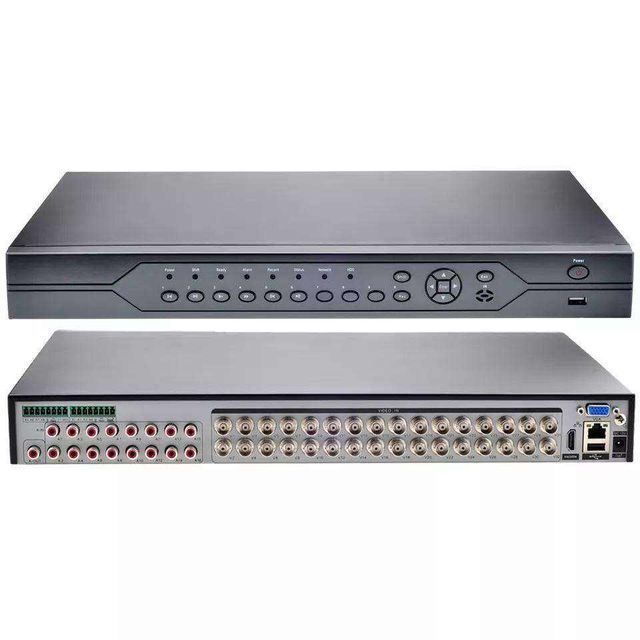

32CH 5MP Hybrid CVI TVI AHD CCTV DVR Security System XMEYE 16CH 4K NVR Video Recorder H.265 32CH DVR Surveillance Video Recorder
- $17.90 /piece
- 1 piece
- Shenzhen Wnk Security Technology Co., Limited
- Guangdong, China
- Ms Karen H
Product Detail
Storage: | 2HDD up to 8TB, without hard disk | operating system: | Embedded Linux |
playback: | Synchronous playback 8ch | brand: | Wink/OEM |
type: | 6 in 1 CVBS, AHD, TVI, CVI, XVI, IP | port: | Shenzhen/Hong Kong |
System format: | PAL/NTSC system | Origin: | Guangdong, China |
Video input: | 32 channels | product name: | 6 in 1 Hybrid DVR 32CH 5MP |
Video output: | HD MI/VGA | Video Compression: | H.265 standard compression |
payment terms: | Western Union, T/T, MoneyGram, PayPal | Packaging Details: | 32CH DVR H.265 Package: carton, foam plastic frame. |
model: | 5mp 32CH xmeye DVR recorder | Supply capacity: | 100000pcs 32CH DVR H.265 per month |
language: | English/custom |

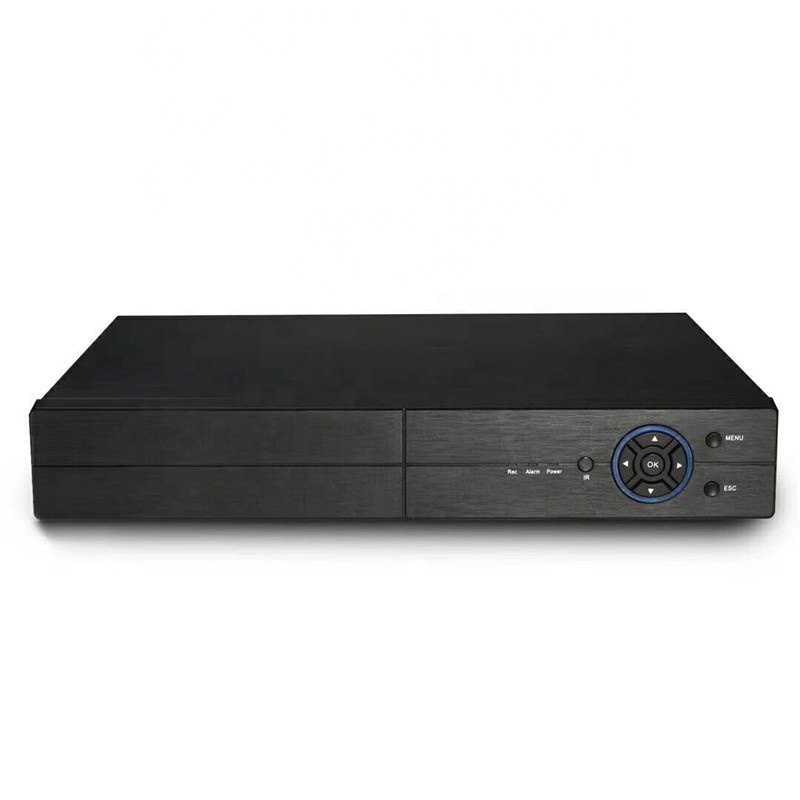

32CH 5MP Hybrid CVI TVI AHD CCTV DVR Security System XMEYE 16CH 4K NVR Video Recorder H.265 32CH DVR Surveillance Video Recorder
H.265 32ch dvr digital video recorder main features:
1.H.265 32CH AHD digital video recorder;
2. Ultra HD 5MP high-definition display, advanced H.265 video compression;
3. Support CVBS, AHD, TVI, CVI, XVI, IP, 6 in 1 mixed input;
4. Support face detection, face recording, face playback;
5. Support HDMI&VGA output, audio input & audio output;
6. Support ultra-high-definition day and night vision;
7. Support 3.5-inch hard disk;
8. Support motion detection, email reminder, video playback, on-vif protocol and multi-language;
9. Support Android, Iphone, Ipad, PC, VMS, P2P viewing;
10. Support plug and play, easy to set up;
11. Remote access anytime and anywhere;
H.265 32ch dvr digital video recorder specification:
system
Main Processor: Embedded Processor
Operating system: Embedded Linux
Video compression: H.265
System resources: multi-channel real-time synchronous recording, multi-channel real-time playback, multi-channel multi-user network operation, USB backup
interface
Operation interface: 16-bit true color GUI interface support
Preview: 1/4/8/9/16/24/32
video
Video format: PAL;
Image encoding: H.265
Monitoring Quality: VGA, HDMI: HD
Analog input: 32CH*5MP/32CH*4MP/32*1080P
Mixed input: 16CH*5MP (network)+16CH*5MP (analog)
Network input: 32CH*4K/32CH*5MP
Motion detection: support
Email Alerts: Support
sound
Audio Compression: G.711A
Walkie talkie: yes
recording playback
Recording mode: manual > alarm > motion detection > timing
Local playback: 5MP
Video search: time, date, event, channel search
storage backup
Video storage: local hard disk, network
Backup method: network backup, USB portable, HDD, USB burning, SATA burning

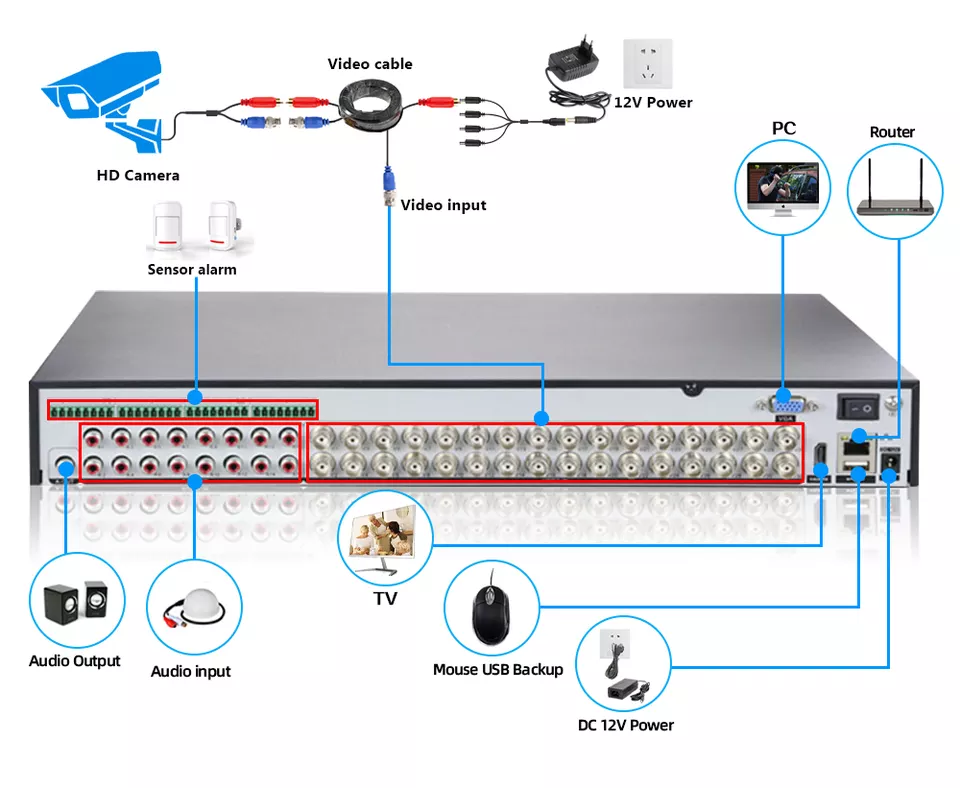

interface
Video input: 32CH BNC
Video output: 1 channel VGA, 1 channel HDMI high-definition output
Loop Out: N/A
Audio input/output: 16CH input/1CH output
Alarm I/O: 4CH input/1CH output
Network port: 1* POE RJ45 1000M adaptive network port;
USB Ports: 2* USB 2.0
Hard disk interface: 2 SATA interfaces, maximum support 2*8TB (hard disk is optional)
other
Power supply: DC 12V
ONVIF: support
USB mouse: included
Remote control: included
Temperature: -20℃+50℃
Humidity: -10%-90%
Size: L440mm* W400.5mm* H60mm
Weight: 4.5KG
DVR language
Russian, English, Finnish, French, German, Greek, Italian, Japanese, Polish, Protugal, Spanish, Thai, Turkish, Romanian, Slovak, Czech, Arabic, Swedish, etc.
-
1 X H.265 32CH 5.0MP 6 in 1 AHD DVR Hybrid Digital Video Recorder
-
1 DVR power supply
-
1 USB mouse for DVR
-
1 X DVR software CD
-
1 x DVR remote control
-
Hard disk optional
system | main processor | Embedded processor Hi3531A |
operating system | embedded operating system | |
video | enter | 32 channels, |
sound | enter | 16 channels, RCA |
output | 1 channel, RCA | |
walkie talkie | support | |
exhibit | interface | 1*HDMI, 1*VGA |
solve | AHD: 32* AHD-M 5mp 4mp 1080P(15fps), 24*AHD-M(25fps), 16* AHD-M(25fps), 16*AHD-L(25fps) | |
Network video recorder: 32*1080P, 16*3MP, 8*960P, | ||
HVR: 8*AHD 1080N +8* 960P | ||
show split | 1/4/8/16/24/32 | |
privacy mask | 8 rectangular areas (per camera) | |
screen display | Camera name, time, video loss, camera lock, motion detection, video recording | |
Record | compression | H.264 |
solve | 1080N / 960P / 720P/960H /D1/HD1/2CIF/CIF/QCIF | |
additional stream | CIF/QCIF(1~25/30fps) | |
bit rate | 1792Kbps-4096Kbps, customized, up to 4096Kbps | |
recording mode | Manual, Schedule(Regular(Continuous), MD), stop | |
recording interval | 1~120 minutes (default: 60 minutes), pre-recording: 1~30 seconds, post-recording: 10~300 seconds | |
Video detection alarm | trigger event | Recording, tour, video push, email, FTP, live, buzzer and screen prompt |
video detection | Motion detection, MD area: 396 (22×18), video loss and camera blank | |
Alarm input | 8 channels | |
Alarm Output | 1 channel | |
Playback and backup | synchronous playback | 8 channels |
search mode | Time/date, MD and exact search (down to the second) | |
backup method | USB device/network | |
network | ethernet | RJ-45 port (10/100/1000M) |
Internet function | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP filter | |
cell phone | Android, Windows Phone, IOS | |
storage | internal hard drive | 2 SATA ports, up to 8TB |
Auxiliary interface | USB interface | 2 ports (1 rear), USB2.0 |
PTZ | 1*RS485, 1*RS232 | |
General | power supply | DC12V/4A |
energy consumption | ≤15W (excluding hard disk) | |
working environment | -10~+55℃ / 10~90%RH / 86~106kpa | |
aspect | DVR only: 440*290*50mm(W*D*H) | |
aspect | Packing: 470*350*120mm(W*D*H) | |
weight | HDD only: 3.3kg | |
weight | Packing: 5.5kg (excluding hard disk) |
The high-definition 5MP AHD camera ensures that you can get true color images from the monitoring point.
Face Detection & Face Playback
Face detection and face playback and face recording
Quickly capture face images and quickly playback face videos;
Face detection: automatically capture face images;
Face playback: intelligent face video playback, saving time and effort, and not missing every detail.
Why choose H.265
H.265 is clearer, and HD resolution gives you the best image quality at a lower bit rate. Save more storage space, can reduce 40%-50% file size, save your hard disk storage space and reduce your purchase cost.

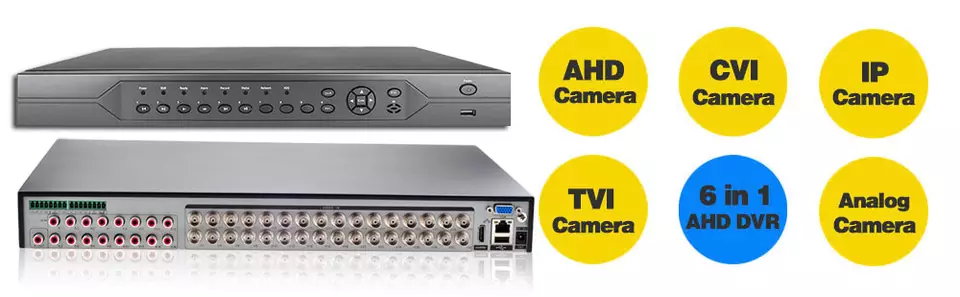

AHD DVR NVR HVR XVR 6 in 1
You can freely enjoy six connection modes with this multifunctional digital video recorder. AHD (Analog High Definition) is a new technology in the field of home security with 5 recording modes. For your choice: Analog/AHD/Network/TVI/CVI/AHD+Network. You can get HD quality video in every mode.
Remote access anytime, anywhere
Use advanced P2P technology to view real-time video of the system anytime, anywhere via smartphone, desktop or PC, you can remotely access your system in minutes or less, no port forwarding required, remote access has never been easier! ! !
Instant Email Alerts
You can set the area you want to control, when it is triggered, it will send a message to your mailbox, you can get first-hand information, no matter where you are.
motion detection
The system is designed to send email alerts when any motion is detected, and allows you to record only when motion is detected.
Compatible with multiple systems
Support windows PC, i-Phone, Android mobile remote viewing

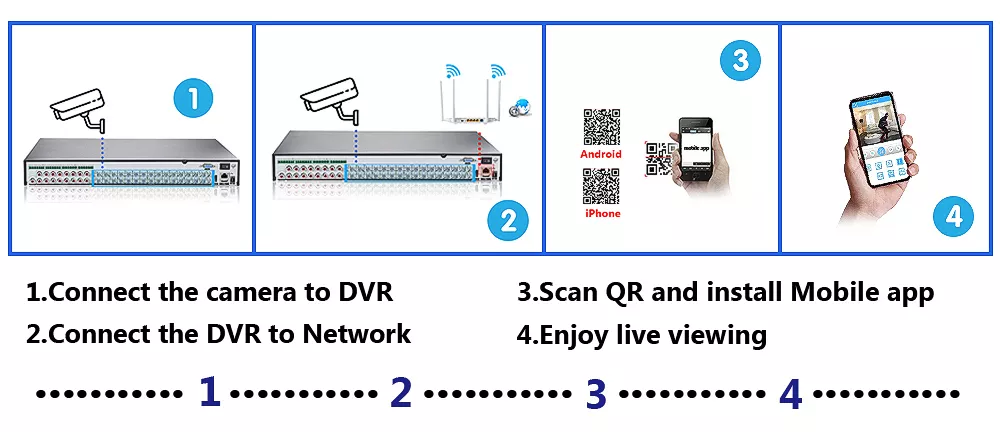

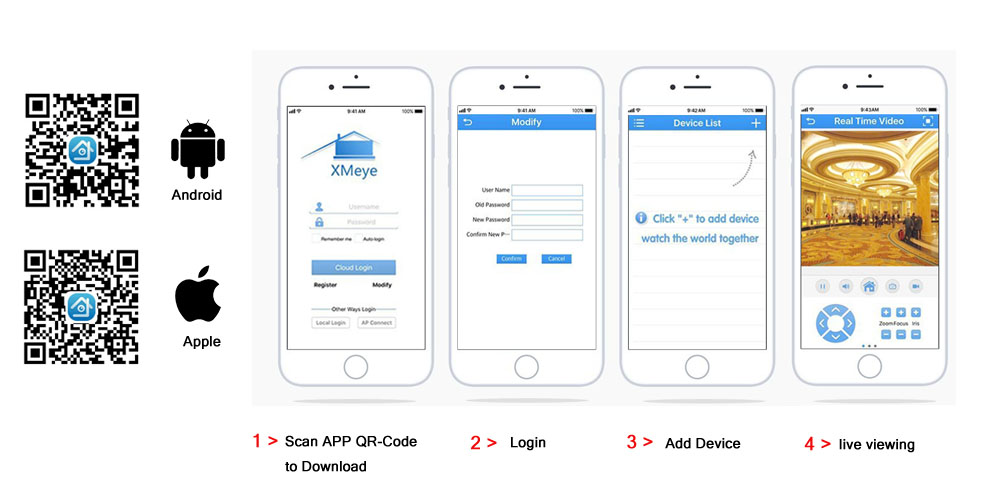

Simple remote view setup
Easy to set up, just 4 steps to view on your mobile phone, view the real-time video of the system anytime, anywhere through a smartphone, tablet or PC through advanced P2P technology, you can remotely access your system in a few minutes or less, without port forwarding, Remote access has never been easier! ! !
Plug and play, easy to use
The CCTV security system is plug and play and easy to set up, making the lift even easier. View remotely anytime, anywhere.
Contact for a faster response:
Contact: Karen
Other 5MP 1080P ahd dvr with face detection function:
Packing: generally with no brand neutral box (except for custom box design)
Shipping: choose the best shipping method according to your needs.
