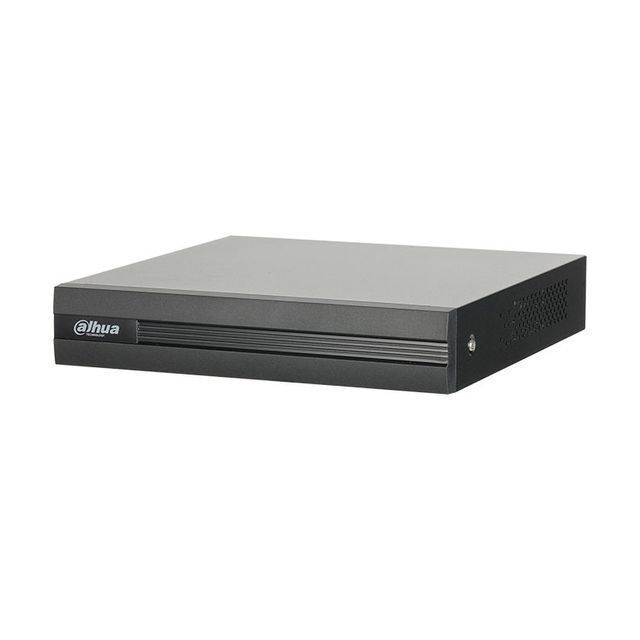

Dahua Cooper Series 4CH 8CH HDCVI Video Recorder 5 in 1 XVR, 4CH 8CH 1080P DVR (XVR1B04 XVR1B08)
-
$33.00 / 1 - 49 pieces
$31.00 / 50 - 99 pieces
$29.00 / >=100 pieces - 1 piece
- Shenzhen Bomi Vision Technology Limited
- Guangdong, China
- Ms Candy Lee
Product Detail
| product name: | 4CH 8CH HDCVI Video Recorder 5 in 1 XVR, 4CH 8CH 1080P DVR | Video Compression: | H.265+/H.265/H.264+/H.264 |
| Warranty: | 3 years | solve: | 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF |
| Analog camera input: | 4/8 channels, BNC | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Face recognition: | support | UI: | 1 channel HD MI, 1 channel VGA |
| USB: | 2 USB2.0 | IP camera input: | 4+1/8+2 channels |
| model: | XVR1B04 | Origin: | Zhejiang, China |
| Built-in hard disk: | 1 SATA interface, the maximum capacity is 6TB | brand: | Dahua |
| port: | Shenzhen | Supply capacity: | 10000 pieces per day |
| Packaging Details: | Original packaging. Dahua Cooper Series 4CH 8CH HDCVI Video Recorder 5 in 1 XVR, 4CH 8CH 1080P DVR (XVR1B04 XVR1B08) |
Dahua Cooper Series 4CH 8CH HDCVI Video Recorder 5 in 1 XVR, 4CH 8CH 1080P DVR (XVR1B04 XVR1B08)
Product Description
XVR1B04
XVR1B08
4/8 Channel Penta-brid 1080N/720P Cooper 1U Digital Video Recorder
> H.265+/H.265 dual stream video compression
> Support HDCVI/AHD/TVI/CVBS/IP video input
> Up to 5/10 channels IP camera input, each channel up to 2MP/6MP; maximum 20/40Mbps input bandwidth
> Coaxial cable transmission distance is long
> Support 1 SATA HDD, up to 6TB
4/8 Channel Penta-brid 1080N/720P Cooper 1U Digital Video Recorder
> H.265+/H.265 dual stream video compression
> Support HDCVI/AHD/TVI/CVBS/IP video input
> Up to 5/10 channels IP camera input, each channel up to 2MP/6MP; maximum 20/40Mbps input bandwidth
> Coaxial cable transmission distance is long
> Support 1 SATA HDD, up to 6TB
Product parameters
system | ||
main processor | embedded processor | |
operating system | embedded operating system | |
video and audio | ||
Analog camera input | 4/8 channels, BNC | |
HDCVI camera | 4 channels: 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps | |
8 channels: 1080P@25/30fps, 720P@25/30fps | ||
hd camera | 1080P@25/30, 720P@25/30fps | |
TV camera | 1080P@25/30, 720P@25/30fps | |
CVBS camera | PAL/NTSC format | |
IP camera input | 4CH: 4+1, up to 2MP per channel | |
8CH: 8+2, up to 6MP per channel | ||
audio input/output | 1/1, ABC | |
two-way dialogue | Reuse audio in/out, RCA | |
Record | ||
video compression | H.265+/H.265/H.264+/H.264 | |
solve | 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF | |
recording rate | mainstream: | |
4CH: All channels 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps) | ||
8CH: 1st channel 1080N/720P(1~25/30fps), other 1080N/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps) | ||
Substream: | ||
4CH: CIF/QCIF (1~15fps) | ||
8CH: CIF/QCIF (1~7fps) | ||
video bitrate | 32Kbps ~ 4096Kbps per channel | |
recording mode | Manual, schedule (regular, continuous), MD (video detection: motion detection, video loss, tampering), alarm, stop | |
recording interval | 1 ~ 60 minutes (default: 60 minutes), pre-recording: 1 ~ 30 seconds, post-recording: 10 ~ 300 seconds | |
audio compression | G.711A, G.711U, PCM | |
audio sample rate | 8KHz, 16 bits per channel | |
audio bitrate | 64Kbps per channel | |
exhibit | ||
interface | 1 HDMI, 1 VGA | |
solve | 1920×1080, 1280×1024, 1280×720 | |
multi-display | When IP extension mode is not enabled: | |
4 channels: 1/4 | ||
8 channels: 1/4/8/9 | ||
When IP extension mode is enabled: | ||
4CH: 1/4/6 | ||
8 channels: 1/4/8/9/16 | ||
screen display | Camera name, time, video loss, camera lock, motion detection, video recording | |
network | ||
interface | 1 RJ-45 port (100M) | |
Internet function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua network camera, DVR, NVS, etc.) | |
maximum. user access | 128 users | |
cell phone | iPhone, iPad, Android | |
Interoperability | ONVIF 16.12, CGI compliant | |
Video detection alarm | ||
trigger event | Recording, PTZ, tour, video push, email, FTP, snapshot, buzzer and screen prompt | |
video detection | Motion detection, MD area: 396 (22 × 18), video loss, tampering and diagnostics | |
Alarm input | not applicable | |
Relay output | not applicable | |
playback and backup | ||
play back | 4 channels: 1/4 | |
8CH: 1/4/9 | ||
search mode | Time/date, alarm, MD and precise search (down to the second) | |
playback function | Play, pause, stop, rewind, fast forward, slow forward, next file, previous file, next camera, previous camera, full screen, repeat, Random playback, backup selection, digital zoom | |
backup mode | USB device/network | |
storage | ||
internal hard drive | 1 SATA interface, the maximum capacity is 6TB | |
Electronic SATA | not applicable | |
Auxiliary interface | ||
USB | 2 x USB 2.0 | |
RS232 | not applicable | |
RS485 | not applicable | |
electric | ||
power supply | DC12V/1.5A | |
energy consumption | <10W | |
(no HDD) | ||
put up | ||
aspect | Cooper 1U, 197mm×192mm×41mm (7.8“×7.6“×1.6“) | |
net weight | 0.54 kg (1.19 lb) | |
(without hard disk) | 0.56 kg (1.23 lb) | |
gross weight | 0.93 kg (2.05 lb) | |
Install | desktop installation | |
environmental | ||
Operating conditions | -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH | |
Storage conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH | |
third party support | ||
third party support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, etc. | |
certified | ||
certified | FCC: Part 15 Subpart B | |
CE: CE-LVD: EN 60950-1/IEC 60950-1 | ||
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 | ||
UL: UL 60950-1 | ||
