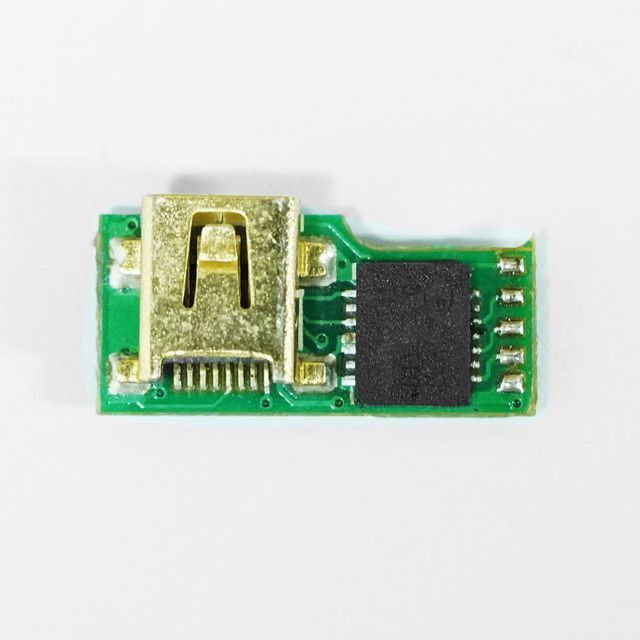

Msr008 oem smallest 2019 magnetic card reader with magnetic read head
-
$210.00 / 1 - 4 sets
$200.00 / 5 - 9 sets
$190.00 / >=10 sets - 1 set
- Shenzhen Topmax Electronics Co., Ltd.
- Guangdong, China
- Mr Yura Yu
Product Detail
| Battery: | 30mAh and 9mAh rechargeable | structure: | storage card |
| Read head: | 3 mm | brand: | MSR |
| Function: | information, encryption/decryption | payment terms: | Western Union, T/T, MoneyGram |
| Card Standard: | ANSI, ISO, ABA | Origin: | Guangdong, China |
| port: | Hongkong | data storage: | 2MB, 16,000 records are permanently reserved. |
| application: | hotel, store, bank | Charge data interface: | USB |
| Package preview: | Swipe Direction: | two-way | |
| Supply capacity: | 1000 sets per week | Data transmission method: | serial drama |
| Packaging Details: | msr card reader carton |
2019 oem smallest Msr009 magnetic card reader with magnetic read head
MSRV014 is a portable data collector. It is a portable magnetic stripe reader designed for collecting magnetic stripe data anytime and anywhere without a computer. Large memory can collect 32000 pieces of data. A built-in time clock indicates the date and time of each transaction. Data is read from the card and saved in memory, then downloaded to the computer.
feature:
1. Ultra-low power consumption - less than 10uA when idle, less than 80uA when swiping a card
2. Sliding of two-way reading interruption
3. Read all magnetic cards
4. Low voltage operation
5. Swipe direction - two-way
6. The data can be downloaded to the computer through the USB cable
7. Timestamps show the date and time of each transaction
8. Hardware embedded password protection
9. The 3-track version can collect all three-track data
10. Fully encrypted
11. Store 32000 card scans
12. All swipes have timestamps
13. Even if the power is off, the data will be retained
14. No programming required, just as easy to use as 1-2-3
15. INTERMITTENT DATA COLLECTION
16. Interrupt function
17. Rechargeable battery
| Board size | Length: 12.4mm, Width: 5.1mm, Height: 2.4mm |
| weight | 10.4 grams |
|---|---|
| electric | Standby current: 75uA working; current: 3.34-3.50mA; working voltage: 3-3.7V; charging voltage: 4.2V |
| CPU | 8-bit MCU |
| data storage | 2MB, permanently retain 16,000 records. |
| Operating mode | Offline and USB Mode |
| Product Description | Small size, rechargeable battery, download data via USB cable |
| international standard | Track 1 210bpi, 79 alphanumeric characters Track 2 75bpi, 40 numeric characters Track3 210bpi, 107 numeric characters |
| card standard | ANSI, ISO, ABA |
| operating system | Windows XP, Windows 7 / 8 / 10 |
application:
1. Any mobile data collection (trade shows, motorsports events)
2. Point of sale
3. Law Enforcement (DMV Card)
4. Attendance (student card, membership card)
V. Attendance at the meeting
6. Class attendance
7. Meeting Attendance
8. Door lock system
International standard:
Track 1: 210bpi, 79 alphanumeric characters
Track 2: 75bpi, 40 numeric characters
Track3: 210bpi, 107 numeric characters
