Direct sale 1000pcs/bag round blue yellow orange 395nm red green water transparent lens light emitting dipped 5mm LED diode kit
- $5.03 /bag
- 1 bag
- Shenzhen Czine Light Technology Co., Ltd.
- Guangdong, China
- Ms Jerssy Wong
Product Detail
Working temperature(℃): | -40 - 80 | Working hours (hours): | 3000 |
Input voltage (V): | 2V 3V | type: | bulb led |
Single package size: | 18X12X1 cm | Supported dimmers: | Yes |
Lens Color: | clear water | strength: | 0.06W, 0.06W |
Origin: | China | Color temperature (CCT): | 395nm 460nm 520nm 570nm 585nm 600nm 620nm |
Luminous efficacy (lm/w): | Post-90s | application: | led |
Storage temperature(℃): | -40 - 80 | Lighting Solutions Services: | Lighting and Circuit Design |
Package preview: | Gross weight per piece: | 0.320 kg | |
Luminous color: | red blue green yellow yellow green orange purple white | shape: | round |
size: | 5mm round | Viewing angle(°): | 30 |
Color rendering index (Ra): | 70 | Light attenuation (%): | 3 |
Warranty (year): | 2 years | Sales unit: | single product |
Voltage: | 1.8-2.2V 3.0-3.4v | brand: | light of light |
Packaging Details: | 1000pcs/bag, 100bags/carton. upon request. | Luminous color: | red blue green yellow yellow green orange purple white |
Lifespan (hours): | 30000 |

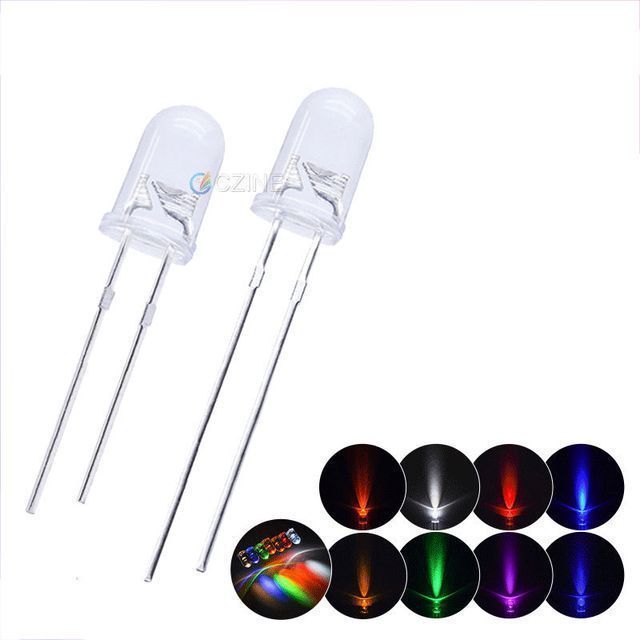

5mm round blue LED diode water transparent LED diode warm white orange

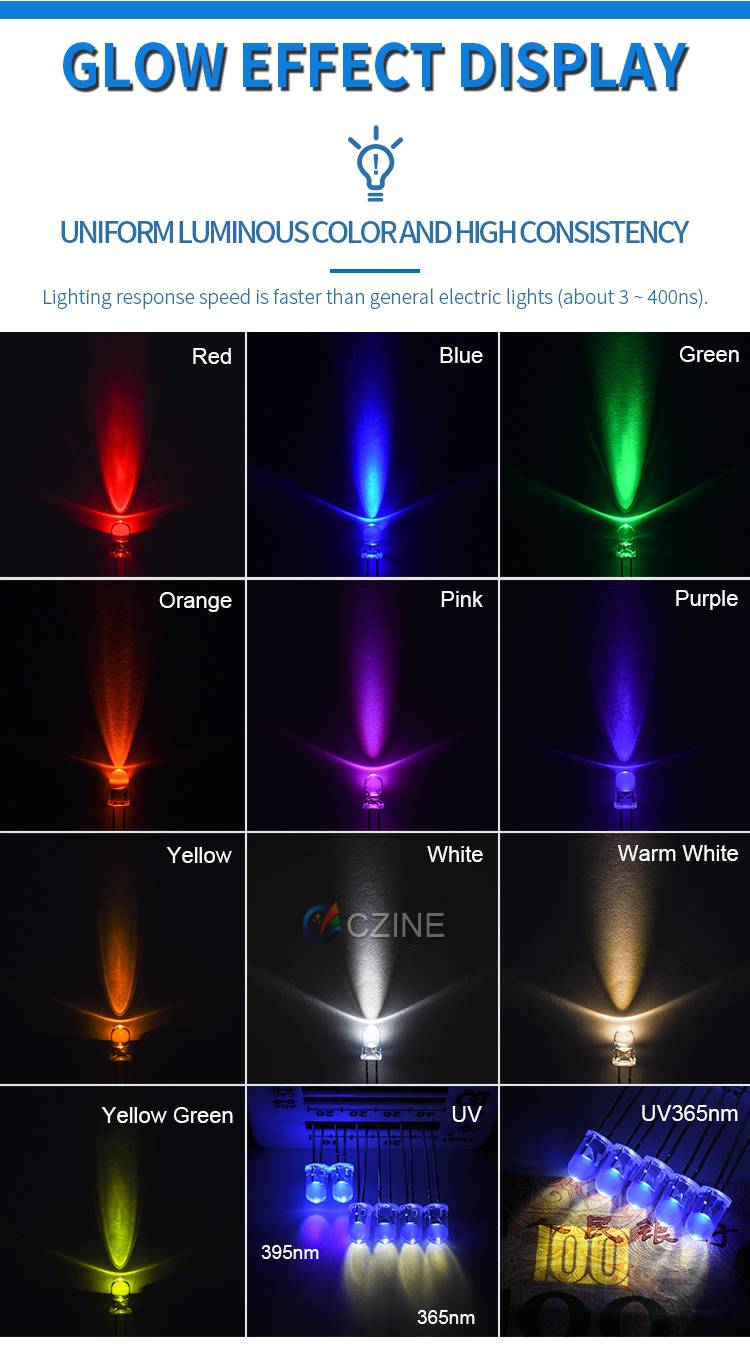

Electrical 8. Optical properties (Ta=25T), F=20mA) | ||||||
glow color | Dominant wavelength(nm)(k) | Luminous intensity (mcd) | 50% power angle (degrees) | Reverse current (uA) VR-5V | Forward voltage M | Recommended Forward Current (Ma) |
Red | 620-630nm |
2000-3000 10000-12000 |
30° | 5 | 20-22 | 20 |
blue | 460-470nm |
6000-8000 8000-10000 |
30° | 5 | 3.0-32 | 20 |
green | 520-525nm | 20000-25000 30000-35000 | 30° | 5 | 30-32 | 20 |
pink | 1500-2000 | 30° | 5 | 3.0-32 | 20 | |
Yelov | 588-595nm |
2000-3000 10000-14000 |
30° | 5 | 20.22 | 20 |
yellow-green | 570-575nm | 200-400 | 30° | 5 | 20-22 | 20 |
orange | 600-605nm | 1500-2000 | 30° | 5 | 2.0-22 | 20 |
purple |
365nm/ 395-400nm |
20-40 50-100 |
30° | 5 | 3.0-3.2 | 20 |
white | 8000k-10000k |
14000-16000
20000-24000 |
30° | 5 | 3.0-32 | 20 |
Warm White | 2800k-3200k | 14000-16000 | 30° | 5 | 3.0-32 | 20 |
