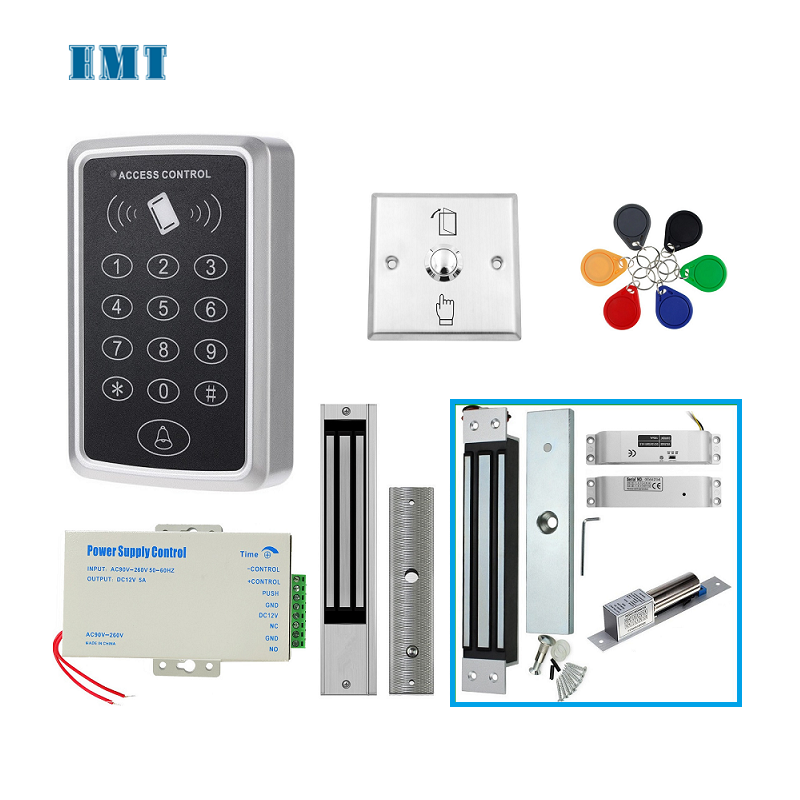

Hot Sale Plastic Keypad Access Controller Solenoid Lock 180KG/280KG Exit Button RFID Tag Access Control System Kit
- $13.00 /set
- 1 set
- Shenzhen Huiyuxin Technology Co., Ltd
- Guangdong, China
- Ms Jenny Liu
Product Detail
| model: | HMT-ST32SK | usage: | Office, Home, School, Factory |
| special function: | Waterproof/weatherproof | Card type: | Electromagnetic waves |
| type: | keyboard | interview method: | RFID card, password |
| Packaging Details: | standard package | Operating Voltage: | DC 12 |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal | Customization support: | OEM, ODM, customized logo |
| Name: | Access Control System Kit | User capacity: | 1000 |
| brand: | high speed rail | port: | Shenzhen or Hong Kong |
| Wiring connection: | Electric lock, exit button, doorbell | Origin: | Guangdong, China |
| size: | 120x78x22mm | Supply capacity: | 1000000000 pieces per month |
Product Description
Cheap Plastic Keypad Access Controller Solenoid Lock 180KG/280KG Exit Button RFID Tag Access Control System Kit
feature:1. Read 125KHz EM / 13.56MHz Mifare (factory default: EM 125KHz)

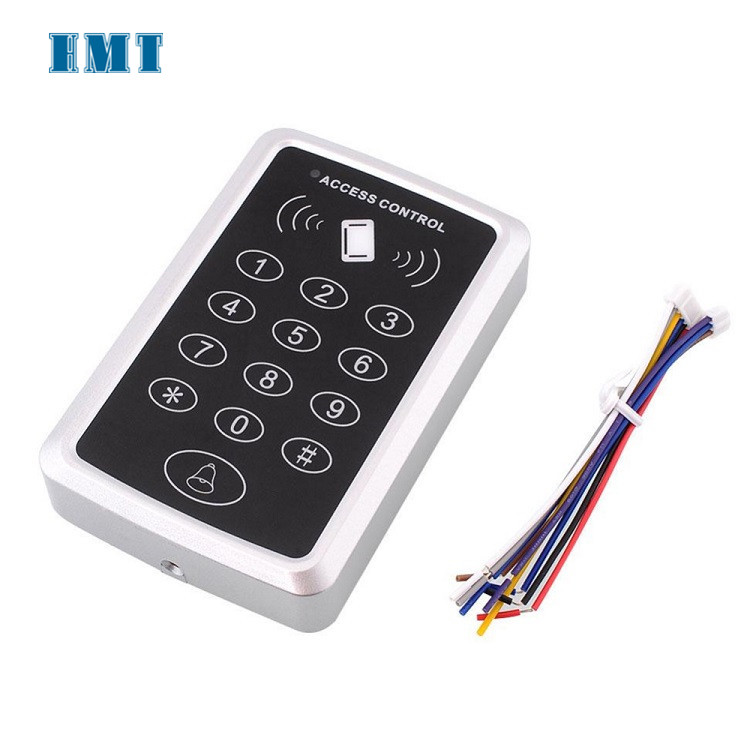

2. Plastic keypad 3. Contains card reader mode. The transmission format can be adjusted by the user. 4. Support different access control methods: card + password entry or multi-card entry 6. User capacity: 1000 users
Specification
Model: HMT-ST32 Material: ABS Indoor and outdoor: indoor User capacity: 1000 users Card type Frequency: EM 125KHZ, optional MF 13.56MHZ Reading range: 2-5cm Opening time: 0～99s Opening method: Card, Pin, Card + password: 4-digit password Wiegand: WG26 Input and output port size: 120x78x22mm Weight: 0.36kg/pcs Working voltage: DC12V±10% Ambient temperature: -40℃-60℃ Ambient humidity: 10%-90%
Model: HMT-M180 Material: Zinc Alloy Product Size: 170Lx40Wx21H(mm) Power Supply Voltage: 12V, or 24V Optional Holding Force: 300lbs Applicable: Wooden Door, Glass Door, Metal Door, Fire Door Surface Temperature: ≤+ 20℃ Applicable Temperature: 0~+55°C Working Humidity: 0~90% (non-condensing)
Optional: HMT-M280 280kgs magnetic lock
HMT-M195 Delay drop bolt lock
HMT-M181 Low temperature time delay drop bolt lock
Model: HMT-PS5S Size: 130*68*38mm Ripple Voltage: Up≤50mV Input Voltage: AC 220V Input Frequency: 50Hz Output Voltage: DC12V Output Current: 5A
Endurance test: 1,000,000 tests Installation: Hollow door frame
Model Number: HMT-K3E Color: Blue, Yellow, Red, Orange, Black, Gray, White or Customized Function: Built-in RFID Chip, Read/Write Memory: 64bit or depends on different chips Operating Frequency: 125khz, 13.56MHz or According to Chip Chip: TK4100 or other Resistance: IP67 Certificate: ISO, ROHS, FCC, CE Data Transmission Speed: 106 Kboud Reading Distance: 1-30mm Reading/Writing Time: 1-3(ms) Reading Times: > 100 000 Data retention: >10 years Optional technology: 1) Screen printed logo/image/graphic...2) Laser engraved serial number3) Chip coding
wiring diagram
