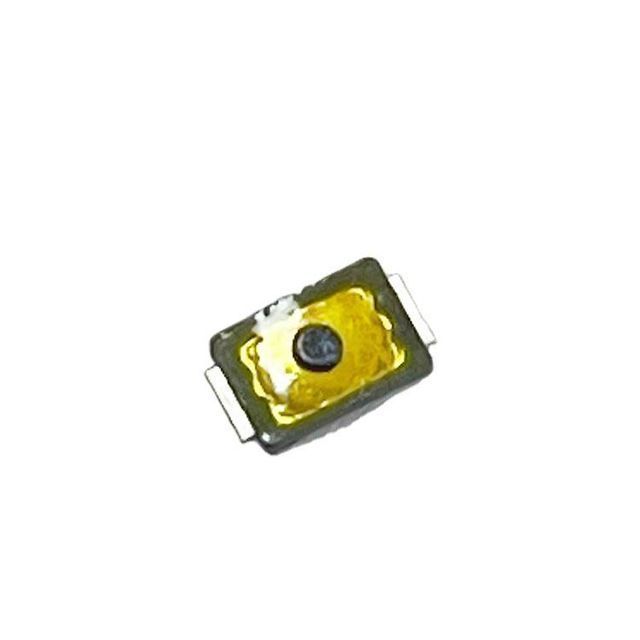

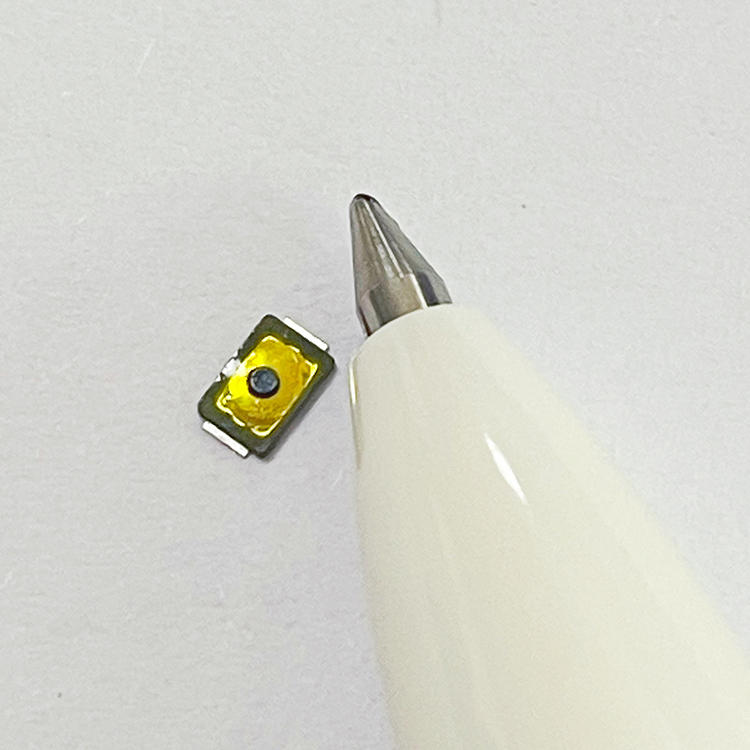

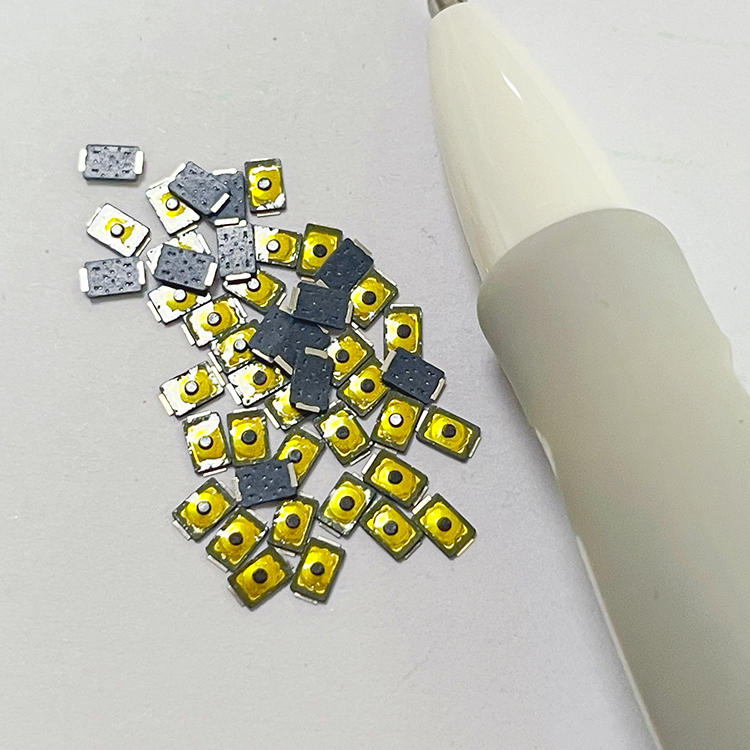

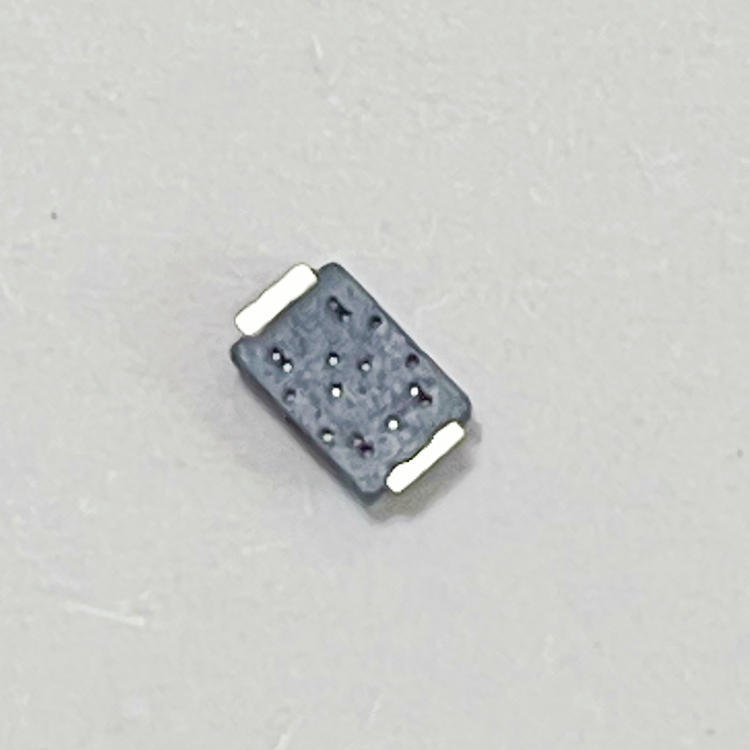

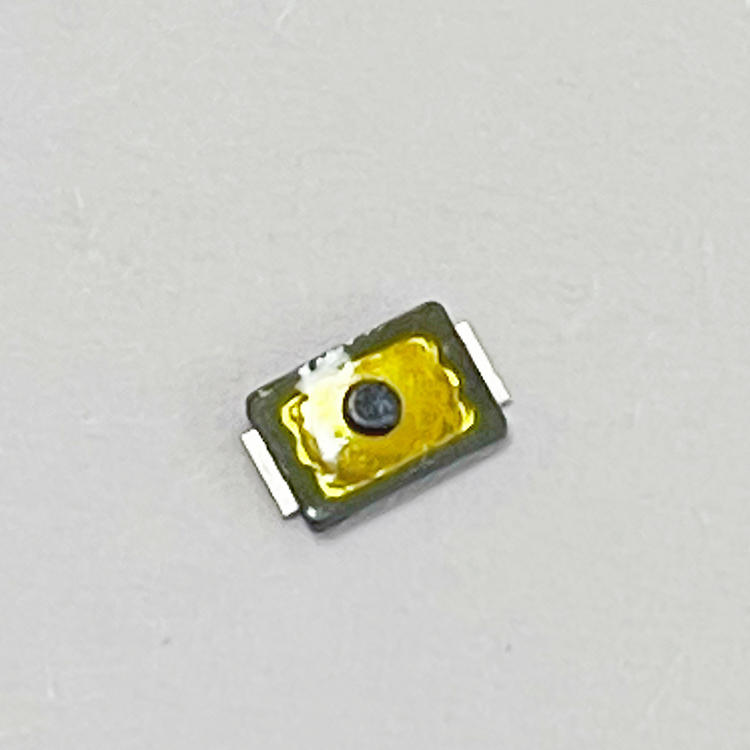

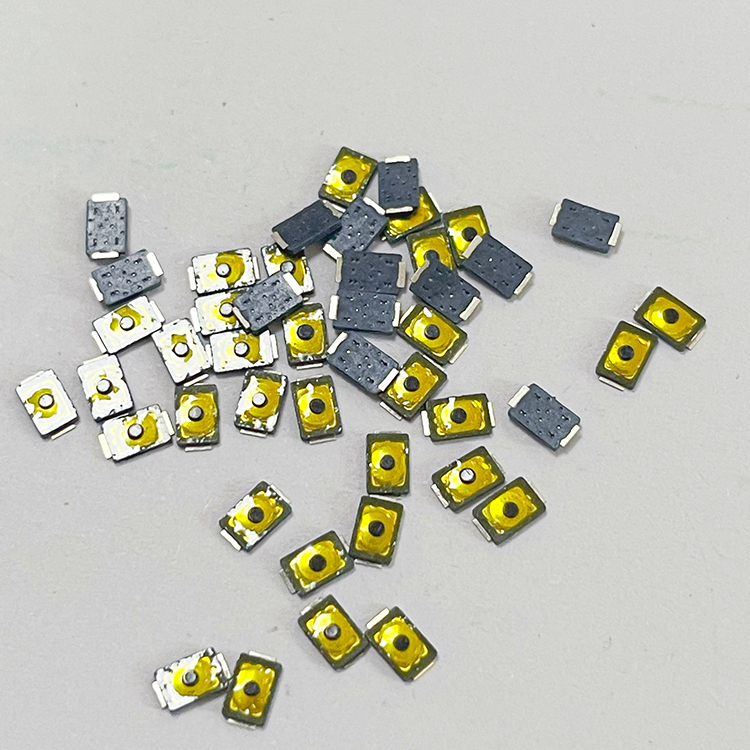

New 0.65mm Height Miniature Tact Switches for Amazon Dash Buttons

Product Detail

color:BlackOperating force:260±50 grams force
Contact resistance:100mΩ maxmodel:TS3020A-0065C-G3.5
port:ShanghaiSupply capacity:5,000,000 tact switches for Amazon Dash buttons per month
Certification:cesize:3mm*2mm*0.65mm
product name:New 0.65mm Height Miniature Tact Switches for Amazon Dash Buttonspayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal
weight:0.01gPackaging Details:2000pcs miniature tact switch per reel, 10 reels per carton, 20000pcs per carton
maximum. Voltage:12VInsulation resistance:Minimum 100MΩ
circuit:SPSTbrand:Svitek
Product Category:TS3020A-0065C-G3.5Operation type:moment
place of origin; place of origin:China
Product Description

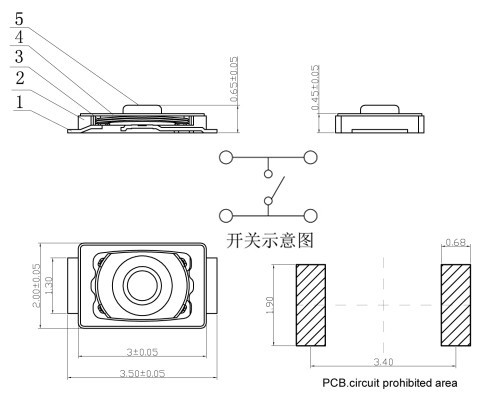

Specifications and Drawings
name
New 0.65mm Height Miniature Tact Switches for Amazon Dash Buttons
Model
TS3020A-0065C-G3.5
score
50mA 12VDC
Contact resistance
100mΩ max
Insulation resistance
Minimum 100MΩ
operating force
260±50 grams force
total travel
0.25±0.10mm
service life
100,000 cycles
Features
moment
terminal form
Mounter
Soldering ability
260±5℃ for 3 seconds
Operating temperature
-25℃~+85℃
Storage temperature
-40℃~+85℃
material and color
1. Terminal
silver plated brass
2. Case
LCP/Black
3. Spring plate
Silver-plated SUS contact surface
4. Movies
polyimide/yellow
5. stem
PPA/black
