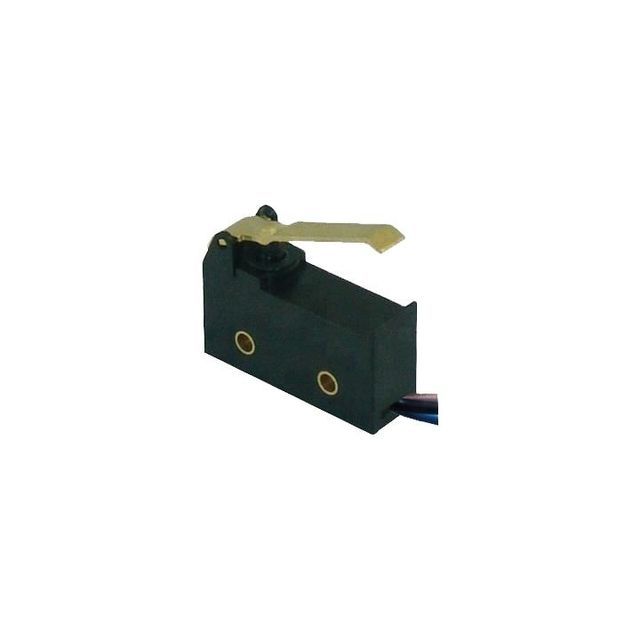

IP67 waterproof microswitch
- $2.00 / >=200 pieces
- 200 pieces
- Suns Electric (zhangzhou) Co., Ltd.
- Fujian, China
- Ms Jane Wang
Product Detail
| port: | Xiamen | brand: | suns |
| Protection class: | IP67 level | Operating temperature: | -40~85 |
| Certification: | ur | Supply capacity: | 100000 pieces per month |
| model: | SLD7140 | Whether smart: | No |
| maximum. current: | 10A | Packaging Details: | As required |
| payment terms: | L/C, T/T | Origin: | Fujian Province, China |
| maximum. Voltage: | 250V |
| Specification: Waterproof micro switch | |
| impulse | IEC60028-2-27:1987 |
| vibration, sine wave | IEC60028-2-26:1995 |
| Running speed: | 0.01mm-1m/sec |
| working frequency: | Mechanical: 600ops/min Electrical: 60ops/min |
| Insulation resistance: | >100mΩ@500V DC |
| Contact resistance: | <25mΩ |
| Rated voltage: | 250VAC |
| Rated current: | 10A |
| Dielectric strength: | 1000VAC for 1 minute between current-carrying parts |
| 2000VAC for 1 minute between non-current-carrying parts | |
| Service life: | Mechanical 1×107(operate) |
| Electricity 5×105(operate) | |
| Operating temperature: | About -40~85 without freezing |
| Protection class: | IP67 level |
Delivery Details:
Xiamen FOB
payment terms:
T/T or L/C
MOQ:
200 pieces/piece
delivery time:
2-4 weeks
