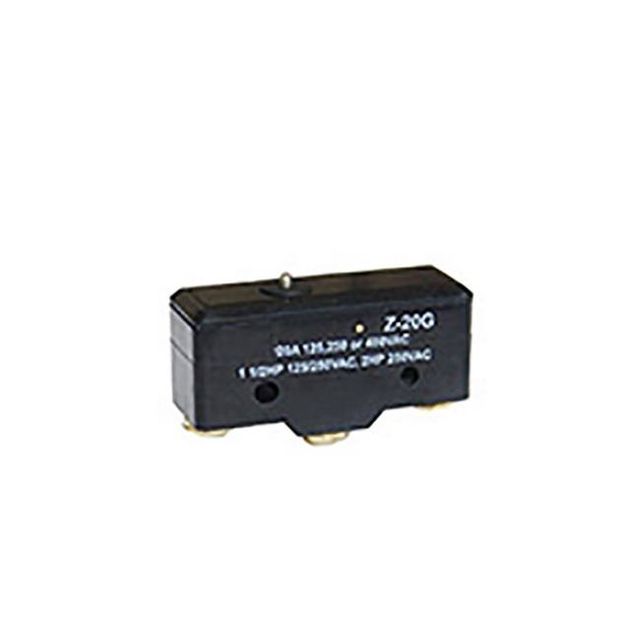

High-grade new design waterproof car button micro switch car electric miniature black waterproof switch
-
$4.78 / 1 - 99 pieces
$2.99 / 100 - 4999 pieces
$2.90 / >=5000 pieces - 1 piece
- Nanjing KJT Electric Co., Ltd.
- Jiangsu, China
- Ms Support KJT
Product Detail
| capacity: | 500,000 pieces per year | Packaging Details: | Pack into plastic bags first, then into cartons |
| Supply capacity: | Annual output 500,000 pieces | seal: | standard |
| Protection class: | IP00/IP63 | electric: | 20 times/min |
| maximum. current: | 20A, 125/250/480VAC, 1.5HP/125VAC or 2HP/250VAC | Service life: | Mechanical 1*107 (Operation) |
| brand: | Kojet | Origin: | Jiangsu, China |
| Running speed: | 0.01mm-1m/sec | model: | KJT-Z-20G |
| Operating temperature: | About -25~+80 (-4~+176) | port: | Shanghai, Ningbo |
| Terminal style: | screw terminal | Contact materials: | silver |
| Package preview: | OEM: | accept | |
| payment terms: | Western Union, T/T, Paypal | Certification: | EU CE, ROHS |
| maximum. Voltage: | 20A, 125/250/480VAC, 1.5HP/125VAC or 2HP/250VAC | humidity: | <95%RH |

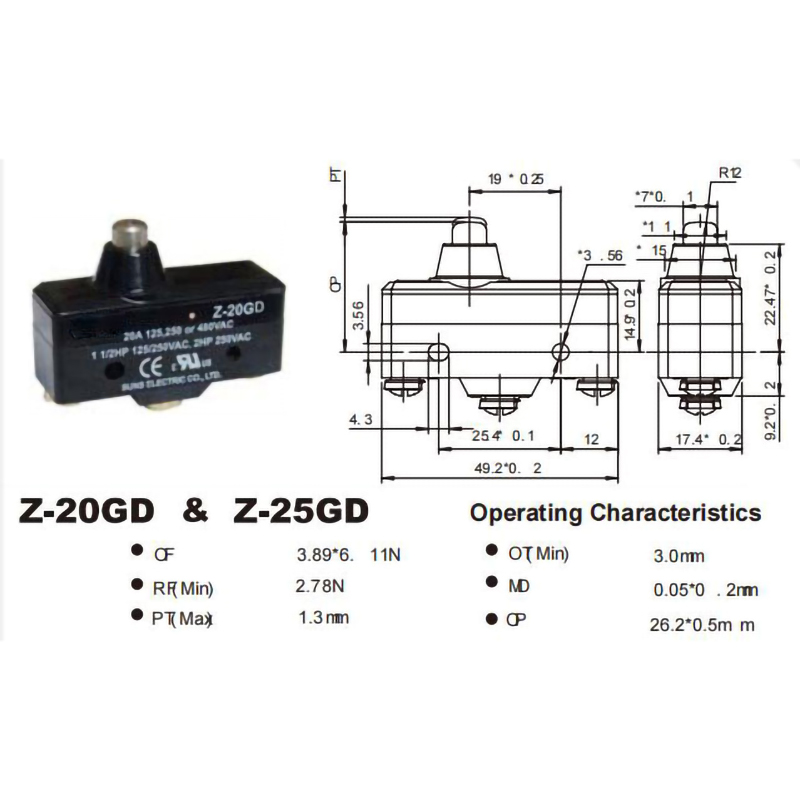

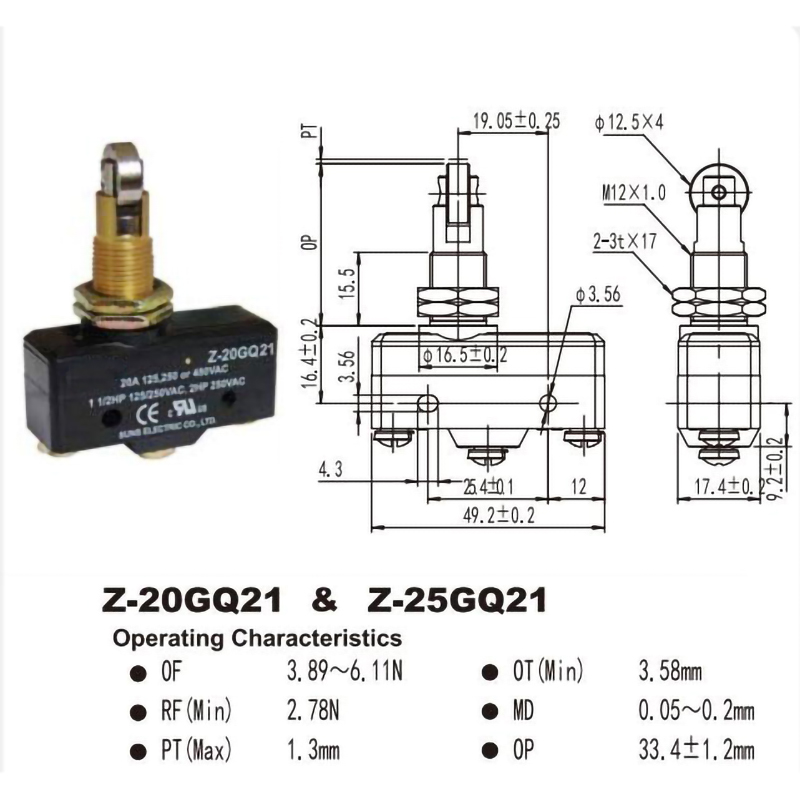

product display
product information
working frequency | Mechanical: 240 times/min |
Electrical: 20 times/min | |
Insulation resistance | >100MΩ@500VDC |
Contact resistance | <15mΩ |
Rated current/voltage | 20A/25A, 125/250/480VAC; 1-1/2HP/125VAC |
2HP/250VAC (UL file E321073) | |
Dielectric strength | 1000VAC for 1 minute between live parts |
2500VAC for 1 minute between dead parts | |
service life | Mechanical 1.0x107 (Operational) |
Electrical 5x105 (Operational) | |
Operating temperature | -40~+105oC(-40~211oF) |
humidity | 35-85%RH/35-95%RHfor-55 sealed version |
degree of protection | IP40/IP64for-55 sealed version |
Operating Voltage | Non-inductive load (A) | Inductive load (A) | ||||||||||||
resistive load | bulb load | Inductive load | motor load | |||||||||||
CNC | promise 0 | CNC | promise 0 | CNC | promise 0 | CNC | promise 0 | |||||||
125VAC | 20(25) | 20(25) | 7.5 | 7.5 | 20(25) | 20(25) | 12.5 | 12.5 | ||||||
250VAC | 20(25) | 20(25) | 7.5 | 7.5 | 20(25) | 20(25) | 8.3 | 8.3 | ||||||
500VAC | 15 | 15 | 4 | 4 | 10 | 10 | 2 | 2 | ||||||
8VDC | 20(25) | 20(25) | 3 | 1.5 | 20(25) | 20(25) | 12.5 | 12.5 | ||||||
14VDC | 20(25) | 20(25) | 3 | 1.5 | 15 | 15 | 12.5 | 12.5 | ||||||
30VDC | 6 | 6 | 3 | 1.5 | 5 | 5 | 5 | 5 | ||||||
125VDC | 0.5 | 0.5 | 0.5 | 0.5 | 0.05 | 0.05 | 0.05 | 0.05 | ||||||
250VDC | 0.25 | 0.25 | 0.25 | 0.25 | 0.03 | 0.03 | 0.03 | 0.03 | ||||||
Inrush current | NC:75Amax.NO:75Amax | NC:75Aapprox.NO:75Amax | ||||||||||||
