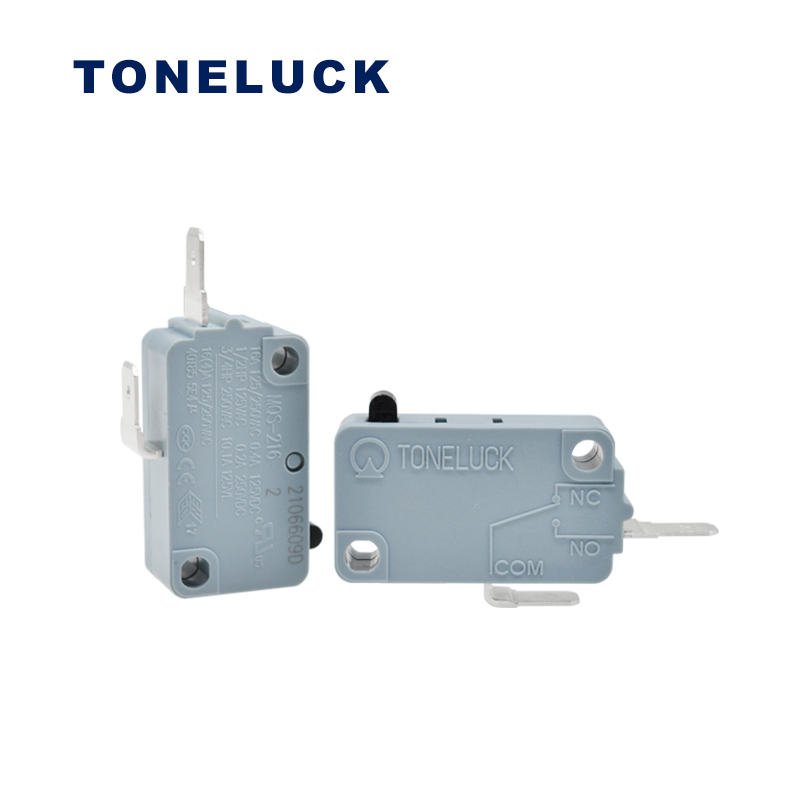

Toneluck MQS-216 16A 125V 250V Normally Open Microswitch

Product Detail

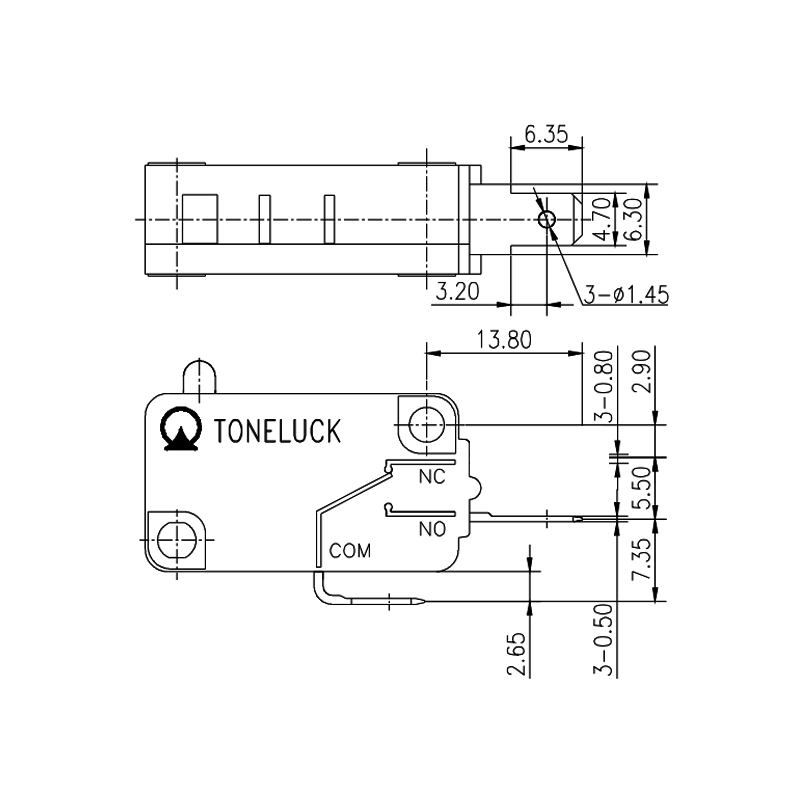

West:27.8*10.2*15.9mmcircuit:SPDT SPST-NO SPST-NC
maximum. current:16Aproduct name:MQS-216 Snap Action Micro Switch
Package preview:Certification:ulcul, ENEC, CE, CQC
Protection class:Protection class 00Supply capacity:1,000,000 boxes per quarter
Origin:Guangdong, Chinaport:Hong Kong Shenzhen
Whether smart:NoOperating temperature:-40°C to +85°C
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramInsulation resistance:100 MΩ minimum
maximum. Voltage:250VOperating force:55g/100g/160g/200g/350g
temperature:40T85/40T125/40T150brand:music
model:MQS-216SN00BCMContact resistance:50mΩ max initial
Dielectric strength:500VAC 60 ± 5 secondshousing:UL94V-0 Thermoplastics
Mechanical life:1,000,000 cycles minimumPackaging Details:1. Packing: 1000pcs/carton. 2. Gross weight: about 2.7 kg For more details, please feel free to contact us
1. High quality and high precision have won the trust of many customers all over the world;
2. Automatic production line, fast delivery time;
3. Free sample testing before placing an order;
4. OEM or ODM is available, we have provided many OEM and ODM products so farespecially forauto industryto our customers;
5. Engineering support, we will help you choose the model when you design, and help youfigure outWhen you encounter problems during use;
6. Provide you with drawings or data sheets before samples or orders;
7. Toneluck was established in 1976, the best switch manufacturer in China.
MQS Series Subminiature Switches
1. It can be used for 0.1A, 3A, 5A, 10A, 16A, 22A, 26A and other application loads. The products include ULCUL, CQC, ENECand other relevant certifications;
2. Different types of levers and contact terminals can be customized according to customer needs; 3. The product design complies with IEC61058 and UL1054 4. The product complies with ROHS and REACH
Specifications
product name
TONELUCK MQS-2 Series Switches
Electrical Ratings of the MQS-216
16A 125/250VAC
1/2HP 125VAC
3/4HP 250VAC
10.1A 125VL (tungsten wire)
16(4) a 125/250VAC

Electrical Ratings of the MQS-216T
16A 125/250VAC
1/2HP 125VAC
3/4HP 250VAC
10.1A 125VL (tungsten wire)
16(4)A 125/250VAC
Electrical Ratings of the MQS-210H
10A 125/250VL
1/2HP 125/250VAC
1A 30VDC
Leverage
01, 02, 03 … 00 = without joystick
terminal type
A, B, C ... (see table)
current
SPDT, SPST-NO, SPST-NC
operating force
K 55+/-15gf 10~50gf
S Maximum 100gf Minimum 20gf
Length 100 +/- 25gf 20 ~ 90gf
Medium 160 +/- 30gf 50 ~ 140gf
Newton 200+/-30gf 55~160gf
P 350+/-50gf 80~300gf
VIEW MORE
