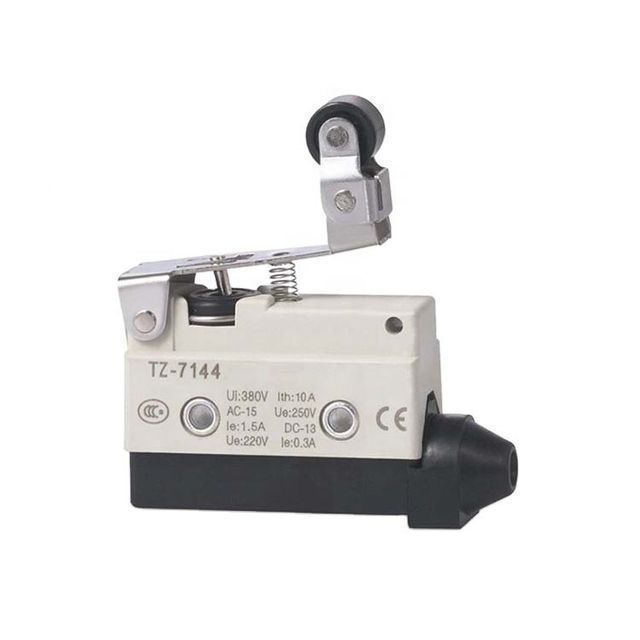

TZ-7144 AZ-7144 D4MC-3030 miniature limit switch
- $0.50 / >=100 pieces
- 100 pieces
- Yueqing Winston Electric Co., Ltd.
- Zhejiang, China
- Ms Tess Wong
Product Detail
| payment terms: | Western Union, T/T | Operating temperature: | -35℃~75℃ |
| port: | Ningbo/Shanghai | Packaging Details: | Export standard carton |
| Certification: | CE certification | Is it smart: | Do not |
| maximum. current: | 10A | Contact resistance: | 15m ohms (initial) |
| Protection class: | IP65 | Supply capacity: | 50000 pieces per week |
| Mechanical life: | At least 10,000,000 operations | Electrical life: | At least 500,000 operations |
| Contact materials: | Silver alloy contacts | brand: | Winston/OEM |
| maximum. Voltage: | 380VAC | model: | TZ-7144 AZ-7144 D4MC-3030 |
| place of origin; place of origin: | Zhejiang, China | Operating frequency: | 120 times/min |
TZ-7144 AZ-7144 D4MC-3030 miniature limit switch
1. Features:
A variety of actuators, adjustable action position (such as TZ-7121)
The shell is covered with reinforced plastic, which is water and oil repellent. The mechanical strength is superior to that of the TM type micron switch, and it is impact-resistant.
2. Rated quantity:
| rated Voltage (V) |
Non-inductive load (A) | Inductive load (A) | |||||||
| Resistive load |
lamp load | Inductive load |
motor load | ||||||
| CNC | Do not | CNC | Do not | CNC | Do not | CNC | Do not | ||
| 125 VAC 250 volts 480 volts |
10 10 3 |
3 2.5 1.5 |
1.5 1.25 .75 |
10 10 2.5 |
10 10 2.5 |
5 3 1.5 |
2.5 1.5 .75 |
||
| 8 VDC 14 VDC 30 Vdc 125 Vdc 250 Vdc |
10 10 8 0.5 0.25 |
3 3 3 0.4 0.2 |
1.5 1.5 1.5 0.4 0.2 |
6 6 6 0.4 0.2 |
6 6 6 0.4 0.2 |
6 6 5 0.05 0.03 |
5 5 2.5 0.05 0.03 |
||
| notes | 1. The power factor of inductive load is 0.4min. (AC) and 7 ms (DC) time constant 2. The lamp load has a surge current of 10 times the steady-state current, and the motor load has a surge current of 6 times the steady-state current. |
||||||||
3. Action characteristics:
| running speed | .01 mm to 50 cm/s |
| operating frequency | 120 operations/min. |
| Contact resistance | 15m ohms (initial) |
| Insulation resistance | 100M ohms minimum (at 500 VDC) |
| Dielectric strength | 1,000 VAC, 50/60Hz for 1 minute between non-continuous terminals 2,000 VAC, 50/60Hz for 1 minute, between current-carrying and non-current-carrying parts and between each terminal and ground |
| vibration | 10 to 55Hz 1.5mm double amplitude |
| Shock | Mechanical durability 1000m/sec^2 (about 100G) |
| ambient temperature | -5° to +65°C |
| humidity | 95% relative humidity max |
| service career | Mechanical operations: 10,000,000 operations minimum. Electrical: at least 500,000 operations |
| weight | about 66 grams |
| degree of protection | IEC 529 rated IP65 |

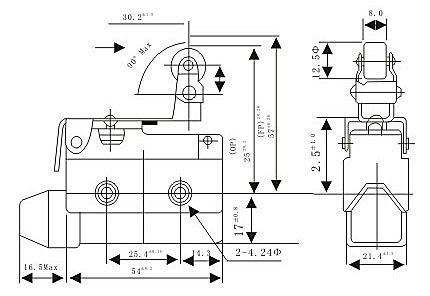

4. Dimensions:
