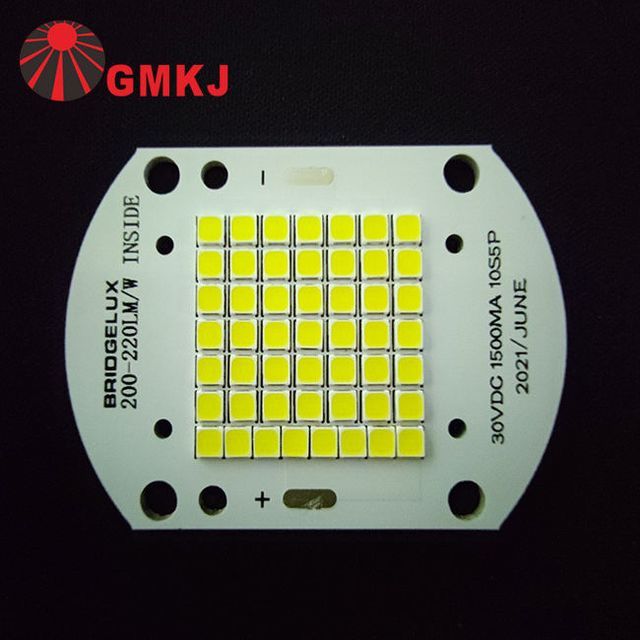

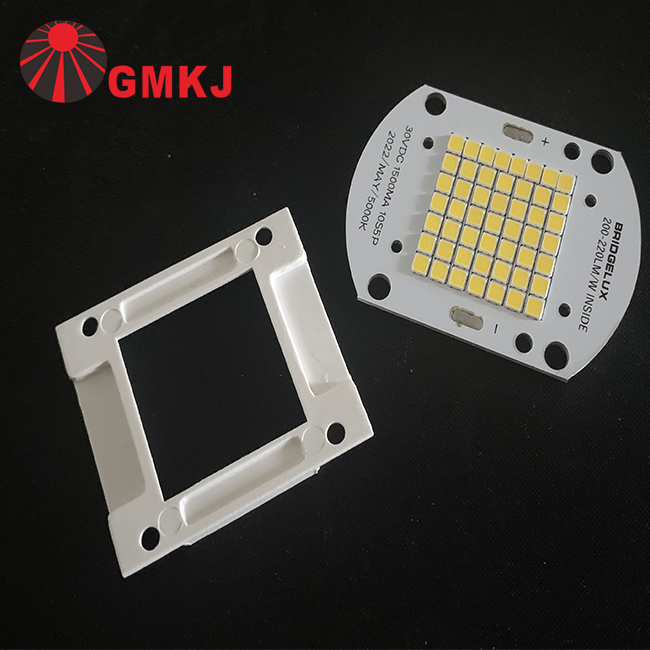

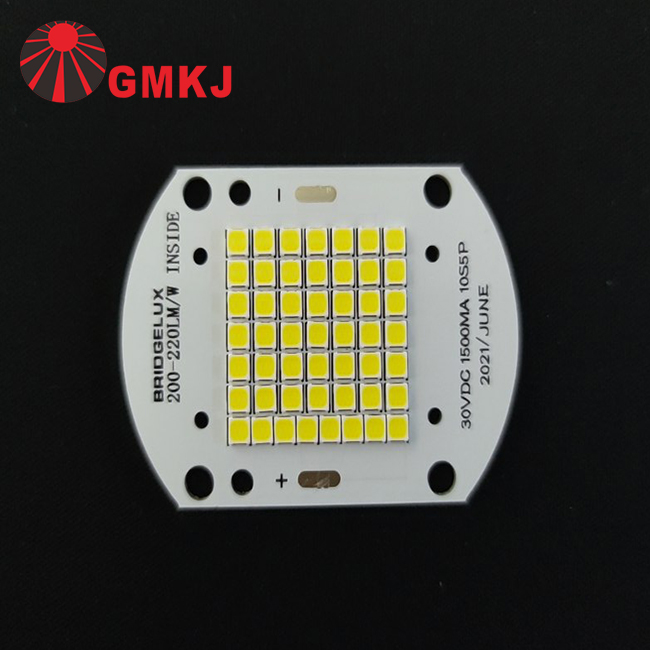

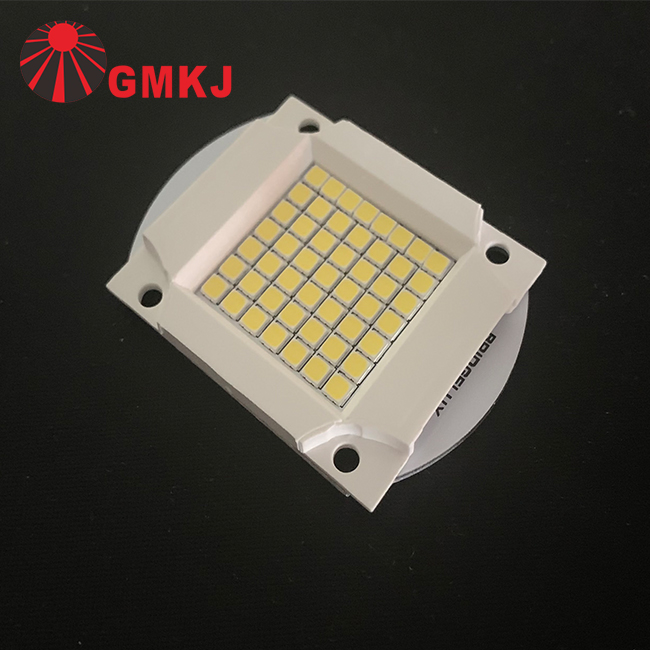

Max 200LMW White 20W 30W 40W 50W SMD LED Module Aluminum PCBA Board
-
$2.00 / 500 - 4999 pieces
$1.80 / >=5000 pieces - 500 pieces
- Shenzhen Guangmai Electronics Co., Ltd.
- Guangdong, China
- Mr John Wang
Product Detail
| Luminous flux (lm): | 150 | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| type: | SMD LED | LED type: | Aluminum plate |
| Chip material: | Yinggen | brand: | GMKJ LED |
| color: | White 2700-7000K | life: | 50,000 hours |
| Lifespan (hours): | 50000 | Working temperature (℃): | 10-80 |
| Glow color: | White 2700-7000K | Support dimmer: | Yes |
| Lighting Solutions Services: | Lighting and circuit design, DIALux evo layout, LitePro DLX layout, Agi32 layout, automatic CAD layout, on-site metrology, project installation | type of packaging: | There are 3030 SMD LEDs on the board |
| Product weight (kg): | 0.01 | Chip brand: | Jingyuan Sanan Bridgelux Epileds |
| product name: | 20W 30W 40W 50W SMD LED module aluminum PCBA board | light intensity: | 130 |
| current: | 28-32vdc 1500mA 50W | Color temperature: | White 2700-7000K |
| application: | LED street lights, floodlights | Power consumption: | 3 |
| Input voltage (V): | DC 28-32vdc | Color temperature (correlated color temperature): | White 2700-7000K |
| Luminous efficiency (lm/w): | 130 | Storage temperature (℃): | 10-30 |
| Color rendering index (Ra): | 80 | Viewing angle (°): | 120 |
| Packaging details: | Reel packaging, vacuum packaging, 500 pieces per roll | Place of origin: | Guangdong, China |
| Light attenuation (%): | 0.1 | Warranty period (years): | 5 years |
| strength: | 20W/30W/40W/50W | Package preview: | |
| Supply capacity: | 1,000,000 pieces per week | Working hours (hours): | 50000 |
| port: | Shenzhen Shekou Port | Certification: | CE/ROHS/LM80/FCC |
Product Description
thing | Max 200LMW White 20W 30W 40W 50W SMD LED Module Aluminum PCBA Board | ||||||
strength | 20W, 30W, 40W and 50W | ||||||
current | 28-32vdc 1500mA 50W | ||||||
Voltage | 28-32 VDC | ||||||
wavelength | White 2700-7000K, cool white, neutral white, warm white | ||||||
Lifespan (hours) | 50000 | ||||||
Warranty period (years) | 3 years | ||||||
Viewing angle(°) | 120 degrees | ||||||
lumen | 3800-4000 lumens | ||||||
Chip brand | Taiwan Epistar, Taiwan Epileds, American Bridgelux, China Sanan | ||||||
Chip size | American Bridgelux chip, maximum 200-220LM/W | ||||||
Glow color | White 2700-7000K, cool white, neutral white, warm white | ||||||
birthplace | China | ||||||
Comment | 4 years warranty | ||||||
brand | GMKJ LED | ||||||

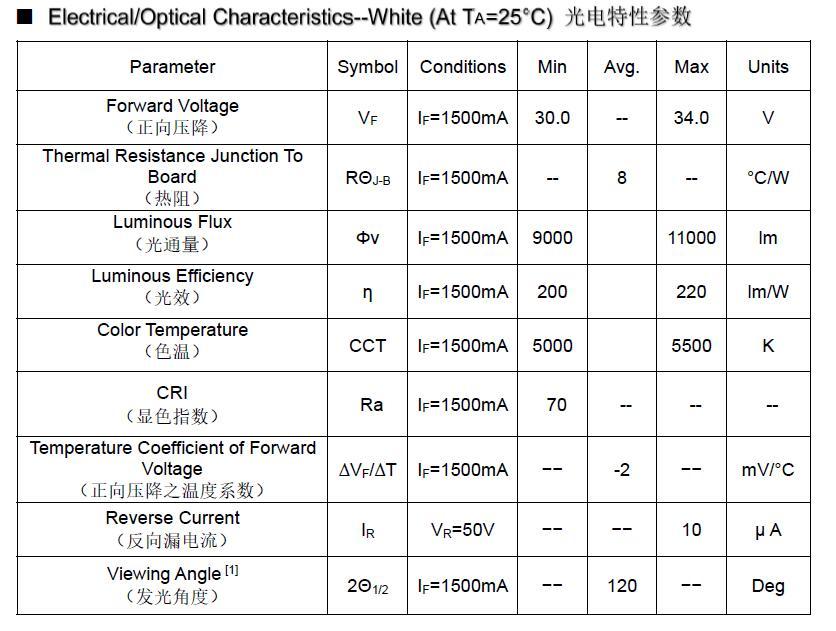

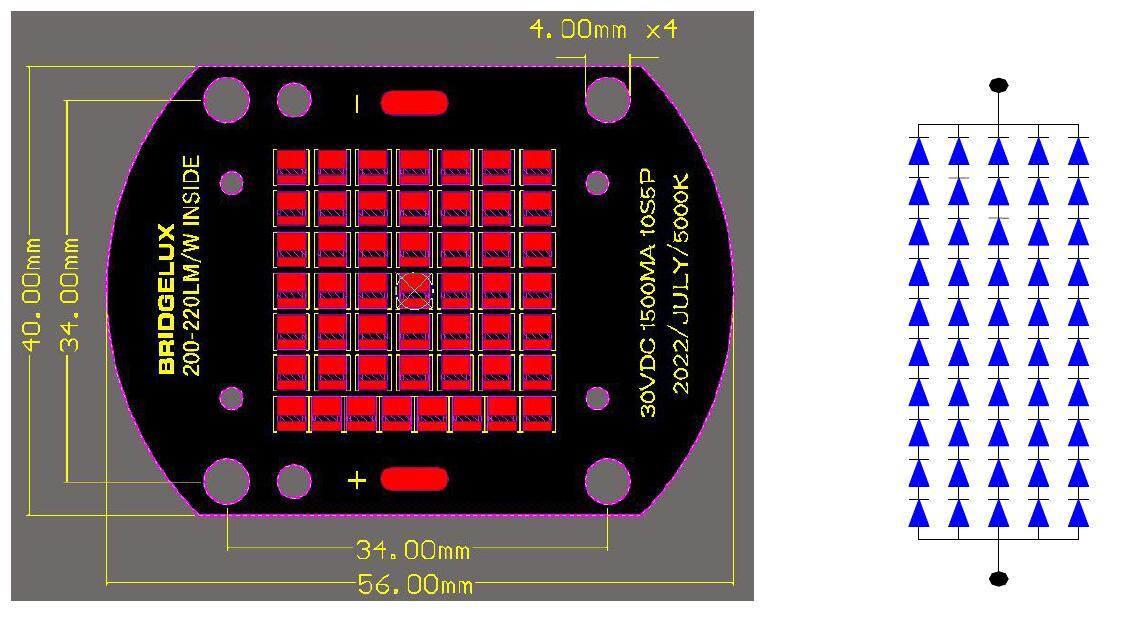

Specification

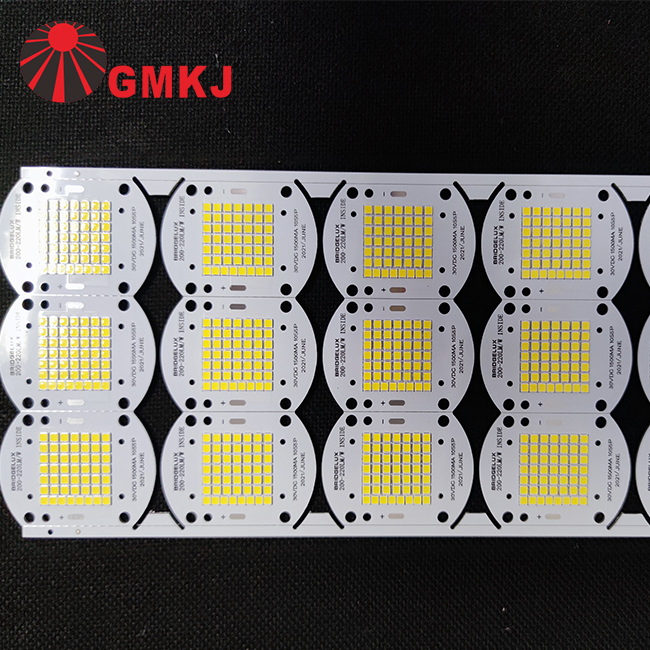

Product packaging
application
about Us
Guangmai Technology Co., Ltd. is located in Shenzhen, China and is a professional LED chip packaging manufacturer. We mainly produce 2835, 3030, 3535 SMD LED, 3-100 watt COB LED, high power LED chips, UV LED and IR LED. All these LED diodes are widely used in street lights, plant grow lights, high bay lights, UV curing machines, CCTV security camera lighting, etc. All our products have passed the U.S. Energy Star standard LM-80, CE, and RoHS tests. Before shipment, we conduct 100% testing on the brightness, color temperature and input voltage of each LED. We provide 2-4 years warranty for the LED chips we sell now.
Looking forward to getting more cooperation.
We have professional engineer support, efficient sales team and competitive price advantage, and attract customers from all over the world, we export to more than 40 countries, including Europe, Poland, Serbia, Turkey, Russia, United States, Mexico , Brazil, India, Thailand, the Middle East and South Africa.
After several years of development, we have made great progress. We have a good partnership with Bridgelux in the United States. Our products are equipped with fully automatic American ASM patch machines, Chinese KS gold wire soldering machines, 100% automatic color sorting bin machines and reel packaging machines. Our R&D department provides strong technical support, enabling us to obtain some OEM, ODM projects.
Looking forward to getting more cooperation.
advantage
1. Good quality assurance, 50,000 hours life, 2-5 years warranty.
2. Professional engineers and experienced workers.
3. Short delivery time, usually 1-7 working days.
4. CCT, CRI, Lumen, VF, Color and other specifications can be customized.
5. Various module types, such as SMD LED, 1-5W high-power LED, 1-1500W integrated LED.
Strong R&D force
2. Professional engineers and experienced workers.
3. Short delivery time, usually 1-7 working days.
4. CCT, CRI, Lumen, VF, Color and other specifications can be customized.
5. Various module types, such as SMD LED, 1-5W high-power LED, 1-1500W integrated LED.
Strong R&D force
One of the largest R&D technical teams among global LED manufacturers. More than 40 experienced and strong R&D team
engineer.
engineer.
World standard CNAS accredited laboratory.
Launch highly competitive new products seasonally.
Revolutionary launch of a full range of high-power and highly integrated ceramic flip-chip LEDs and compact high-power SMDs.
Serve
Serve
·Reply to your inquiry within 12 working hours
· Well-trained and experienced staff answer all your inquiries in fluent English.
· Strict quality control procedures before shipment.
· Customizable design, OME and ODM welcome
· Deliver goods quickly and accurately to customers around the world.
