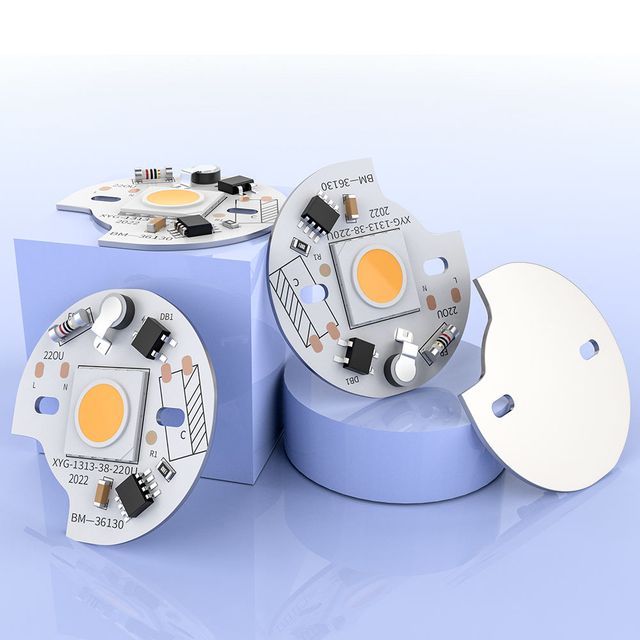

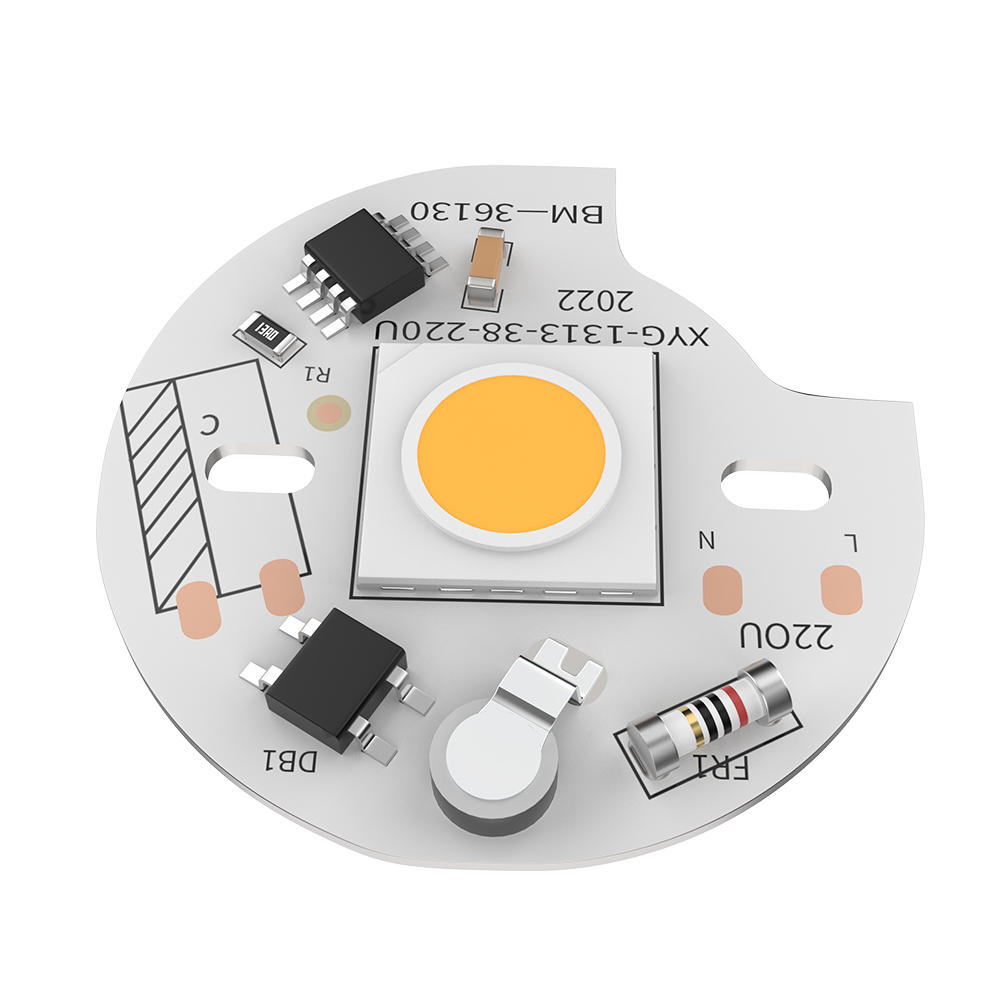

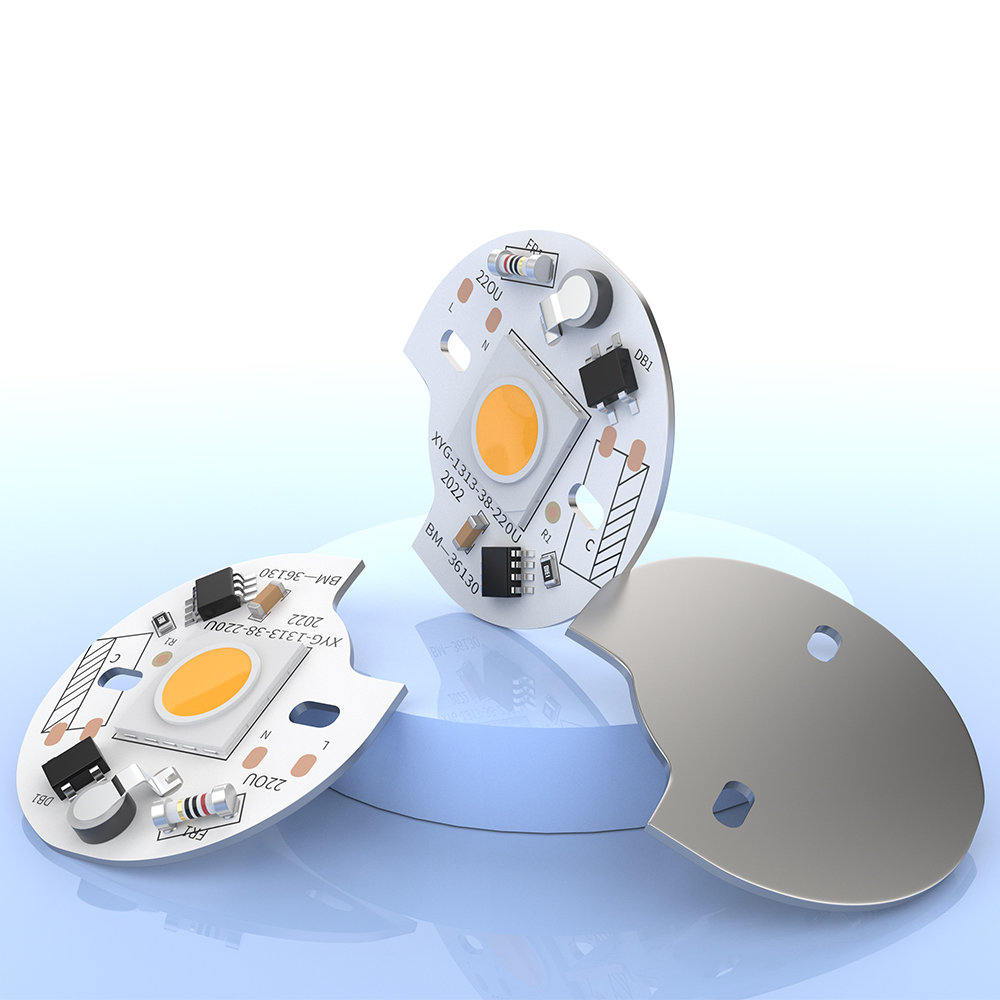

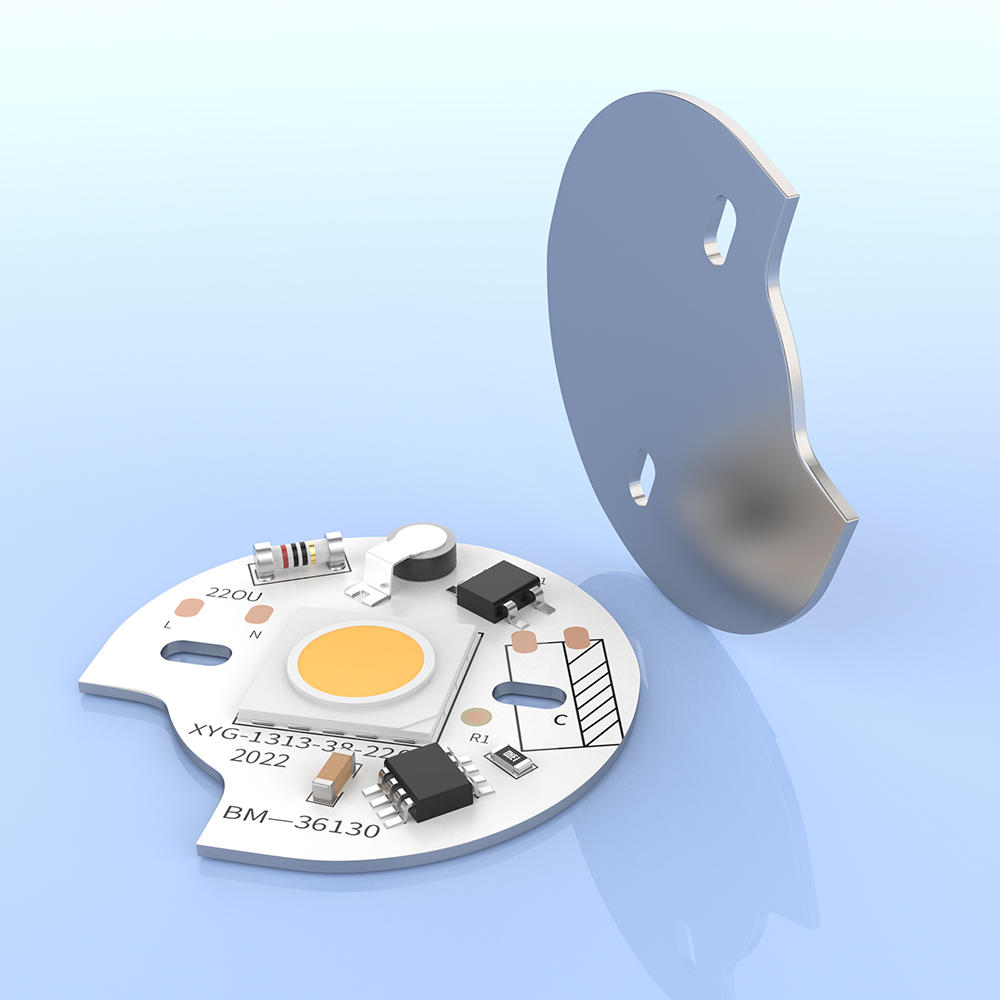

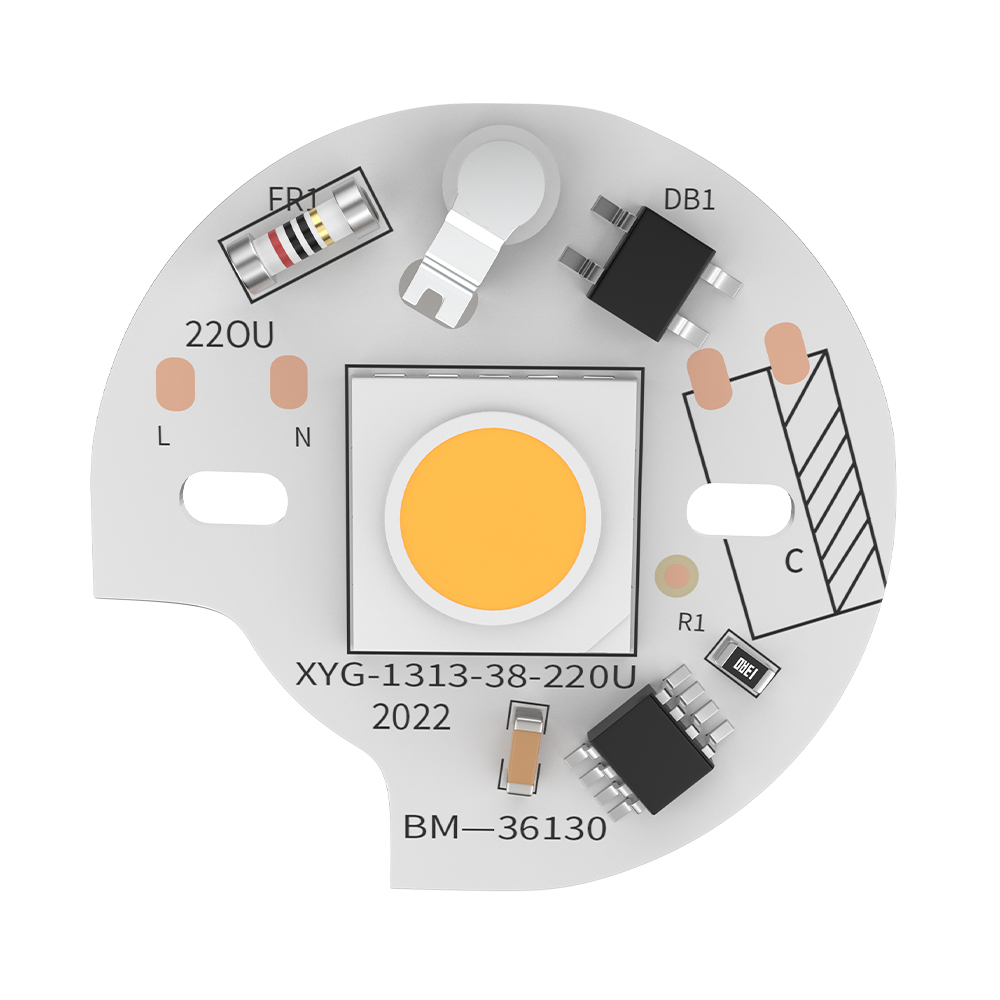

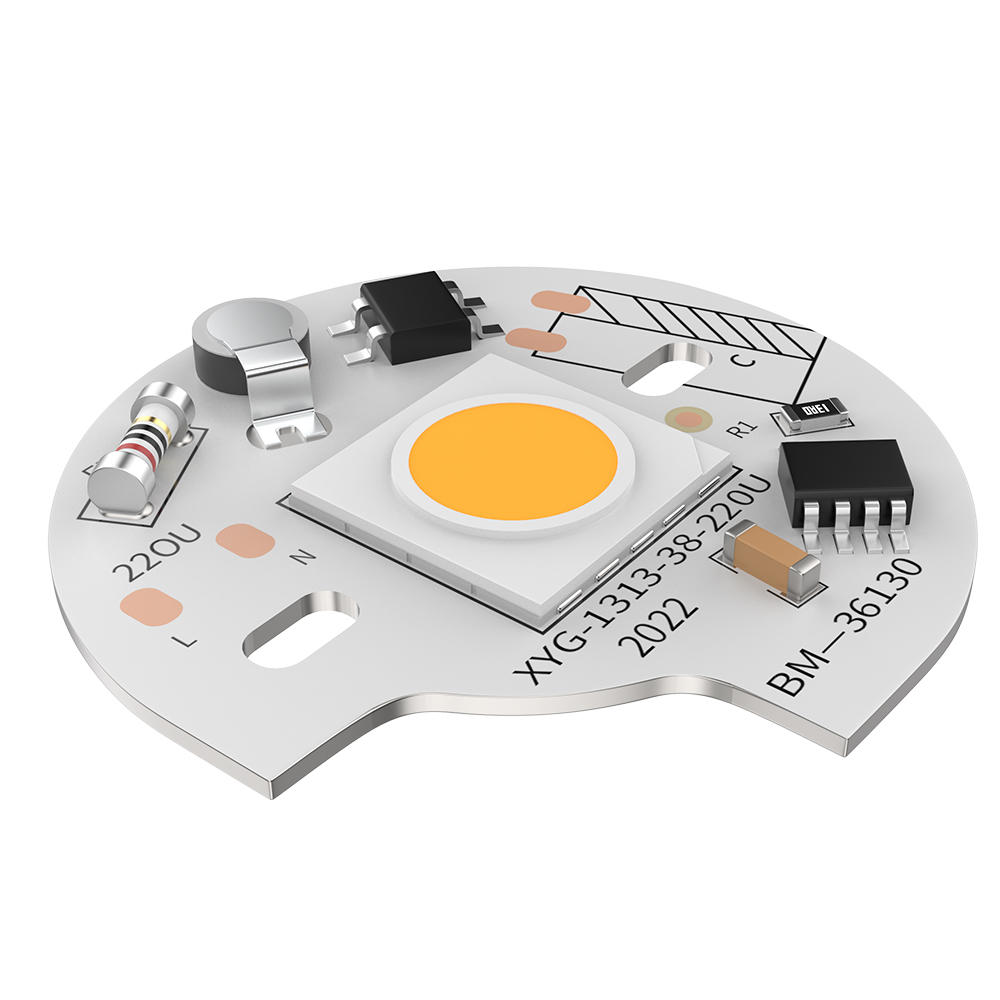

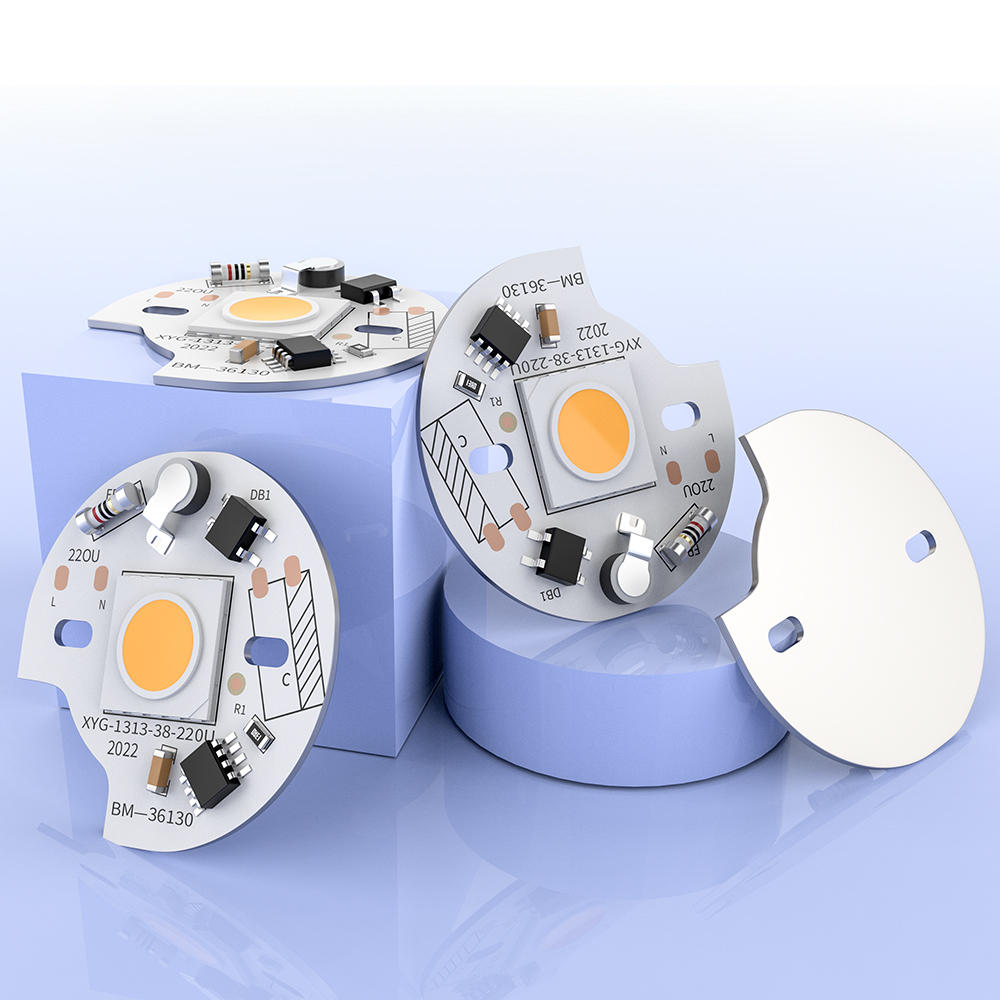

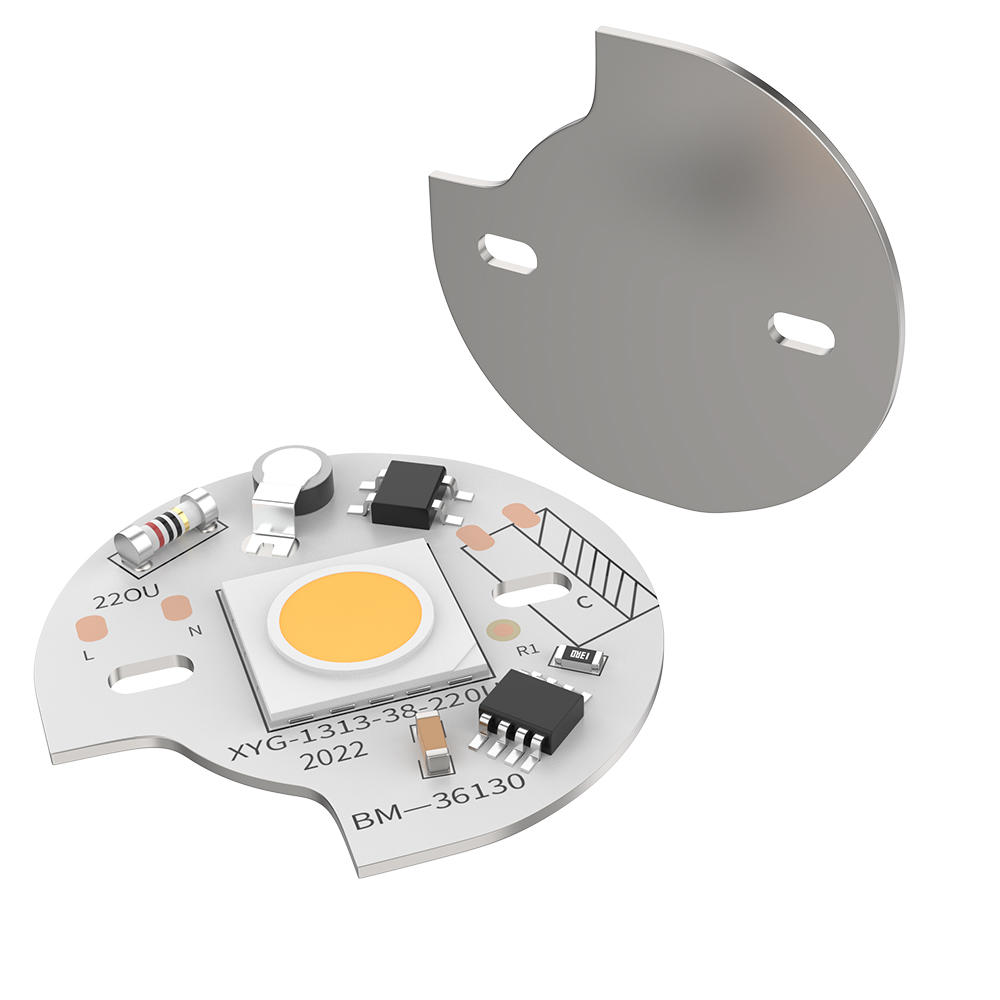

COB LED Lamp Chip AC LED Chip LED Lamp 1313 High Power SMD LED Smart IC DIY Flood Light Outdoor Chip Lamp
- $0.03 / >=50 pieces
- 50 pieces
- Shenzhen Xinyiguang Optoelectronics Co., Ltd.
- Guangdong, China
- Ms Xiya XINYIGUANG
Product Detail
| Package preview: | Working temperature(℃): | -30 - 80 | |
| Supported dimmers: | Yes | Warranty period (years): | 3 years |
| Input voltage (V): | 3-9V | Working hours (hours): | 50000 |
| Power Consumption: | 0 | Viewing Angle (°): | 120-180 |
| Lifespan (hours): | 50000 | Lighting Solutions Services: | Lighting and Circuit Design |
| Light attenuation (%): | 0 | Packaging Details: | boxed |
| strength: | customizable | type: | SMD LED |
| Storage temperature(℃): | 1 - 100 | Luminous color: | customizable |
| light intensity: | customizable | Chip material: | Ingen |
| Origin: | Guangdong, China | Color rendering index (Ra): | customizable |
| brand: | New Everlight | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Color temperature: | customizable | Luminous flux (lm): | customizable |
| Color temperature (correlated color temperature): | customizable |
Product Details

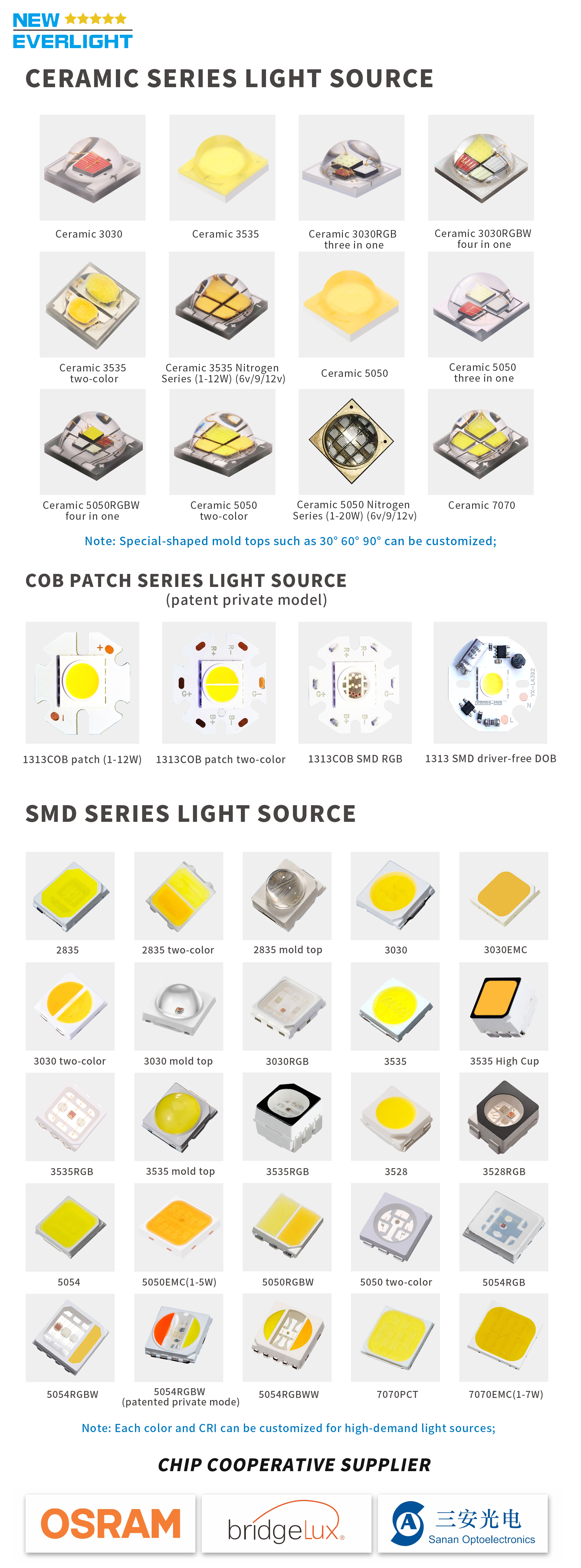

product specification
Common sense of static electricity
static electricity
Static electricity or surge voltage can damage high power LEDs. It is recommended to use a wrist strap or anti-static gloves when handling LEDs.• The tip of the soldering iron is required to be grounded, and an ion generator should be installed where there is a danger of static electricity.
• All installations, equipment and machinery must be properly grounded. It is recommended to take surge voltage measures for equipment installed with high-power LEDs.
• Please consider LED heat generation when designing PCB.
• LEDs must be mounted on a metal core PCB or heat sink or applied thermal pad.
• When handling LEDs with tools such as tweezers or tweezers, do not apply mechanical force directly to the LED surface.
• Do not touch the LED lens surface directly with your hands. It may contaminate the lens surface and affect the optical characteristics.
• Handle the LED from the side because the molding material of the LED may be damaged by surface scratches, puncturing of the molding material, and broken wires.
(The picture below is for reference only)
• All installations, equipment and machinery must be properly grounded. It is recommended to take surge voltage measures for equipment installed with high-power LEDs.
fever
• When the LED is emitting light, the operating current should be determined considering the maximum ambient temperature.• Please consider LED heat generation when designing PCB.
• LEDs must be mounted on a metal core PCB or heat sink or applied thermal pad.
handle LED
Lianxinrui always recommends the following when handling LEDs or components containing these LEDs:• When handling LEDs with tools such as tweezers or tweezers, do not apply mechanical force directly to the LED surface.
• Do not touch the LED lens surface directly with your hands. It may contaminate the lens surface and affect the optical characteristics.
• Handle the LED from the side because the molding material of the LED may be damaged by surface scratches, puncturing of the molding material, and broken wires.
(The picture below is for reference only)
about Us

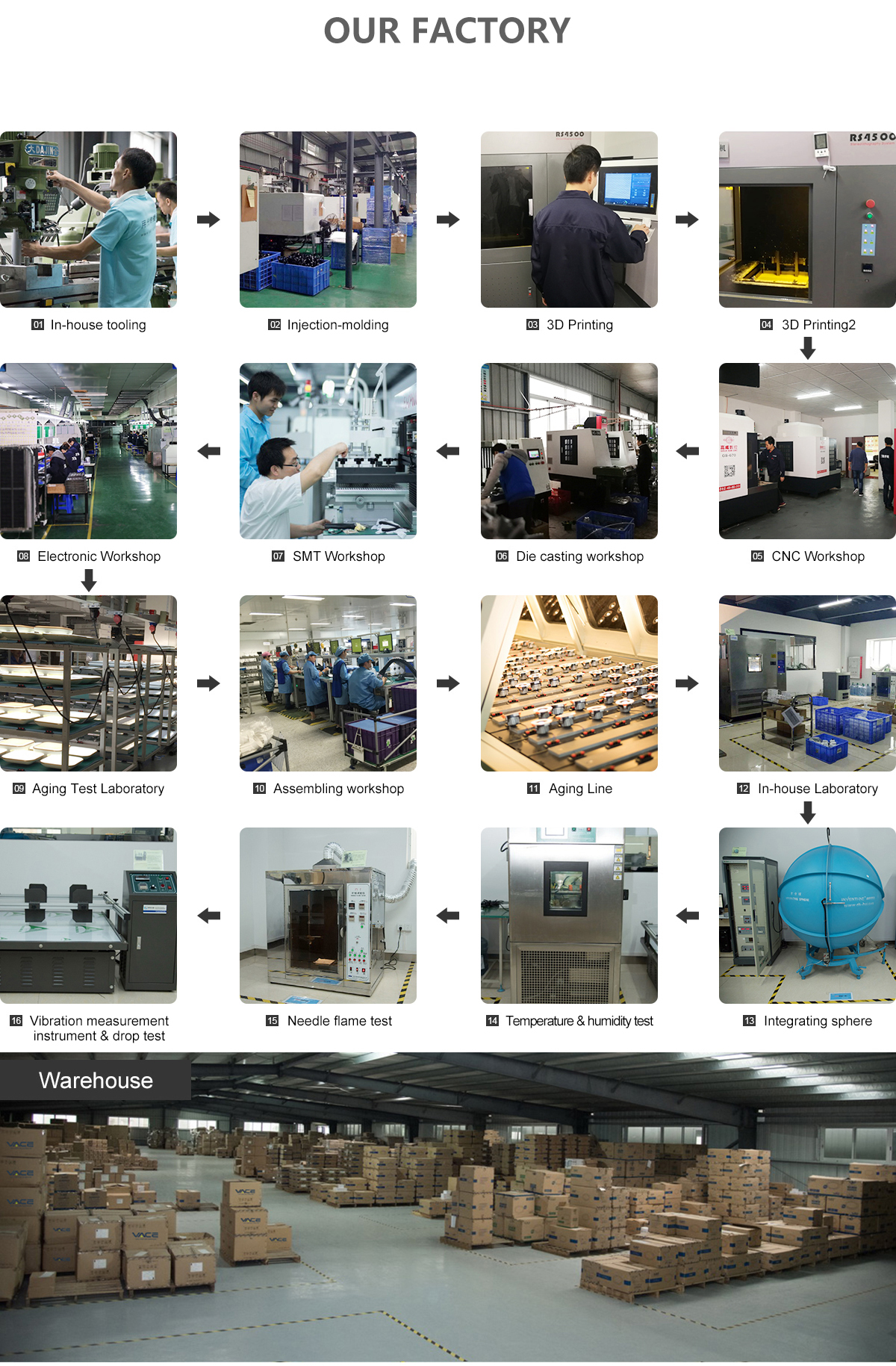

Our factory
