Free Sample High Performance Wafer Chip Ceramic 4w 3535 High Power SMD RGBWW RGBW LED Chip For LED Stage Light
- $0.01 / >=10 pieces
- 10 pieces
- Shenzhen Learnew Optoelectronics Technology Co., Ltd.
- Guangdong, China
- Mr Devin Hsu
Product Detail
| Storage temperature(℃): | -40 - 110 | wavelength: | R=620-630nm G=520-530nm B=460-470nm W=3000K/6000K |
| Manual soldering temperature: | 450°C | type: | SMD LED |
| Supply capacity: | 1,000,000 pieces per month | total measurement: | 3.5*3.5MM |
| Working temperature(℃): | -20 - 80 | Color temperature (CCT): | 2700-6500K |
| light intensity: | rely on | current: | 350mA |
| strength: | 4W,4W | Thermal resistance: | 0.17-0.28 degrees Celsius/Watt |
| port: | Shenzhen | Viewing angle(°): | 120 |
| Power Consumption: | 0.4 | Lighting Solutions Services: | Lighting and Circuit Design, LitePro DLX Layout, Auto CAD Layout |
| Package preview: | Color temperature: | R=620-630nm G=520-530nm B=460-470nm W=3000K/6000K | |
| Light attenuation (%): | 0.3 | Angle of view: | 120° |
| Working hours (hours): | 10000 | Lifespan (hours): | 10000 |
| Luminous color: | red blue green white | Luminous efficacy (lm/w): | 25 |
| payment terms: | Western Union, T/T | Origin: | Guangdong, China |
| Design advantages: | High ESD pass; standard A-grade chips; gold wire bonding. | Packaging Details: | Free Sample High Performance Wafer Chip Ceramic 4w High Power 3535 SMD RGBWW RGBW LED Chip For LED Stage Light Anti-static Board Handle Blank Space. 100 pcs per plate, 50000 pcs per box. |
| Matrix: | ceramics | brand: | learn new things |
| Warranty (year): | 3 years | size: | 3.5*3.5mm |
| Chip material: | AlGaInP | Color rendering index (Ra): | 0 |
| Supported dimmers: | Yes | Input voltage (V): | R=2.0-2.4VG=3.0-3.4VB=3.0-3.4VW=3.0-3.4V |
| Luminous flux (lm): | R=30-40lm G=60-70lm B=20-30lm W=70-90lm |
Product Description

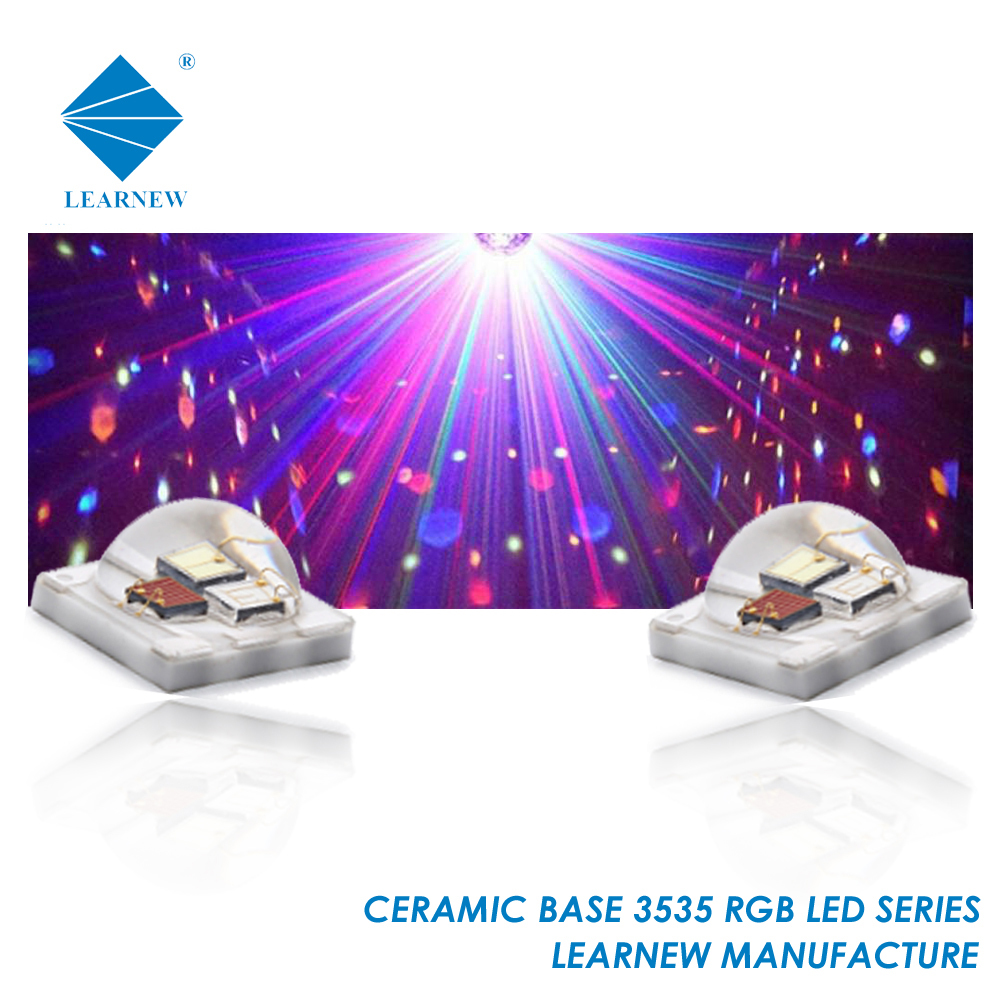

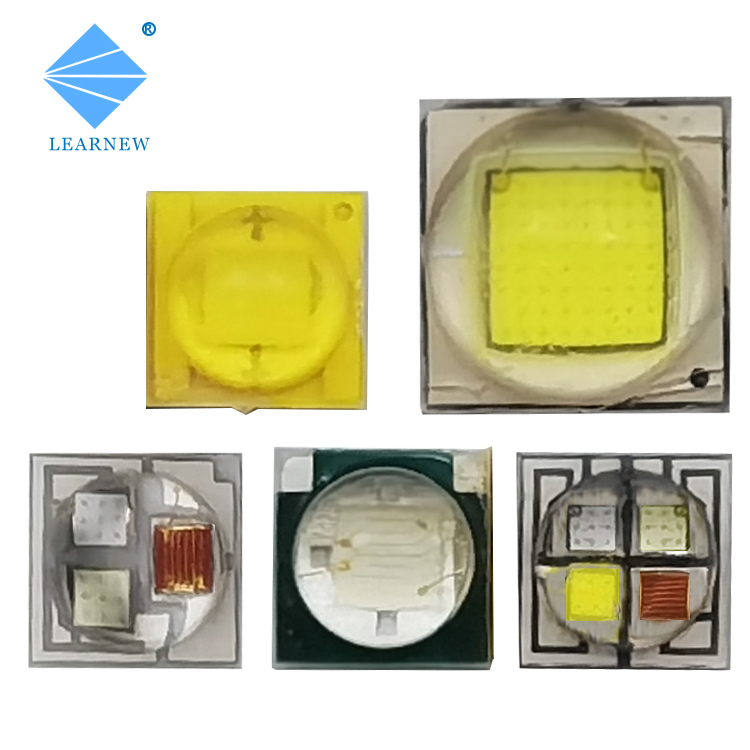

Free sample high performance wafer chip ceramic 4w high power 3535 SMD RGBWW RGBW LED chip for LED stage light
We accept OEM and ODM services to customize any type of LED chips.
strength | 1W 3W 4W |
frequency conversion | 1.8-2.2V 2.0-2.4V 3.0-3.4V |
if | 700mAh 1000mAh 350mA |
Full Size | 3.5*3.5MM |
Design advantage | Ceramic lead frame High ESD pass Standard A-grade chip value for money gold wire bonding Easy to reflow soldering. |
strength | 3W |
frequency conversion | R=2.0-2.4VG=3.0-3.4V B=3.0-3.4V |
if | 350mA |
circuit | 1PCS in series 3PCS in parallel |
Full Size | 3.5*3.5MM |
glow effect | R=50-80lm G=80-120lm B=20-40lm |
CCT | R=620-630nm G=520-530nm B=460-470nm |
strength | 4W |
CCT | R=620-630nm G=520-530nm B=460-470nm W=3000K/6000K |
glow effect | R=30-40lm G=60-70lm B=20-30lm W=70-90lm |
if | 350mA |
frequency conversion | R=2.0-2.4VG=3.0-3.4V B=3.0-3.4VW=3.0-3.4V |
Full Size | 3.5*3.5MM |
strength | 12W |
CCT | R=620-630nm G=520-530nm B=460-470nm W=3000K/6000K |
if | 700mAh |
frequency conversion | R=2.0-2.4VG=3.0-3.4V B=3.0-3.4VW=3.0-3.4V |
Full Size | 5.0*5.0MM |
glow effect | R=100-150lm G=150-200lm B=30-60lm W=180-240lm |
strength | 5W |
CCT | WW=3000K PW=6000-7000K CW=8000-10000K |
if | 1500mAh |
frequency conversion | 3.0-3.4V |
Full Size | 5.0*5.0MM |
glow effect | 500-600 lumens |
strength | 10W |
CCT | WW=3000K PW=6000-7000K CW=8000-10000K |
if | 3000mAh |
frequency conversion | 3.0-3.4V |
Full Size | 5.0*5.0MM |
glow effect | 1200-1500 lumens |
strength | 18W |
CCT | WW=3000K PW=6000-7000K CW=8000-10000K |
if | 1500mAh 3000mAh |
frequency conversion | 6.0-6.8V 12.0-13.0V |
Full Size | 5.0*5.0MM |
glow effect | 2000-2600 lumens |
