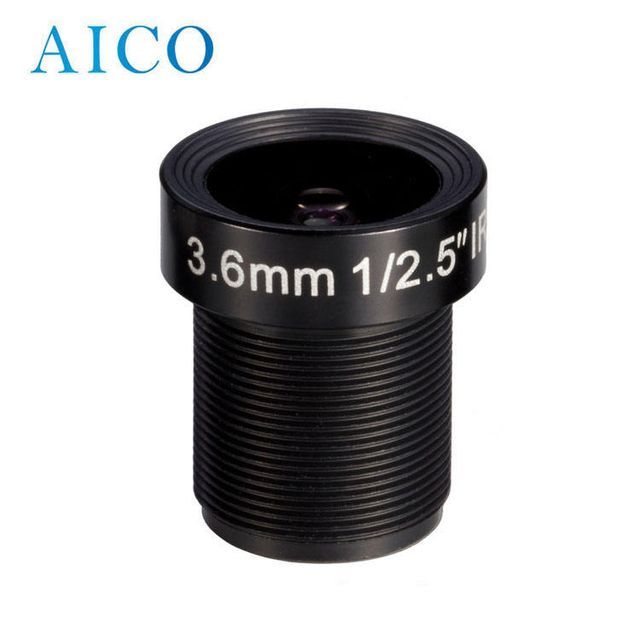

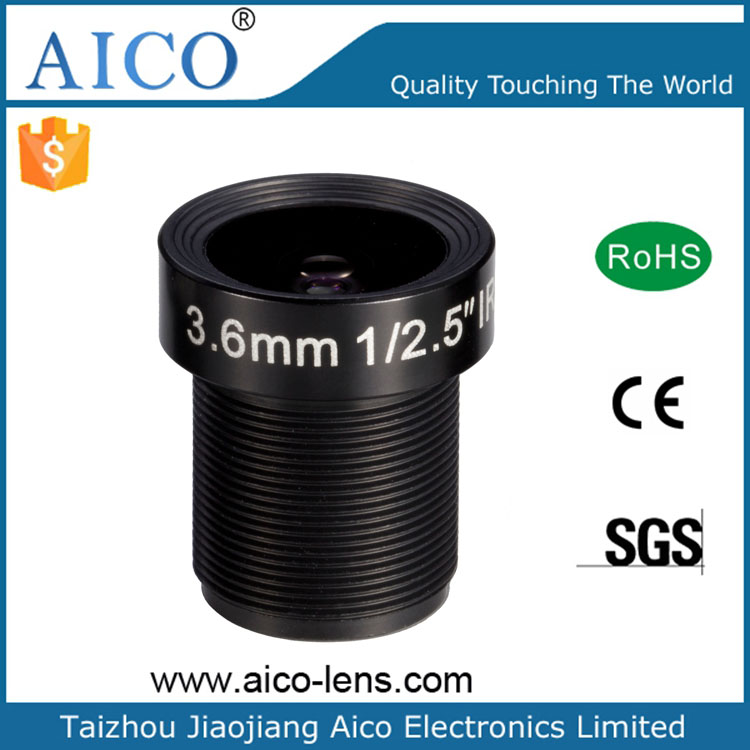

3.6mm focal length 3.6mm evetar F1.8 m12 s mount CCTV board lens for 1/2.5 inch sensor
-
$28.00 / 2 - 29 pieces
$24.50 / 30 - 299 pieces
$19.10 / 300 - 2999 pieces
$13.20 / >=3000 pieces - 2 pieces
- Hangzhou Ai Ke Electronics Co., Ltd.
- Zhejiang, China
- Ms Melody Zheng
Product Detail
| (Field of View) (Depth/Horizontal/Vertical): | 126°/93°/67° | Iris: | stable |
| product name: | evetar focal length 3.6mm m12 S mount F1.8 CCTV board lens, suitable for 1/2.5 | Image format: | 1/2.5 inches |
| model: | ACM125B03618IRMM | Module: | 0.1m |
| Mountain: | M12x0.5-6g | focal length: | 3.6 mm |
| Place of origin: | China | flight number: | F1.8 |
| brand: | Aike | sensor: | CCD/CMOS |
| Supply capacity: | 5000 pieces per month Focal length 3.6mm m12 CCTV board lens 3.6mm | Packaging details: | Standard export packaging |
| MTF: | 3MP | payment terms: | L/C, Western Union, T/T, MoneyGram, PayPal |
3.6mm focal length 3.6mm evetar F1.8 m12 s mount CCTV board lens for 1/2.5 inch sensor

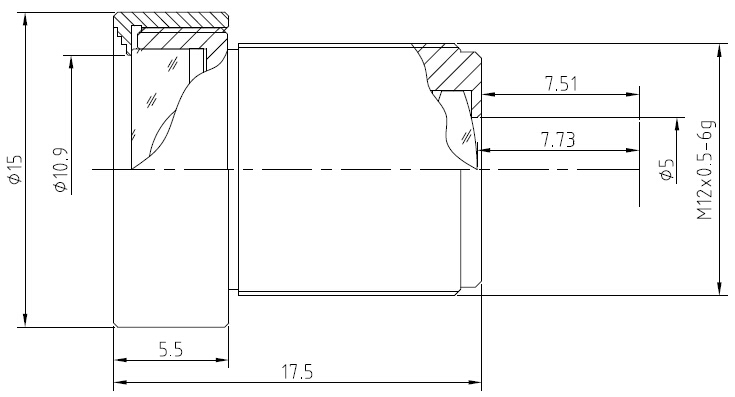

Specification
|
focal length: |
3.6 mm |
|
|
sensor: |
CCD/CMOS |
|
|
Back focus: |
7.73 mm |
|
|
Mountain: |
M12x0.5-6g |
|
|
Aperture (F): |
F1.8 |
|
|
Iris: |
stable |
|
|
Image size: |
1/2.5” |
|
|
(Field of View) (Depth/Horizontal/Vertical): |
126°/93°/67° |
|
|
Module: |
0.1m |
|
|
Effective aperture: |
Φ10.9mm |
front |
|
Φ5mm |
rear |
|
|
distortion: |
52% |
|
|
MTF: |
3mp |
|
|
aspect: |
Φ15×17.5mm |
|
|
Lens structure: |
6-5 |
|
|
Model: |
ACM125B03618IRMM |
|
Related Products
| model. | FL | Mountain | F size | Format | solve | field of view |
| ACTM1236IR3MPC | 3.6mm | M12 | F2.6 | 1/2.7" | 3MP | 120°/96°/72° |
| ACHIR03620B3M | 3.6mm | M12 | F2.0 | 1/2.7" | 3MP | 79° field of view |
| ACHIR03618B5M | 3.6 mm | M12 | F1.8 | 1/2.5" | 5MP | 128°×96.4°×69.8° |
| ACMTV36IR5MPPT9 | 3.6 mm | M12 | F2.0 | 1/2.7" | 5MP | 113°/93°/49° |
| ACMTV03620IR3H | 3.6mm | M12 | F2.0 | 1/2" | 3MP | 96° high frequency field of view |
| ACTCS36IR3MP | 3.6mm | CS mount | F1.8 | 1/2.7" | 3MP | 119°/92°/64° |
| ACMTV02820IR3MP1 | 2.8mm | M12 | F2.0 | 1/2.5" | 3MP | 168/120/85 |
| ACTM124IR3MP2 | 4.0mm | M12 | F1.8 | 1/2.5" | 3MP | 91.2° high frequency field of view |
