50mmFL LWIR infrared thermal lens for IR scope
- $300.00 /set
- 1 set
- Nanjing Wavelength Opto-Electronic Science & Technology Co., Ltd.
- Jiangsu, China
- Ms Hongxia Wu
Product Detail
| Focus type: | fixed focus | focal length: | 50mm |
| payment terms: | L/C, Western Union, T/T, Paypal | Back focus: | 13.5 mm |
| Circular Field of View: | 12.4°(horizontal)X9.3°(vertical) | Key words: | 50mmFL LWIR Infrared Athermal Lens for IR Range |
| F#: | 1.0 | model: | LIRA05010640-17 |
| Average transfer: | >88% | Supply capacity: | 100 pieces per month LIRA05010640-17 |
| director: | 640X480-17um | port: | Nanjing Offshore |
| brand: | ifid | Origin: | Jiangsu, China |
| Packaging Details: | Our infrared lenses are packaged in a protective plastic bag with tissue paper. The outer packing is carton. | Spectral range: | 8-12um |
| Installation type: | M34X0.75 |

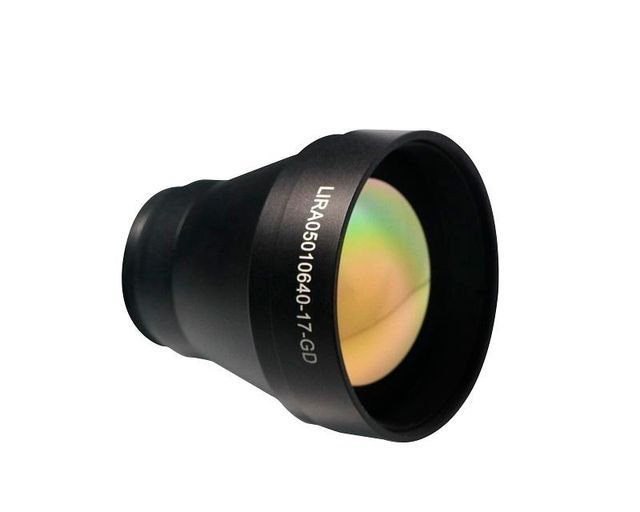

50mmFL LWIR Infrared Athermal Lens for IR Range
Long wave infrared (LWIR) lenses are usually uncooled and therefore less sensitive. They allow users to see through dust or smoke, which makes them especially valuable in certain environments and applications.
Our LIRA05010640-17 lens has an athermal design and is insensitive to thermal changes in the environment. It is therefore particularly suitable for applications in the infrared range. It can also be used in other thermal imaging applications such as drones, thermal goggles, thermal monitoring, firefighting, etc.
feature:
compact design;
High optical axis stability;
IP67 waterproof and dustproof;
Resistant to vibration, shock and shock.
Specification
| focal length | 50mm |
| F/# | 1.0 |
| circular field of view | 12.4°(horizontal)X9.3°(vertical) |
| Spectral range | 8-12um |
| focus type | focus |
| BFL | 13.5mm |
| installation type | M34X0.75 |
| detector | 640X480-17um |

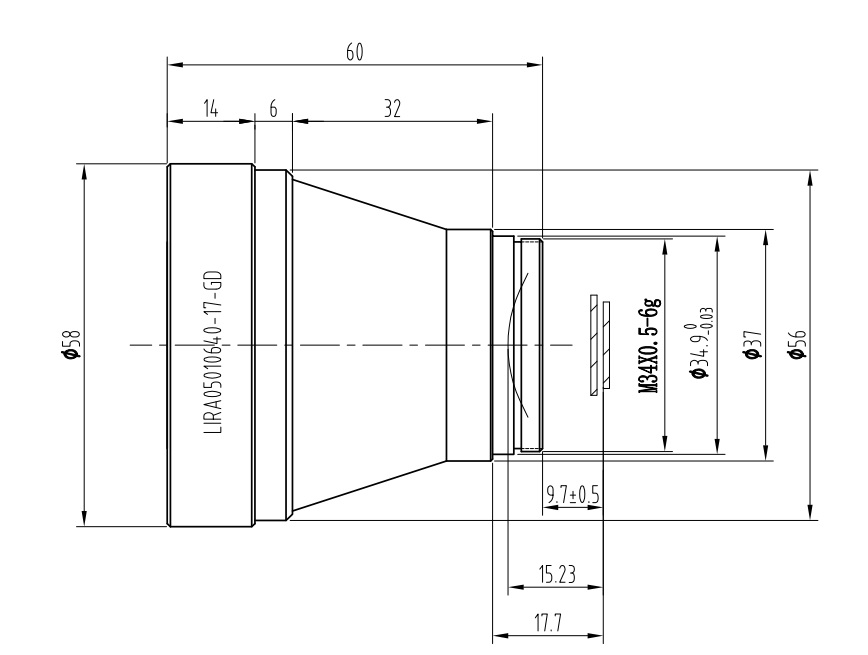

Contour drawing
50mmFL LWIR infrared lens for IR scope75mm LWIR infrared lens for IR scope
50mmFL LWIR Infrared Athermal Lens for IR Range
