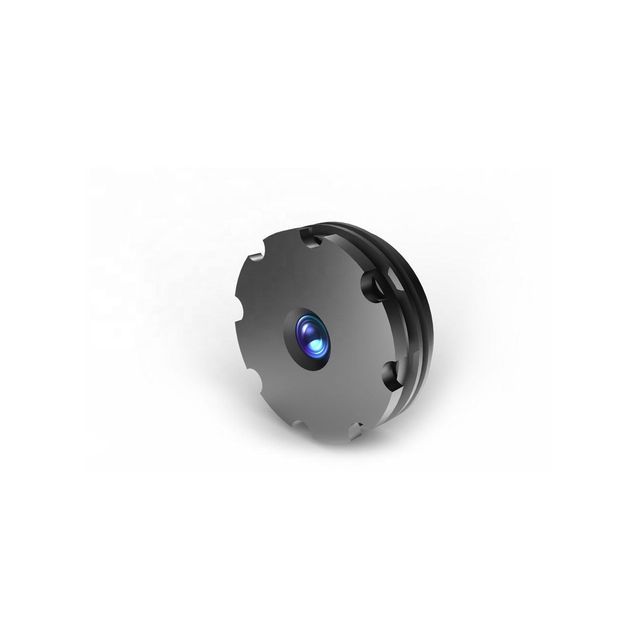

FOV 60 degrees 1/6 inch format F2.6mm TTL 3mm CCTV lens for watching live broadcast home video camera c endoscope machine
-
$1.30 / 1 - 999 pieces
$1.25 / 1000 - 4999 pieces
$1.20 / >=5000 pieces - 1 piece
- Shenzhen Hiismart Optoelectronic Technology Co., Ltd.
- Guangdong, China
- Ms Kelly Zhang
Product Detail
| Chief Ray Angle: | 25° | Package preview: | |
| Overall length: | 3±0.3 | sensor type: | 1/6''COMS |
| Mountain: | M12*P0.35 | flight number: | 2.8±10% |
| brand: | high temperature superconductivity | Origin: | Guangdong, China |
| Lens structure: | 2P | payment terms: | L/C, Western Union, T/T |
| focal length: | 2.6±5% | Maximum image height: | 3.3mm |
| model: | HS-AX34 | Relative illuminance: | >56% |
| TV Distortion: | 0.8% |
Product Description
part number | HS-6127 |
sensor type | 1/2.7" COMS |
solve | 5MP/2MP |
Maximum Image Height | Ø6.8mm |
total length | 16.7±0.3 |
Flight/NO | 2.2±10% |
Flange back length | 4.9±0.3 |
tv distortion | 13% |
relative illuminance | >68% |
chief ray angle | 11° |
lens structure | 4G |
Mountain | M15*P0.5 |
Operating temperature | -20°C~+65° |
Storage temperature | -25°C~+70° |
optical field of view | 1/2.7"(AR0230) 1920*1080,3um | 1/2.9"(GC2053) 1920*1080, 2.8um |
D. | 112°±5° | 99°±5° |
h | 91°±3° | 83°±3° |
V | 50°±2° | 45°±2° |

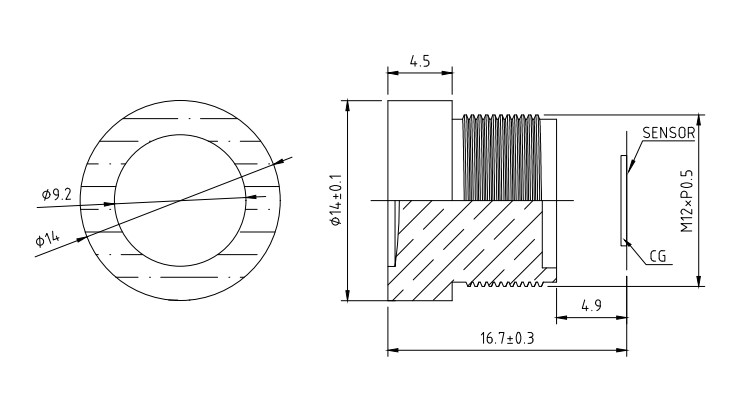

detailed picture
Manufacturing Technology
1, High quality CCTV lens with M12 bracket for video conferencing camera
2. Low distortion camera lens with infrared cut filter
3. With 10 years of experience in assembly technology, each process strictly controls the quality
Such as income material, glass precision, injection precision and assembly precision to get a good image
4. Widely used in face recognition system/conference camera
2. Low distortion camera lens with infrared cut filter
3. With 10 years of experience in assembly technology, each process strictly controls the quality
Such as income material, glass precision, injection precision and assembly precision to get a good image
4. Widely used in face recognition system/conference camera
application
