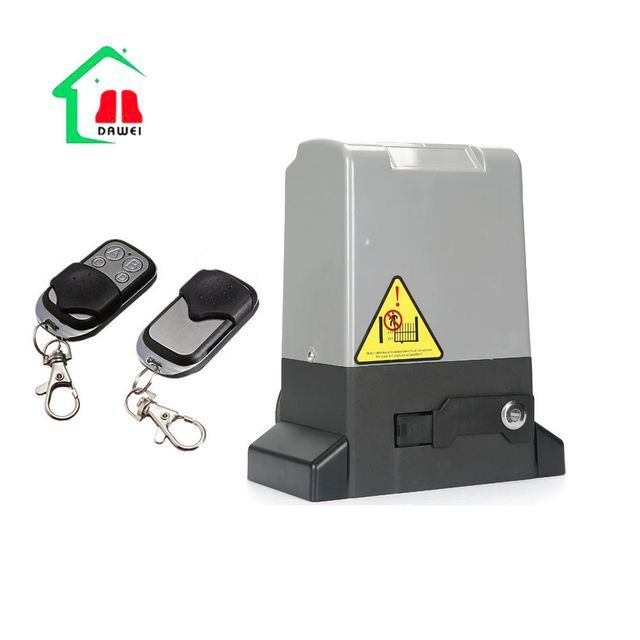

Automatic sliding door opener for 1500kg electronic door opener automatic operator driving door operator

Product Detail

Warranty:1 yearMaximum door weight:1500kg
Place of origin:Guangdong, ChinaAfter-sales service:other
Name:Sliding door openerport:Shenzhen or Guangzhou
Project solution capabilities:othersapplication:villa
type:door operatorLimit switch:Magnetic limit switch
design style:modernbrand:database
remote control:433.95 HzPackaging details:Printed carton with foam
color:greypower supply:AC 220V+/-10%
model:DW750payment terms:wire transfer
Material:aluminum



1500KG sliding door machine AC220V



phosphorusparameter

Model

DW-370

DW-550

DW-750



strength

AC220V±10%

Motor speed

1400 rpm

Output speed

46.6 rpm

maximum. Gate weight

500kg

1000kg

1500kg



door speed

12m/min

temperature

- 20℃ ~ 55℃

limit switch

magnetic limit switch or

spring limit switch

Protection level

IP44

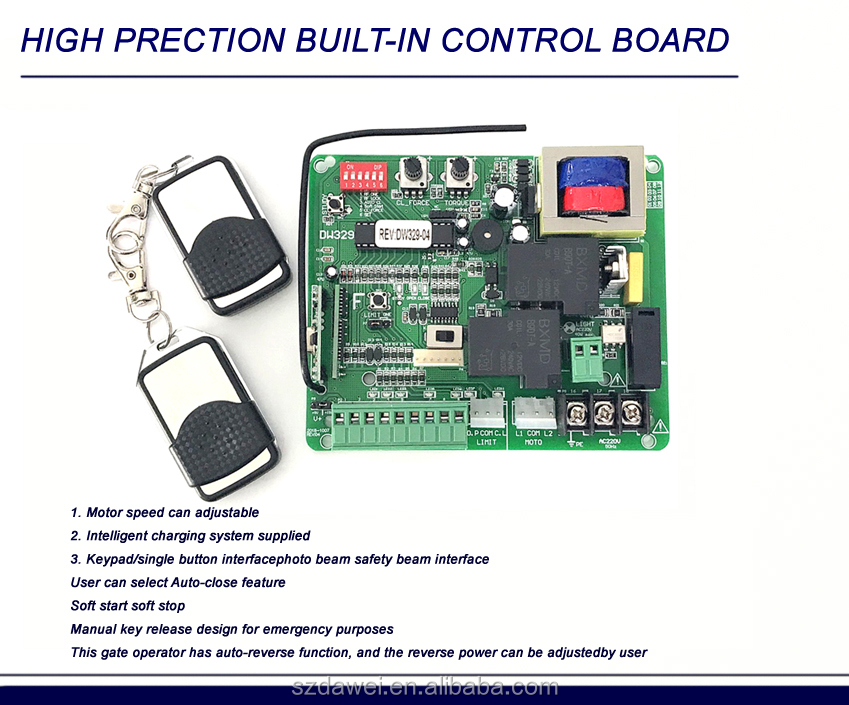

CMain features of the control panel

1. A single button can complete all control commands (such as close, open, stop).
2. Adjustable motor resistance
3. Automatic shutdown time can be set
4. Can be set to automatically shut down after power outage is restored.
5. Equipped with photoelectric tube, loop detector, IC card reader, alarm light and other terminals
6. Can control up to 30 remote controls



Sliding door motor specifications

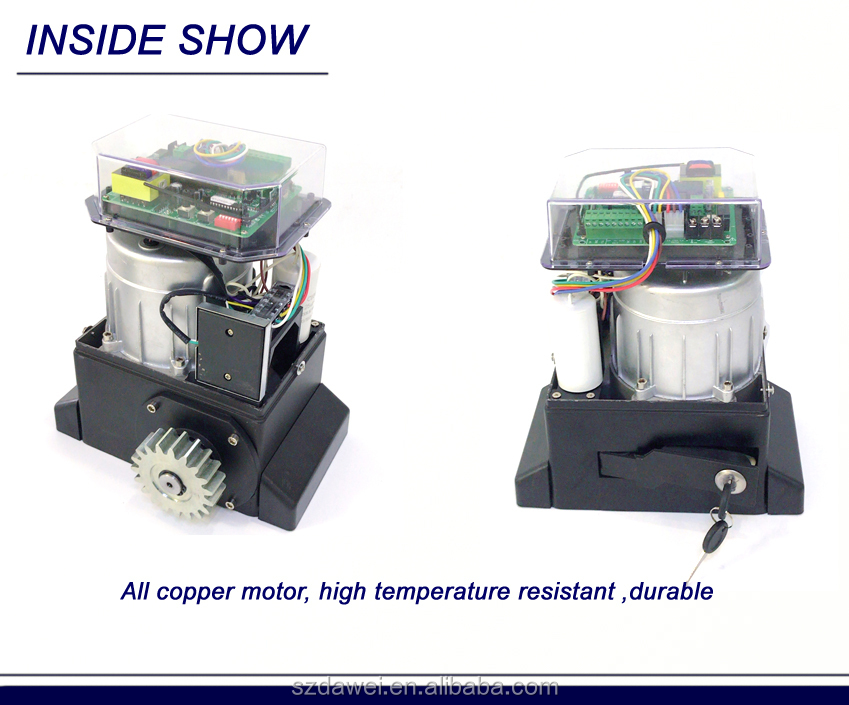

1. Integrated structure of mechanical part and electronic part, built-in control panel, no need for any external controller;

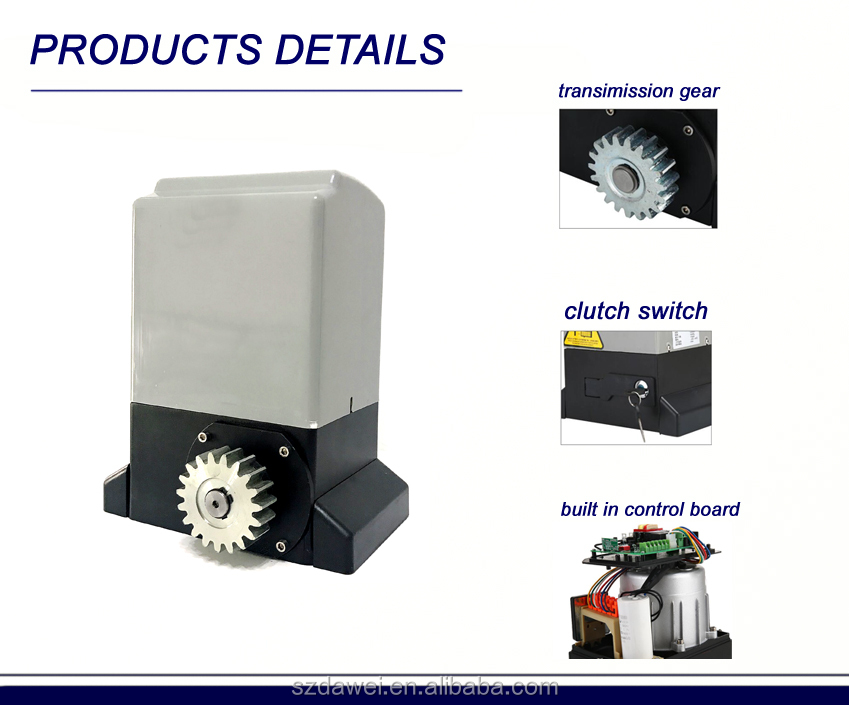

2. When there is a power outage, use the key to release the clutch and push the door manually.
3. The door automatically stops and reopens when it encounters an obstacle.
4. The automatic shut-off time is adjustable from about 3 to 120 seconds.
5. Good design, extensive use of copper motors (many suppliers use aluminum motors), copper worm gears,
6. The AC motor is easy to wire.
7. The communication system is available in 500kg, 1000kg and 1500kg sizes.

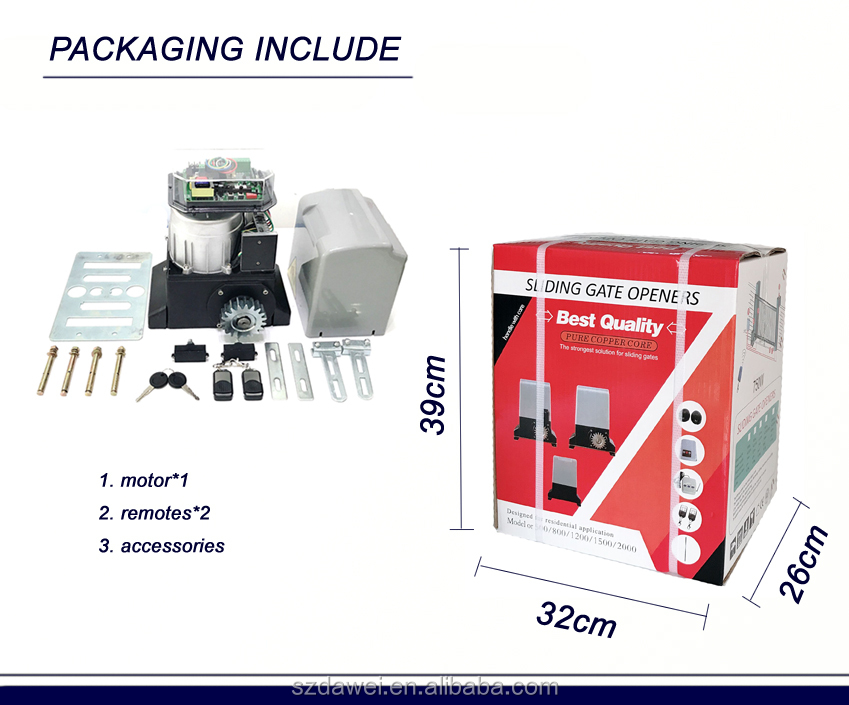

One set includes:

1 x motor with built-in control panel

- 2 remote controls
- 2 x manual override keys
- 1 x motor mounting base plate

1. Main features:



1.) Fully integrated electromechanical system (excluding rack)

2.) Control board interface for optional impact-resistant infrared photocell

3.) Alarm light interface

4.) Automatic delay shutdown

5.) Adjustable resistance sensitivity

6.) Automatic door stops and reopens when encountering obstacles

7.) Wireless remote control or wired remote control optional





Shipping

1. FedEx/DHL/UPS/TNT samples, door to door;

2. Bulk goods shipped by air or sea, full container; airport/port reception;

3. The customer designates a freight forwarder or can negotiate the transportation method!

4. Delivery time:3-7 days for samples; 5-25 days for bulk goods.

payment terms

1. Payment method: T/T, Paypal, Western Union, 30% deposit before production, 70% balance before delivery

2. Freight charges are quoted according to your requirements

3. Offer discounts based on order quantity

 contact us

If you are interested in our products, please feel free to contact usus.

Your inquiries are always welcome!

Contact as below:

Email: [email protected]
Mobile: +86 13714673116 (WeChat/Whatsapp)
Skype: [email protected]

FAQ

Q: How can I get some samples?
A: We are honored to provide you with samples. New customers need to pay express fee and sample fee, and the sample fee can be refunded when placing bulk orders.
Q: What are your payment terms?
A: T/T would be better, with fast transfer and less bank fees. Letters of credit can also be accepted, but the procedures are complicated and the fees are high. You can also use Alibaba Trade Assurance or Secure Payment. Alibaba Trade Assurance can protect your transactions and keep your funds safe. For large quantities, sea shipping can be provided.

T/T: 30% deposit before production, 70% balance after copy of B/L
Q: What is your delivery time?
A: Generally speaking, samples will take 2-3 working days, if in stock, it will take 2-10 days, if in stock, it will take 30-40 days. It depends on your quantity.
