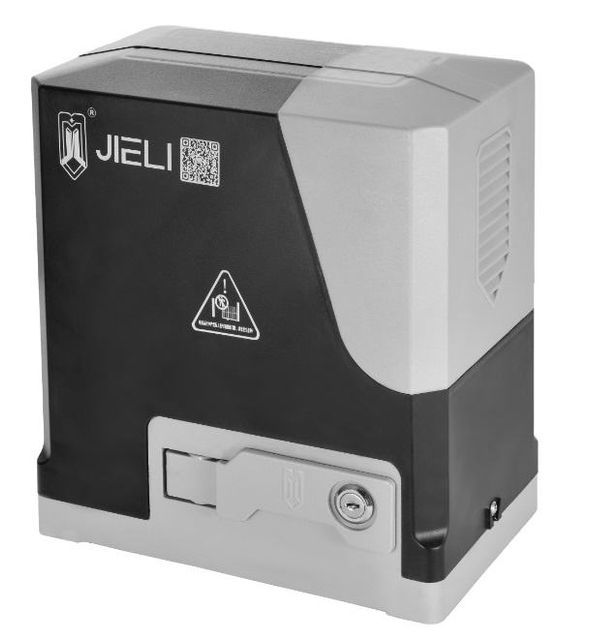

2000kg sliding door motor automatic sliding door operator
- $120.00 /set
- 1 set
- Yongkang Dinggong Industry And Trade Co., Ltd.
- Zhejiang, China
- Mr ying vincent
Product Detail
| brand: | smooth sailing | application: | outdoor |
| Maximum gate weight: | 2000 kg | Name: | sliding door opener |
| Warranty: | 2 years | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Certificate: | CE / CCC / ISO9001 | Origin: | Zhejiang, China |
| engine: | AC motor | After-sales service: | Online technical support, on-site inspection, others |
| model: | JY9-1200 | design style: | industrial |
| port: | Ningbo/Shanghai | Project solution ability: | overall project solution |
| Packaging Details: | Packing: 1 set/box GW: 15.8KG CBM: 31.2*24.2*36.5CM | Limit switch: | Magnetic/Spring Limit Switches |
| remote control: | 2 | Material: | High Strength Aluminum Alloy |
| power supply: | AC110V~240V | type: | door operator, sliding door |
| Supply capacity: | 5000 sets per month |
Item No. JY3-1200
Motor power 1200W
Power AC220V 50HZ/AC120V 60HZ
Output torque 45N.m
Maximum door weight 2000KG
Motor speed 1400r/min
Gate speed 12m/min
Limit Switch Spring/Magnetic (NO/NC)
Noise≤56dB
Temperature -45°----+65°
Protection class IP44
CCC/CE certificate
feature:
1. Soft start and stop, avoiding the impact of the door when opening and closing.
2.A alloy die-casting mechanism, powder sprayed, stable.
3. Electromechanical stroke limit switch, double protection, accurate positioning.
4. Emergency release key in case of power failure.
5. Optional wire control or remote control.
6. Moving indication - the indicator light is on when the door is moving.
7. Infrared protection to ensure high security.
8. The opening and closing limit has a self-locking function.
9. Built-in maximum motor running time (MRT) adjustable, multiple safety protection.
10. The motor coil is made of copper.
11. Motor winding built-in thermal protection.
12. The gear has a protection device, and the driving device is composed of a worm gear and a worm, and it works smoothly.
Packaging details: 1. Normal export 1set /carton
2. Pallet available
3. According to customer requirements
Delivery details: 1.7-15 working days from 30% deposit, delivery after receiving the balance
2. Send samples by express UPS, TNT, DHL after payment
1. Your inquiry about our products or prices will be replied within 12 hours.
2. Well-trained and experienced sales staff will answer all your questions in fluent English.
3. OEM/ODM is welcome, we can help you to print your logo, company information, etc. on the product and package, protect your sales area, design concept and all private information.
4. The order will send some wearing parts for free, and all main products are guaranteed for 1 year.
