Solar panel backup battery support DC 24V sliding door opener control board
- $24.00 /set
- 1 set
- Zhangzhou Orsenar Electronics Co., Ltd.
- Fujian, China
- Mr Matt Wang
Product Detail
place of origin; place of origin: | Fuji | Power output: | DC24V |
power input: | AC220V/110V | OEM/Design Manufacturer: | if |
Limit switch: | Magnetic Spring Limit Switches | design style: | modern |
Warranty: | 1 year | code: | learn to code |
Packaging Details: | Expanded polystyrene + carton | Project solution ability: | Graphic design |
port: | Xiamen | Supply capacity: | 100000 sets per month |
payment terms: | Western Union, T/T, Trade Assurance | After-sales service: | online technical support |
application: | hotel | frequency: | 433 |
Product Description
Specification
feature:
1. Anti-shock design. When running for the first time after each power-on, the motor runs at a slow speed
Limit points throughout the journey to avoid rushing out of the limit. when the door arrives
limit point, the motor can only be run by pressing the button in the opposite direction
Prevent breaking the limit. (Note: there is a power-off protection function, in
placed, and the motor only moves in the opposite direction when power is cycled).
2. Master-slave mode is available. Two motors with the same control board will work
Synchronously. In this mode, infrared, ground sense, automatic door closing and other functions
Synchronize. Note: Infrared and ground sense must be connected to the main motor.
3. Protection when the motor is running. To prevent the motor from running in the event of stroke failure,
The control board automatically learns the running time of the motor without manual setting, 10s
Automatically added as a time margin.
4. Automatic shutdown function. The time before the door closes automatically can be set from 1 second to 250 seconds. This
The default is 3 seconds.
5. Soft start and slow stop. Soft start and slow stop functions are provided. distance and
The speed of the slow stop function can be adjusted.
6. Stop loss rebound. Switchable between damage resistance and rebound
Resistance to closing stroke. Stops against resistance at the start of the stroke.

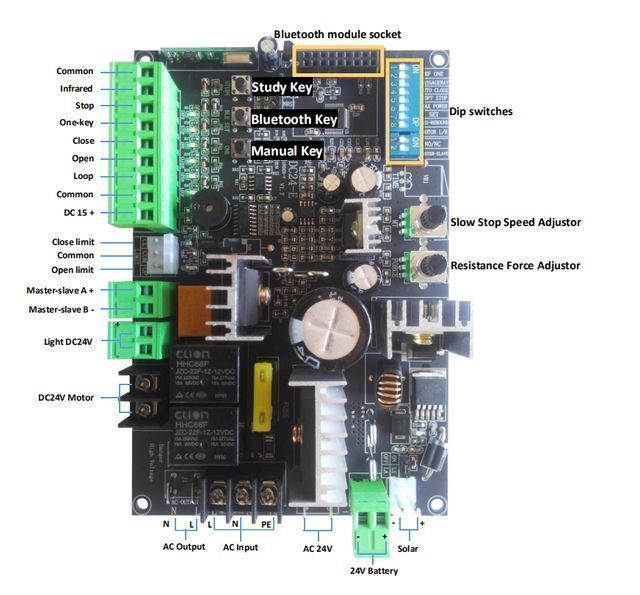

7. Bluetooth module onboard socket. A socket is integrated on the board for plugging in
Standalone Bluetooth module (no module is included by default).
8. One-key configuration of Internet control. Can be paired directly with the Internet
The controller is controlled by pressing a button onboard, no need to copy programs.
Specification:
1. Working voltage: AC220V/110V±10% input, DC 24V output
2. Maximum output current: 10A
3. Fuse: AC220V 20A
4. Remote control distance: more than 30 meters in open area
5. Ambient temperature range: -25°~+75°
6. Relative humidity: <60%, no condensation
1. Anti-shock design. When running for the first time after each power-on, the motor runs at a slow speed
Limit points throughout the journey to avoid rushing out of the limit. when the door arrives
limit point, the motor can only be run by pressing the button in the opposite direction
Prevent breaking the limit. (Note: there is a power-off protection function, in
placed, and the motor only moves in the opposite direction when power is cycled).
2. Master-slave mode is available. Two motors with the same control board will work
Synchronously. In this mode, infrared, ground sense, automatic door closing and other functions
Synchronize. Note: Infrared and ground sense must be connected to the main motor.
3. Protection when the motor is running. To prevent the motor from running in the event of stroke failure,
The control board automatically learns the running time of the motor without manual setting, 10s
Automatically added as a time margin.
4. Automatic shutdown function. The time before the door closes automatically can be set from 1 second to 250 seconds. This
The default is 3 seconds.
5. Soft start and slow stop. Soft start and slow stop functions are provided. distance and
The speed of the slow stop function can be adjusted.
6. Stop loss rebound. Switchable between damage resistance and rebound
Resistance to closing stroke. Stops against resistance at the start of the stroke.

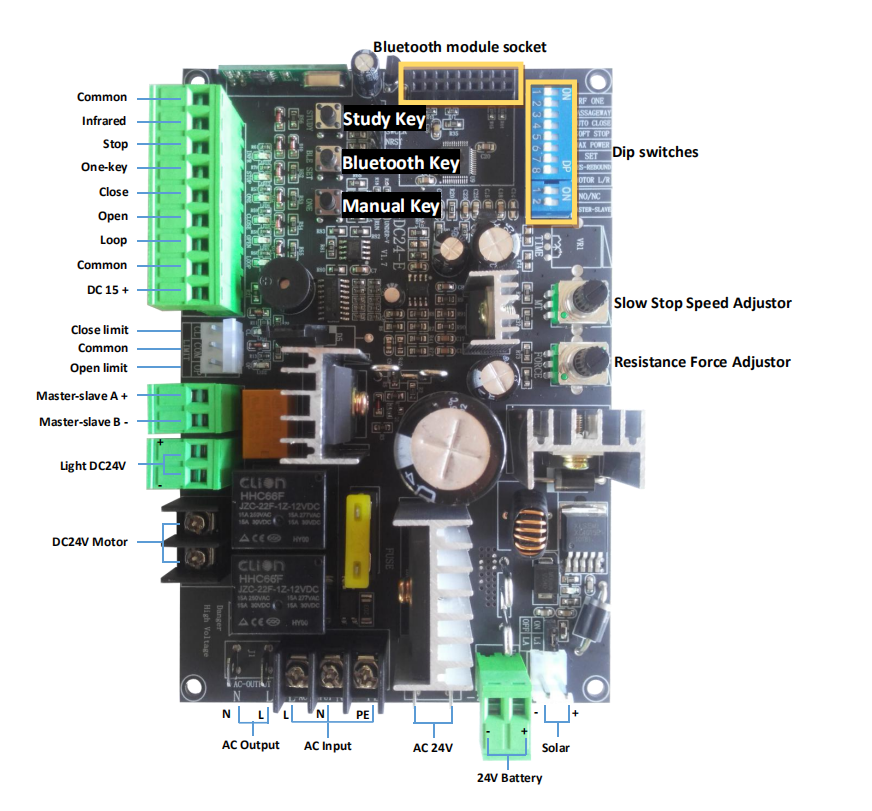

7. Bluetooth module onboard socket. A socket is integrated on the board for plugging in
Standalone Bluetooth module (no module is included by default).
8. One-key configuration of Internet control. Can be paired directly with the Internet
The controller is controlled by pressing a button onboard, no need to copy programs.
Specification:
1. Working voltage: AC220V/110V±10% input, DC 24V output
2. Maximum output current: 10A
3. Fuse: AC220V 20A
4. Remote control distance: more than 30 meters in open area
5. Ambient temperature range: -25°~+75°
6. Relative humidity: <60%, no condensation
