Weizhengheng best-selling metal building prefabricated steel structure warehouse drawings

Prefabricated designed warehouse building modular storage shed and steel structure building design

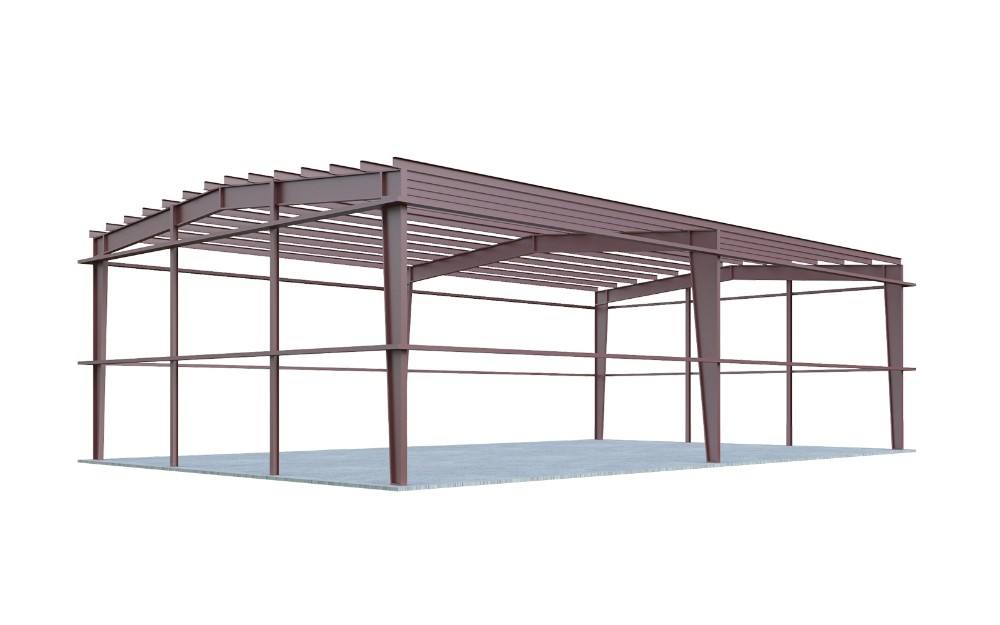

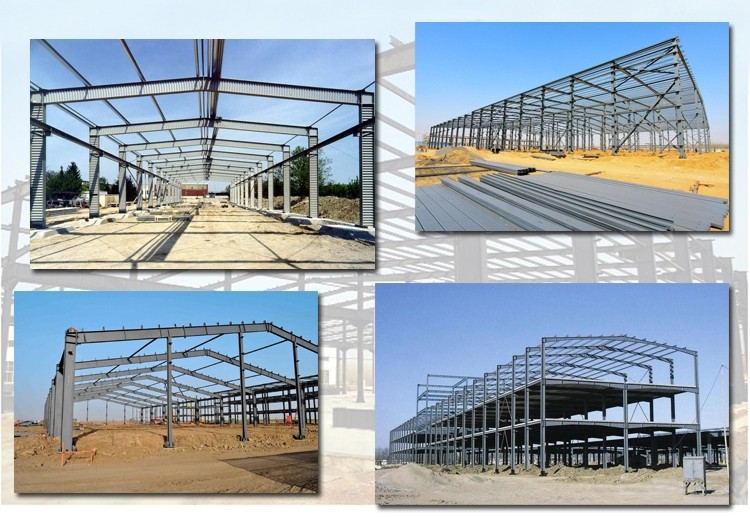

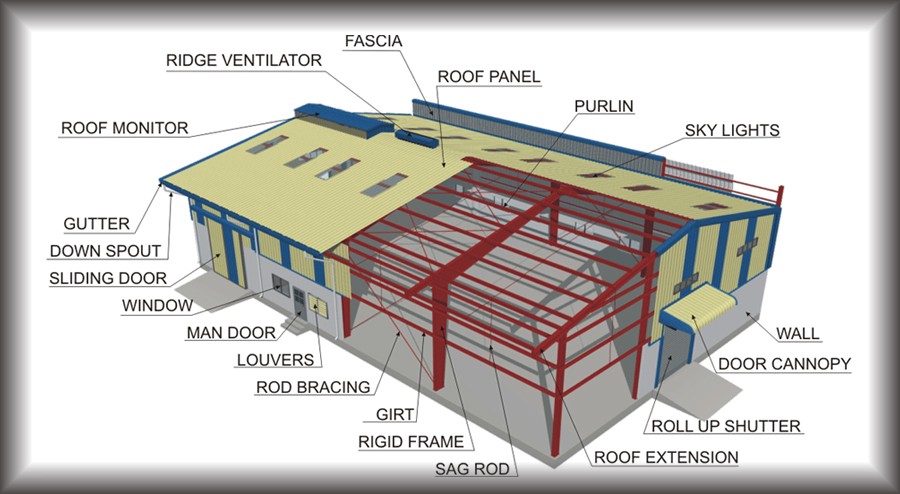

Steel structure building is a popular building system nowadays. Its main load-bearing components are made of steel, including columns, beams, foundations and roof trusses, while roofs and walls use a variety of materials, such as sandwich panels, steel plates, and wire mesh. , foam cement board, ALC board are suitable for different construction applications.

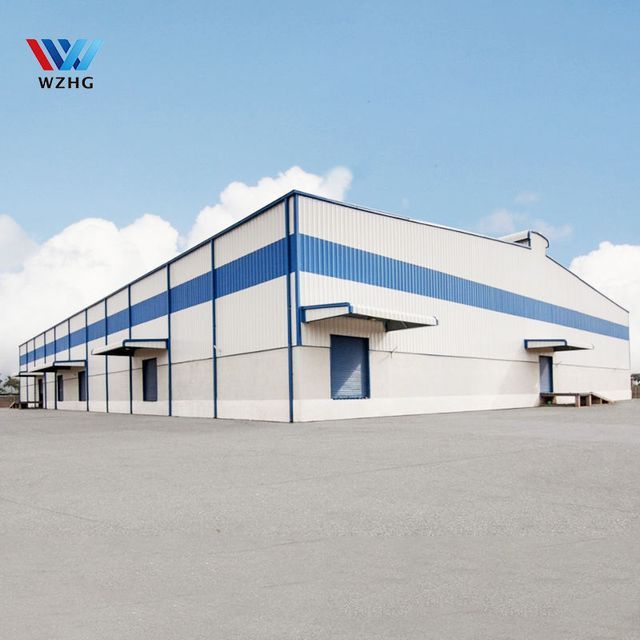

It is widely used in steel structure farm warehouses, warehouses, machinery, logistics, trucks and other prefabricated steel structure warehouses. It is very fast to build, is not affected by the weather, the steel is more durable than traditional construction, and the total cost is more competitive. Of course, steel structure buildings can also be combined with concrete or bricks to meet the different requirements of different customers.

Performance and advantages

·Super earthquake resistant
Most of the structure is composed of cold-formed steel components, and the system's seismic resistance level can reach level 8.

·Wind resistance
Steel structure buildings have high strength, good rigidity, good deformation ability, and can withstand strong winds of 50m/s.
·durable
The steel can be painted or galvanized according to customer requirements to make it more corrosion-resistant and rust-proof, and the structural life can reach 50 to 70 years.

·Thermal insulation
Sandwich panels can improve the thermal insulation performance of buildings and effectively avoid the phenomenon of "cold bridges" in walls.

·Environmental protection
Construction pollutes little, the steel structure materials are 100% recyclable, and most other related materials are also recyclable.

·Easy and fast build
Dry construction is not affected by weather and environment, saving a lot of time and labor costs. A 300-square-meter steel structure building requires only 5 workers and can be completed in 30 days.

·Wide range of applications
Suitable for factories, warehouses, office buildings, residential apartments, stadiums, hangars, poultry farms, etc. It is not only suitable for single-story long-span buildings, but also for multi-story or high-rise buildings.

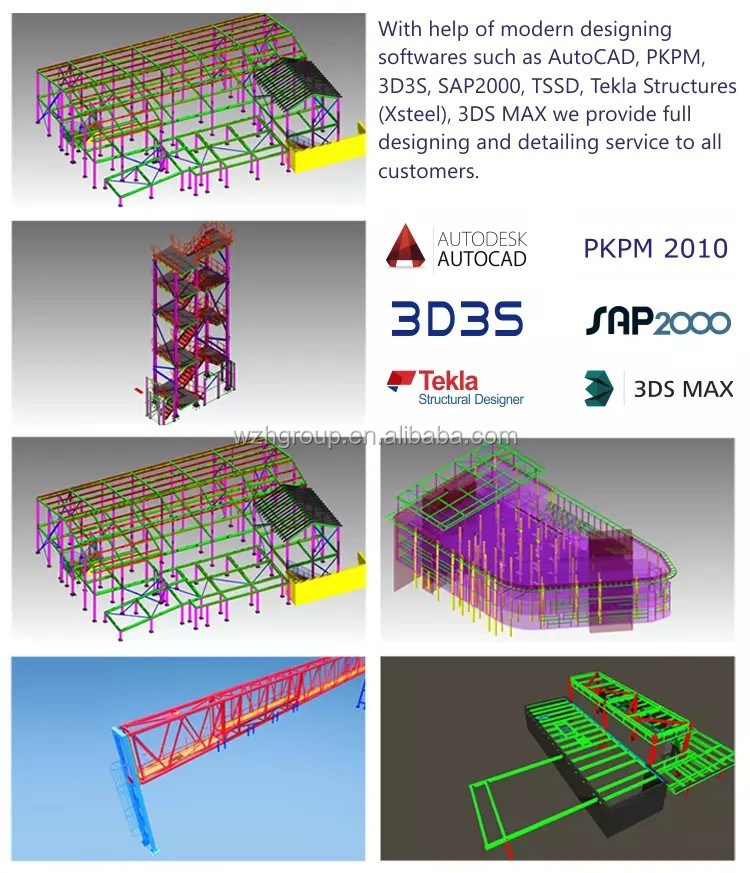

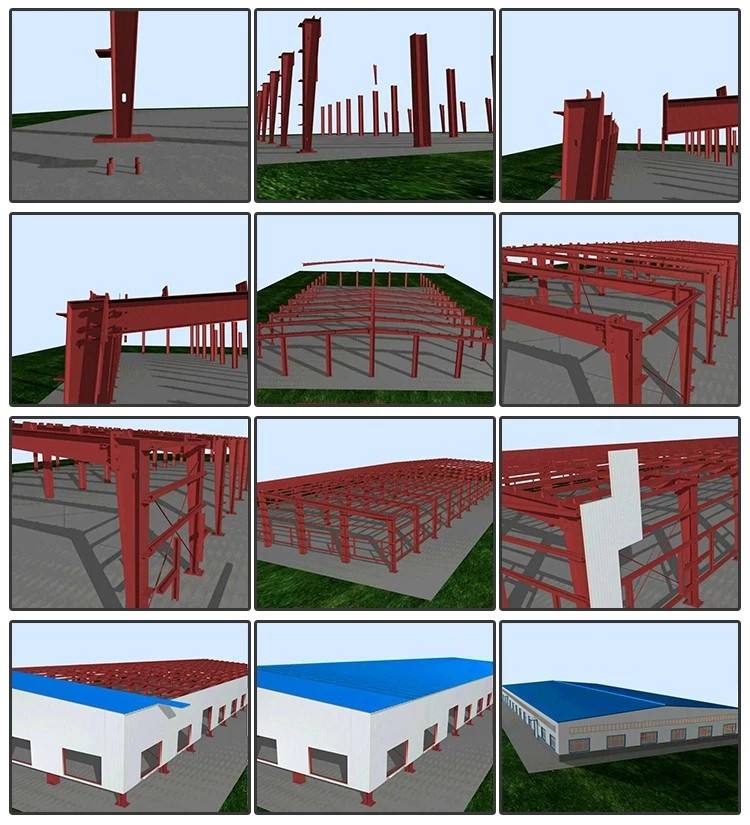

We have a professional and standardized design team. Through AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel), etc., we can design complex industries such as office buildings, supermarkets, shopping malls, apartments, retail stores, workshops, warehouses, etc. Construction, chicken sheds, etc. A professional work team is the basis for our commitment to building the "WZHGROUP" world brand.

In order to provide you with the most suitable drawings and the best price, our design team needs to confirm some information with you, as follows:
1 Location (Where will it be built?) _____Country, City_____
2 Dimensions: length*width*height_____mm*_____mm*_____mm
3 Wind load (maximum wind speed) _____kn/m2, _____km/h, _____m/s
4 Snow load (maximum snow thickness) _____kn/m2, _____mm
5 Earthquake resistance level_____
6 Whether brick walls are needed. If yes, 1.2m high or 1.5m high?
7 Thermal insulation requirements. If so, it is recommended to use EPS/glass fiber wool/rock wool/PU sandwich panels; if not, metal steel plates will suffice. The cost of the latter will be much lower than the former.
8 Number and size of doors _____, _____ (width) mm*_____ (height) mm
9 Number and size of windows _____, _____(width)mm*_____(height)mm
10 Whether a crane is required. If yes, then at most _____ units. Lifting weight ____ tons; maximum. Lifting height _____ meters
