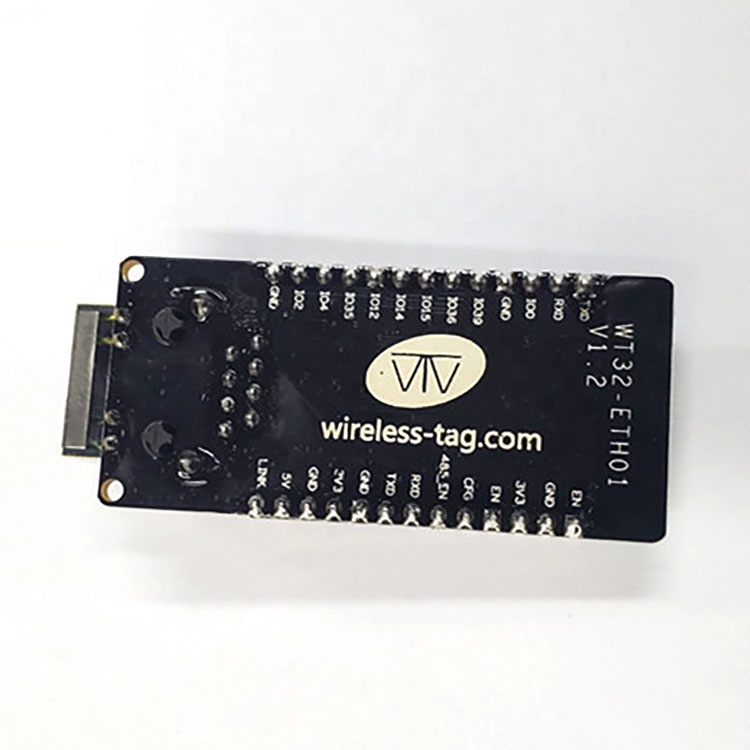

Embedded gateway module PCBA Ethernet module WT32-ETH01 V1.2 wifi and ble combination module ESP32 development board
-
$9.50 / 1 - 99 pieces
$9.30 / >=100 pieces - 1 piece
- Wireless-Tag Technology Co., Limited
- Guangdong, China
- Ms Candy Liu
Product Detail
| Frequency Range: | 2.4~2.5GHz | Sales unit: | single product |
| brand: | wireless tag | Packaging Details: | wifi and bluetooth combination module ESP32 development board embedded gateway module Ethernet module |
| network: | Provide SDK | model: | WT32-ETH01 |
| Single pack size: | 6X2.6X1.7 cm | application: | IoT, Smart Home |
| type: | ethernet module | RF certification: | FCC/CE/RoHS |
| Package preview: | Gross weight per piece: | 0.200 kg | |
| Origin: | mainland | Name: | WT32-ETH01 |

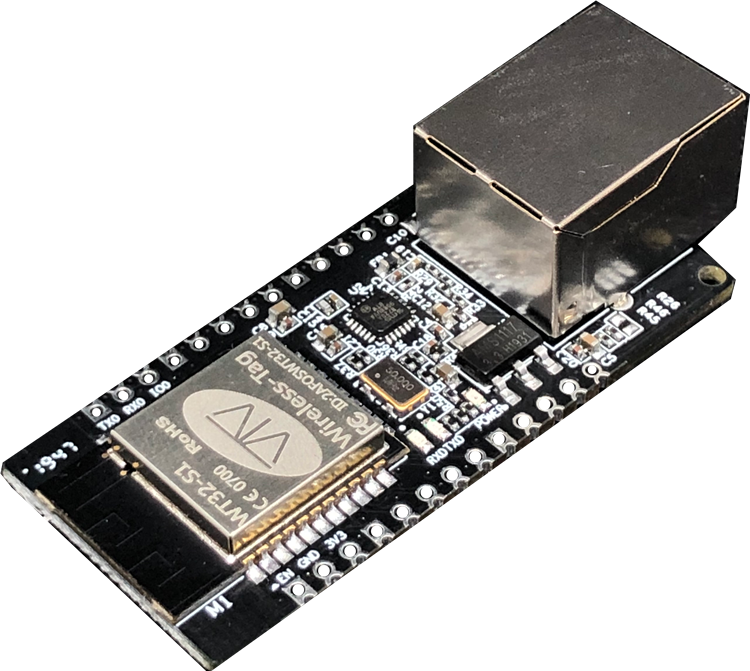

1 Overview
WT32-ETH01 is an embedded serial-to-Ethernet module designed by Wireless-tag Company based on the ESP32 chipset. This module integrates an optimized TCP/IP protocol stack, which is convenient for users to complete the cost. The cost of development time. In addition, the module is compatible with half-pad and connector through-hole designs, and the board width is a universal width. The module can be directly soldered on the board or used on a breadboard, which is convenient for users to use in different scenarios. The ESP32 series IC is an integrated 2.4GHz Wi-Fi and Bluetooth dual-mode SOC with ultra-high RF performance, stability, versatility and reliability, and ultra-low power consumption.
2. Main features
|
category |
project |
Specification |
|
Wifi |
RF authentication |
FCC/CE/RoHS |
|
protocol |
802.11 b/g/n/e/i (802.11n up to 150 Mbps) |
|
|
A-MPDU and A-MSDU aggregation and 0.4_s guard interval support |
||
|
Frequency Range |
2.4~2.5GHz |
|
|
Bluetooth |
protocol |
Bluetooth v4.2 BR/EDR and BLE Specifications |
|
radio |
NZIF receiver with -97 dBm sensitivity |
|
|
hardware |
Network port specification |
RJ45, 10/100Mbps, crossover direct connection adaptive |
|
Serial baud rate |
80~5 million |
|
|
Onboard flash |
32 Mbit |
|
|
Operating Voltage |
5V or 3.3V power supply (either) |
|
|
Working current |
Average: 80mA |
|
|
The minimum current supplied by the power supply |
500mA |
|
|
range of working temperature |
-40℃~+85℃ |
|
|
Ambient temperature range |
room temperature |
|
|
pack |
Semi-soldered pad/connector through-hole connection (optional) |
|
|
software |
wireless model |
Site/SoftAP/SoftAP+Site/P2P |
|
Wi-Fi security mechanism |
WPA/ WPA2/ WPA2-Enterprise/ WPS |
|
|
encryption type |
AES/RSA/ECC/SHA |
|
|
firmware upgrade |
Remote OTA upgrade via network |
|
|
software development |
SDK for secondary development by users |
|
|
network protocol |
IPv4, TCP/UDP |
|
|
IP acquisition method |
Static IP, DHCP (default) |
|
|
simple transfer method |
TCP server/TCP client/UDP server/UDP client |
|
|
user configuration |
AT+ command set |
