wt32-eth01 esp32 wifi ble gateway embedded serial port networking bluetooth + wifi two-in-one gateway module to module
-
$9.50 / 1 - 99 pieces
$9.30 / >=100 pieces - 1 piece
- Wireless-Tag Technology Co., Limited
- Guangdong, China
- Ms Candy Liu
Product Detail
| Operating temperature: | -40℃~+85℃ | payment terms: | L/C, Western Union, T/T, Paypal |
| Supply capacity: | 10000000 pieces per year | model: | WT32-ETH01 |
| aspect: | (18.00 ± 0.10) x (20.00 ± 0.10) x (3.20 ± 0.10) | type: | Original supply |
| Frequency Range: | 2.4~2.5GHz | Package preview: | |
| Working current: | Average: 80mA | Origin: | Shenzhen, Guangdong, China |
| Wi-Fi protocol: | 802.11b/g/n/e/i | application: | Network Monitoring, Internet of Things |
| brand: | wireless tag | Onboard flash: | 32Mbit |
| network: | Available SDKs | port: | Shenzhen/Hong Kong |
| RF certification: | FCC/CE/RoHS | Supply current: | Minimum: 500mA |
| Operating Voltage: | 5V or 3.3V | Package: | Half Pad/Through Hole |
wt32-eth01 esp32 wifi ble gateway embedded serial port networking bluetooth + wifi two-in-one gateway module to module
Product Description
brief introduction:
WT32-ETH01 is an embedded serial portEthernet module based on ESP32 seriesPresented by Wireless-Tag Technology Co. Limited.
Integration and optimizationTCP/IP protocol stack, allowing users to easily complete the network access of embedded devices, greatly reducing the cost of development time. Additionally, the module is designed toCompatible with half-pad and through-hole connectors.Due to its common board width, the modules can be directlysoldered to a circuit board, connector, or even a breadboard,It is convenient for users to apply in different scenarios.
Integration and optimizationTCP/IP protocol stack, allowing users to easily complete the network access of embedded devices, greatly reducing the cost of development time. Additionally, the module is designed toCompatible with half-pad and through-hole connectors.Due to its common board width, the modules can be directlysoldered to a circuit board, connector, or even a breadboard,It is convenient for users to apply in different scenarios.
Esp32 series IC is an SOC integrating 2.4GHz Wi-Fi and Bluetooth dual-mode, with ultra-high RF performance,Stability, versatility, reliability and ultra-low power consumption.
application
1. Intelligent agricultural sensor data monitoring 2. Distribution box terminal network monitoring
3. Industrial automation network monitoring 4. Medical equipment network monitoring
Core functions
super cheap
Support complete TCP/IP protocol stack
Rich wireless communication interface
Various working modes are optional
We are the original factory, guarantee genuine goods at a fair price, complete certificates, reasonable prices, technical support

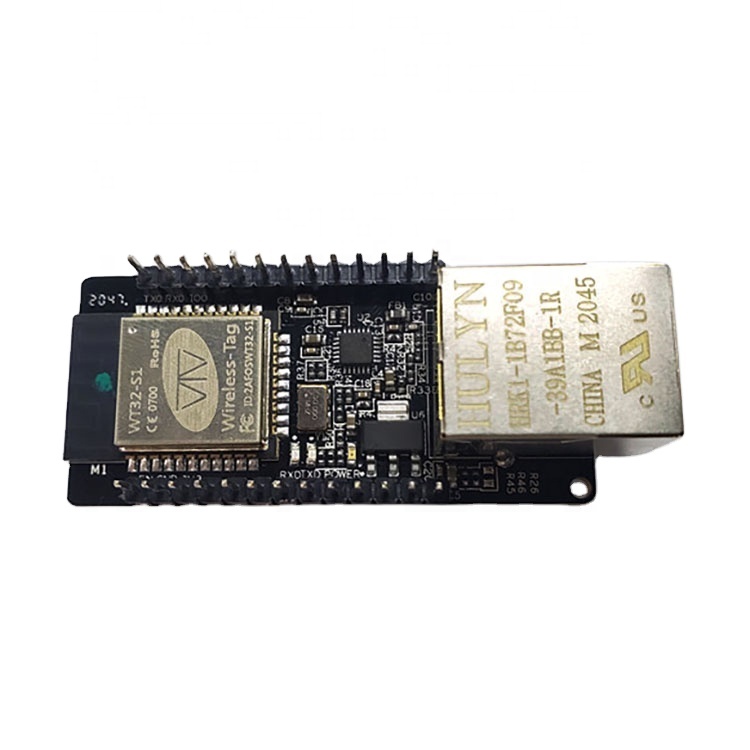

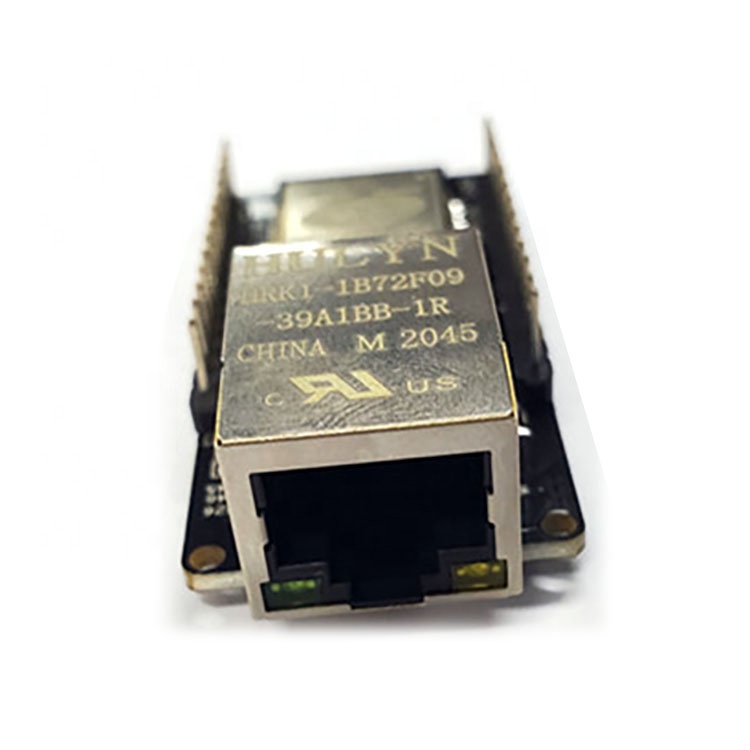

Detail image

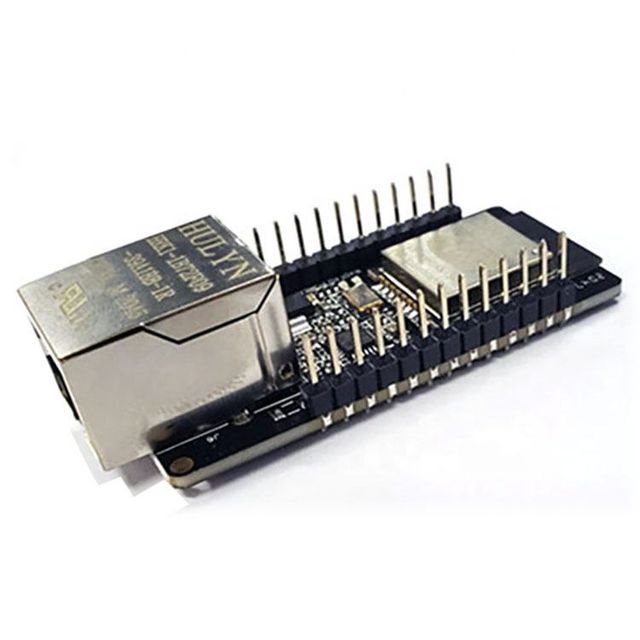

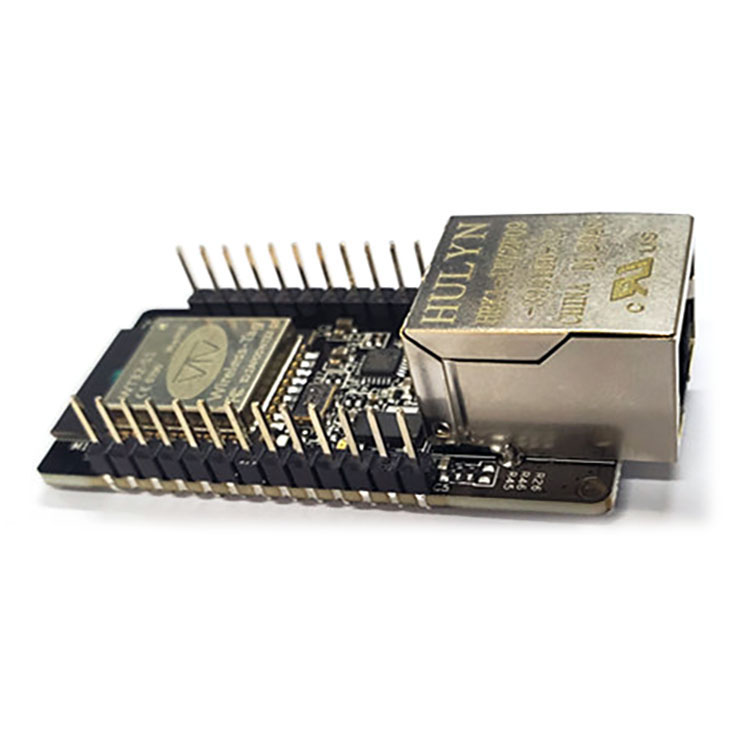

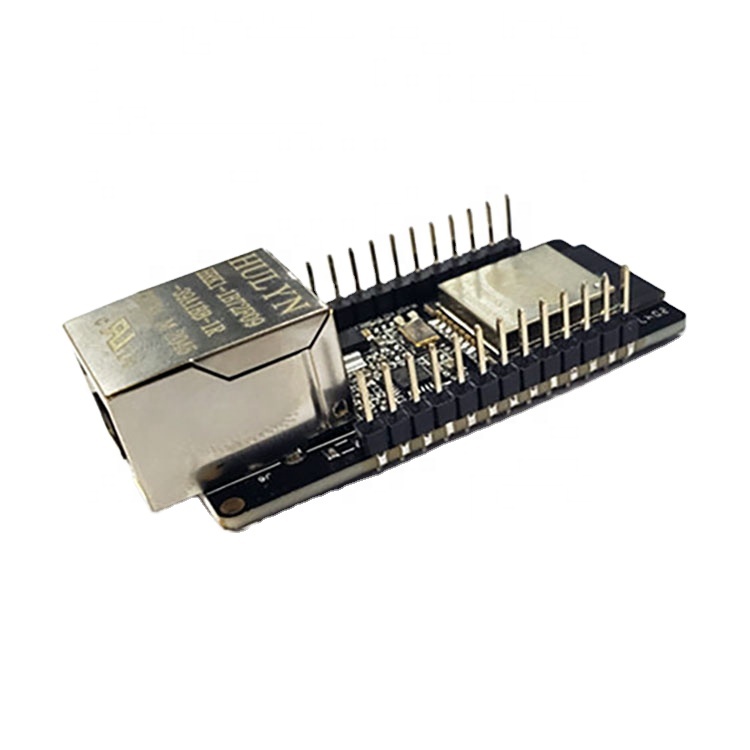

WT32-ETH01 with pins

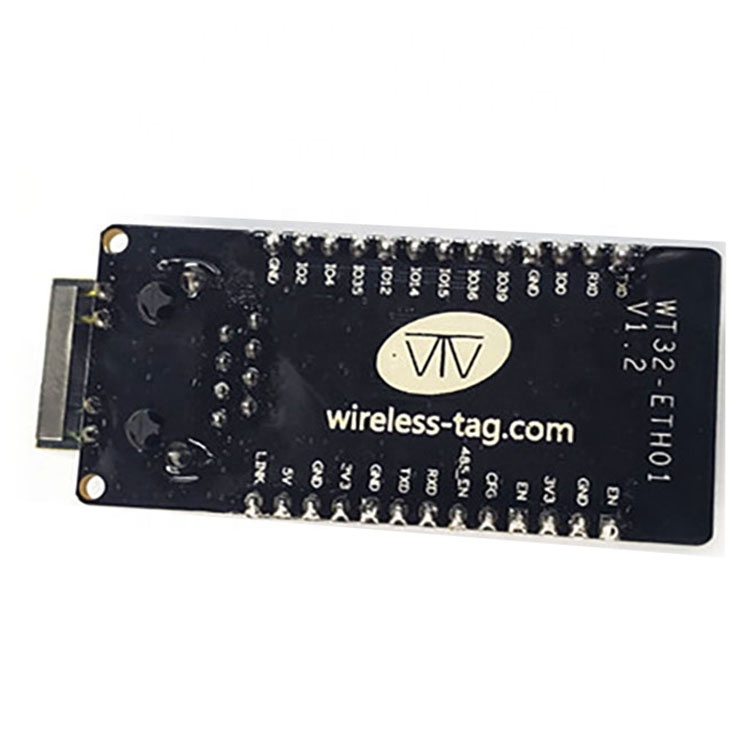

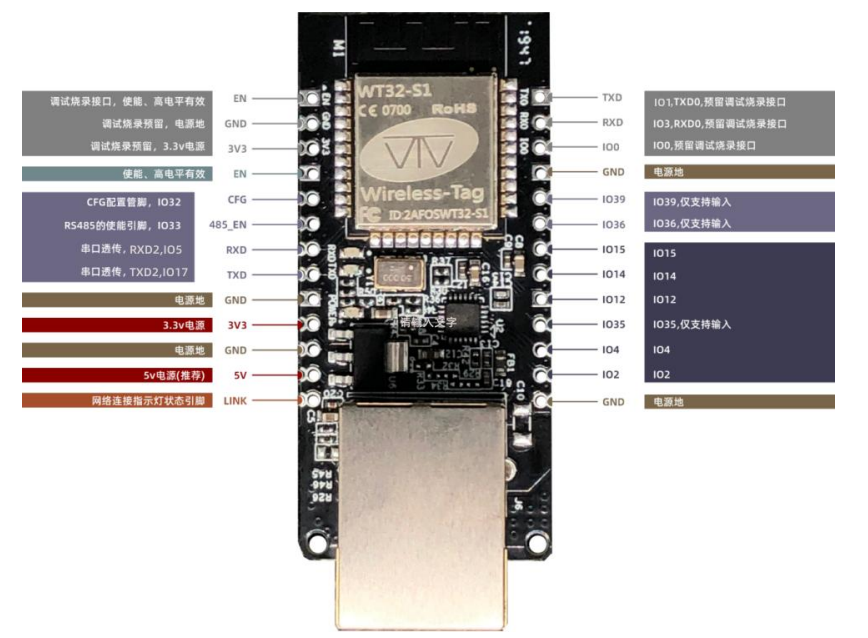

WT32-ETH01 No pin
Product parameters

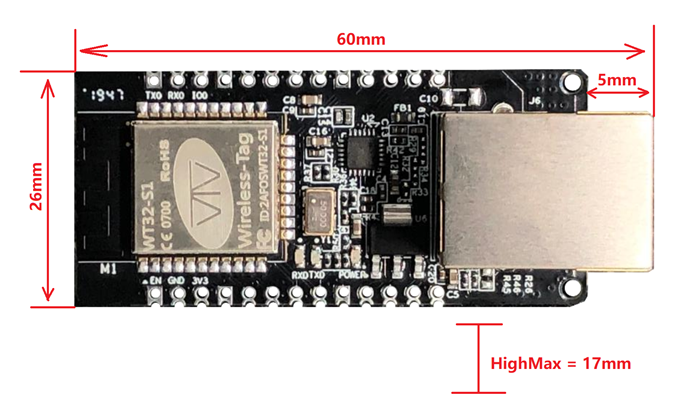

1. Specification Details

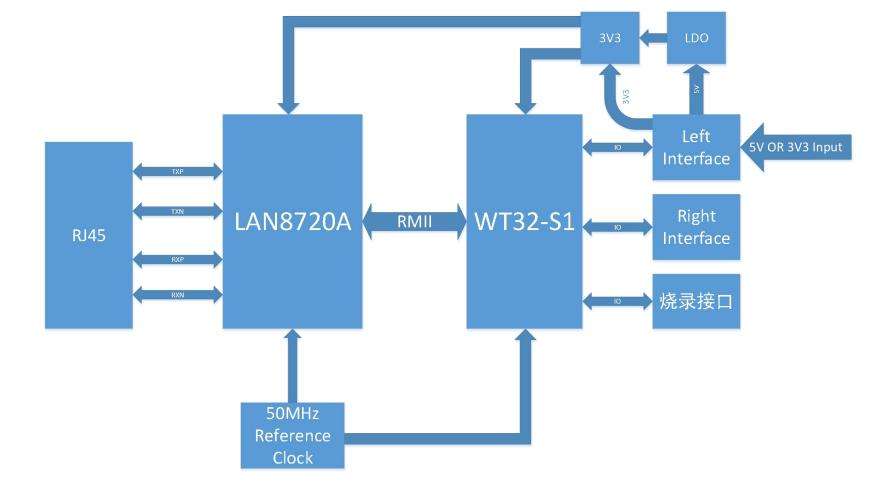

2. System block diagram

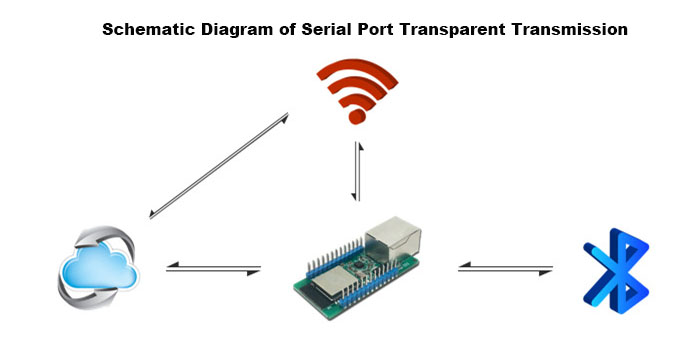

3. Schematic diagram of serial port transparent transmission
>> Ask me for price, packaging, shipping, samples, OEM and ODM service details!

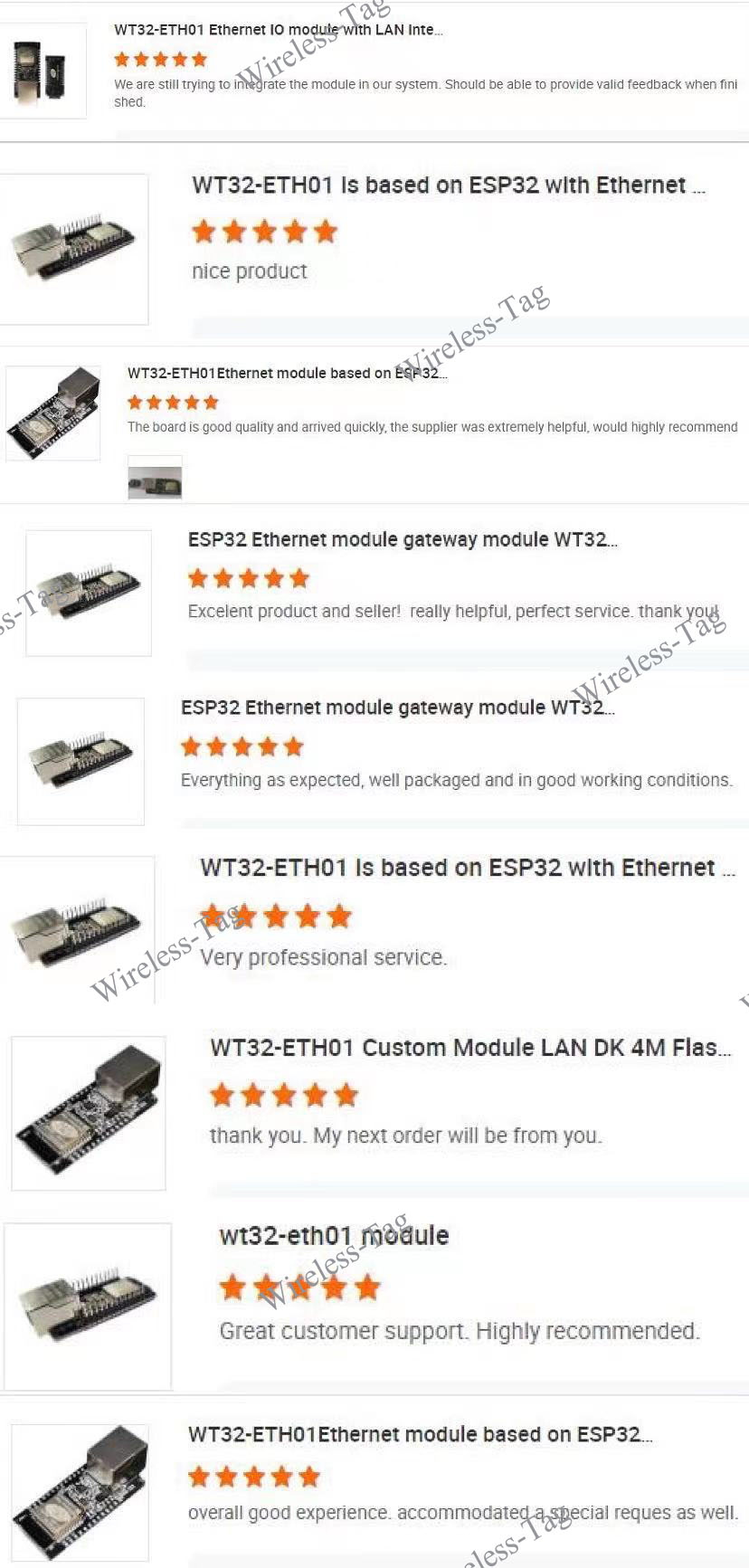

customer reviews
