6ft Social Distance Control Bluetooth Beacon Wristband Contact Tracking Bracelet

Product Detail

color:black/blue/orangeFunction:Social Distancing Alerting and Logging
brand:beigenetwork:SDK available, API available
application:Electronic devices, social distance trackingPackage preview:
Battery:rechargeable batteryOrigin:China
type:Bluetooth 5.0Battery Life:15 days, calculated according to the broadcast rate of 1s per charge
size:23.*2.5*0.8CMproduct name:Meeblue Social Tracking Bracelet
Packaging Details:CartonCertificate:CE FCC RoHS
model:H1-STpayment terms:T/T, Alipay, Paypal
Bluetooth version:5.0Warranty:6 months
Product Details


How to efficiently and scientifically maintain a safe distance between people?

To solve this problem,H1-STyesSmart Wristband Proximity Alert Beacon designed to monitor the distance between each device and send an alert with red LED light and vibration when the distance between them is less than 6ft/2m. In addition to the alarm, the contact information will be recorded on the device to realize the traceability function.

Bracelet alarm type
Vibration & LED

Social distance recording contact function
Logging data: device ID and timestamp.
Record capacity: 34, 304 record data. If they close 500 people per day, it can cover about 60 days of data.

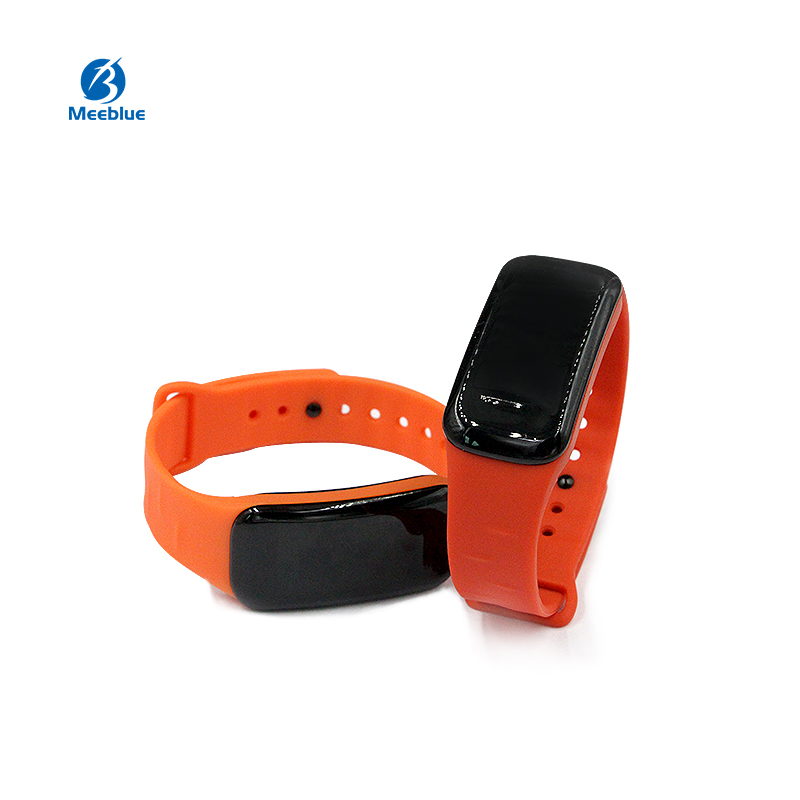

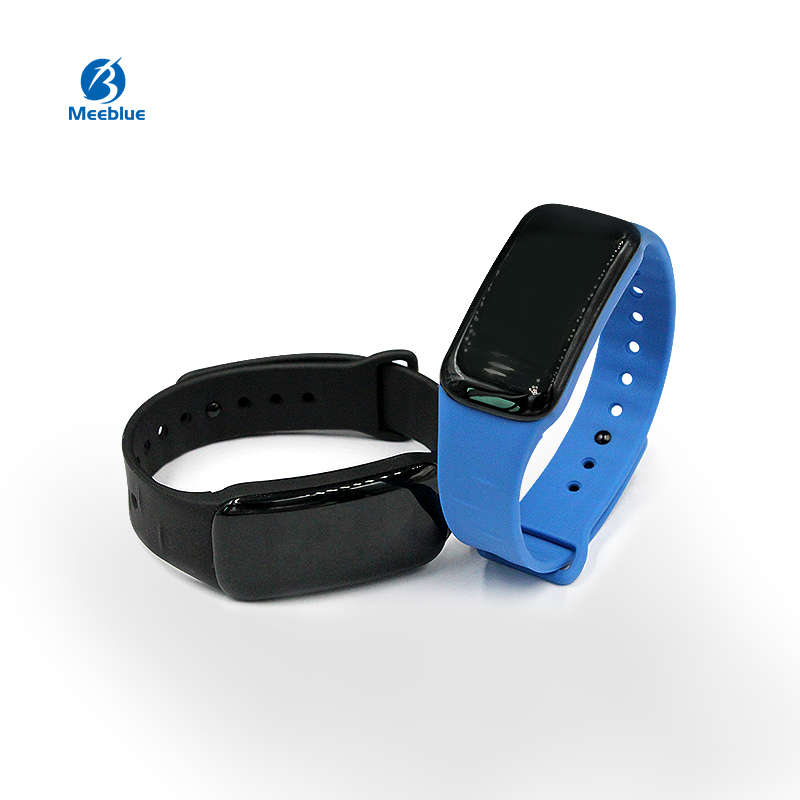

Product Image

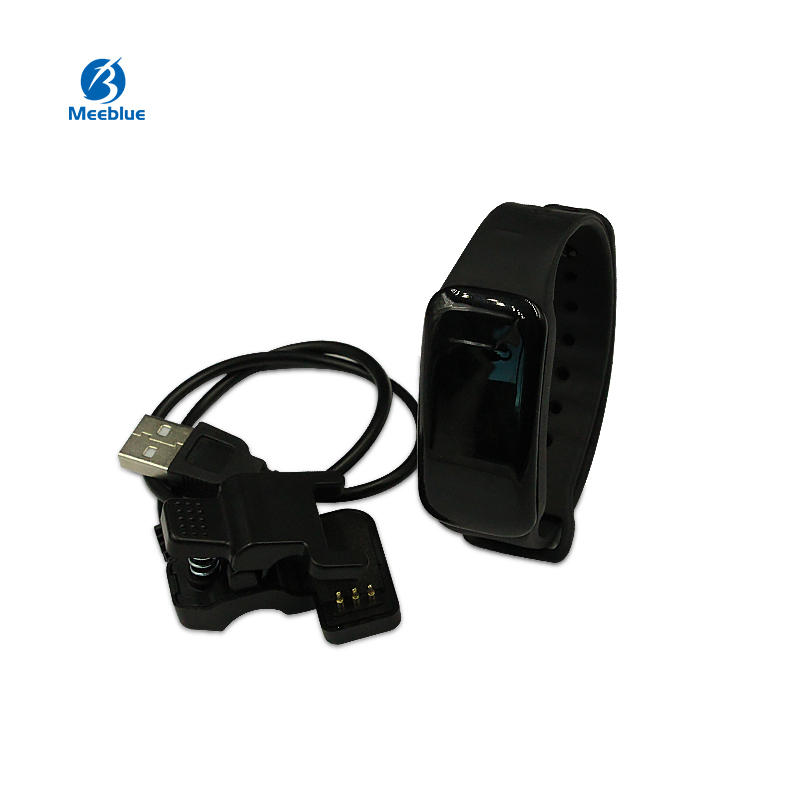

bracelet with battery charger

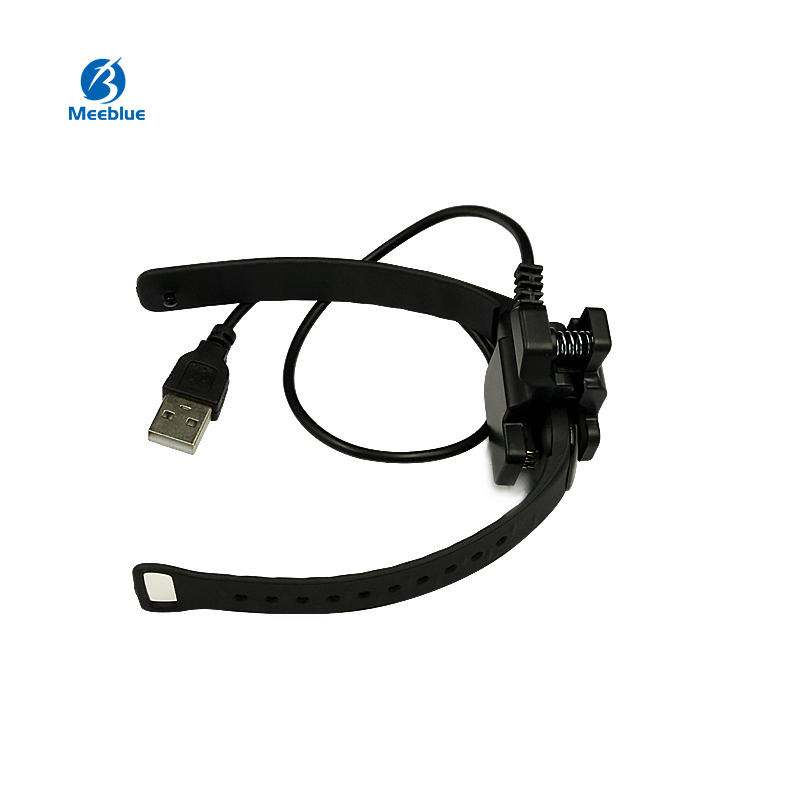

Charge the bracelet

product specification
values
Comment
chipset
Nordic52832 QFAA
Battery
rechargeable battery
aspect
23*2.5*0.8cm
net weight
14 grams
to lead
Yes, RGB
Accelerometer
Yes
motion sensor
building materials
ABS
waterproof
IP67
vibrator
Yes
touch button
Yes
how to use it
Devices are active during inventory and shipping.
Three steps make it work.

* * Step 1: Charge after getting the bracelet.
* Step 2: Long press the button to turn on the bracelet.
* STEP 3: Put the bracelet on your hand. When it detects another device within 6ft/2m, it sends out an alert via light and vibration.

Comment:
* When obstacles such as human body or walls affect the signal distance, there may be a delay in the vibration/LED alarm.
* The safety distance can be defined according to various scenarios, such as 1 meter, 1.5 meters, 2 meters, etc.

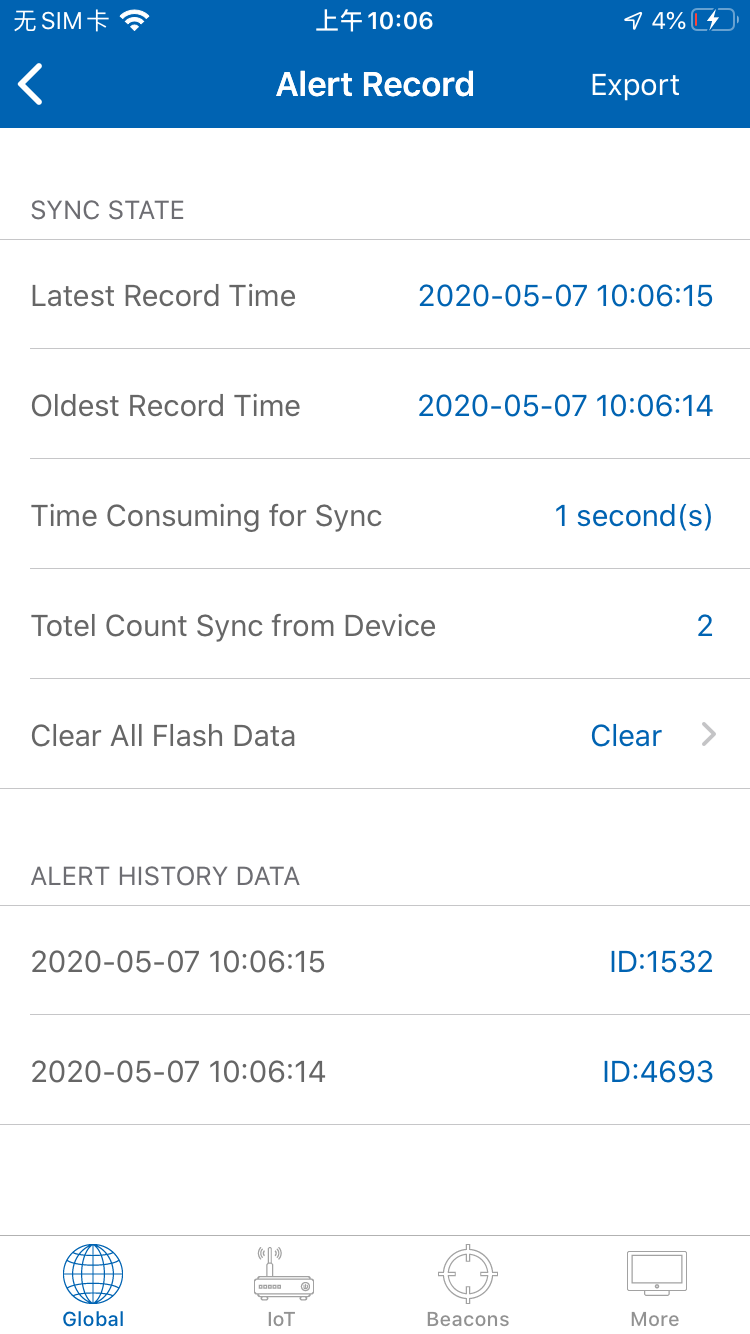

* We will provide you with an IOS demo, and you can make a mobile APP to download the ID (you can also use our "CheckBlue" App). Then you can know who exactly to contact.

About usage time

Sleep state:last for many years.
Working status:About 15 days without any light and vibration alarm, but the actual battery life depends on the number of alarms per day.
Battery:Chargable.

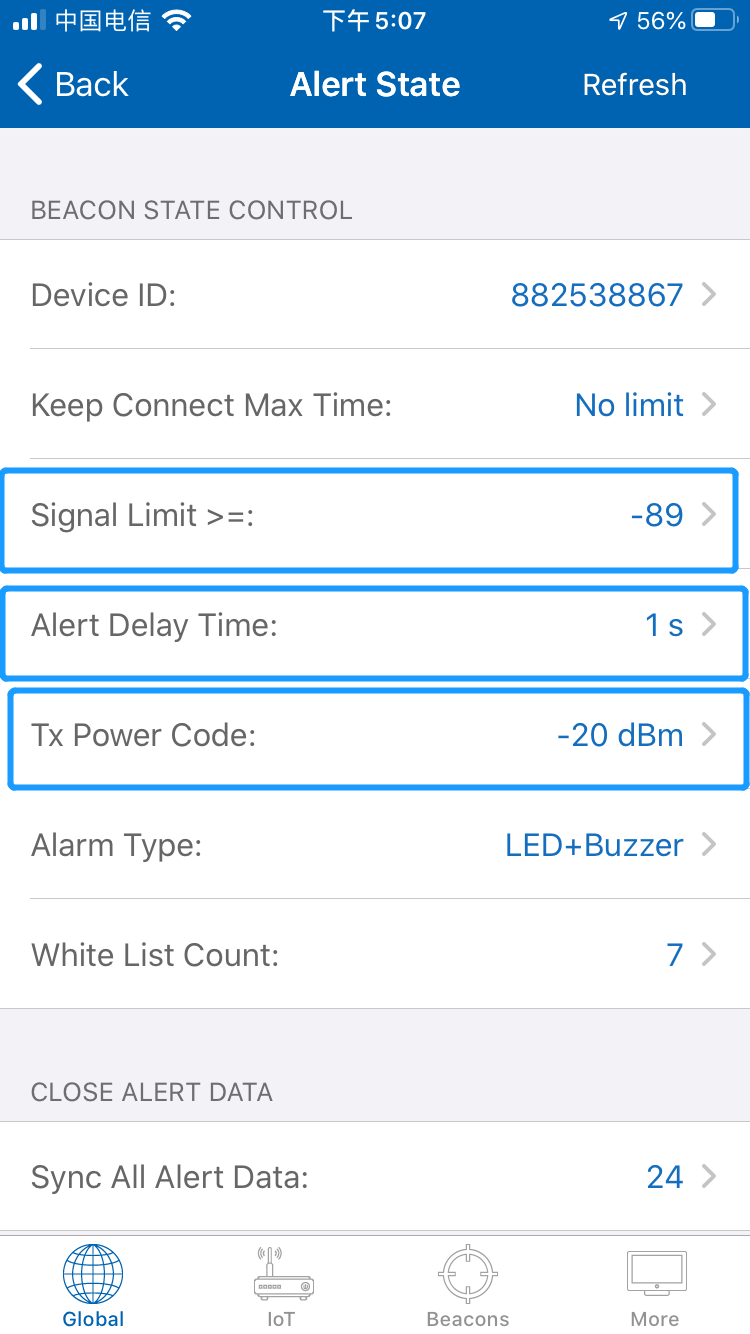

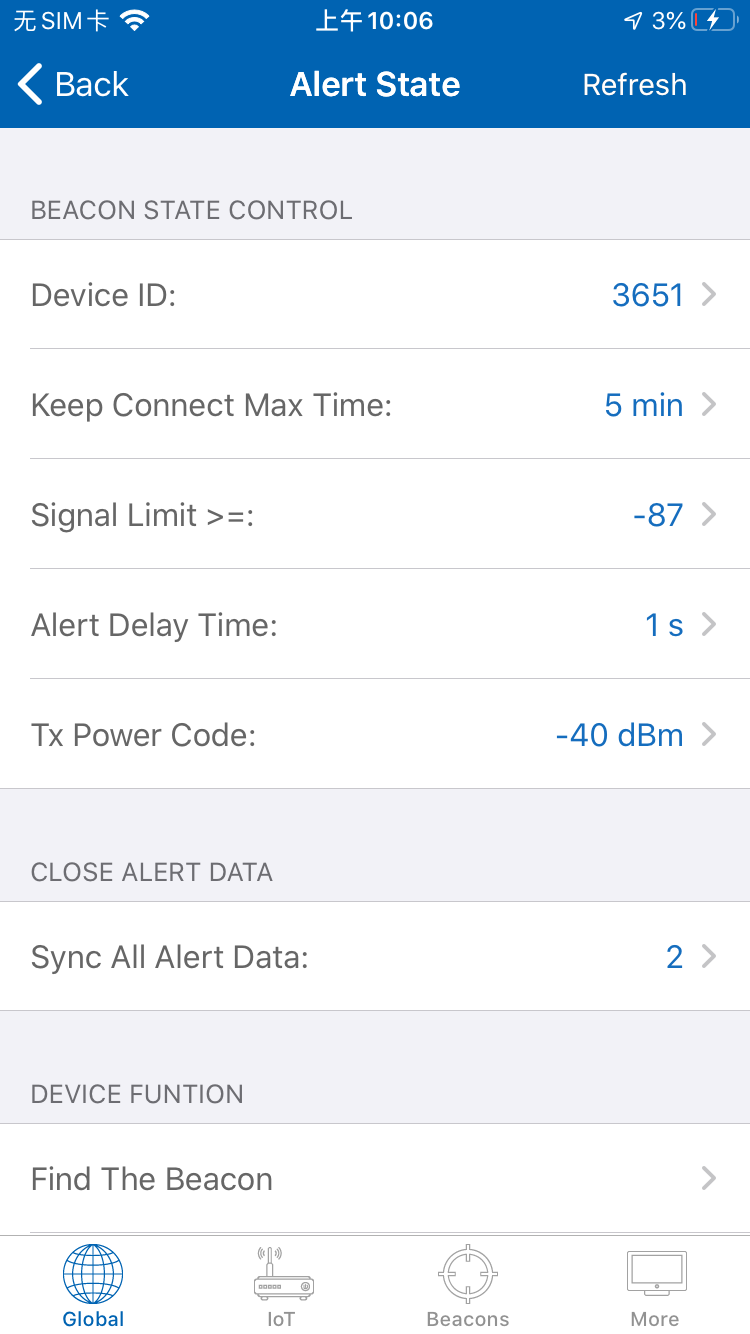

CheckBlue Key Parameter Description

Alarm delay time, this value can be configured as 1-30, the unit is second. Higher values ​​indicate longer alarm delays. For example, if the alarm delay time is set to 10, when two people touch for more than 10 seconds, the device will record and alarm, but if two people only touch for 5 seconds or less, it will not record or alarm. Also, when obstacles such as human bodies or walls affect the signal distance, there may be a delay in the vibration/LED alarm.

alarm type, currently the bracelet supports LED and vibration. Types can be freely combined or not selected. When nothing is selected, only the contact history will be recorded, and there will be no alarm behavior.

A whitelist can be added.
Each device can create a white list, the white list supports up to 45 devices, such as the family white list, when the family is close to each other, only the contact ID and time will be recorded, and the LED/vibration alarm will not be recorded.
