European market high quality xps waterproof insulation wall tile back panel with favorable price
- $3.00 /piece
- 1 piece
- Hangzhou Tyco Industrial Co., Ltd.
- Zhejiang, China
- Ms Shine Jin
Product Detail
| type: | XPS board | Warranty: | over 5 years |
| Temperature limit: | -50℃-+70℃ | density: | 38-40 kg/m3 |
| Material: | XPS Styrofoam coated with fiberglass cement | application: | hotel |
| payment terms: | L/C, Western Union, D/A, T/T, MoneyGram | project name: | Foam xps waterproof and heat insulation sandwich panel |
| Water Absorption: | 0.5% | brand: | Tyco |
| Packaging Details: | carton or pallet | After-sales service: | online technical support |
| XPS color: | blue, pink or customized | Compressive strength: | 250~700Kpa |
| Supply capacity: | 20000 pieces per month | Thermal Conductivity: | 0.03~0.036W/M*K |
| model: | Tyco 0001 | Function: | waterproof, insulation |
| design style: | contemporary | Project Solution Capabilities: | others |
| port: | Shanghai/Ningbo | Origin: | Zhejiang, China |
who are we
Product Description

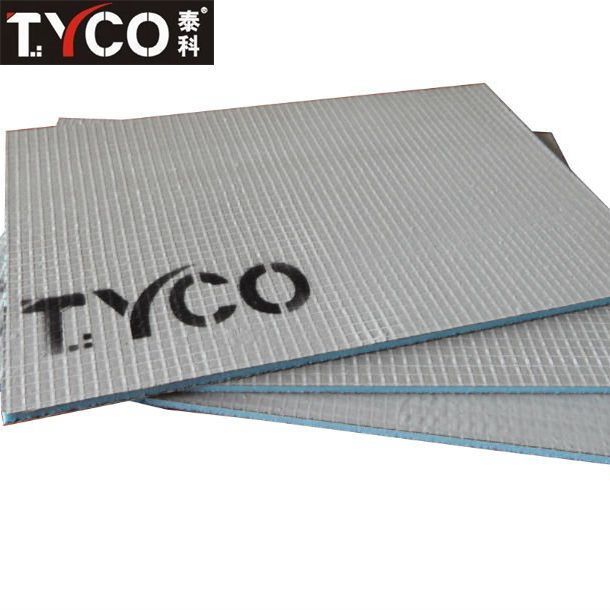

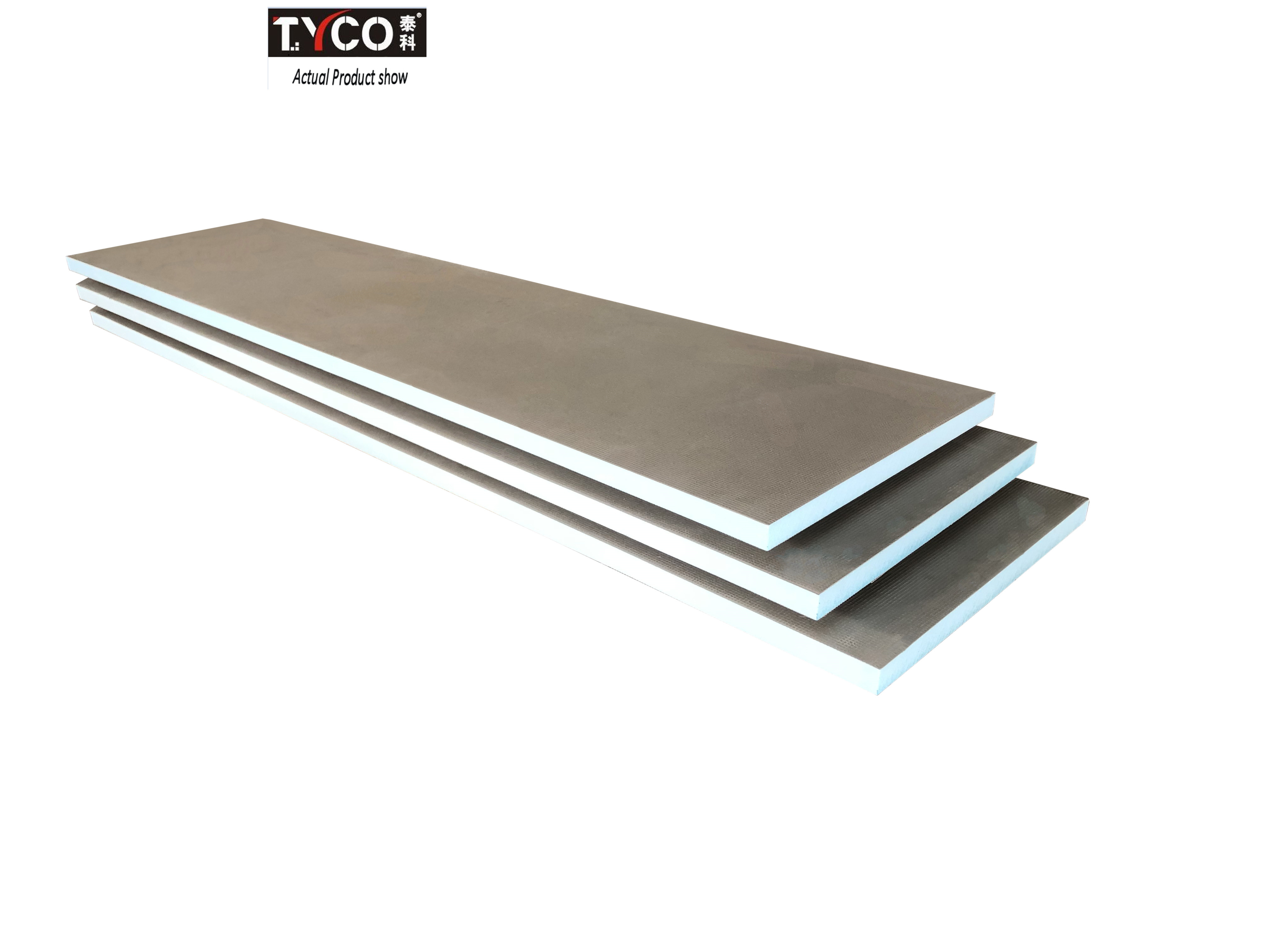

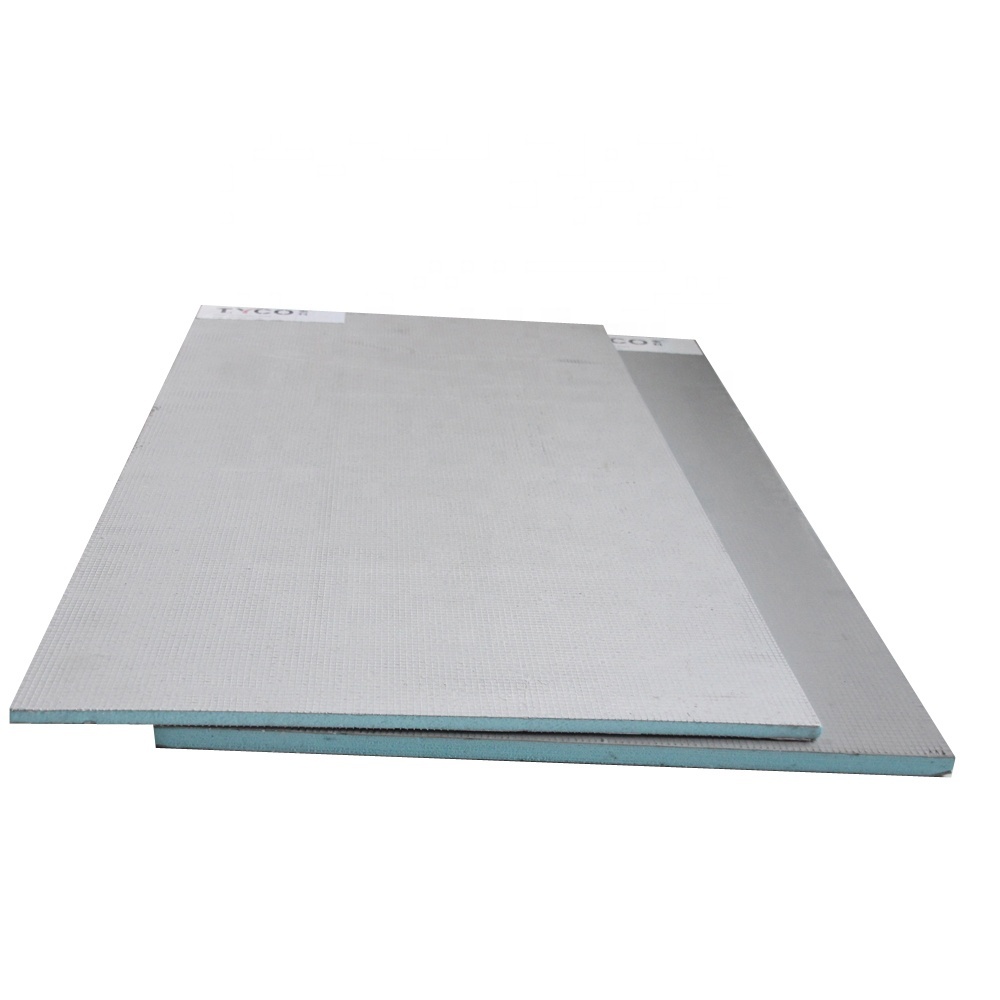

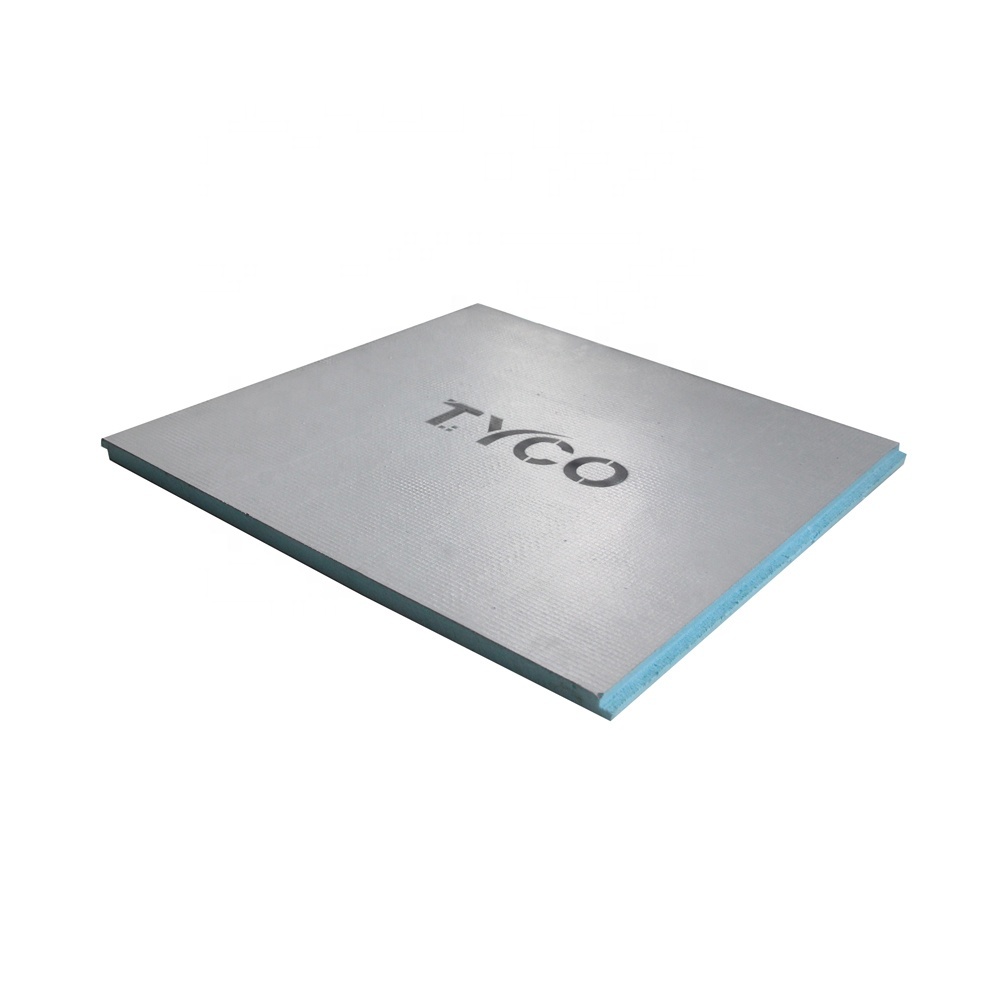

TYCO backplaneIt is made of XPS foam board (without CFC and HCFC, blue closed-cell core material), coated with glass fiber mesh cloth and polymer cement mortar on both sides. It makes the backer board an ideal base for laying tiles using the thin bed technique. The XPS foam board in the core is 100% waterproof with expected vapor resistance. As proof, these panels meet the rigorous standards of ASTM/ANSI waterproofing testing and are suitable as part of waterproofing installations when seams and fastener heads are properly prepared.
*Heat insulation
* Waterproof and dimensionally stable
* Light weight, a board (1200x600x10mm) about 1.8KG
* Waterproof and dimensionally stable
* Light weight, a board (1200x600x10mm) about 1.8KG
* Easy to tile
* Easy to cut (with knife or saw)
* Ideal for wet rooms
* Excellent sound insulation effect (12mm board, 20 decibels)
* Environmentally friendly (CFC&HCFC free)
* Ideal for wet rooms
* Excellent sound insulation effect (12mm board, 20 decibels)
* Environmentally friendly (CFC&HCFC free)
Technical data
TYCO board 100% fresh raw material with cheap recycled materialTYCO board has passed REACH certification, does not contain HBCD, HCFC, CFC, and the board quality complies with EN13164.
density | EN1602 | 33 kg/m3 |
Thermal conductivity, 90 days, 10°C | EN12939:2000 | 0.032W/(m*K) |
Compressive strength | EN826 | >300Kpa |
tensile strength | EN1607 | >300Kpa |
water absorption | EN12087 | 0.80% |
Dimensional stability | EN1604 | 0.90% |
Corporate Income Tax Value | EN45545-2:2013+A:2015 | 0.07 |
refractory | EN 13501-1:2018 | Second |
Sound insulation (20mm thickness) | ISO140-3:1995+A1:2004 | 21 decibels |
