2020 New Styrofoam XPS 3mm 8mm 150mm Foam Board or Insulation Wall Panel
- $1.00 /piece
- 1 piece
- Hangzhou Tyco Industrial Co., Ltd.
- Zhejiang, China
- Ms Shine Jin
Product Detail

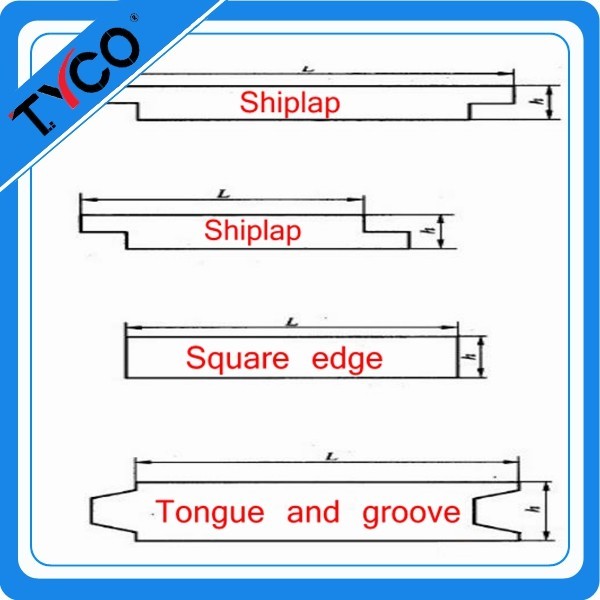

| place of origin; place of origin: | Zhejiang, China | edge: | Square, Shiplap, Tongue and Groove |
| Sound insulation: | More than 20 decibels | Apparent density: | 35~40kg/cubic meter |
| Compressive strength: | 250~300Kpa | Supply capacity: | 250 cubic meters per day |
| Project solution ability: | overall project solution | Thermal Conductivity: | 0.028-0.03W/M*K |
| Material: | polystyrene | Warranty: | over 5 years |
| application: | Floor, Wall and Roof Insulation | brand: | Tyco |
| Packaging Details: | plastic bag | payment terms: | L/C, D/A, D/P, T/T, Western Union |
| product name: | Thermal insulation XPS foam board | surface: | smooth, rough |
| port: | Ningbo or Shanghai | model: | Tycox |
| Function: | Waterproof, insulation, sound insulation | After-sales service: | online technical support |

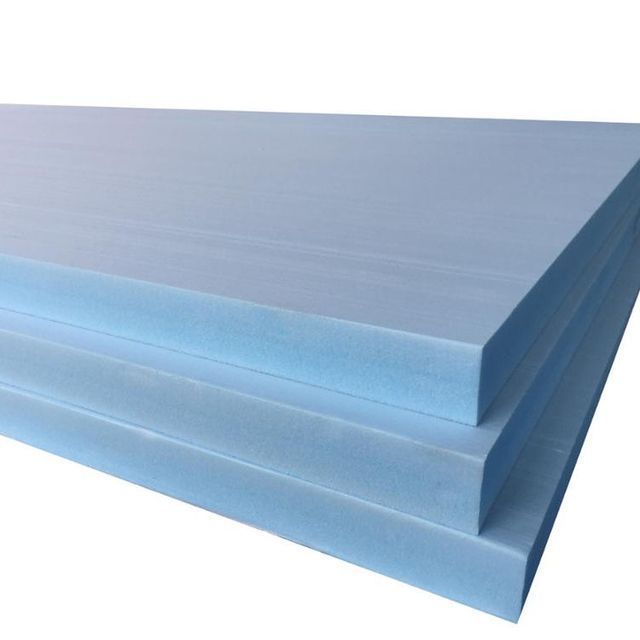

2020 New Styrofoam XPS 3mm 8mm 150mm Foam Board or Insulation Wall Panel
XPS is an extruded polystyrene insulation manufactured through the plastic extrusion process. The resulting panels are nearly 100% closed-cell, strong, highly moisture-resistant and easy to cut and shape.
XPS foam board is widely used as an expensive industrial material in the fields of wall insulation, low-temperature storage facilities, parking platforms, airport runways, concrete roof construction and structural roofing, and moisture-proof highways.
We promise Tyco 100% fresh material, fireproof or not, itscompletely environmentally friendly, safe for humans and the environment, does not contain HBCD.
PS: HBCD (hexabromocyclododecane), hexabromocyclododecane, as a fireproof material widely used in the field of xps insulation, has been banned in Europe since March 2016, so we changed the formula to use another It is safe to use an environmentally friendly fireproof material to produce the board. (with SGS report)
feature
*Stable performance, anti-aging:Extruded polystyrene (xps) insulation boards can last for 35-50 years.
*Pressure resistance: It has better compressive strength (about 300kpa) compared to other insulation materials (EPS is 200kpa), which makes it an ideal solution for heavy domestic or industrial loads.
*Water resistance:Polyfoam is almost 100% closed cell and therefore impervious to moisture.
*light:Optimized volume for easy handling
*Anti-deformation
*Impact resistance
*Versatile:The closed-cell structure and density of polyfoam allows specific edfe details and finishes to be cut into the board to make it as suitable for the job as possible. Plus, Polyfoam can be cut into almost any shape.
*Polyfoam is 100% recyclable
two different surfaces
We can support two different surfaces with a tolerance of ±2mm with skin and ±0.02mm without skin.
When the skinless XPS foam board is used on the floor, the floor is smoother than the leather board.
When the XPS skinless foam board is used on the wall, it is more convenient to install and more efficient to lay tiles.
three laps
Technical parameters of XPS foam board
density | kg/m3 | 30-45 years old |
Thermal conductivity, 90 days, 10℃ | Width/(m*k) | 0.027-0.036 |
Compressive Strength at 10% Deformation or Yield, (Perpendicular) | kPa | 250-700 |
tensile strength | kPa | ≥350 |
water absorption | volume percentage | ≤1.00% |
capillary action | zero | zero |
Coefficient of linear thermal expansion | mm(m*K) | 0.07 |
temperature limit | ℃ | -50℃,+75℃ |
Available Sizes:
thickness | width | length | edge |
60-100mm | 600mm | square edge | |
20-100mm | 600mm | boat circle, square edge, tongue and groove | |
20-100mm | 900mm | ||
20-100mm | 1200mm |
notes:
XPS foam board characteristics
* heat insulation
* Waterproof and dimensionally stable
* Light weight, about 1.8kg per board (1200 x 600x 10mm)
* Easy to cut (with knife or saw)
* Ideal for wet rooms
* Excellent sound insulation (12mm board, 20dB)
100% environmentally friendly (CFC and HCFC free)
* Easy to tile
