Cement Board Replacement Tile Backboard Tile Backboard
- $0.20 /piece
- 1 piece
- Weifang Berry Waterproof Material Co., Ltd.
- Shandong, China
- Mr Richard Chan
Product Detail
| usage: | ground | payment terms: | L/C, T/T, Western Union |
| Warranty: | 3 years | size: | 3ft*5ft/600*1200MM |
| Name: | Wedi 1200*600*6mm Underfloor Thermal Insulation XPS Tile Back Panel | Compressive strength: | Minimum 300KPa |
| Material: | XPS+glass fiber mesh cloth+cement mortar | After-sales service: | online technical support |
| After-sales service: | >=10 years | Function: | waterproof application |
| application: | wall hotel | Supply capacity: | 5 forty-foot containers per month |
| Project solution ability: | others | model: | 004 |
| type: | Tile Backer | Key words: | Insulation board |
| design style: | modern | brand: | OEM production |
| Origin: | Shandong China | thickness: | 4mm, 6mm, 10mm, 12mm, 12.5mm, 20mm, 30mm , customized |
Product Name-Cement Coated Tile Backer Board 6,10& 20mm
Sany board (also known as building board, tile backing board, thermal insulation backing board, waterproof backing board, wet room backing board)

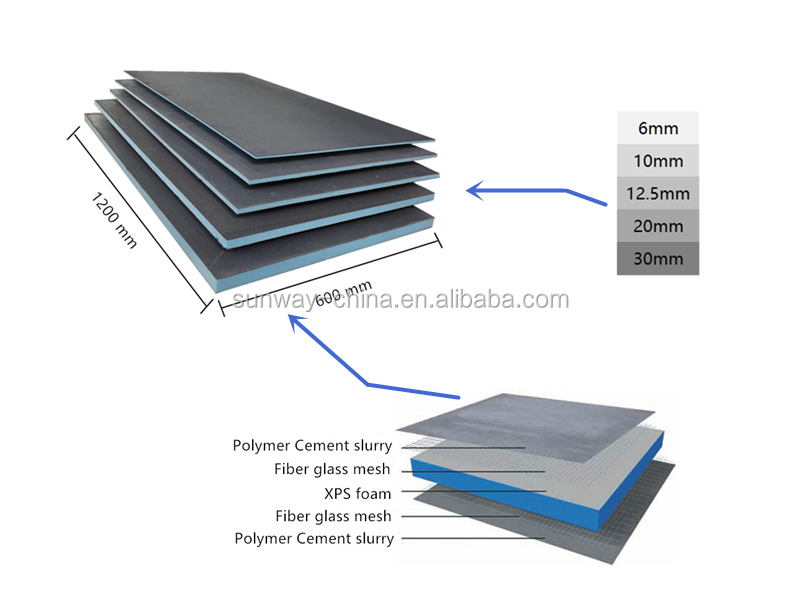

product structure

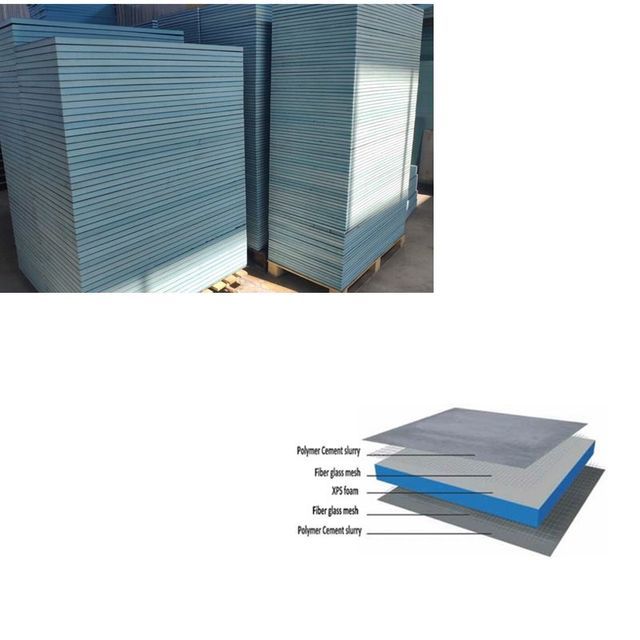

Trinity panels are made of high-performance waterproof extruded polystyrene with a 0.75mm coating on each side and consist of a fiberglass mesh embedded in polymer cement mortar.
Salient features
Both insulating and waterproof
Appearance

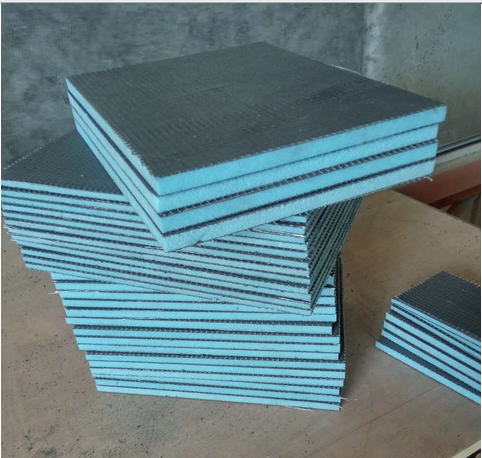

The planks have straight edges. Surface color is gray, core material is light blue
range of working temperature
50 to +80 °C
reaction to fire
These boards are classified as class E according to EN 13501-1. When the panels are tiled, their fire performance should comply with local building codes.
Impact on the indoor environment
Trinity panels have been assessed to not emit any particles, gases or radiation that could have a negative impact on the indoor climate or have any significant impact on health.
Environmental statement
This product does not contain any substances in the watch list of hazardous substances published by the national environmental protection department.
main application

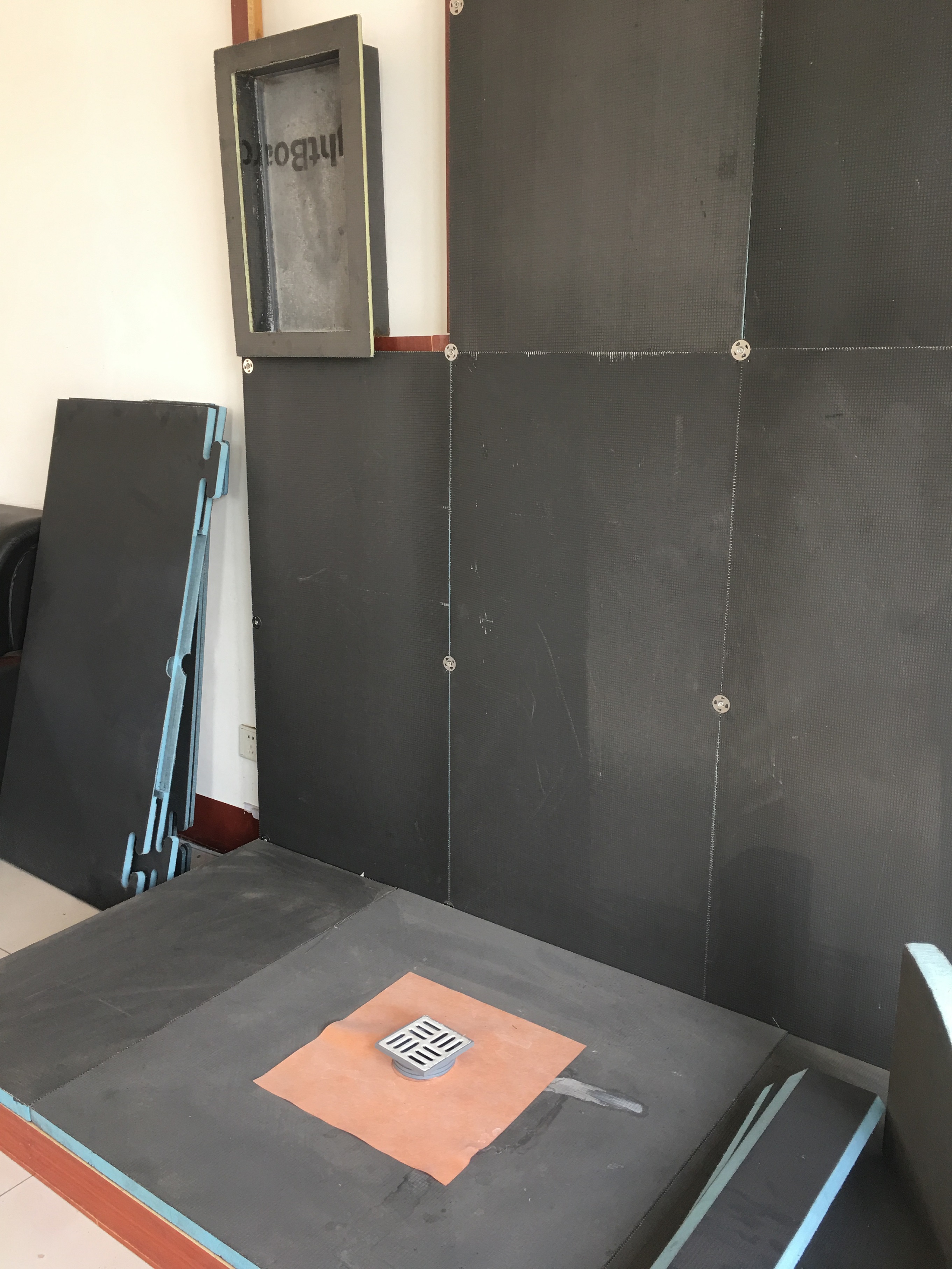

Used as a waterproofing layer for walls and floors in wet areas such as residences, hotels and bathrooms, shower rooms.
other apps
Other places where insulation and waterproofing are required.
describe

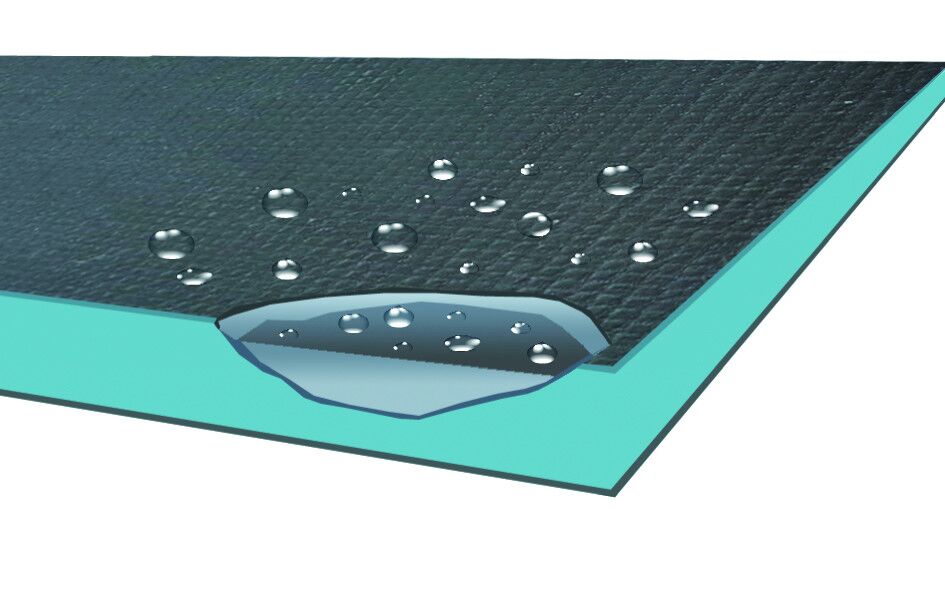

Blosam tile backs consist of a blue core made of extruded polystyrene rigid foam. Rigid foam reinforced on both sides with glass fibers (alkali resistant finish) and coated with polymer modified cement. This core is 100% waterproof and maintains full functionality even after possible damage.
Due to their special properties, Blosam tile backboards are suitable for a wide range of applications.
Blosam tile backsheets are mainly used as load-bearing elements for laying tiles, slabs and natural stone floor coverings using the thin bed method. It can also be used as an adhesive surface for applying plaster, tile adhesive and other materials.
Blosam tile backsheets provide excellent moisture protection, effective thermal insulation and can be used in countless ways as a design element in any tile installation.
Blosam tile backs are approved for indoor use at ambient temperatures. For application methods for special applications (swimming pools, cold stores, exterior areas, etc.), please contact Blosam. Blosam tile backboards are approved for flooring in common residential load rooms. Wheeled loads with highly concentrated loads are not permitted.
Blosam tile backs are also available in two different versions - Blosam Construct construction panels have pre-cut longitudinal or transverse grooves in the panels, allowing you to create curved walls and other interior features.
Blosam Vapor building panels are specifically designed for use in areas with constant high humidity such as swimming pools, steam rooms, spas, wellness suites and more. It differs from standard Blosam tile backs by the use of a special cement-coated board on both sides and a moisture barrier on one side.
Blosam tile backboards can be installed on almost any surface, are waterproof, insulated, versatile, lightweight, dimensionally stable and fast to process.
feature
2. High rigidity and durability
3. Tightly integrated with any tile wall or floor
4. Available in various thicknesses and sizes
5. Compatibility to multiple substructures
6. Moisture proof and mildew proof
7. Lightweight, easy to handle and cut with a utility knife

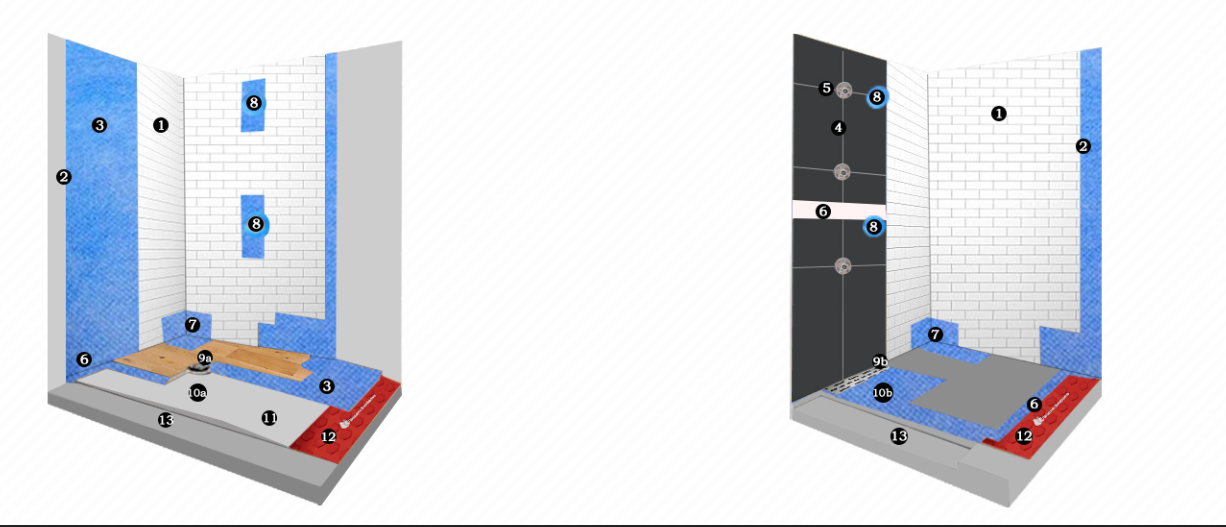

application
■ Adheres to masonry, concrete or plaster
■ Screws to slats and brackets
■ Concrete floor
■ wooden floor
■ floor heating
■ around bathtubs and shower trays
■ Dressing tables and shelves
■ Duct covering
Technical data | Underfloor heating insulating cement coated tile support board 6mm |
property | Ratings |
density | 36 kg/m3 |
Thermal Conductivity | "0.035w/(m*k) |
Compressive strength (10% deflection) | Minimum 0.25 N/mm2 |
Bending strength | 2.05N |
Water absorption (soaked for 2 days) | "1% |
Water absorption (capillary) | zero |
coefficient of linear expansion | |
Water vapor diffusion resistivity (∪) | 110-225u |
moisture permeability | 0.028ng/pa.ms |
Content of EU controlled substances |
Product size (customizable) | |||
Thickness (mm) | Width & Length(mm) | Weight (kg/㎡) | Package |
6 | 600*1200 | 2.7 | 10pcs/box |
10 | 600*1200/2500 | 2.9 | 10pcs/box |
12 | 600*1200/2500 | 3 | 10pcs/box |
20 | 600*1200/2500 | 3.2 | 10pcs/box |
30 | 600*1200/2500 | 3.4 | 10pcs/box |
40 | 600*1200/2500 | 4.3 | 8 pcs/box |
50 | 600*1200/2500 | 4.3 | 6pcs/box |
80 | 600*1200/2500 | 5.7 | 5pcs/box |
