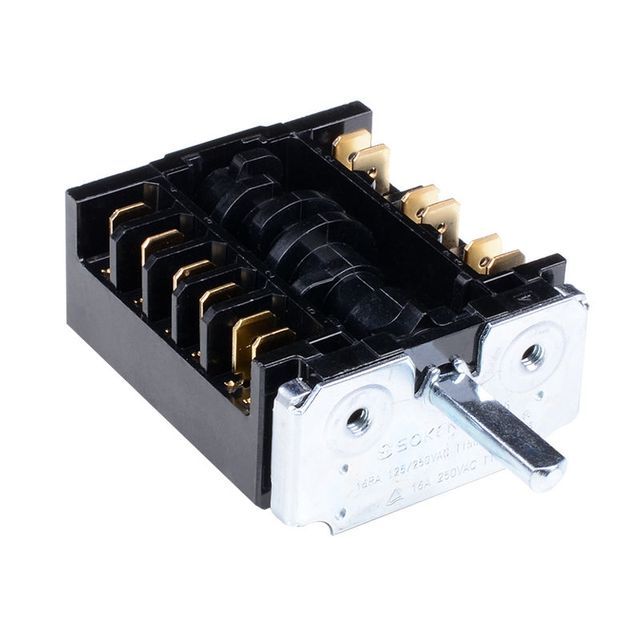

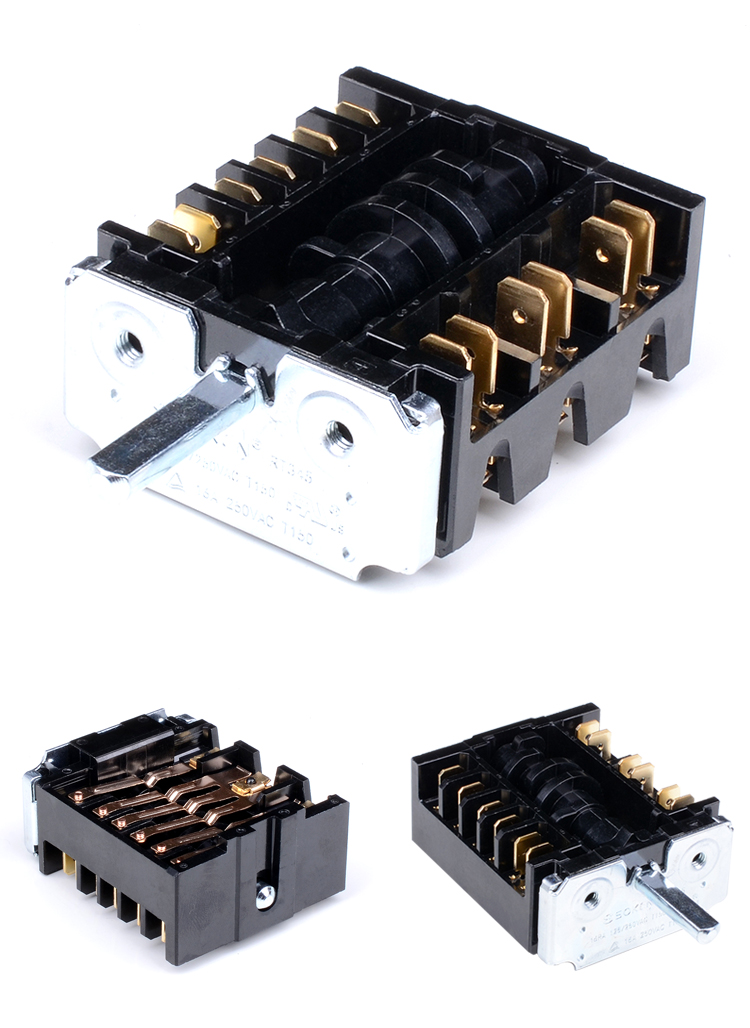

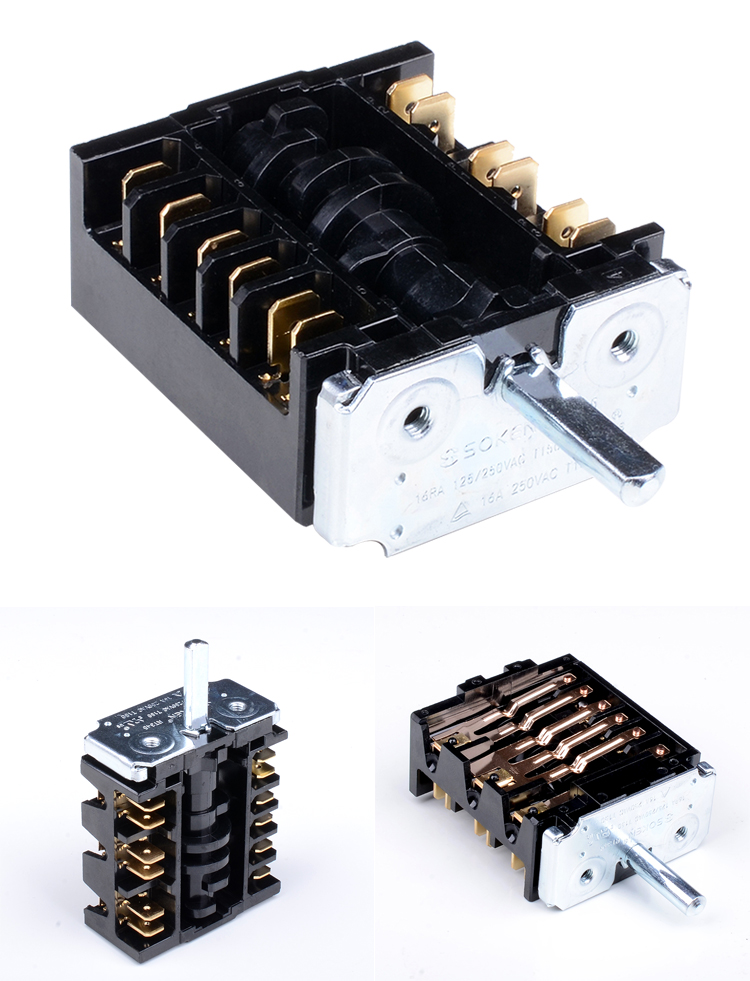

SOKEN Oven Rotary Switch New 7 Position 250v RT345-1A(51.43/23) Black
-
$1.60 / 1 - 2999 pieces
$1.40 / 3000 - 19999 pieces
$1.30 / >=20000 pieces - 1 piece
- Ningbo Master Soken Electrical Co., Ltd
- Zhejiang, China
- Ms Mandy Xia
Product Detail
| maximum. current: | 16A | Operating temperature: | -25~150℃ |
| Single package size: | 7.1X2.56X4.92 cm | Sales unit: | single product |
| axis: | 23mm | Name: | SOKEN multi-speed oven rotary selector switch |
| Mechanical life: | 10000 cycles | Origin: | Zhejiang, China |
| Gross weight per piece: | 0.020 kg | Certificate: | TUV |
| Certification: | UL, VDE, CB, KC | Main ingredients: | bakelite |
| Function: | 7 digits | maximum. Voltage: | 250 volts |
| Packaging Details: | Packing details: factory standard export carton | color: | brown or customized |

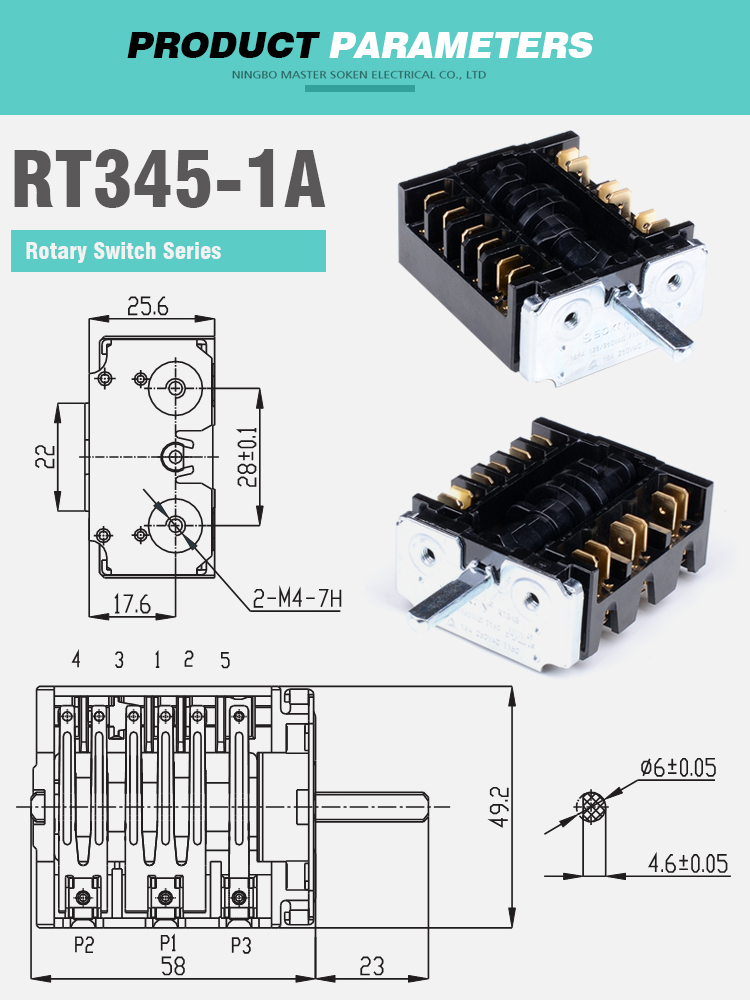

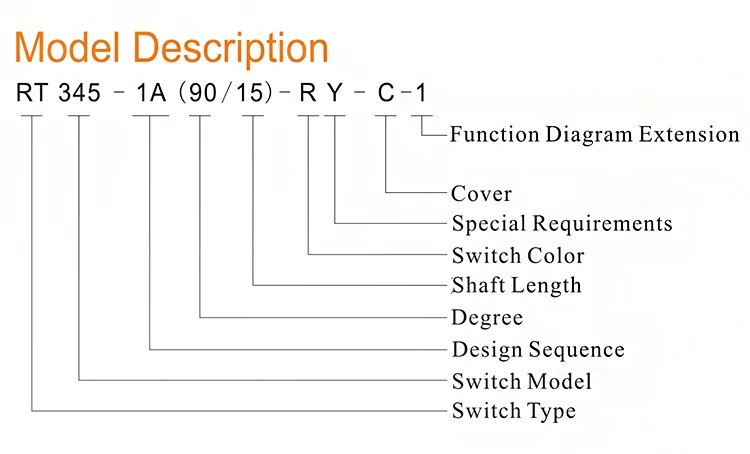

| model: | RT345-1A(51.43°/23) | brand: | Research |
score | 16A 250VAC T150(TUV) |
Contact resistance | Maximum 100MΩ |
Contact resistance | 30mΩ max. |
Electrical life | 10000 cycles (16A 250VAC T150) |
Operating temperature | -25~150℃ |
Applicable standard | IEC61058-1:2002+A2 |
Contact resistance: | 100mΩ max |
Insulation resistance: | 500VDC, min 100MΩ |
Dielectric strength: | Terminal block: 1500VAC 5s |
Terminal and ground: 3000VAC 5s | |
Operating temperature: | -25～85℃ |
Electrical life: | 10000 cycles |
score: | 16A 250VAC T150(TUV) 16A 125/250VAC T150(UL) |
contact leg | Beryllium copper alloy | |||
touch | silver alloy | |||
terminal | Brass T=0.8mm | |||
case | bakelite | |||
gear | bakelite |

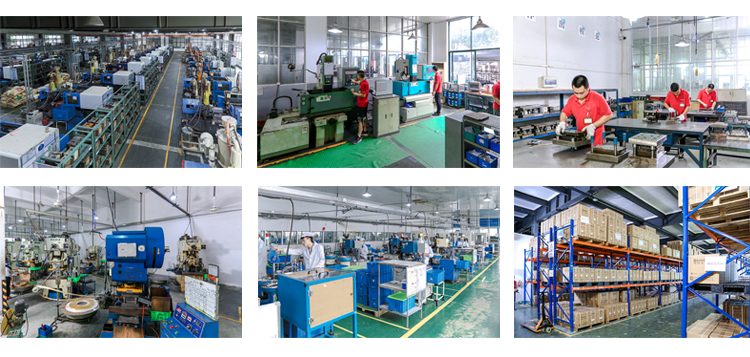

company exhibition

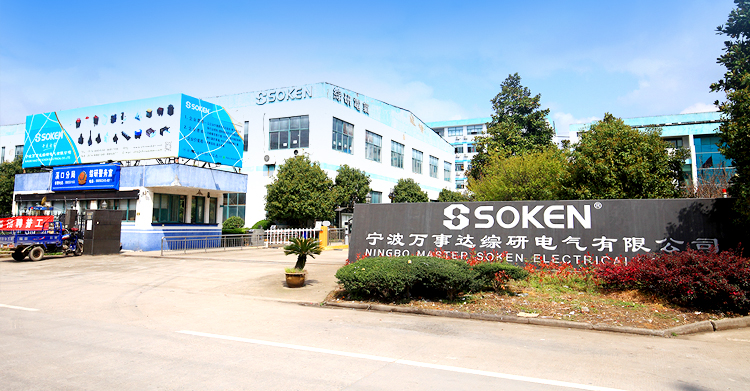

Established in 1999, Ningbo Master Chuangyan Electric Appliance Co., Ltd. is a governing unit of the Electrical Accessories and Electrical Controller Branch of China Electronics and Electrical Appliances Industry Association. We are a manufacturer specializing in the R&D, production, sales and service of various switches, including rocker switches, rotary switches, push button switches, key switches, and indicator lights, which are widely used in different fields such as household appliances, industrial facilities, instruments, and communication equipment. , Fitness and beauty equipment.
