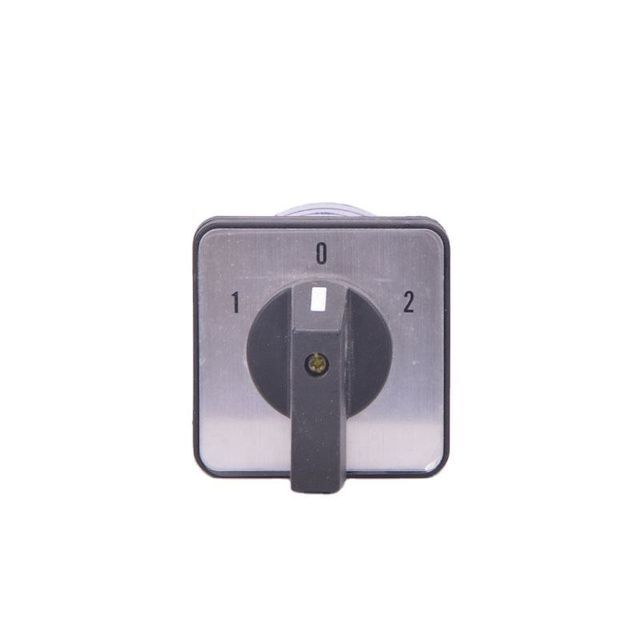

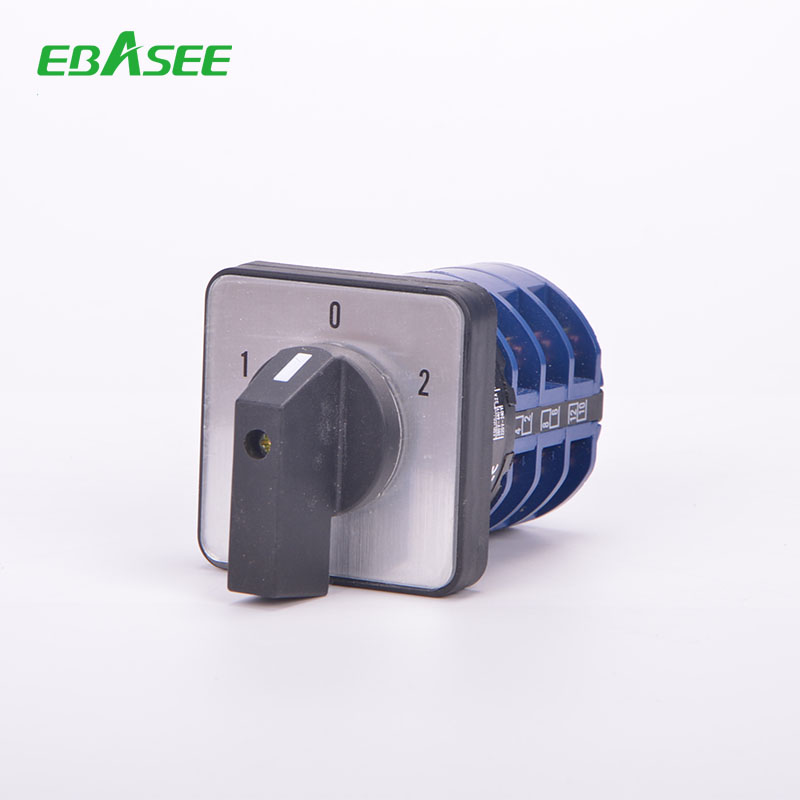

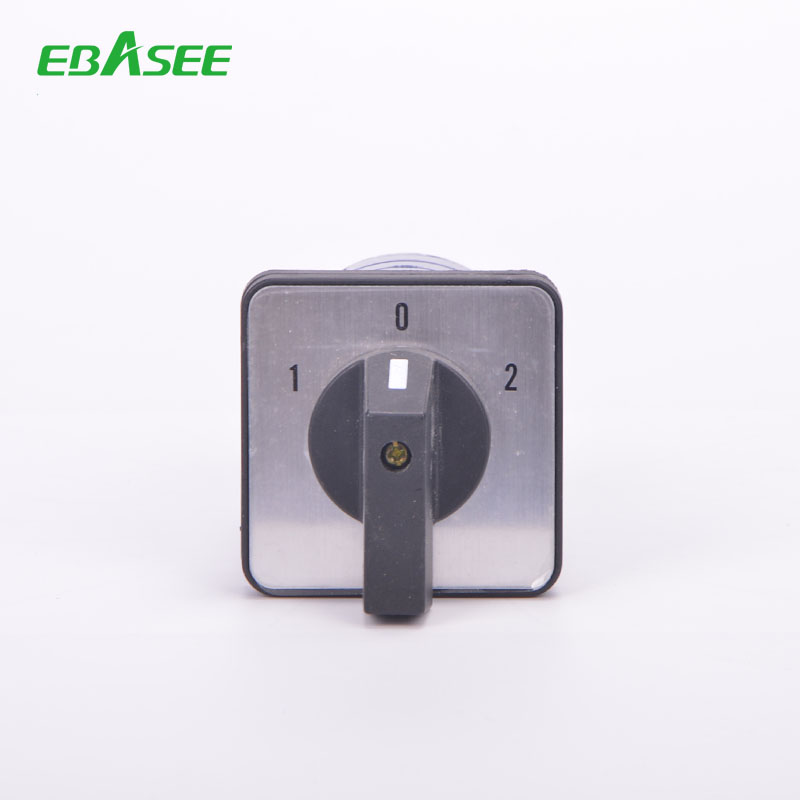

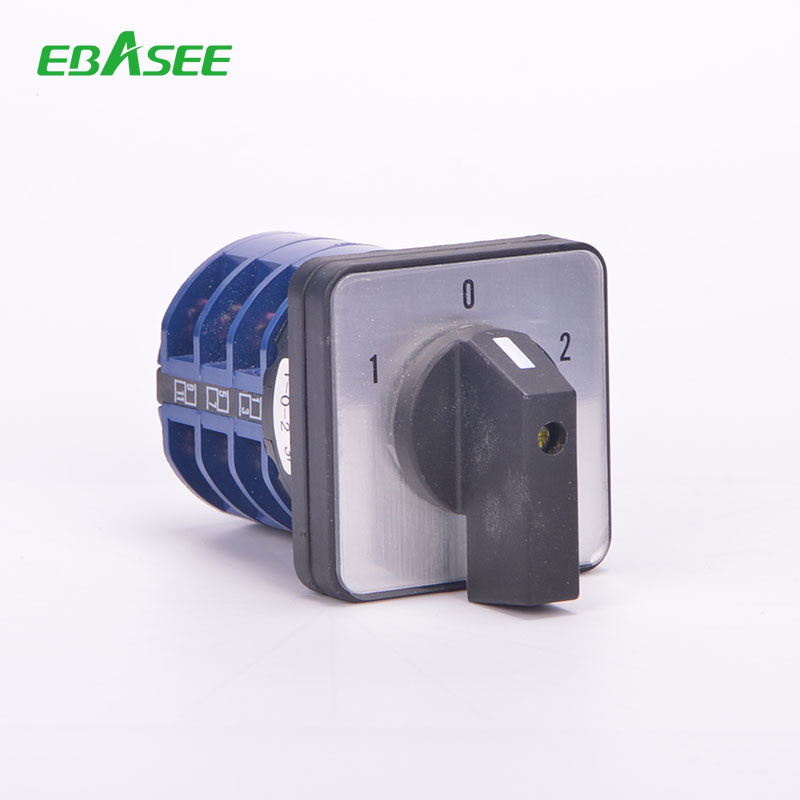

Selector switch 690V 20A-63A
-
$5.36 / 100 - 999 pieces
$1.69 / >=1000 pieces - 100 pieces
- Shanghai Tehow Electric Co., Ltd.
- Shanghai, China
- Ms Kiwi Ding
Product Detail
| Rated current: | 10/16/20/25/32/40/50/63/80/100A | Packaging Details: | Standard export carton |
| maximum. Voltage: | 660 | Package preview: | |
| Rated voltage: | 110V-690V | maximum. current: | 63 |
| Supply capacity: | 10000 pieces per month | pole: | 1/2/3/4 pole |
| model: | CA10 | Function: | motor control switch |
| port: | Shanghai or Ningbo | Is it smart: | No |
| Origin: | Zhejiang, China | brand: | Yibao/Tehao |
| Certification: | CE certification | Mechanical life: | 200000 |
| payment terms: | L/C, Western Union, T/T | product name: | rotary selector switch |
Universal transfer switch
Function
The CA10 series control and load switches provide a solution for most cam switch operations. Different types are available as control switches, switches installed in equipment, and switches for motor control according to IEC60947-3.
Technical Parameters
|
Model Name |
|
CA10 Universal Transfer Switch |
|
standard |
|
IEC60947-3 |
|
polish |
|
2P 3P 4P |
|
rated power |
|
three-phase AC motor |
|
Rated current In(A) |
|
20~160 amps |
|
Rated voltage Un(V) |
|
120V 240V 440V 660V |
|
rotation angle code |
|
30°45°60°90° |
Classification
n Classification by application, control and load switch, motor switch, control switch
n According to the operation classification, stop spring return, stop spring return
n According to the contact system classification, the limit switch has 1-12 poles (63A only has 8 poles), the spring return switch has 1-3 poles, and the motor control switch has 1-6 poles
n Classification by rotation angle: 30°45°60°90° etc.
n Classify square panel, rectangular panel, circular panel by panel (20A only)
n According to the handle classification R type, I type, F type, B type, S type, L type, P type, K type.
Applicable work
|
ambient temperature |
|
-5~+40°C, the average value within 24 hours cannot exceed +35°C |
|
high |
|
≤2000 meters |
|
Relative humidity |
|
≤95% |
|
pollution level |
|
two. |
|
installation location |
|
Install where there is no appreciable vibration or shock |
