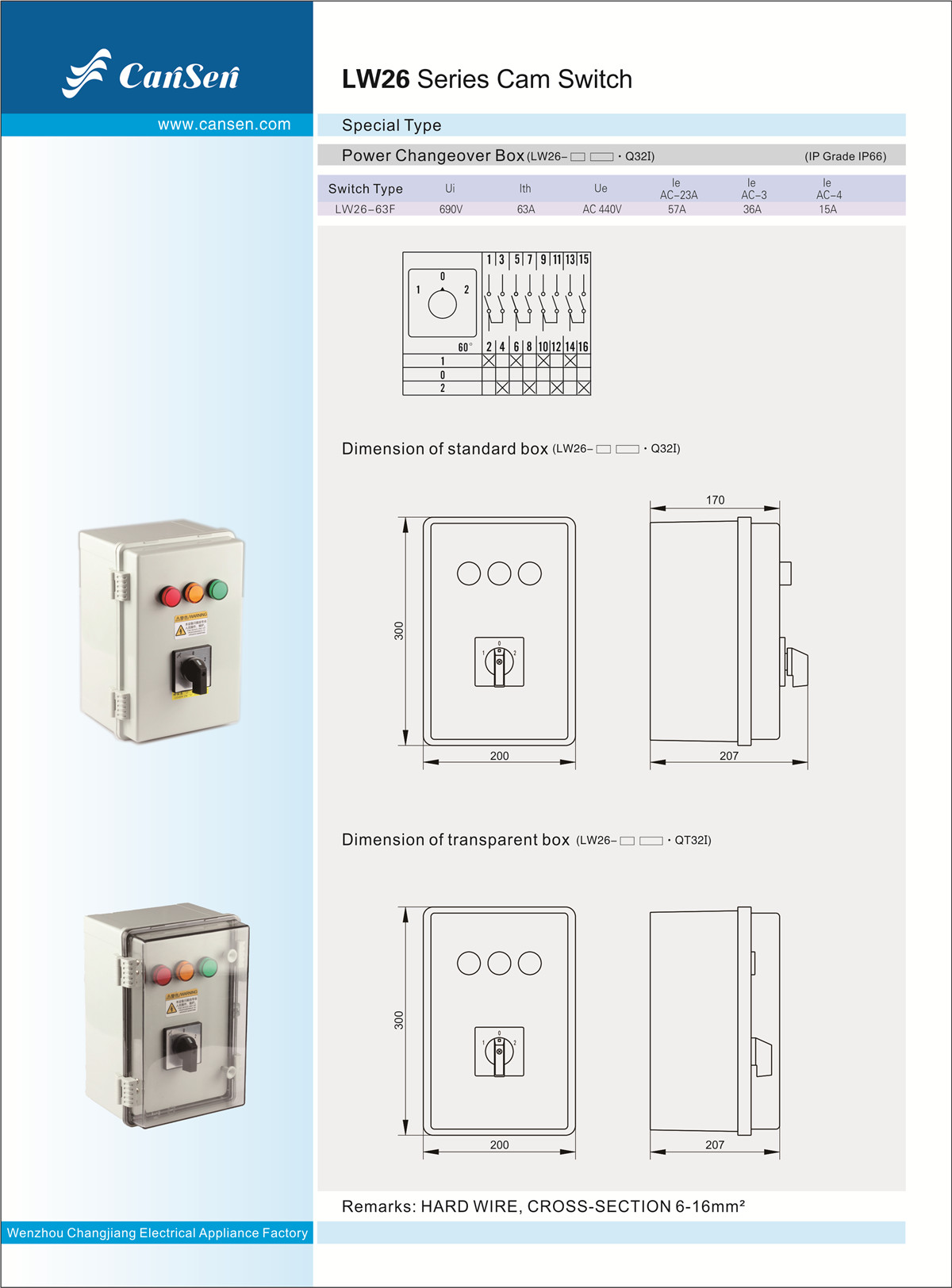

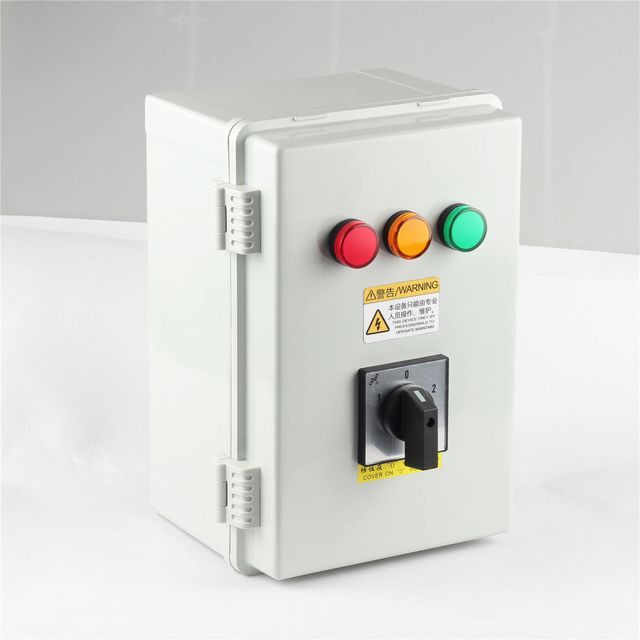

Cansen Power Conversion Electrical Enclosure 3 Phase Switch with Indicator Light, GEN-OFF-MAIN, Auto Off Manual
- $50.00 / >=50 pieces
- 50 pieces
- Wenzhou Changjiang Electrical Appliance Factory
- Zhejiang, China
- Ms Shirley Tang
Product Detail
| Number of switch positions: | 3 | maximum. Voltage: | 690V |
| brand: | Conson | Number of poles: | 4 |
| Origin: | Zhejiang, China | Whether smart: | No |
| model: | LW26-63F | Mechanical life: | 100,000 |
| Supply capacity: | 1,000,000 pieces per year | Certification: | CE |
| Packaging Details: | each in a separate box | payment terms: | Western Union, T/T |
| port: | Ningbo or Shanghai | maximum. current: | 63A |
| Intellectual property level: | 65 | Rotary Switch Color: | blue |
| Specification | LW26-63 | |
| LW26-63F | ||
| Rated insulation voltage | 660/690 | |
| Rated thermal current | 63 | |
| Rated working voltage | 240 | Chapter 440 |
| Rated operating current | / | / |
| AC-21A | 63 | 63 |
| AC-23A | 57 | 57 |
| AC-2 | 57 | 57 |
| AC-3 | 36 | 36 |
| AC-4 | 15 | 15 |
| AC-15 | / | / |
| DC-13 | / | / |
| strength | / | / |
| AC-23A | 15/10 | 30/18.5 |
| AC-2 | 18.5 | 30 |
| AC-3 | 11/6 | 18.5/11 |
| AC-4 | 5.5/2.4 | 7.5/4 |
1. Product introduction
LW26 series rotary switches are mainly suitable for 440V and below, AC 50Hz or 240V and below DC circuits.
It is used for disconnection, closing and switching of circuits during infrequent manual operations.
Typical applications are: three-phase motor control switch, control switchgear,
Instrument control switch, switch for machinery, welding machine.
This series of products complies with GB 14048.3, GB 14048.5 and IEC 60947-3, IEC 60947-5-1 standards.
The LW26 series has 10 rated currents: 10A, 20A, 25A, 32A, 40A, 63A, 125A, 160A, 250A and 315A.
They are designed for multiple functions and a wide range of applications.
LW26-10, LW26-20, LW26-25, LW26-32F, LW26-40F, and LW-60F have finger-safe terminals.
LW26 series rotary switches are excellent replacements for LW2, LW5, LW6, LW8, LW12, LW15, HZ5, HZ10 and HZ12.
There are two derivatives of LW26 series rotary switch, LW26GS padlock type and LW26S key lock type.
They are both suitable for use in circuits when physical control is required.
We can equip with protective boxes (IP65) from 20A to 250A.
2. Working conditions
a. The ambient temperature does not exceed 40°C, the average temperature measured within 24 hours,
Do not exceed 35°C.
b. The ambient temperature is not lower than -25°C.
c. It should not be installed above an altitude of 2000m.
d. When the ambient temperature is 40°C, the humidity should not exceed 50%. Higher humidity is allowed when the temperature is lower.
3. Installation conditions
a requires a clean environment
b. Please follow our manual
4. Order process
Please specify the contact diagram of the product you require when ordering. The LW26 series rotary switch has a similar contact diagram to other rotary switches like LW2D, LW5D, LW6D, LW8D, LW12, LW15, HZ5D, HZ25D, etc. Our factory has published
Also, please state current rating, mounting plate, handle type, color and quantity.
For example:
When ordering 20A, the rotation angle is 60°, the character code is C, the contact diagram code is 5391, the M1 board, and 20 black R handles. The order quantity is: LW26-20.6C5391/2A11R(M1R) 20 sets.
Due to technical updates, we reserve the right to update the catalog without prior notice.
