Full Color RGB Flexible Programmable LED Matrix Panel 8x32 256 Pixel LED Display for Raspberry pi or Arduino

Product Detail

Origin:Guangdong, ChinaInput voltage (V):DC 5V
PCB color:BlackViewing angle(°):120
type:LED dot matrixLuminous flux (lm):Maximum 560Lm
Warranty (year):1 yearLight attenuation (%):5
Number of lamp beads:256 lightsIC type:WS2812B IC built-in
Packaging Details:1 pc comes in a small yellow hard box. 50 pcs into a large outer carton.Lifespan (hours):50000
Voltage:DC5VSupported dimmers:Yes
Storage temperature(℃):-45 - 50brand:Clus Wink
Product weight (kg):0.1Color temperature:RGB
Grayscale:256Gross weight per piece:0.100 kg
Luminous color:Tri-color (red-blue-green)waterproof:No
Luminous efficacy (lm/w):80strength:25W~75W/board, 75W
Color temperature (CCT):gamma ray burstWorking temperature(℃):-20 - 50
PCB Dimensions:8x32x0.2cmWorking hours (hours):50000
Color rendering index (Ra):80Single package size:10X35X2 cm
Sales unit:single productColor order:GRB (not RGB)
soft board:flexible
Product Description

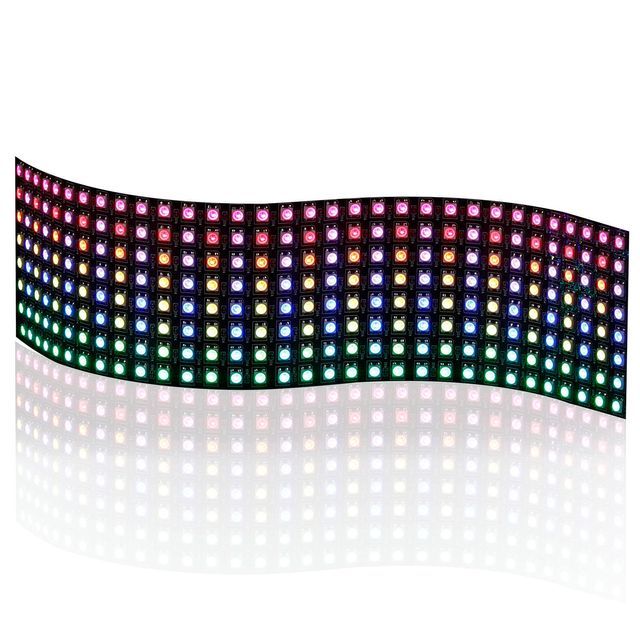

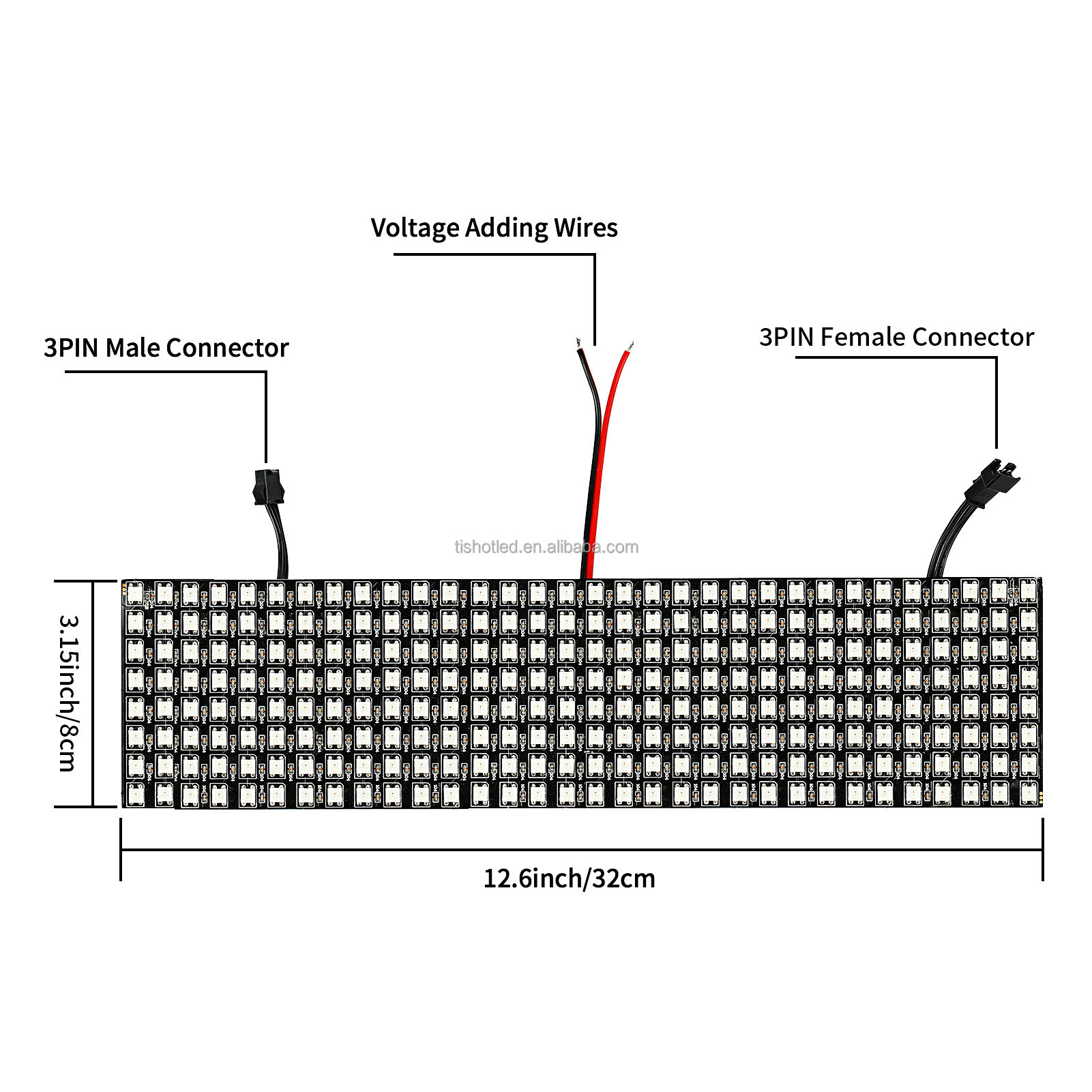

(1) Panel dimensions 8 cm (3.15 in) x 32 cm (12.6 in) x 0.3 cm (0.118 in). Made of 256pcs WS2812B SMD5050. Each LED is individually addressable and programmable.



(2) Only 5VDC input and work. The recommended power supply is DC5V 20A 100W. It is very safe to use, you can touch it anywhere.

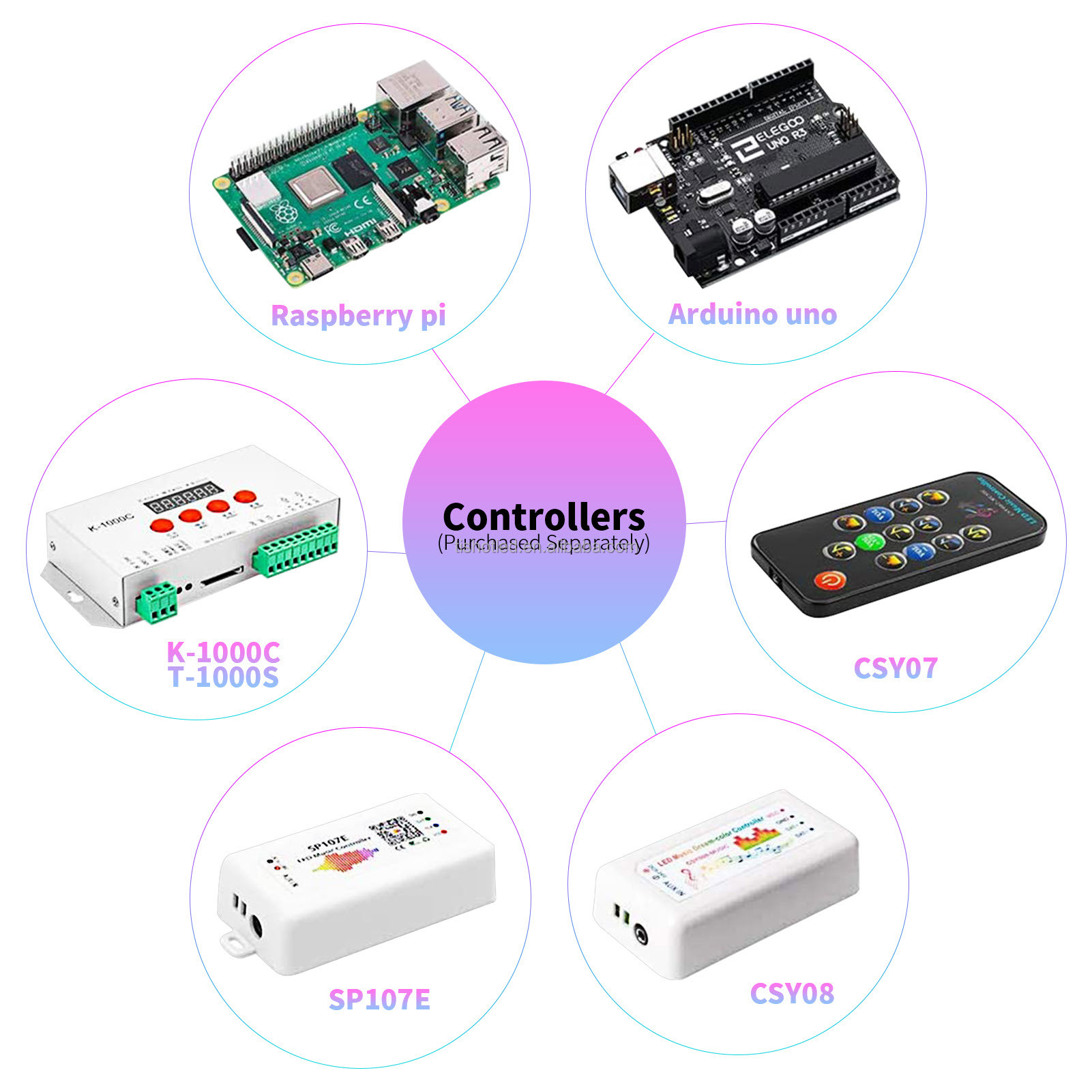

(3) Works well with Raspberry pi, Arduino, or standalone ATmega328p setups. Also works directly with SPE105E, SP107E, K1000C, T1000S and more controllers. With different controllers, it will provide different effects, spectrum music mode, scrolling subtitles, picture display, video display, firework effect, chasing effect.

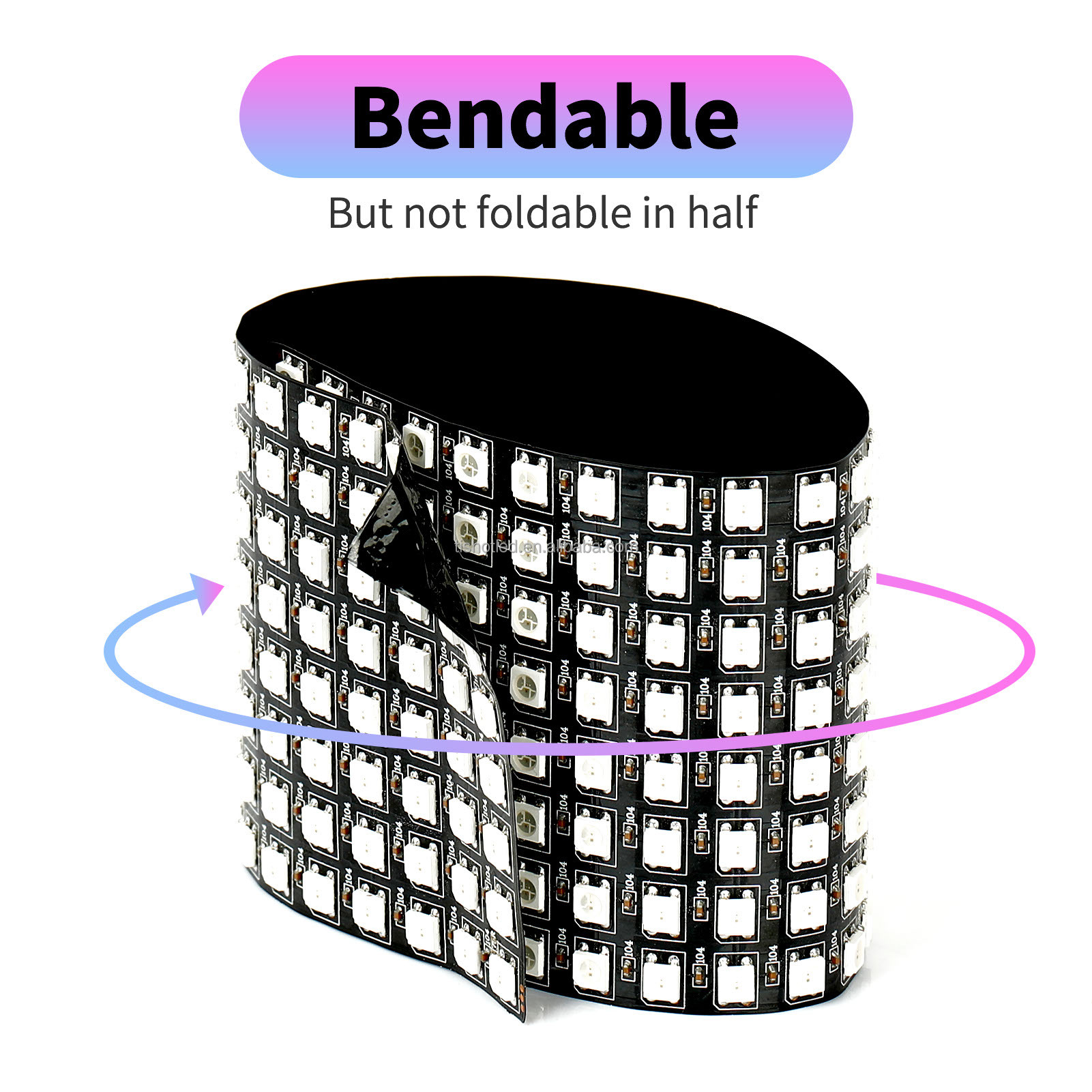

(4) This LED matrix panel is connectable. With 3pin JST connector, you can make larger size screen. In addition, the panel is also highly bendable. Just don't fold it in half though.
