Flexible Flexible APA102c LED Matrix 8x32 - 256 RGB LED Pixels

Product Detail

LED type:APA102CLight attenuation (%):0.3
Voltage:5VDC inputViewing angle(°):140
Luminous flux (lm):18-20 lumens/piecebrand:Art LED
Color temperature:RGB pixel numbersChip material:gas
size:80x320mmport:Shenzhen
Number of LEDs:256 pieces/piecePCB color:Black PCB/White PCB
Controller:Arduino/T1000s/DMX512/Raspberry Pi/GladiatorLuminous color:Tri-color (red-blue-green)
Origin:Guangdong, ChinaPixel pitch (mm):P10mm
Packaging Details:1 pcs/ bag in ESD package 100 pcs/carton Carton size: 26x26x18cmShipping Details:1-7 days
strength:60wtype:LED dot matrix
application:exhibitlight intensity:R: 500-650mcd G: 370-530mcd B: 120-165mcd
Certification:CE, RoHSwatt:60W
Color rendering index (Ra):80payment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram
Storage temperature(℃):-20 - +60Supply capacity:1000 pieces per week
Power Consumption:0.3Working temperature(℃):-65 - -30
product name:Bendable Flexible APA102c LED Matrix 8x32 - 256 RGB LED Pixels

Bendable Flexible APA102c LED Matrix 8x32 - 256 RGB LED Pixels

Product Description

1. For apa102c led, now there is bendable flexible APA102c LED matrix 8x32 - 256 RGB LED pixels! Control all 256 super bright LEDs, setting each LED to scroll a message or draw a small image as desired.

2.Bendable Flex APA102c LED Matrix 8x32 - 256 RGB LED Pixels has a thick flex PCB backing that can be gently bent and flexed around surfaces. Also, they are the same integrationThe LEDs used in our addressable apa102c LED pixel strips.

3. Bendable Flexible APA102c LED Matrix 8x32 - 256 RGB LED Pixels8 rows of 32 pixels each, a total of 256 LEDs. This is a continuous LED stripSecondmakes it easy to program the display and is very flexible so you can wpullBypass the object and work with 5v power.

4.Don't forget, there are 256 LEDs, and if you turn all of them on, you can use over 15A of currentOn white, we really don't recommend it.

Thanks to the connectors it is possible to link as many bendable flexible APA102c LED matrices 8x32 - 256 RGB LED pixels as you want, just be aware of how much current they require. When you connect multiple panels, we recommend powering each panel.

Features

Bendable Flexible APA102c LED Matrix 8x32 - 256 RGB LED Pixel Product Features:

light source

Bendable Flexible APA102c LED Matrix 8x32 - 256 RGB LED Pixels

Beam angle

140 degrees.

Operating Voltage

DC5V

Wattage consumption

60±W

Pixel pitch (mm)

10mm

Whole piece of LED quantity

256

PCB size

80mm x 320mm , 2.5mm thickness

current

15.5A @ 5 V full brightness

brightness

R-650mcd, G-520mcd, B-460mcd

Operating temperature

-20℃-60℃



detailed image

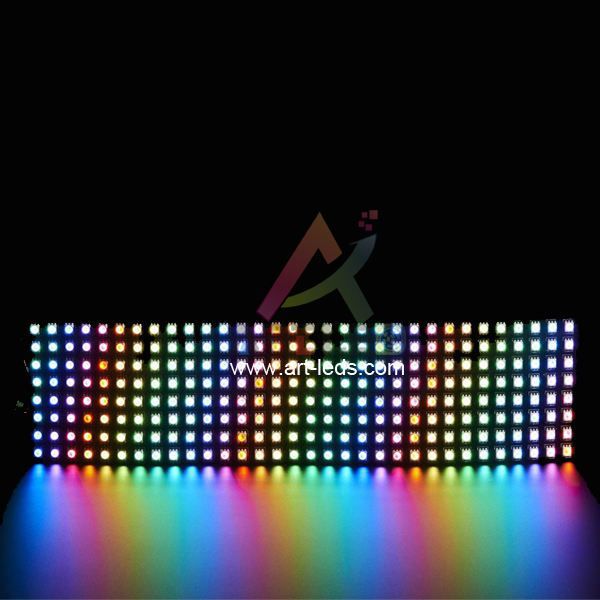

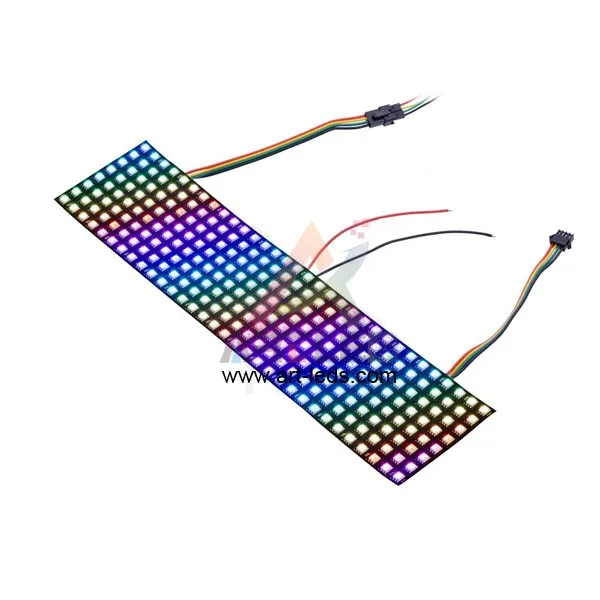

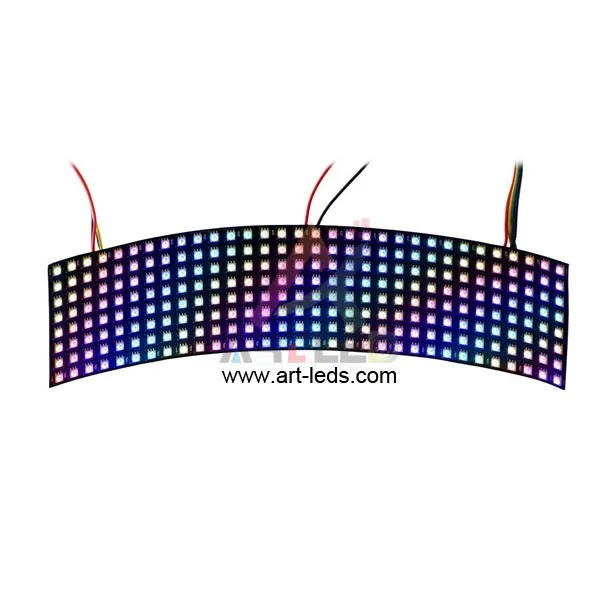

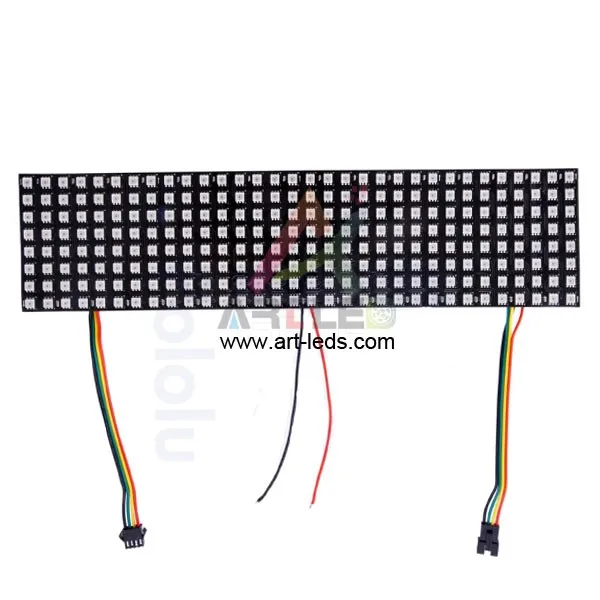

Bendable Flexible APA102c LED Matrix 8x32 - 256 RGB LED Pixel Detailed Image





terms of trade

1.payment terms:

T/T, Western Union, Aliexpress Escrow

2. Delivery time:

Usually we have materials in stock, regular order lead time is 1--7 days after proforma invoice payment,

OEM products: 10--15 days (custom PCB board).

3. Warranty:

2 years warranty from data purchase of our LED products.

4. Delivery method:

DHL, Fedex, TNT UPS, EMS door to door service, sea freight, air freight, etc.
