Red/Green/Blue/White/RGB 8x8 Square Dot Matrix LED

Product Detail

Working temperature(℃):-30 - 60Lifespan (hours):50000
Color temperature (CCT):RGBport:Shenzhen
Certification:CE, RoHSLight attenuation (%):0.01
Working hours (hours):50000Chip material:AlGaInP
Warranty (year):1 yearSupported dimmers:No
payment terms:Western Union, T/T, PaypalViewing angle(°):120
Supply capacity:100000 pieces per monthLuminous color:RGB
Packaging Details:standard cartonLighting Solutions Services:Lighting and Circuit Design
Input voltage (V):3.0-3.6Vbrand:HS
Power Consumption:0.06type:LED dot matrix
Origin:Guangdong, Chinastrength:0.06
Storage temperature(℃):-40 - 60Color rendering index (Ra):80

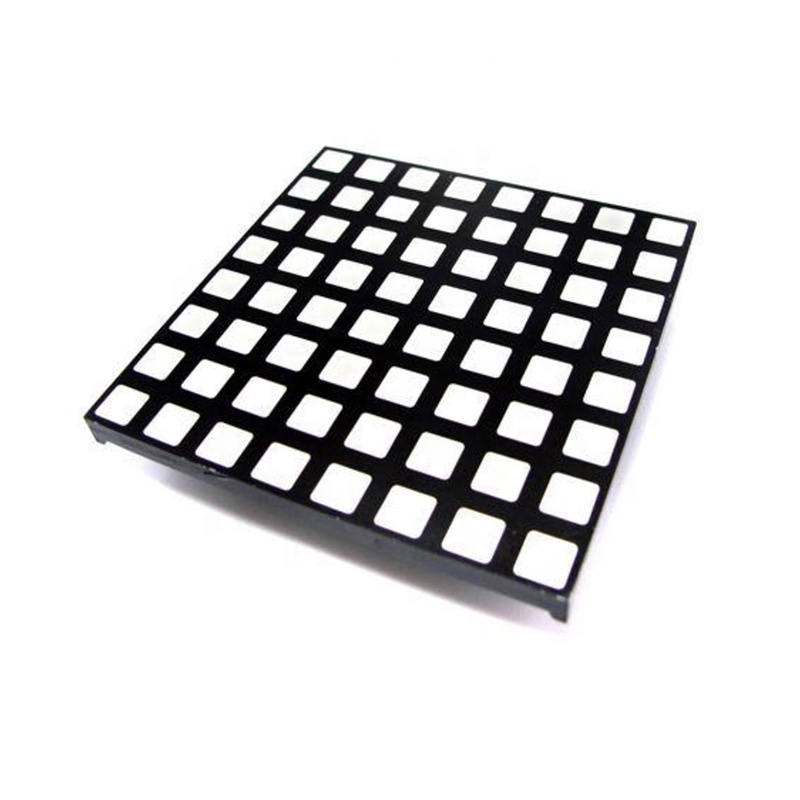

Φ5mm 8x8 square LED dot matrix display

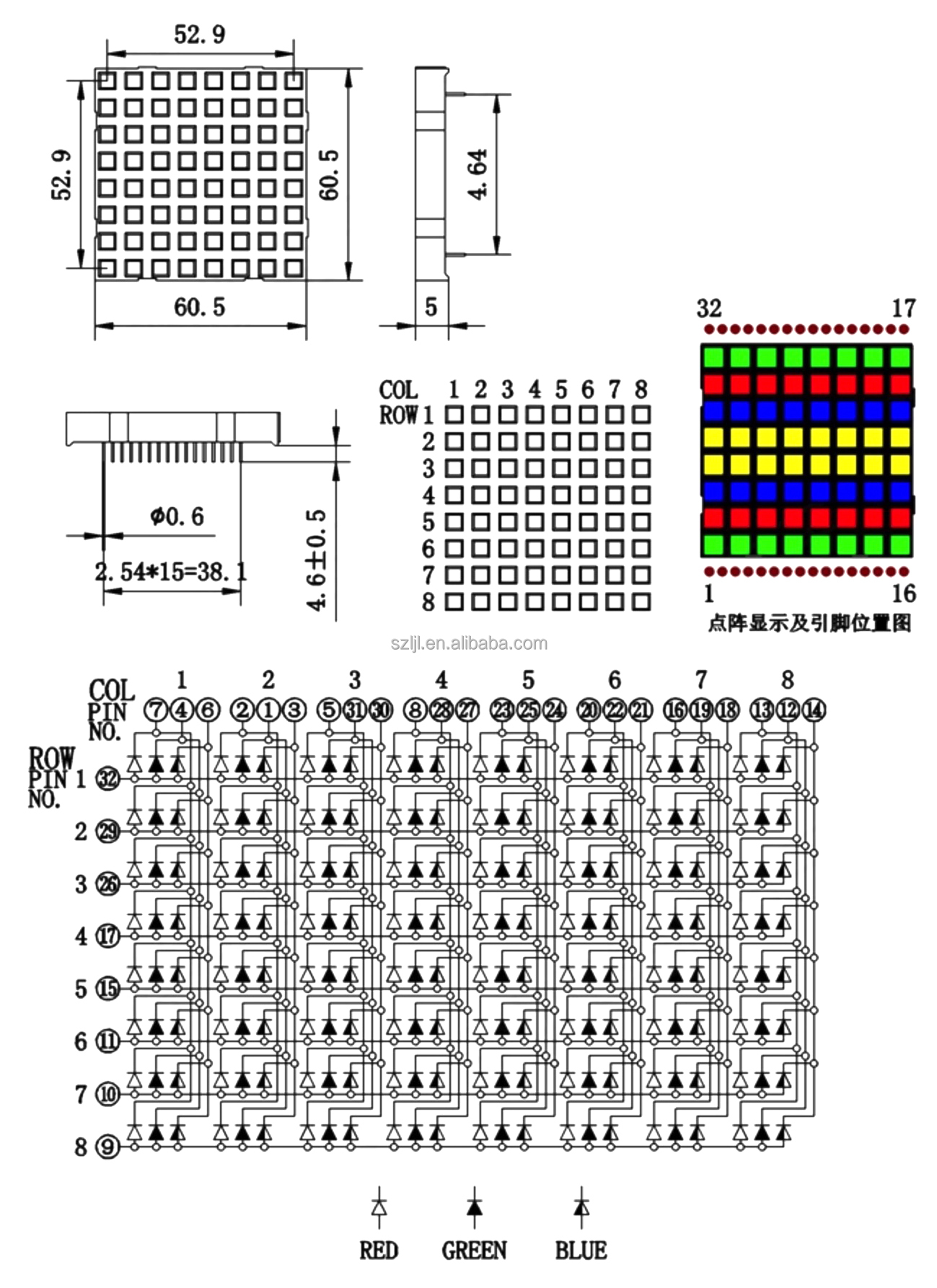

Specification
thing
8x8 square LED dot matrix display
Part Number
HS-23088A/BX
pixel size
5mm
aspect
60.5x60.5x5mm
glow color
Red/Yellow/Blue/Green/White/Amber; Bi-color; Red Green Blue
facial color
black/gray
lens color
Water Clear/White Diffuse
polarity
Common Cathode/Common Anode
display function
graphics
Warranty
1 year
Package Size
Product Description
Good material and high reputation from customers. Most colors are available.

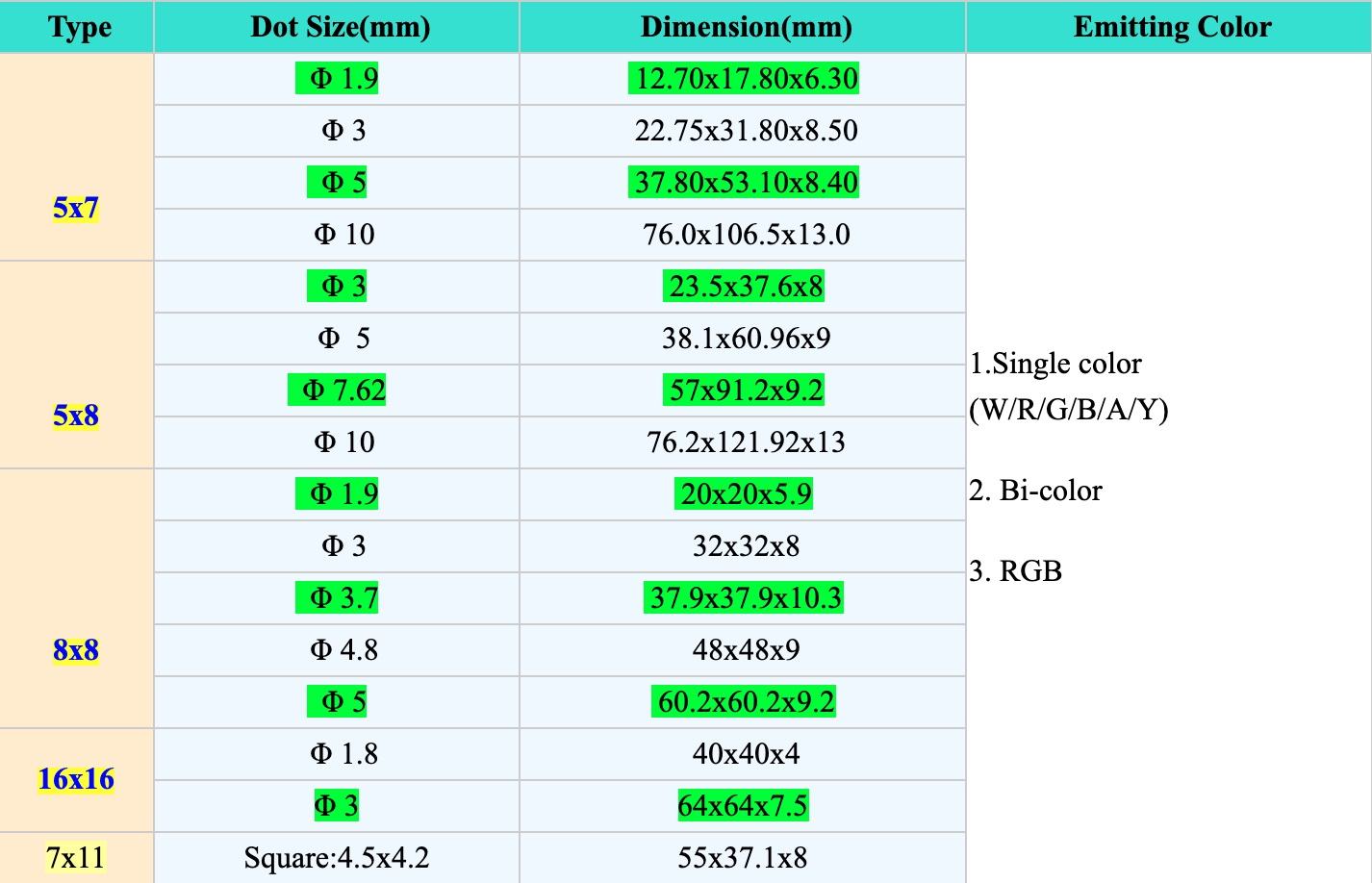

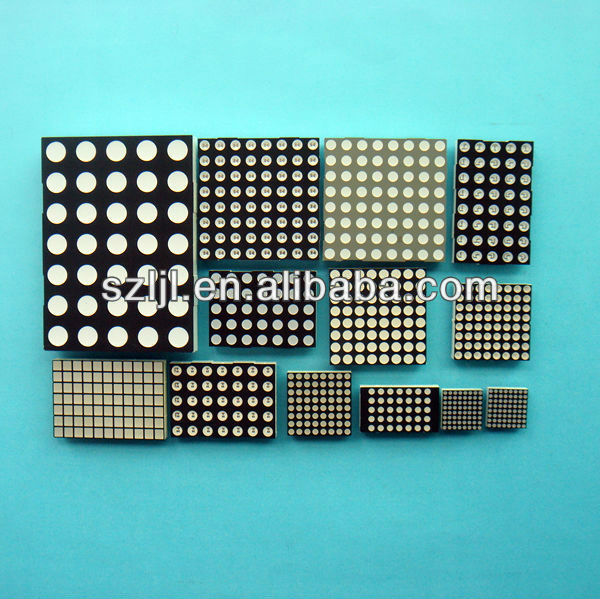

1) Optional size: Φ3.0, Φ3.7, Φ5.0, Φ7.62, Φ10
2) Color: Red, Green, Yellow, Blue, Orange, Amber, RG, RGB
3) Features:
1. High light intensity output
2. Low voltage and low current operation
3. Ultra-low power consumption
4. Based on solid-state LED chips
5. 50,000 hours long lifespan
6. Easy to mount on PCB and socket
7. IC compatible
8. The display effect is better and the viewing angle is wider
9. Comply with RoHS, ISO certification.
