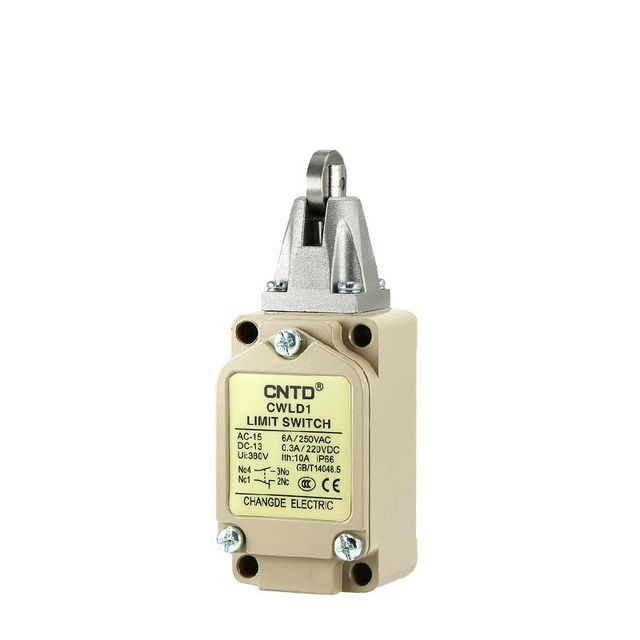

CNTD CWLD1 Oil Resistant Omron Type Vertical Limit Switch
-
$7.26 / 1 - 99 pieces
$6.53 / 100 - 299 pieces
$5.81 / >=300 pieces - 1 piece
- Shishi Bada Electrical Automation Trading Co., Ltd.
- Fujian, China
- Ms yan wu
Product Detail
| payment terms: | L/C, T/T | Protection class: | IP66 |
| Origin: | Philosophy | maximum. current: | 6A |
| Running speed: | 5mm to 0.5m/s | maximum. Voltage: | 8V-250V |
| vibration: | 10-55Hz, 1.5mm double amplitude | brand: | CNTD |
| humidity: | Below 95%RH | model: | CWLD1 |
| Operating temperature: | -5-+65°C (no freezing) | Operating Frequency: Electrical: | 30 times/min |
| Certification: | CCC certification |
Product Description
calculating speed | 1mm-1m/s | ||||||
working frequency | Electrical: 30 operations/minute | ||||||
Contact resistance | 25mΩ max. (initial value) | ||||||
Insulation resistance | Minimum 100mΩ (below 500VDC) | ||||||
Dielectric strength | 1000VAC, 50/60HZ between discontinuous terminals for 1 minute | ||||||
1500VAC, 50/60 Hz, for 1 minute, between current-carrying and non-current-carrying metal parts | |||||||
1500VAC, 50/60 Hz, between each terminal and ground for 1 minute | |||||||
vibration | 10~55Hz, 1.5mm double amplitude | ||||||
Shock | Mechanical Durability: 1,000m/Sec² (about 100G'S) Failure: 300m/Sec² (about 30G'S) | ||||||
ambient temperature | Use: -20~+70°C (no freezing) | ||||||
humidity | <95% relative humidity | ||||||
Electrical life | More than 500,000 operations | ||||||
degree of protection | IP66 | ||||||
