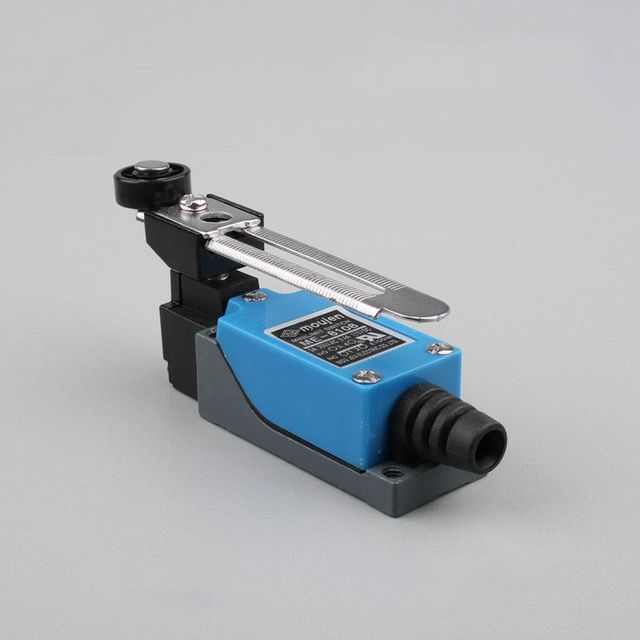

ME-8108 stroke switch limit switch self-resetting miniature roller rocker type limit device machine tool equipment switch
- $0.90 /pair
- 1 pair
- Yueqing Lanpu Electrical Co., Ltd.
- Zhejiang, China
- Mr Alan LAU
Product Detail
| Amplifier: | 10A | Connection system: | Crimp |
| port: | Shanghai/Ningbo | Protection class: | IP65 |
| payment terms: | T/T, Western Union | maximum. Voltage: | 250V |
| Cable standard: | 2.5mm2 4.0mm2 6.0mm2 | Supply capacity: | 200 pairs per day |
| volt: | 250V | Function: | for solar panels |
| product name: | limit switch | moment: | atresia |
| Packaging Details: | standard | Certificate: | TUV Rheinland |
| brand: | CCQDE | gender: | 1NO 1MC |
| maximum. current: | 10A | Origin: | Zhejiang, China |
| model: | ME-8107 | Operating temperature: | -5~+65℃ (no freezing) |
| color: | Black |
General introduction
Limit switches are installed every day all over the world in all types of industrial machinery, elevators, medical or marine, in applications ranging from hot deserts to cold Iceland. For use in such a wide range of industries and countries.
feature:
1. Designed for applications with limited installation space
2. Constructed with metal base and plastic cover
3. The mechanical movement is separated from the electrical circuit
4. Forced opening mechanism * current carrying capacity increased to 10A
technical specifications
| running speed | 0.5mm~50cm/s | |||||
| working frequency | Mechanical: 120 times/min; Electrical: 30 times/min | |||||
| Contact resistance | 25mΩ max (initial) | |||||
| Insulation resistance | 100mΩ minimum (at 500VDC) | |||||
| Dielectric strength | 1000VAC, 50/60Hz between terminals of the same polarity for 1 minute | |||||
| 1500VAC, 50/60Hz for 1 minute between load current and no-load current parts | ||||||
| 1500VAC between terminal and ground, 50/60Hz for 1 minute | ||||||
| vibration | Fault: 10Hz~55Hz, 1.5mm double amplitude | |||||
| Shock | Mechanical resistance: 1000m/s2; Failure: 300m/s2 | |||||
| ambient temperature | Negative 5℃~65℃ | |||||
| environment humidity | <95%RH | |||||
| career | Mechanical: 2*107; Electrical: 3*105 | |||||
| protection level | IP65 | |||||

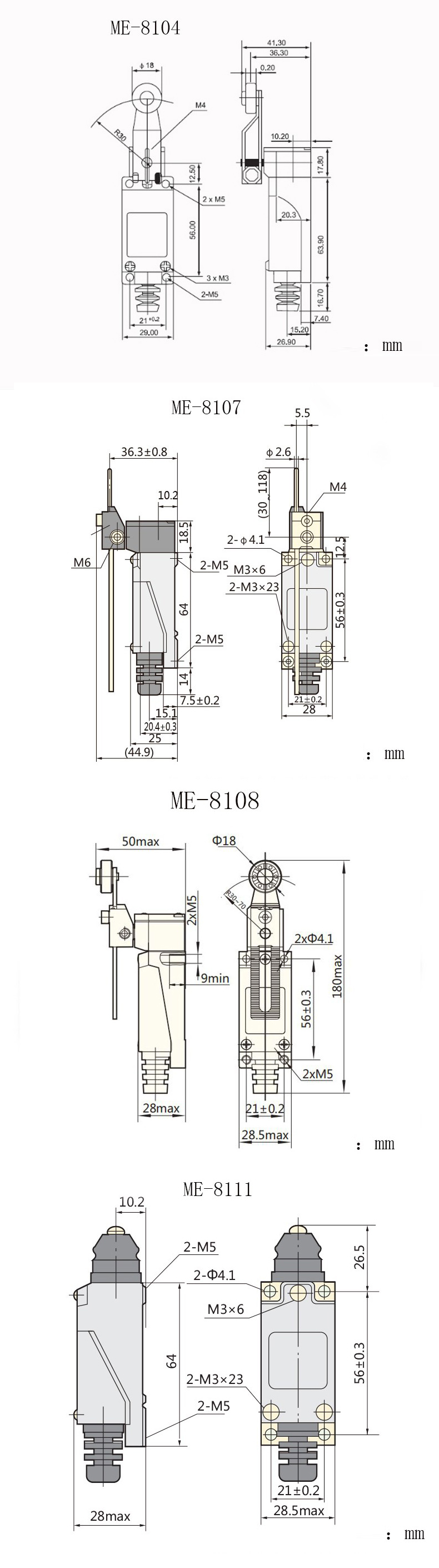

| Model | operating force |
freed minimum force |
before travel maximum |
Overtravel minute |
move differential |
operate Location |
| LX-ME8104 | 7.4N (0.75 kg force) | 0.1N (1 kg force) | 20° | 50° | 12° | / |
| LX-ME8108 | 7.4N (0.75 kg force) | 0.1N (1 kg force) | 20° | 50° | 12° | / |
| LX-ME8107 | 7.4N (0.75 kg force) | 0.1N (1 kg force) | 20° | 50° | 12° | / |
| LX-ME8111 | 8.9N (0.9 kg force) | 1.5N (0.15 kg force) | 1.5mm | 4 mm | 1mm | 26±0.8mm |

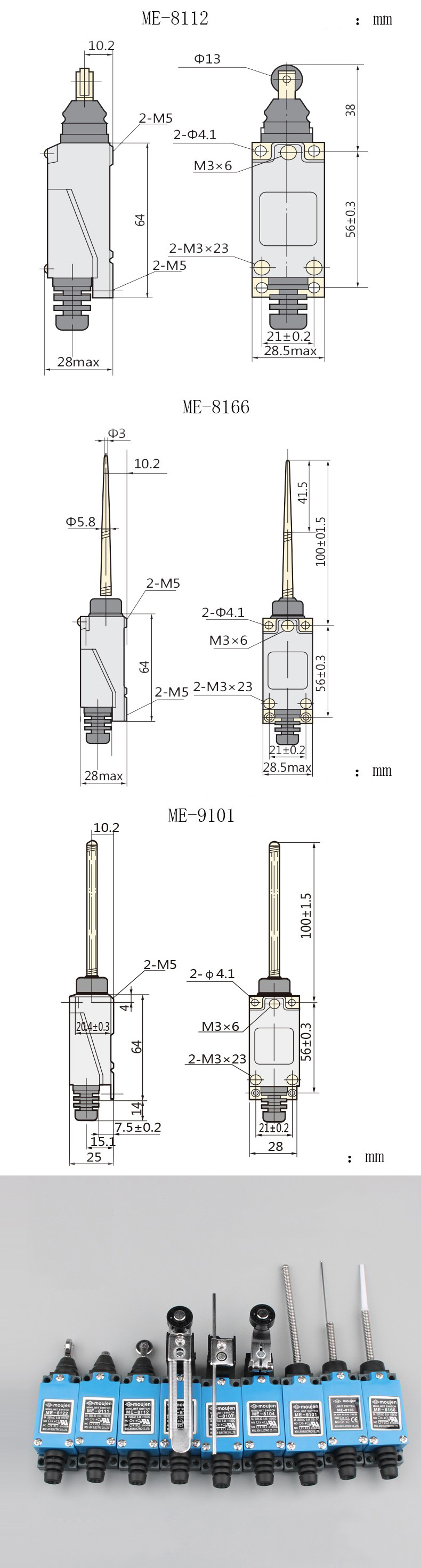

| LX-ME8112/8122 | 8.9N (0.9 kg force) | 1.5N (0.15 kg force) | 1.5 mm | 4 mm | 1 mm | 37±0.8 mm |
|

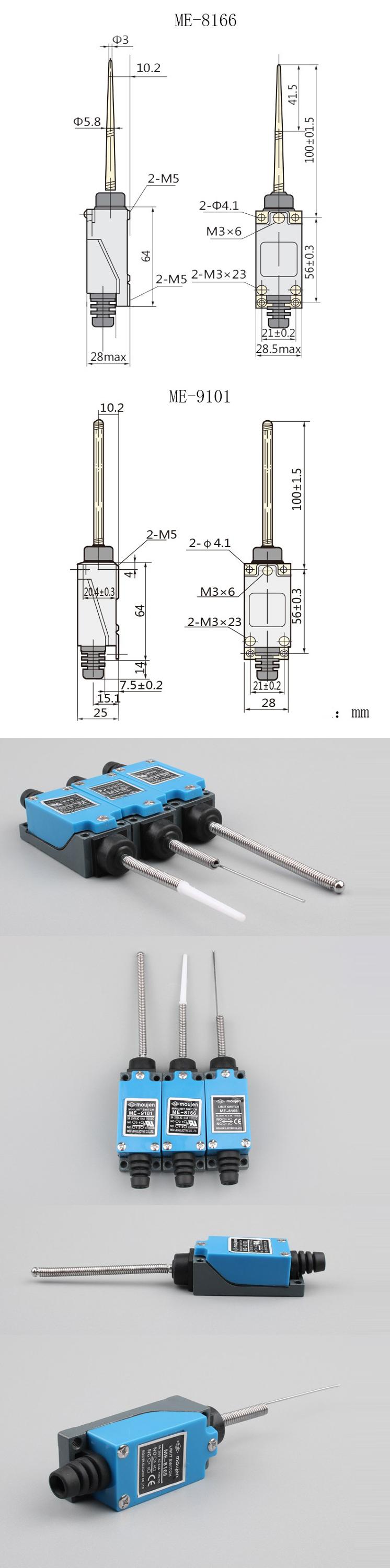

LX-ME8166/8168/ 8169/9101 |
1.5N (0.15 kg force) | / | 30 mm | / | / | / |
