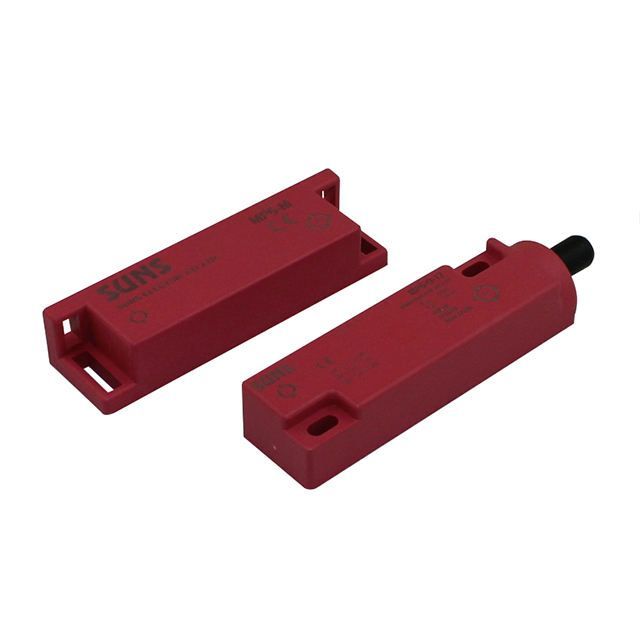

High Quality Magnetic Safety Switch IP68 MP Series
- $20.00 / >=10 pieces
- 10 pieces
- Suns Electric (zhangzhou) Co., Ltd.
- Fujian, China
- Ms Jane Wang
Product Detail
| Electrical life: | 100,000,000 cycles | maximum. current: | 2A |
| maximum. Voltage: | 230VAC | Protection class: | IP68 |
| Operating temperature: | -25℃-+70℃ | Certification: | International Certification |
| port: | Xiamen | payment terms: | L/C, T/T |
| Supply capacity: | 100000 pieces per month | Packaging Details: | 400 pieces/box |
| brand: | suns | Whether smart: | No |
| Origin: | Fujian Province, China | model: | MP-6 |
Product Description
Specification
thing | magnetic switch |
certified | UL, CE |
whether smart | No |
birthplace | China |
Fujian | |
brand | suns |
model | MP-6 |
degree of protection | IP68 |
Operating temperature | -25℃-+70℃ |
maximum. current | 2A |
maximum. Voltage | 230VAC |
Electrical life | 100,000,000 cycles |
building materials | Glass Fiber Reinforced Plastic |
Switching voltage, switching current I max | 100VAC/DC 400mA or 230VAC 2A 30VDC 1A |
operation method | Magnetic, Reed Switch Contact |
Vibration resistance | According to IEC/EN60947-5-2 |
Impact strength | 50 g/ms |
Shock resistance | 11 g/ms |
EMC compliance | Conforms to EN61496-1/EN50022 Part A |
Contact us for more information |
