TZ-8108, limit switch az-8108 adjustable roller limit switch
- $0.60 / >=100 pieces
- 100 pieces
- Yueqing Xianglang Electric Co., Ltd.
- Zhejiang, China
- Mr Frank R
Product Detail
| Protection class: | IP65 | Mechanical life: | More than 1,000,000 times |
| port: | Ningbo/Shanghai | Supply capacity: | 2000 pieces per day |
| Shipping Details: | 3-15 days (depends on your order quantity) | payment terms: | L/C, T/T, Western Union, paypal |
| feature: | Two way switch; double spring inner switch | Origin: | Zhejiang, China |
| model: | TZ-8108 | Drive shaft type: | various levers |
| Certificate: | CCC EU Directive RoHS | Operating temperature: | -20 ~+60 (no icing), 95% RH max.(at +5~20 ) |
| maximum. Voltage: | 250VAC | Electrical life: | More than 500,000 times |
| color: | blue and gray | maximum. current: | 5A |
| Contact resistance: | Up to 25 meters (initial value) | brand: | Sunshine/OEM |
| application: | Electronics, Home Appliances | Material body: | Zinc metal alloys and plastics |
| type: | factory price | Packaging Details: | TZ8108 , limit switch 8108 adjustable roller arm limit switch standard export carton or can be customized. |
TZ8108, limit switch 8108 adjustable roller limit switch
1. TZ8108 limit switch 8108 adjustable roller arm limit switch Features andapplication:
feature:
compact design,
Fully open terminal block, easy to connect
Dustproof, waterproof and oilproof structure
application:
Widely used in mechanical equipment, automatic machinery, instrumentation, electric tools, etc.
2. TZ8108 limit switch 8108 adjustable roller arm limit switch feature:
thing | score |
Rated insulation voltage (Ui) | 250VAC |
Rated Impulse Voltage (Uimp) | 2.5KV |
Operating overvoltage | 2.5KV |
Rated case heating current (Ithe) | 5A |
Conditional short circuit current | 100A |
short circuit protection device | 10A fuse |
protective structure | IP64 |
Pollution degree | 3 |
operating characteristics
thing | feature |
maximum. | 7.84`3.35N {800`342gf} |
RF min | 0.49`0.21N {50`21gf} |
PT.max (mm) | 20° |
MD.max(mm) | 10° |
OT.min(mm) | 75° |
TT.(mm) | 95° |

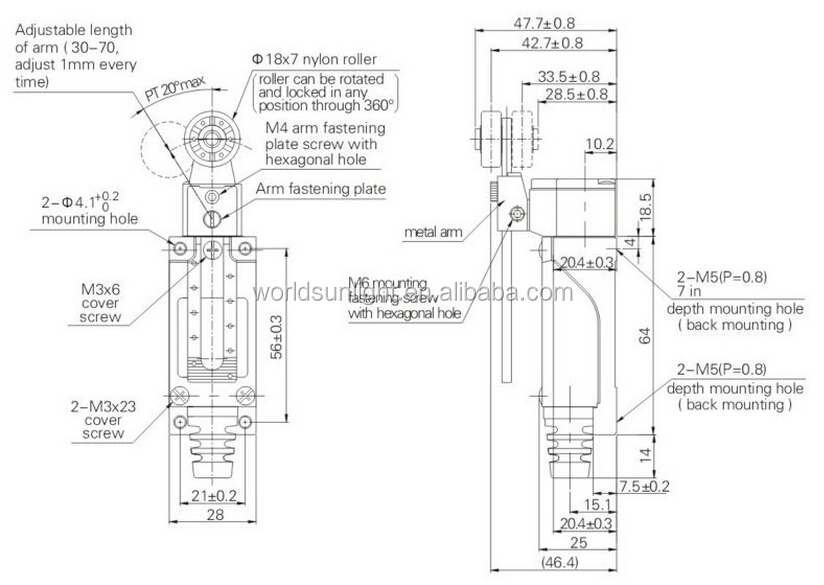

3.TZ8108, limit switch 8108 adjustable roller limit switchaspect:
 |

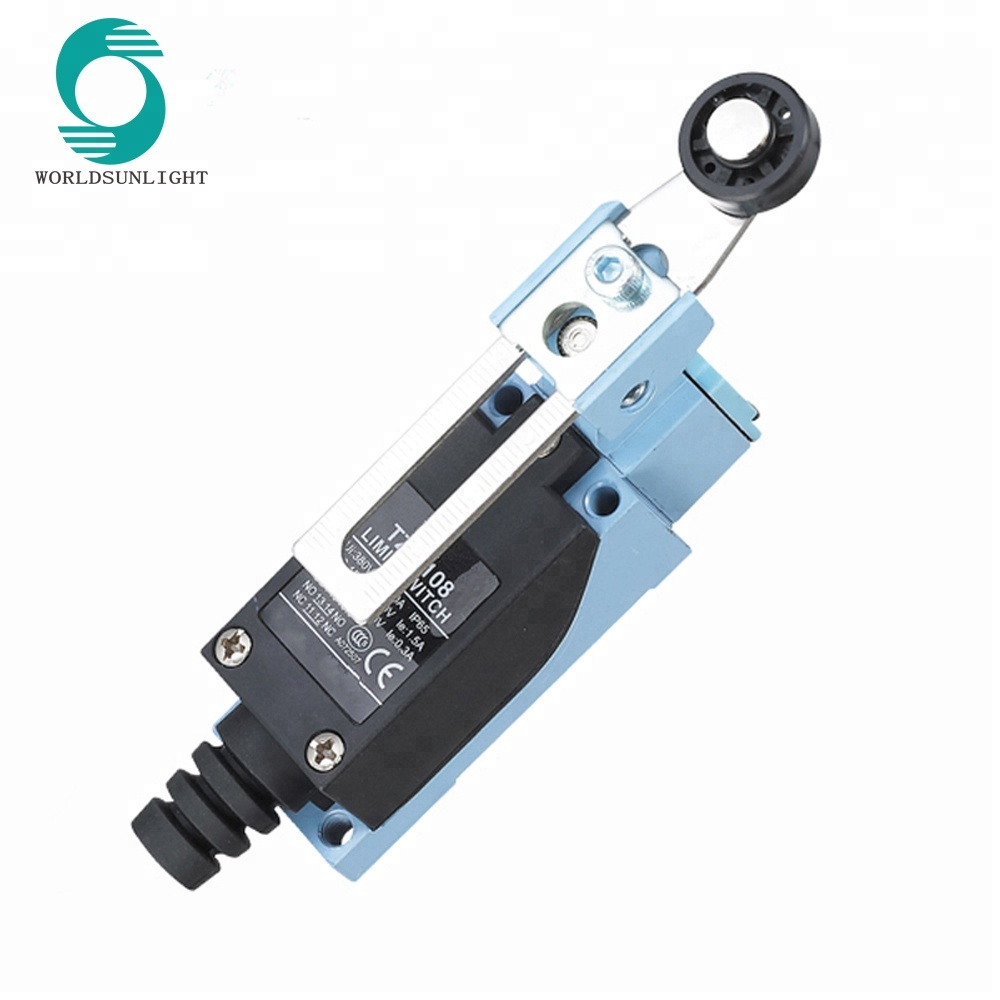

4.TZ8108, limit switch 8108 adjustable roller limit switchpicture:
 |
5.TZ8108, limit switch 8108 adjustable roller limit switchcertified:
 |
6.TZ8108, limit switch 8108 adjustable roller limit switchPackage:
Packaging Details:Standard export packaging, also can be produced according to customer order
Delivery details: 3-15 days (depending on your order quantity)
 |
7.TZ8108, limit switch 8108 adjustable roller limit switchshipping:
TNT: About 5-7 working days can arrive at your side normally
EMS: It takes 10-15 working days to arrive at your side
UPS: North America Express, 3-5 working days
DHL: usually 3-5 working days to reach you
FEDEX: usually 3-10 working days to reach the United States and Europe
 |
8.TZ8108, limit switch 8108 adjustable roller limit switchServe:
1. Respond to inquiries within 24 hours.
2. Please let us know which items you are interested in, we will provide you with a reasonable price as soon as possible after receiving your new inquiry.
3. Answer your questions in detail.
4. Solve the problems you encountered in the process of using our products.
5. Welcome to our company for visiting and technical exchange.
 |
