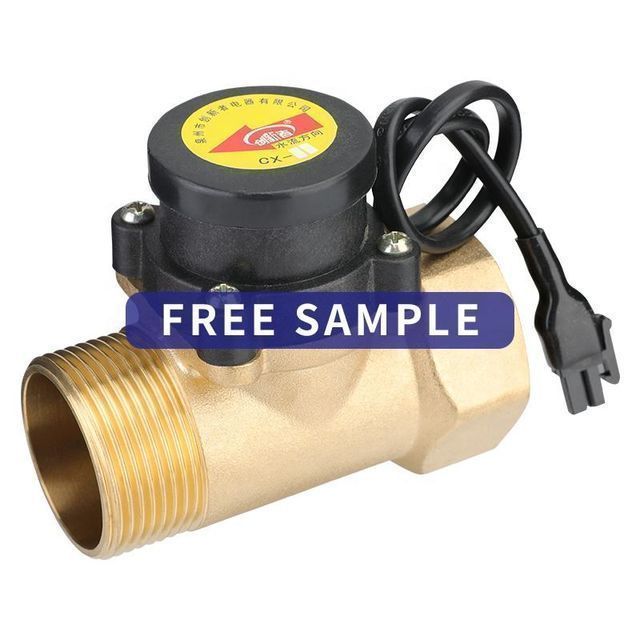

High Power Booster Pump Brass Water Flow Switch 1 Inch For Water Control Bidirectional Magnetic Water Solenoid Valve
-
$6.80 / 10 - 98 pieces
$6.50 / 99 - 298 pieces
$6.20 / 299 - 499 pieces
$6.00 / >=500 pieces - 10 pieces
- Quanzhou Innovator Electrical Appliance Group Co., Ltd.
- Fujian, China
- Ms Ariel Xu
Product Detail
| Applies to: | Water or other liquids with similar physical and chemical properties | Origin: | Fujian China |
| the color of car: | yellow, black, red, green | model: | CX-800 |
| Package preview: | Sales unit: | single product | |
| product name: | Flow switch | brand: | CXZTCL |
| Rated voltage: | 220VAC | Liquid pressure: | <0.6Mpa |
| Packaging Details: | 1. One piece per box 2. 50prs per box, carton size: 33*25*22cm 3. Single box about 24kg | media type: | liquid |
| Liquid temperature: | <100℃ | Gross weight per piece: | 0.241 kg |
| connect: | G1/2" 3/4" 1" 1.2" 1.5" 2" | Certification: | CCC certification |
| Key words: | Water control flow switch | Operating temperature: | <100℃ |
| flow: | 6-7L/min, G1/2"-G1/2" | application: | monitoring liquid flow |
| Single package size: | 8X8X6 cm |
Product Description

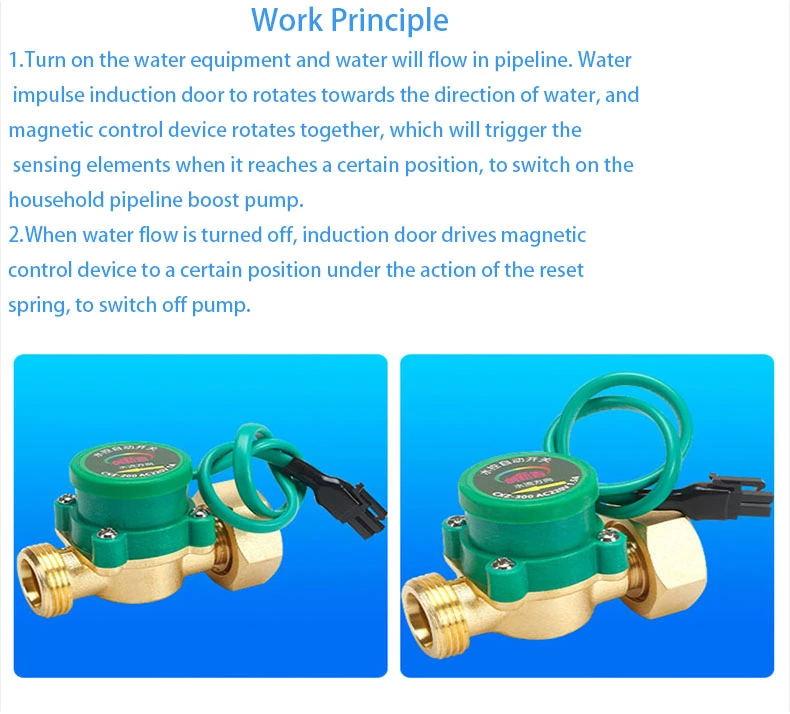

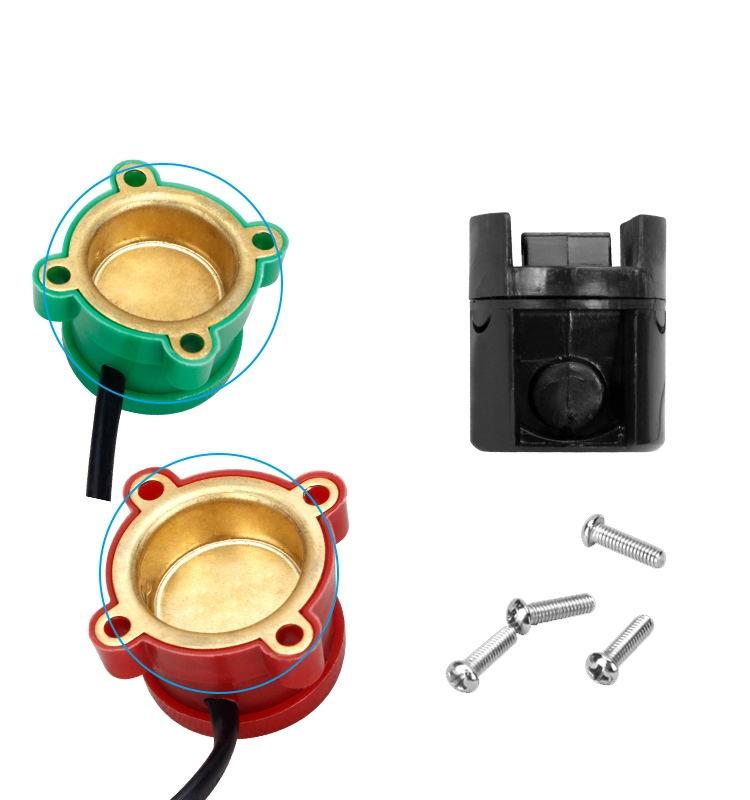

1. Stable performance; The induction chamber, magnetic control chamber and electronic components are designed separately to avoid the switch failure caused by the iron in the pipeline being magnetically adsorbed.
2. The high temperature resistant material enables the product to be used in both hot water and hot water.
3. Start with low water pressure; the return spring is made of high-quality stainless steel; the water pump can be started when the water pressure is >0.03KG.

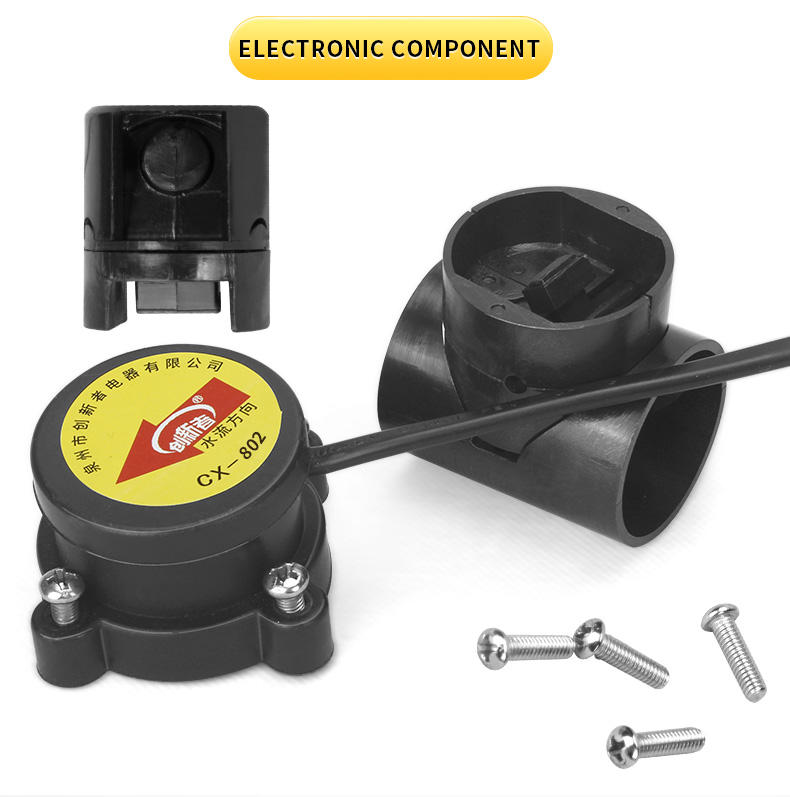

4. The electronic components as the control device will not generate sparks when working, which is safe.

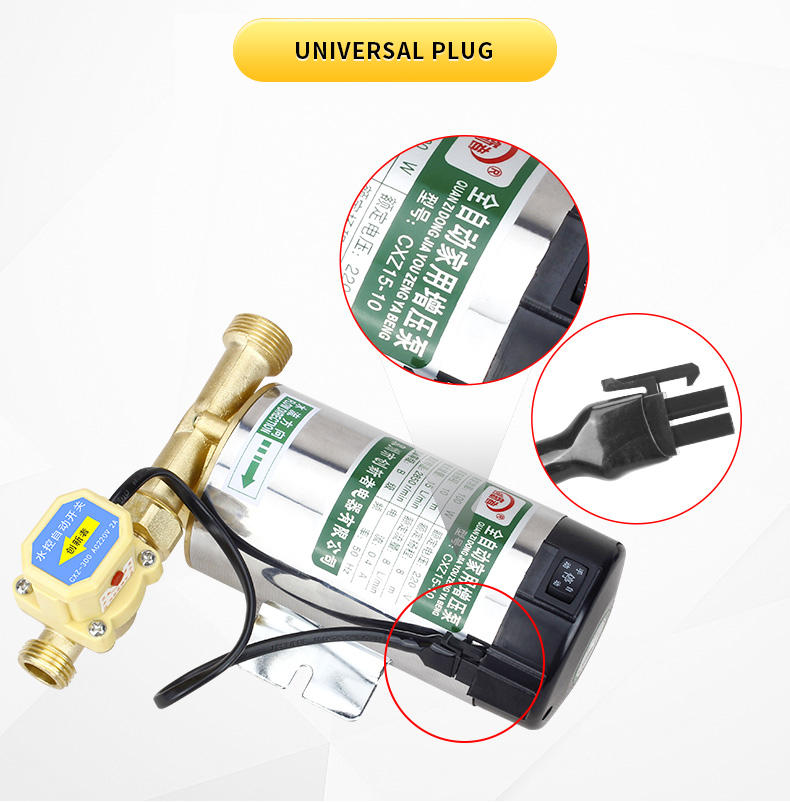

5. This product is widely used in households in low-pressure areas, especially for the ignition of water heaters with low water pressure and the automatic water circulation of solar water heaters.
2. The high temperature resistant material enables the product to be used in both hot water and hot water.
3. Start with low water pressure; the return spring is made of high-quality stainless steel; the water pump can be started when the water pressure is >0.03KG.
4. The electronic components as the control device will not generate sparks when working, which is safe.
5. This product is widely used in households in low-pressure areas, especially for the ignition of water heaters with low water pressure and the automatic water circulation of solar water heaters.

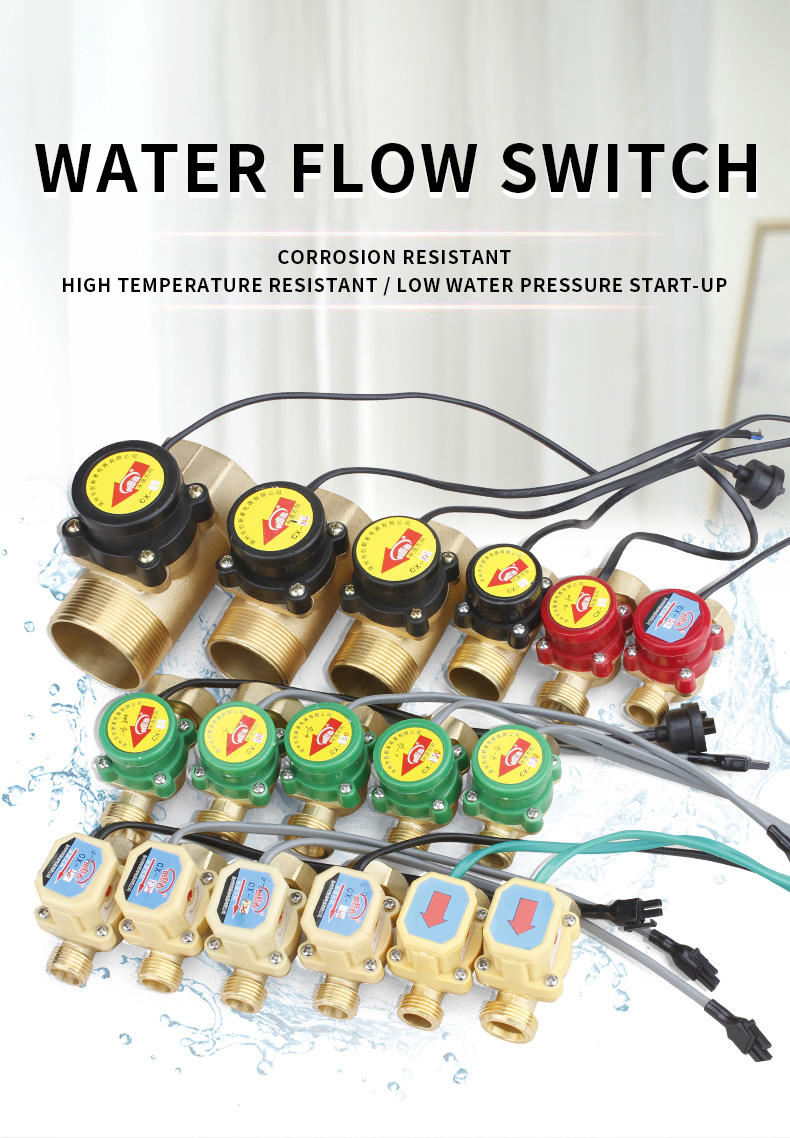

Model | size | Maximum current | Working current | strength |
CXZ-2010 | G 2"-2" | 5A | 2A | 2200w |
CXZ-802 | G 1.5"-1.5" | 5A | 2A | 2200w |
CXZ-801 | G1.2"-1.2" | 4A | 1.6A | 2200w |
CXZ-800 | G1"-1" | 4A | 1.6A | 800w |
CXZ-300/370 | G1"-3/4" | 5A | 2A | 300-370w |
CXZ-300 | G 3/4"-3/4" | 5A | 2A | 300w |
CXZ-300 | G 3/4"-1/2" | 5A | 2A | 300w |
CXZ-300 | G 1/2"-1/2" | 5A | 2A | 300w |
CXZ-200 | G1"-3/4" | 4A | 1.6A | 200w |
CXZ-200 | G 3/4"-3/4" | 4A | 1.6A | 200w |
CXZ-200 | G 3/4"-1/2" | 4A | 1.6A | 200w |
CXZ-200 | G 1/2"-1/2" | 4A | 1.6A | 200w |
CXZ-120 | G1"-3/4" | 1.5A | 0.5A | 120w |
CXZ-120 | G 3/4"-3/4" | 1.5A | 0.5A | 120w |
CXZ-120 | G 3/4"-1/2" | 1.5A | 0.5A | 120w |
CXZ-120 | G 1/2"-1/2" | 1.5A | 0.5A | 120w |
CXZ-60 | G1"-3/4" | 1A | 0.3A | 90w |
CXZ-60 | G 3/4"-3/4" | 1A | 0.3A | 90w |
CXZ-60 | G 3/4"-1/2" | 1A | 0.3A | 90w |
CXZ-60 | G 1/2"-1/2" | 1A | 0.3A | 90w |

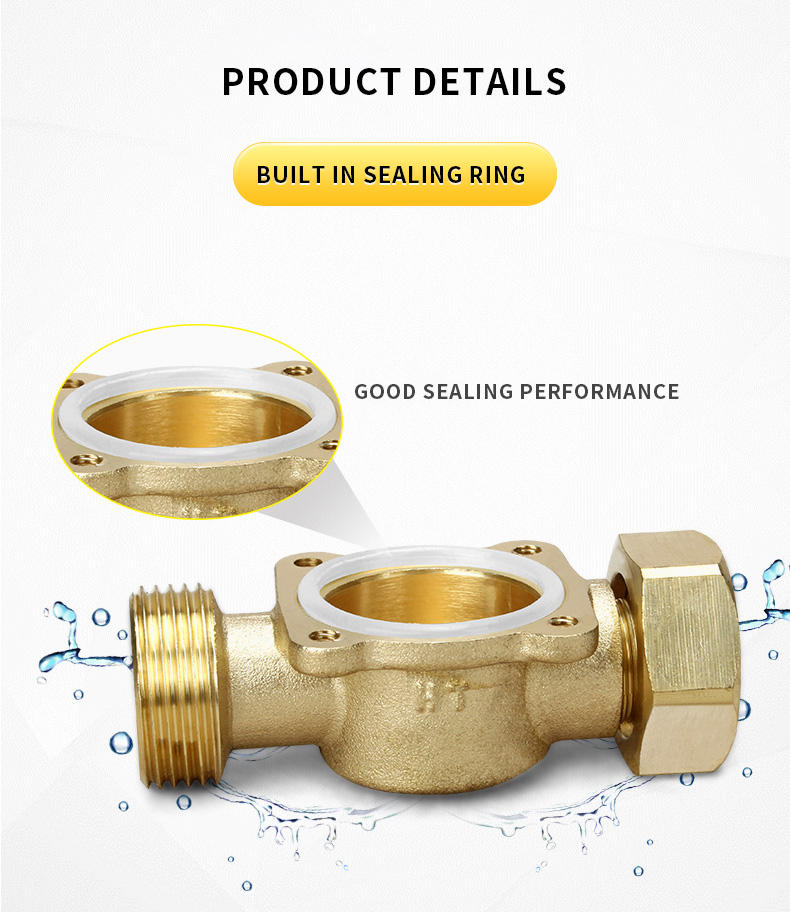

detailed drawing
