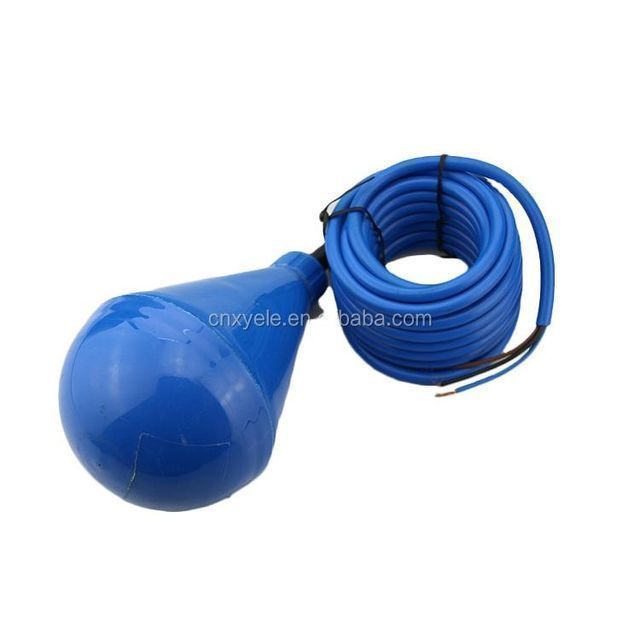

Hot sale latest plastic automatic mercury level switch/electric water tank pump float switch

Product Detail

Packaging Details:Standard export packagingport:Ningbo
place of origin; place of origin:Zhejiang, Chinamedia type:liquid
Is it smart:yesbrand:RMB
Operating temperature:0° to 80°ccurrent:10A
Voltage:220VCertification:ce
Work pressure:1bar maxmodel:XYM15-5
Supply capacity:25000 pieces per monthpayment terms:Western Union, T/T
energy consumption:<1.5KW

Specification:



Rated voltage: 250V(380V)/120V
Rated current: 16A(8A)/10A(8A)/10A(4A)
Working temperature: 0°C Mechanical life: ≥100.000 times
Electrical life: ≥50.000 times
Protection class: IP68CS

Length: 2m 3m 5m 10m 20m



feature:


Micro switch: 10(8)A 250V~10(4)A 380V
Switching current: +++ ≥50 000 The switching operation has passed the VDE professional test
Protection connection: T 70U
Protection: waterproof
Maximum temperature: 70°C
Working pressure: max.1bar
Breaking capacity: 250V direct KW
Standard cable length: 5m ~ 100mm or according to customer requirements
Float: Polypropylene
Cable: Polypropylene sheath
Counterweight: Polypropylene sealed case
Cable material: HO7RN- F3x0.75mm2, PVC (3x0.5mm2, 3x0.75mm2, 3x1.0mm2

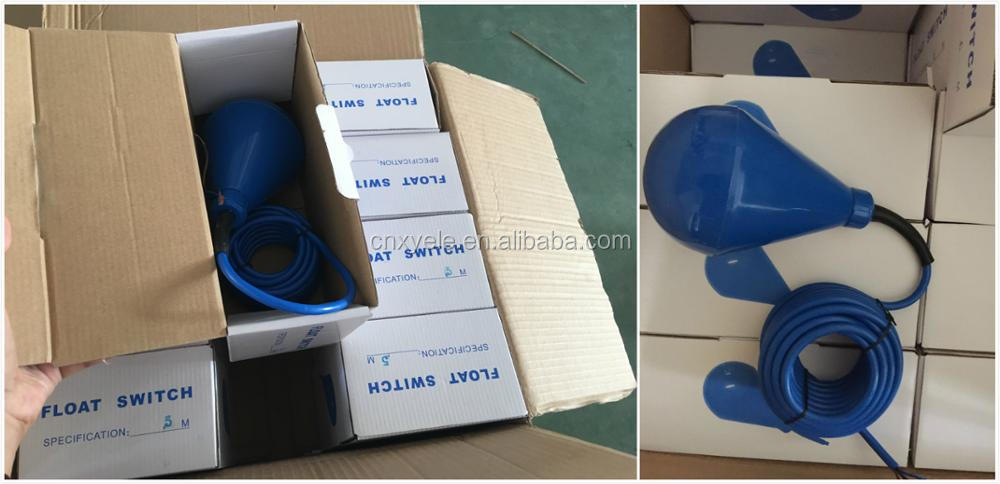

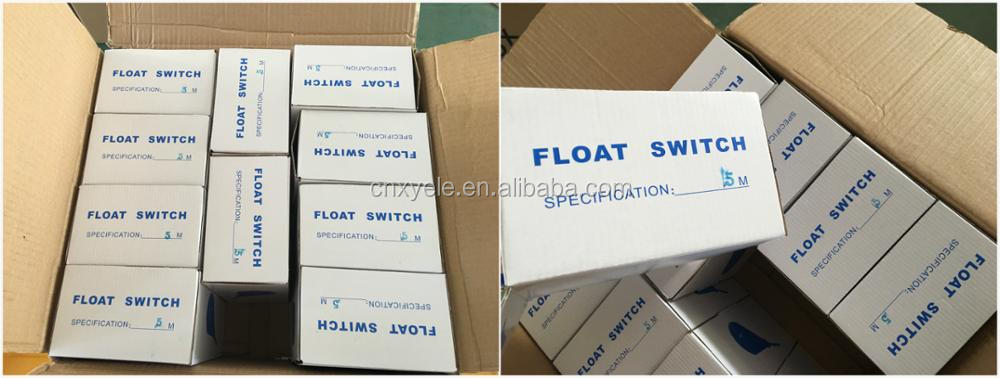

packaging and delivery

our service



1. Sample delivery time is 5~7 days, bulk order delivery time is 15 working days;

2. Strong production capacity and strict quality control system;

3. Your inquiries and questions about our products or prices will be replied within 24 hours;

4. Well-trained and experienced staff to answer all your questions;

5. Provide after-sales tracking service for all customers;

6. OEM production is available; small batch and mixed batch orders are also welcome;

7. Payment method: L/C, T/T, Paypal, Western Union, MoneyGram;

8. Delivery method: UPS, DHL, TNT, FEDEX, EMS, China Post.
