Water oil hydraulic PNP NPN relay SPDT hot water cycle heat flow switch pump flow switch
-
$110.00 / 1 - 19 pieces
$100.00 / 20 - 49 pieces
$90.00 / >=50 pieces - 1 piece
- Nanjing Hangjia Electronic Technology Co., Ltd.
- Jiangsu, China
- Ms Willow Yang
Product Detail
| media type: | liquid | application: | monitoring liquid flow |
| Electrical connections: | M12*1 | Pressure resistance: | 100 bar |
| port: | Ningbo/Shanghai | Packaging Details: | Carton, wooden case or customized |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | product name: | Flow Switch |
| output signal: | PNP/NPN/relay | Supply capacity: | 100000 pieces per month |
| Ingress protection: | IP67 | brand: | sensor |
| Certification: | CE ISO9001 | Is it smart: | yes |
| Medium temperature: | -20~80℃ | Operating temperature: | -20~80℃ |
| model: | HFM500 | housing: | SUS304 |
| Customs code: | 9026801000 | Initialization time: | 8s |
| flow: | Water flow: 1...150cm/s | place of origin; place of origin: | Jiangsu, China |
Product Description
feature:

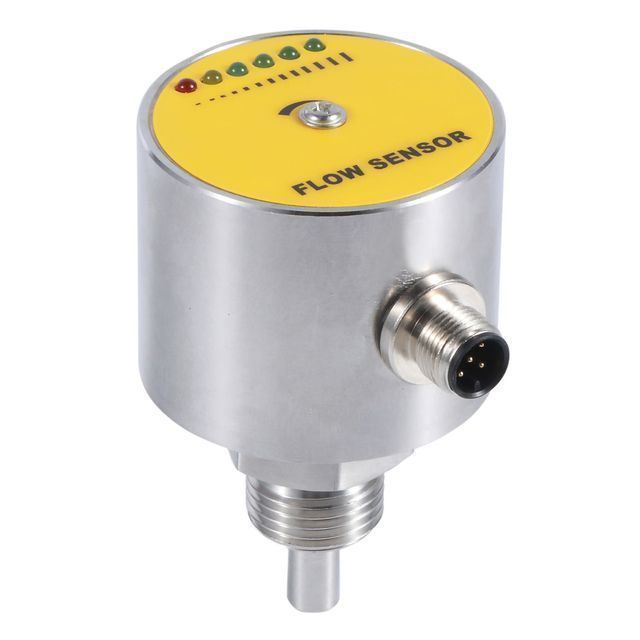

HFM500 thermal flow switch adopts the principle of thermal diffusion, and the temperature difference between the two sensors can be used as the basis for measuring flow. When the medium flow rate increases, the temperature difference decreases, and vice versa. The temperature difference value is processed, converted into a standard electrical signal output and displayed. This product adopts full metal shell design, 6-digit LED display flow trend and switch status. The potentiometer of this product is simple to set, easy to operate, without any moving parts inside, maintenance-free, and can measure a variety of media.
1.Hydraulic / Lubrication2.water pump3. Cooling system4.ventilation system5.water treatment6.leak detection
Specification
Measuring range | ||
water | 1...150cm/s (most sensitive range 1...60cm/s) | |
Oil | 3...300cm/s (the most sensitive range is 3...100cm/s) | |
Air | 20...2000cm/s (the most sensitive range is 20...700cm/s) | |
Measuring medium | water, oil, air | |
withstand voltage | 100 bar | |
initialization time | 8s | |
Response time | 1...15s, related to the thermal conductivity of the medium, the typical value is 2s | |
voltage | 24V DC | |
Wiring protection | Reverse polarity protection, overload protection, short circuit protection | |
switch output | ||
output type | PNP/NPN/relay optional | |
Carrying capacity | 400mA max (NPN and PNP types); 1A max (relay type) | |
exhibit | ||
design | 1 red LED (flow < switching point) | |
1 yellow LED (flow = switching point) | ||
4 green LEDs (flow > switching point) | ||
temperature | ||
Operating temperature | -20~80℃ | |
medium temperature | -20~80℃ | |
Storage temperature | -20~100℃ | |
Material | ||
housing | SUS304 | |
detection | SUS304 | |
degree of protection | IP67 | |

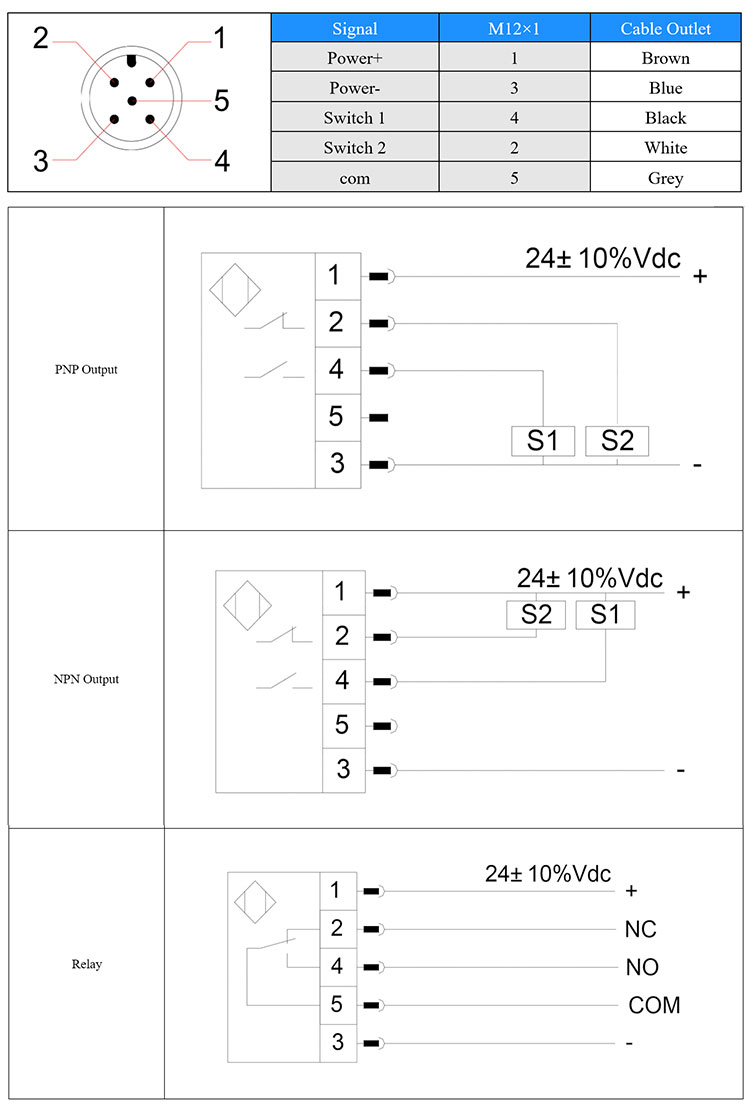

Wiring method | M12 connector | |

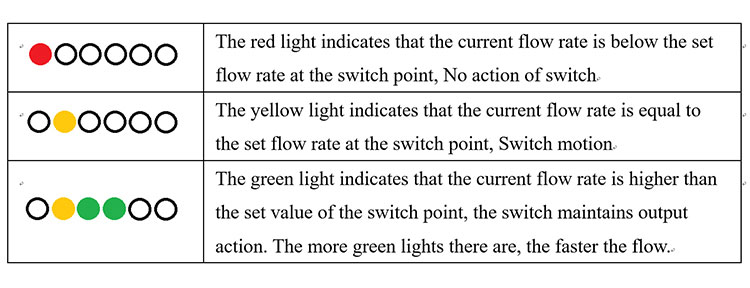

LED functions and settings
Install the flow switch, remove the protective screw, make the medium flow according to the flow rate that needs to be monitored, adjust the potentiometer, make the first green LED just light up, and release the switch when the flow rate is lower than the current value. To make the switch point smaller than the current flow rate, adjust Potentiometer to make green LED brighter
