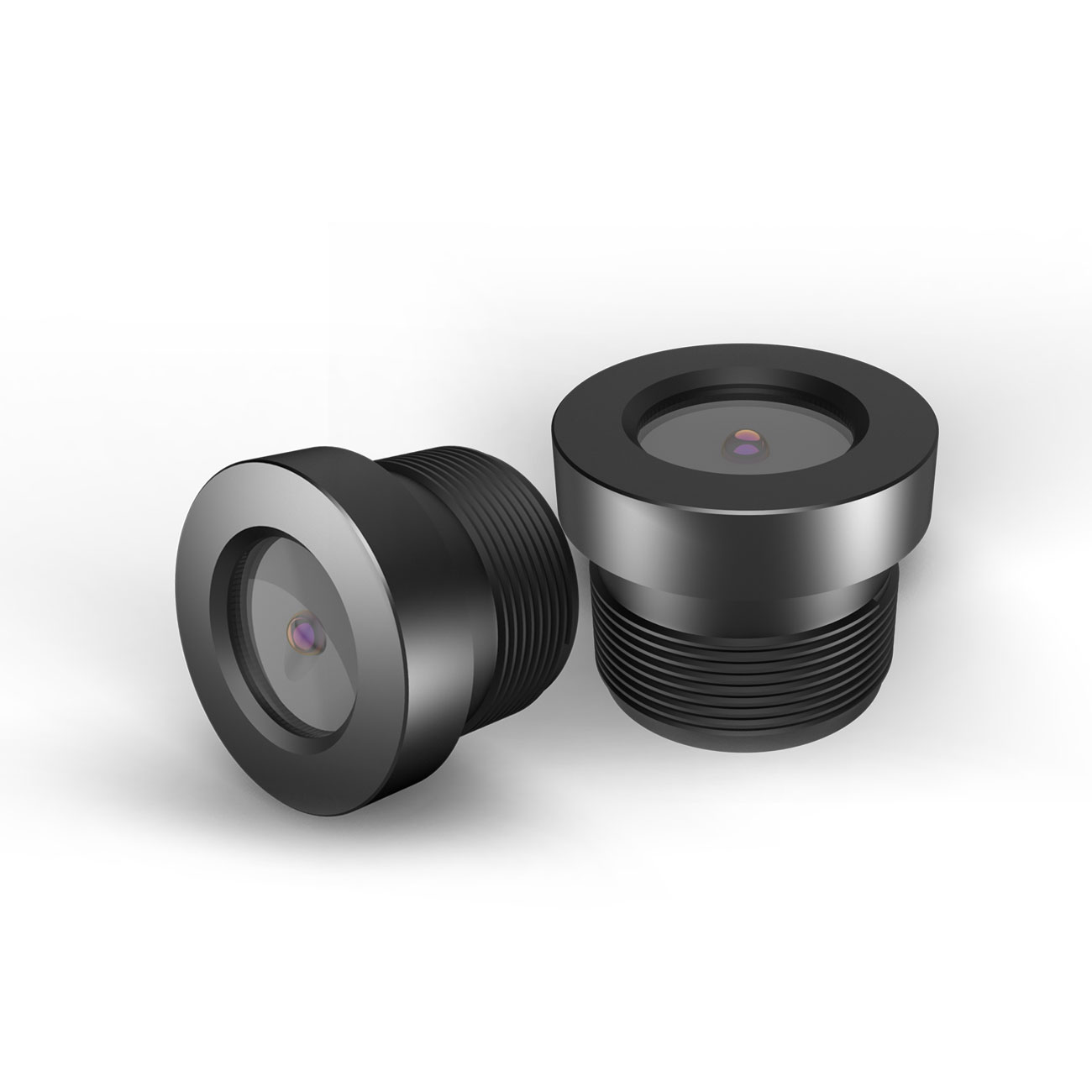

Made in China CCTV Lens 5MP F/No.2 DFOV 95 Degree Distortionless CCTV Lens m12
-
$1.85 / 1 - 999 pieces
$1.75 / 1000 - 4999 pieces
$1.70 / >=5000 pieces - 1 piece
- Shenzhen Hiismart Optoelectronic Technology Co., Ltd.
- Guangdong, China
- Ms Kelly Zhang
Product Detail
| brand: | Constant temperature photoelectric | Overall length: | 15.7±0.3 |
| Sales unit: | single product | Flange Back Length: | 3.1±0.3 |
| fax number: | 2.5±10% | Relative illuminance: | >53.5% |
| focal length: | 3±5% | Lens structure: | 1G3P+1IR |
| Single package size: | 26X26X38 cm | TV Distortion: | 1% |
| place of origin; place of origin: | Guangdong, China | model: | HS-W222 |
| Gross weight per piece: | 5.800 kg | Maximum image height: | 6.8mm |
| sensor type: | 1/2.7'' (3MP) | Mountain: | M12*P0.5 |
Made in China CCTV Lens 5MP F/No.2 DFOV 95 Degree No Distortion M12 Lens
Product Description
| sensor type | 1/2.7'' (3MP) |
| focal length | 3±5% |
| Maximum Image Height | 6.8mm |

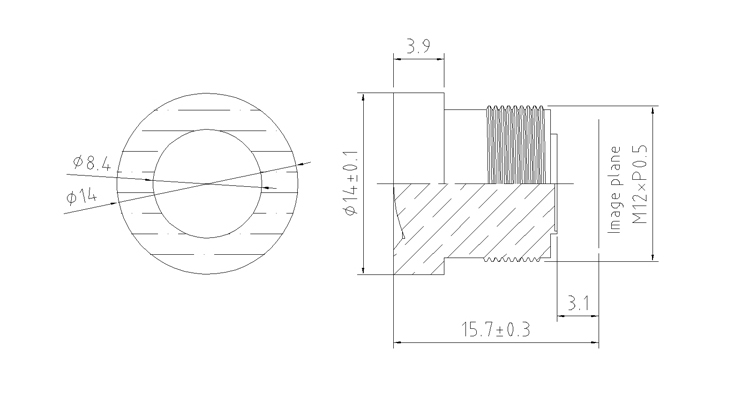

| total length | 15.7±0.3 |
| female/number | 2.5±10% |
| Flange Back Length | 3.1±0.3 |
| tv distortion | <1% |
| relative illuminance | >53.5% |
| lens structure | 1G3P+1IR |
| Mountain | M12*P0.5 |
| optical field of view |
1/2.7''(AR0230) 1920*1080,3um |
1/2.9''(MIS2008) 1936*1096,2.79um |
| Ding | 95±5° | 92.6±5° |
| h | 86±3° | 84.6±3° |
| V | 56±2° | 53.7±2° |
2.8
Specification
1, High quality 4K CCTV lens
2. Distortion-free camera lens
3. Total length: 15.7mm
4. Widely used in face recognition systems
application
face recognition system
