The LoRa/LoRaWAN wireless tag sensor is used for asset management
- $13.00 /piece
- 1 piece
- Beijing Manthink Technology Co., Ltd.
- Beijing, China
- Mr
Product Detail
| model: | ST11 | working frequency: | 410-510MHz/863-928MHz |
| place of origin; place of origin: | Beijing China | brand: | mansi |
| Transmission power: | 20 dBM (100 mW) max. | application: | ManThink, LoRa/LoRaWAN |
| Types of: | Label | Transmission rate: | 1.8kbps~5.4kbps |
| Receive sensitivity: | Max - 139 DBM | Modulation: | Rolla |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | network: | Available SDKs |
| spectrum: | EU 868 | color: | Black |
| size: | 5mmx51mmx15mm |
Product Description
Operating Voltage | 2.2~3.0V |
Operating temperature | -40℃ ~ 85℃ |
Working humidity | 0%~90% relative humidity |
emission current | < 120ma@100MW (Impedance matching) |
receive current | <13mA |
overview

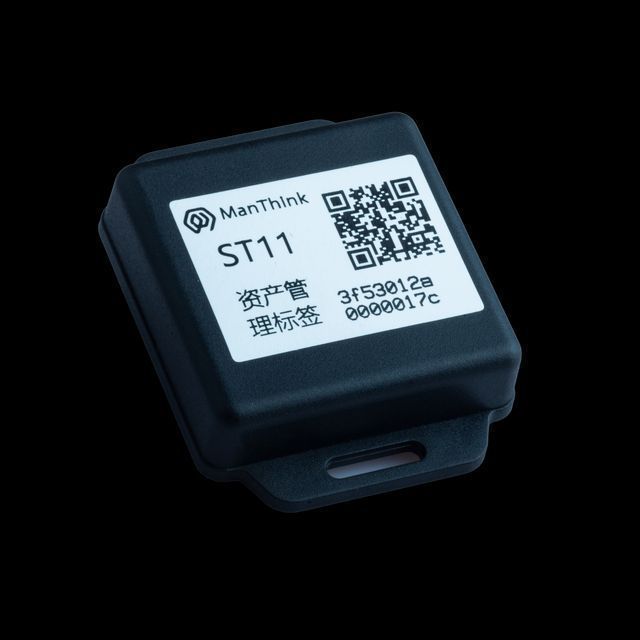

ST11TN/ST11NN is a wireless tag sensor for asset management, which can realize timing sampling, upload temperature and ID
Information to the monitoring platform, supporting LoRaWAN and LinkWAN protocols. Users can set the sampling and reporting period by themselves
through the platform. The default setting is to upload temperature and humidity information to the platform every 1800 minutes.
Information to the monitoring platform, supporting LoRaWAN and LinkWAN protocols. Users can set the sampling and reporting period by themselves
through the platform. The default setting is to upload temperature and humidity information to the platform every 1800 minutes.
Application field
* Logistics warehousing, warehouse
* Logistics cargo temperature monitoring
* Data center and service data center
* Unattended factories and workshops
* Smart home, smart agriculture, smart building
* Logistics warehousing, warehouse
* Logistics cargo temperature monitoring
* Data center and service data center
* Unattended factories and workshops
* Smart home, smart agriculture, smart building
main feature
* Internal integrated temperature measurement chip, can accurately measure the ambient temperature (ST11TN)
* It has alarm functions such as low battery voltage and equipment failure.
* Parameters that allow you to configure downstream data.
* The wireless transmission part adopts the LoRa modulation method, which can realize long transmission distance and low
Standby power consumption, etc.
* The battery adopts high energy density lithium battery, which can guarantee the working life of the product for 5 years (the upload cycle is 1800 minutes)
* Outdoor transmission distance 2-3km
* Internal integrated temperature measurement chip, can accurately measure the ambient temperature (ST11TN)
* It has alarm functions such as low battery voltage and equipment failure.
* Parameters that allow you to configure downstream data.
* The wireless transmission part adopts the LoRa modulation method, which can realize long transmission distance and low
Standby power consumption, etc.
* The battery adopts high energy density lithium battery, which can guarantee the working life of the product for 5 years (the upload cycle is 1800 minutes)
* Outdoor transmission distance 2-3km
