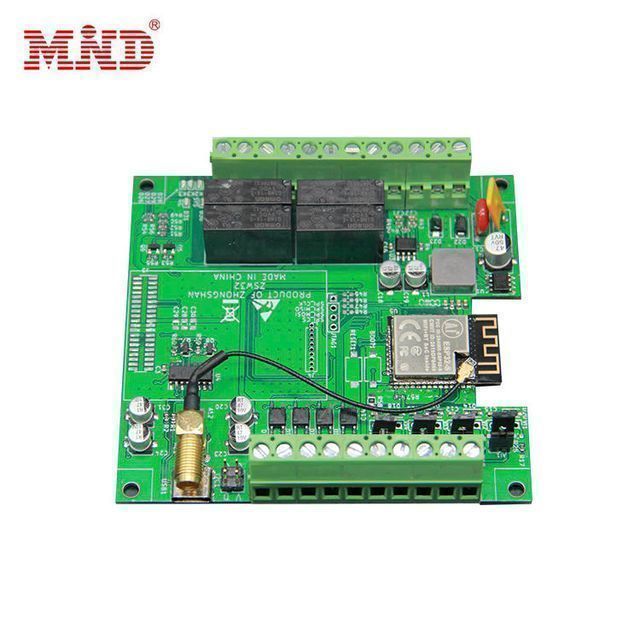

ESP-32 PCBA Board WiFi Wireless Data Receiver Module with 4AI/4DI/4DO/1RS485

Product Detail

interface:4AI/4DI/4DOsize:Length: 145mm Width: 90mm Height: 40mm Weight: 200g
temperature range:-40℃~+85℃Packaging Details:MDWR2084 1 set (including related accessories)
payment terms:L/C, Western Union, T/T, Paypalproduct name:ESP32 PCB module
model:MDWR2048-BSupply capacity:10000 sets per month
Serial interface:RS485; rate: 300-115200bps;port:Chengdu/Shanghai/Shenzhen
brand:mindTypes of:RTU
place of origin; place of origin:Sichuan, Chinanetwork:WIFI, wifi
application:WIFI RTUvoltage:DC6~36V
WiFi frequency:2.412GHz-2.484GHzhumidity:Relative humidity: <95% (no condensation)
Humidity range:Relative humidity 95% (no condensation)

ESP32 WiFi wireless data transmission/acquisition/control PCBA development board



WIFI RTU product overview

WiFi RTU is a collection and control terminal device that adopts WiFi wireless data transmission. The device adopts ESP32 module, supports more free development and more flexible scene application, supports TCP, UDP, network protocols, and provides users with fully transparent data transmission methods. Support custom heartbeat package, registration package, data guide package, support through Shanyun port, users do not need to set up servers, fully support industrial configuration applications, users do not need to care about complex network protocols, through transparent serial ports, wireless data can be sent and received, so that Access the Internet anytime, anywhere on your device.


WiFi RTU supports TCP and UDP two message formats, users can choose freely. 4 analog outputs, 4 switch outputs and 4 relay outputs are suitable for most application scenarios and can solve data transmission problems without any wiring. The WiFi RTU provides wireless data transmission and acquisition control anywhere a WiFi network is available.



WIFI RTU characters

Based on the ESP32 chip module, it supports higher development freedom and function expansion.
The WIFI version of RTU is more suitable for the needs of home and indoor scenes to control and monitor equipment.
4-way digital, 4-way analog input, 4-way relay output.
Support central SDK programming and standard Socket programming.
Wide operating temperature range, can work in -25 to +70°C environment.
The data interface adopts RS485 communication interface, the baud rate is optional, from 300 BPS to 115200 BPS, and the start/stop/check is optional.
Support central SDK programming and standard Socket programming.
Support MIND IOT cloud.
Support virtual serial port, support access to a variety of configuration software.

WIFI RTU technical parameters



figure describe
power supply DC6~36V
energy consumption 12VDC power supply:
Peak current: MAX 1A (communication)
Working current: 50mA-340mA
Idle: <50mA
network wireless online
WIFI frequency 2.412GHz-2.484GHz
Collection interface analog input 4-way analog 4-20ma/0-5V/0-10V/0-30V
digital input 4 digital inputs
Relay output 4 independent relay outputs
Relay maximum load current: 250VAC/30VDC@5A
serial interface RS485; rate: 300-115200bps;
Data bits: 7/8; Parity: N/E/O; Stop bits: 1/2 bits
Serial port (parameter configuration) Micro-USB; rate: 300-115200bps;
Data bits: 7/8; Parity: N/E/O; Stop bits: 1/2 bits
temperature range -40℃~+85℃
humidity range Relative humidity 95%
(no condensation)
physical properties Dimensions: Length: 145mm Width: 90mm Height: 40mm
Weight: 200g

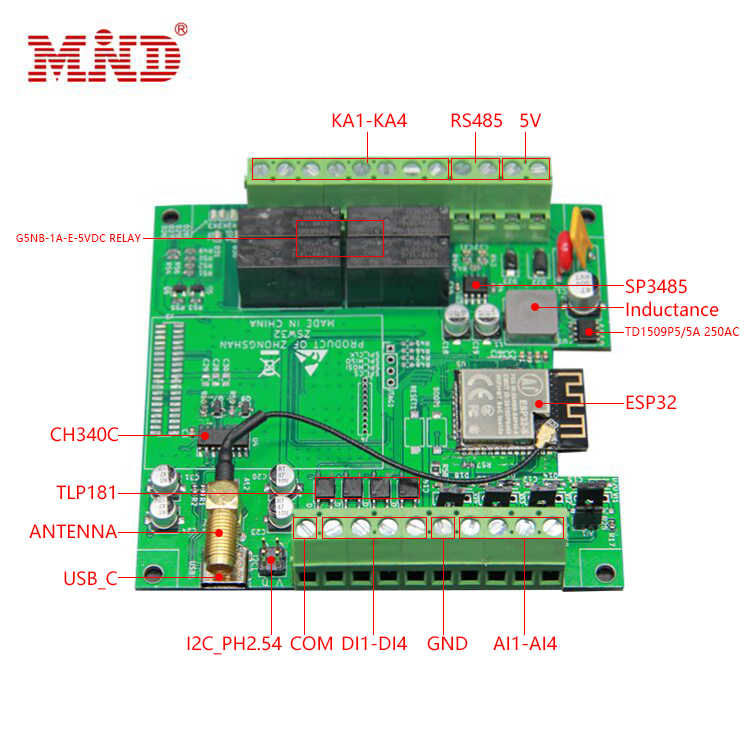

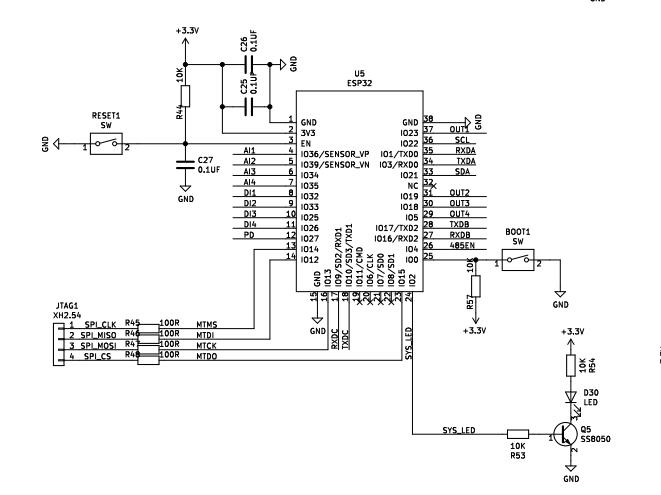

ESP-32 module pin definition

The pin layout is as follows:

Support user secondary program development

It can be widely used in the secondary development of various wireless solutions. You can add cellular/LoRaWAN/Ethernet/NB-IoT on top of it. Also, if you need, we will provide you the related source code as below.

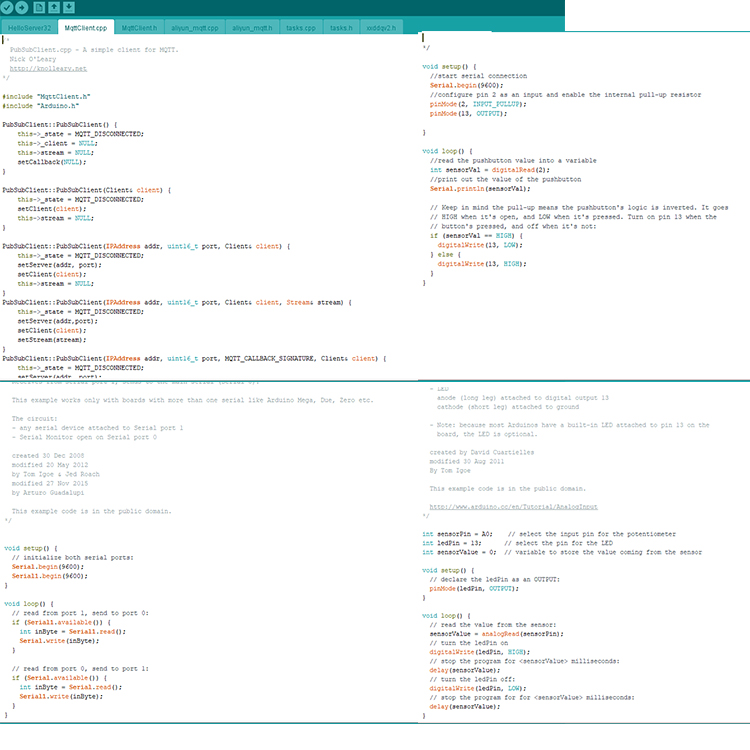

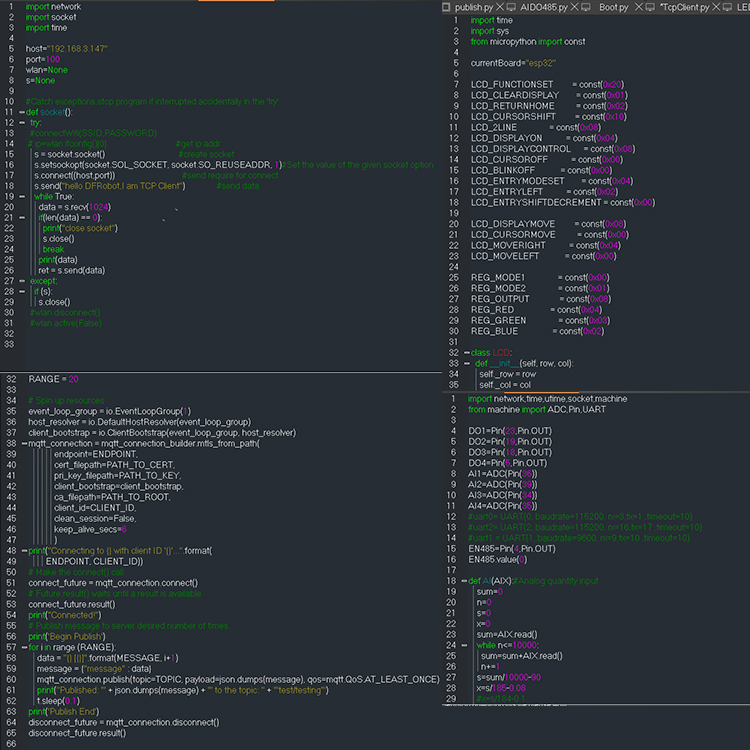

Python code

Arduino code

RTU WIFI usage scenarios
