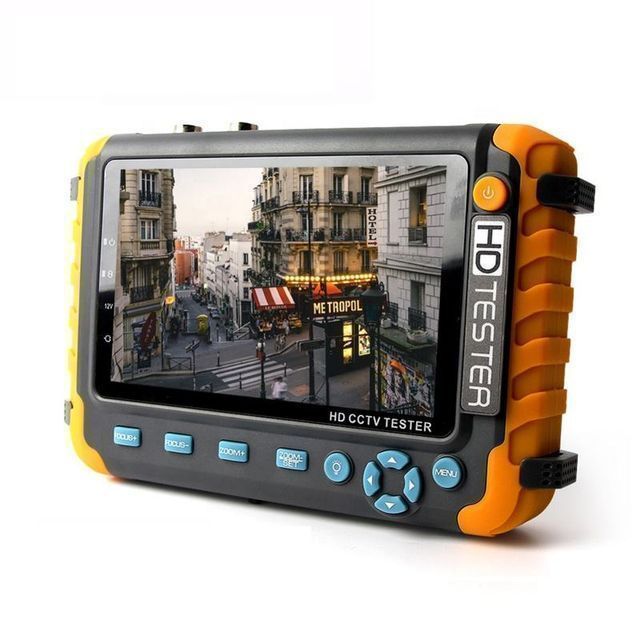

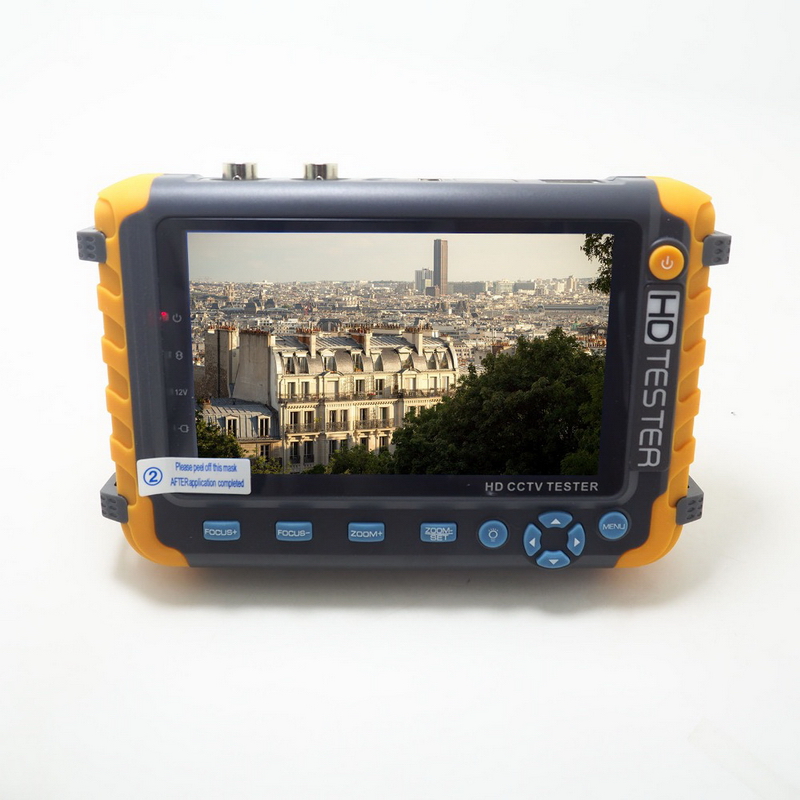

5 Inch TFT Color LCD CCTV HD-TVI, AHD, CVI Camera Tester with Wrist Strap, All in One CCTV Tester (CT800HDA)
-
$78.00 / 1 - 4999 pieces
$70.00 / >=5000 pieces - 1 piece
- Hangzhou Chinasky Electronics Co., Ltd.
- Zhejiang, China
- Ms Sylvia Wang
Product Detail
| brand: | Huatian, OEM | application: | Surveillance Installation, CCTV Installation, TVI AHD CVI Tester |
| Function two: | audio test | Warranty: | 2 years |
| Certificate: | CE, RoHS, FCC | Video support: | HD-CVI/TVI/AHD, CVBS camera |
| port: | CCTV tester in Shanghai, Ningbo, Shenzhen | Product Description: | 5" TFT Color LCD CCTV HD-TVI AHD CVI Tester |
| Supported resolutions: | 5MP TVI+4MP CVI+5MP AHD | Function three: | UTP cable test |
| Supply capacity: | 2300 pieces per month | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Function one: | PTZ controller, RS485 | place of origin; place of origin: | Zhejiang, China |
| Packaging Details: | For CCTV tester: standard export carton packing, 1pc/box. 10 boxes/carton. Outer box size: 66*37.5*18cm | Function four: | led lights |
5 Inch TFT Color LCD CCTV HD-TVI, AHD, CVI Camera Tester with Wrist Strap, All in One CCTV Tester (CT800HDA)
5 Inch TFT Color LCD CCTV HD-TVI, AHD, CVI Camera Tester with Wrist Strap, All in One CCTV Tester (CT800HDA)
feature:
PAL/NTSC analog camera adaptation (CVBS), HD coaxial test (CVI, TVI, AHD)
HDTV: 720P, 1080P, 3MP, 4MP, 5MP,
HD-AHD: 720P, 960P, 1080P, 3MP, 4MP, 5MP,
HD CVI: 720P, 1080P, 3MP, 4MP
PTZ over coax
Mobile phone 5VDC output, camera 12VDC output, MINI USB universal charging interface, low power consumption, VGA/HDMI compatible 1.0 input, support audio test, support UTP line test, rechargeable lithium-ion battery 3.7V, 2600mA*2pcs replaceable
Specification
|
Model |
CT800HDA |
|
LCD screen |
5.0 inch TFT-LCD, 800(RGB)x 480 resolution |
|
video test |
NTSC/PAL (adaptive) |
|
LCD adjustment |
Adjustable brightness, contrast, saturation |
|
Video input/output |
1ch BNC input & 1ch BNC output |
|
VGA/HDMI compatible input |
Maximum support for 1920X1080 video input |
|
PTZ controller |
Support RS485 |
|
PTZ protocol |
Compatible with PELCO-D/P protocol, |
|
baud rate |
Baud rate: 600, 1200, 2400, 4800, 9600, 14400bps |
|
color bar generator |
Support standard color bar output in PAL/NTSC format |
|
(red, green, blue, white, black, gray) and test image output |
|
|
UTP cable test |
Displays UTP cable connection status, cable type and |
|
The order of the wires and the number to read the test box. |
|
|
DC12V power output |
Camera output DC12V1A power supply |
|
Audio input test |
1 channel audio signal input |
|
Coaxial HD test |
|
|
TVI test |
1 channel TVI input (BNC interface), |
|
Support 720p 25 / 30 / 50 / 60fps, 1080p 25 / 30fps |
|
|
CVI test |
1 channel TVI input (BNC interface), |
|
Support 720p 25 / 30 / 50 / 60fps, 1080p 25 / 30fps |
|
|
AHD test |
1 channel AHD input (BNC interface), |
|
Support AHD 2.0 version, 720p 25/30fps, 1080p 25/30fps |
|
|
strength |
|
|
Power Adapter |
DC 5V (1.5A) |
|
Battery |
Built-in 18650 2600mA battery X 2, |
|
After charging for 3-4 hours, the working time lasts for 11 hours |
|
|
General |
|
|
language |
Chinese and English optional |
|
Working humidity |
30%-90% |
|
size |
194mm x 112mm x 48mm / 540g |
