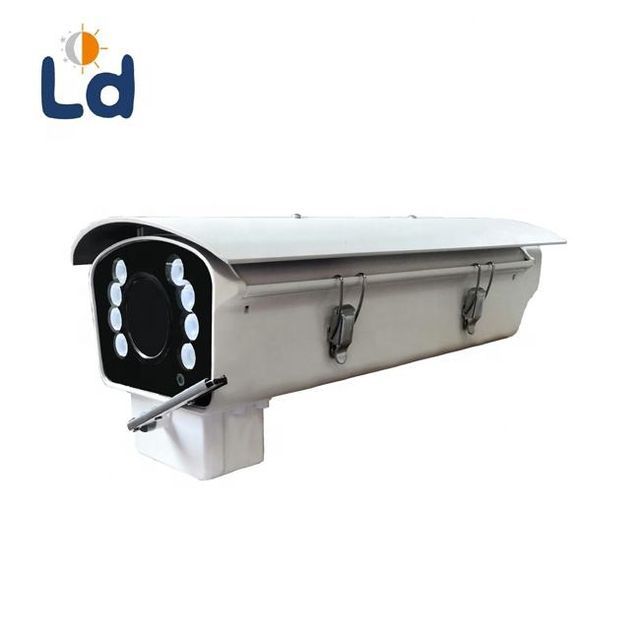

IP66 Dual Voltage S-LD132 Aluminum Heavy Duty CCTV Camera Housing with IR LEDs and Wipers

  • $110.00 / 1 - 49 pieces
    $105.00 / 50 - 99 pieces
    $100.00 / >=100 pieces
  • 1 piece
  • Shantou Scene Electronics Co., Ltd.
  • Guangdong, China
  • Ms Cici Wei

Product Detail

Sales unit:single productProtection class:IP66
Day and night switching:Luminosity 10-20lux ±10%Origin:Guangdong, China
Infrared Beam Angle:15° / 30° selectablehousing:Aluminum die-cast housing
brand:LDOperating temperature:-40℃ to +60℃(-50℃ to +60℃ with heater)
Number of LEDs:8pcs 2W high power infrared lampsSingle package size:53X28X22 cm
Voltage:AC24Vcool down:Air-cooled internal circulation with blower
Gross weight per piece:4.800 kgPackaging Details:4pcs in a standard carton
Infrared range:140M-100Mmodel:S-LD132
Glass cleaning:wipertype:housing
Product Description

1. Intelligent uniform illumination solution to improve night vision image quality and monitoring effect

2. Leading IR technology provides high efficiency and long life of LED
3. Accurate constant current circuit drive makes the product excellent performance
4. Manual control of power and day/night switch
5. Support various box cameras

6. Indoor/outdoor use, all-weather use
7. Highly integrated solution, easy installation and cost saving

Specification

LED quantity: 8PCS 2W high power IR LED
Wavelength: 850nm
Beam angle: 15°/30° optional
Infrared distance: 140m-100m
Day/night switch: CDS 10-20lux ±10% (adjustable)
Input voltage: AC24V
Output voltage: DC12V 1000mA
Power consumption v 16W (adjustable)
Panel: tempered glass panel
Shell: aluminum die-casting shell
Bracket: Bottom Mounting Bracket
Working temperature: -40°C to +60°C (-50°C to +60°C with heater)
Cooling method: air-cooled internal circulation
Blower: included
Protection class: IP66
Color: Beige
Net weight: 3.3KG
Gross weight: 3.85KG



Selection model

Model Beam Angle*IR Distance(850nm)
S-LD132-15B 15° 140m
S-LD132-30B 30° 100m

*The infrared distance is tested by SONY 1/3" CCD camera under 0.01lux.
*In order to achieve the desired distance, please pay attention to your camera specifications and lenses before purchasing. Due to different cameras and lenses, the distance may vary, which is normal.



qualification

high quality

Passed the ISO9001:2015 quality management system certification.

high quality

Passed the -40°C low temperature test.

high quality

Passed IP66 waterproof test.

our company

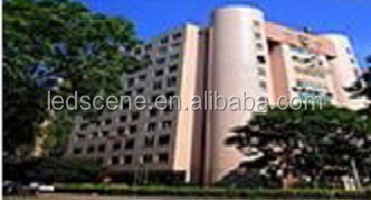

factory

Our factory

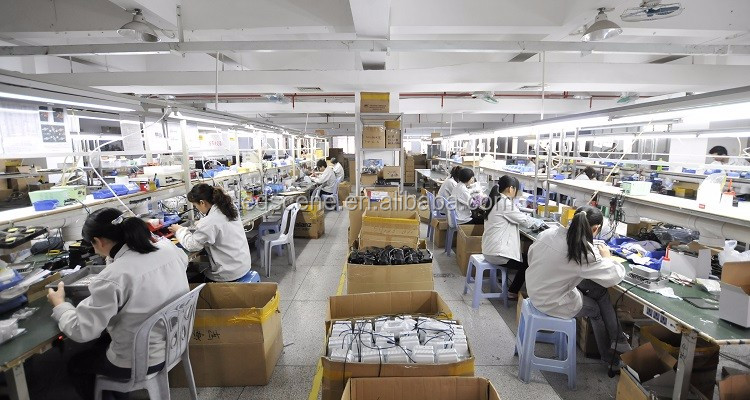

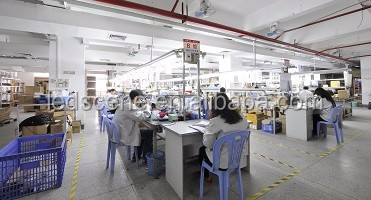

workshop

our workshop

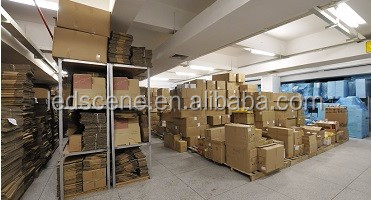

storehouse

our warehouse

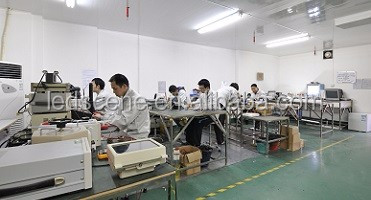

R & D team

our team

Packaging and Shipping

Packaging Details: Foam and carton packing, with user manual, mounting screws, 4pcs/carton

Delivery Details: 3-30 days after order placed

1. Aging
2. Factory inspection
3. Packaging
4. User manual and mounting screws
5. Bubble and carton packing
6. Complete packaging
exhibition

ITS transportation

Intertraffic China, since its establishment in 2007, has been held alternately in Beijing and Shanghai for ten sessions, and is known as the preferred Asia-Pacific international trade exhibition platform for the entire ITS industry chain.

Security China

China's largest security exhibition, mainly focusing on the large market in North China, but also provides a large platform for exhibitors to meet government-level buyers and senior management personnel for procurement in different industries. Overseas customers also seek business partners by visiting this great exhibition.

West International Study Center

The International Security Products Exhibition in the United States (iscwest) is the largest exhibition in the United States and has the largest number of exhibitors in the United States. It has brought a high-quality exhibition integrating new products, new technologies and new trends to the security industry.

our certification
FAQ

Q: Are you trading company or manufacturer?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-10 working days if the goods are in stock. Or it is 10-25 working days if the goods are not in stock, it is based on quantity.

Q: What is your MOQ? Do you provide customized service?

A: Our MOQ is 1 piece. We do provide customized service.

Q: What's your payment terms?

A: Payment<=1000 USD, 100% in advance. Payment >= USD 1000, 30% T/T in advance, balance before shipment.
If you have other questions, please feel free to contact us.
