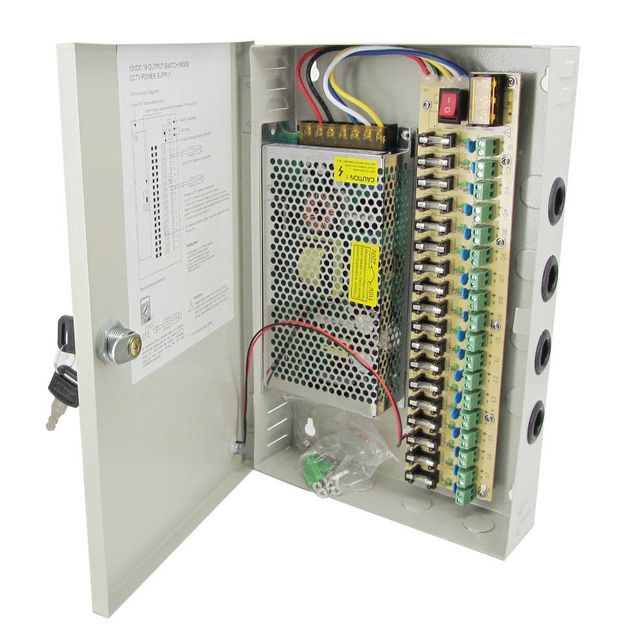

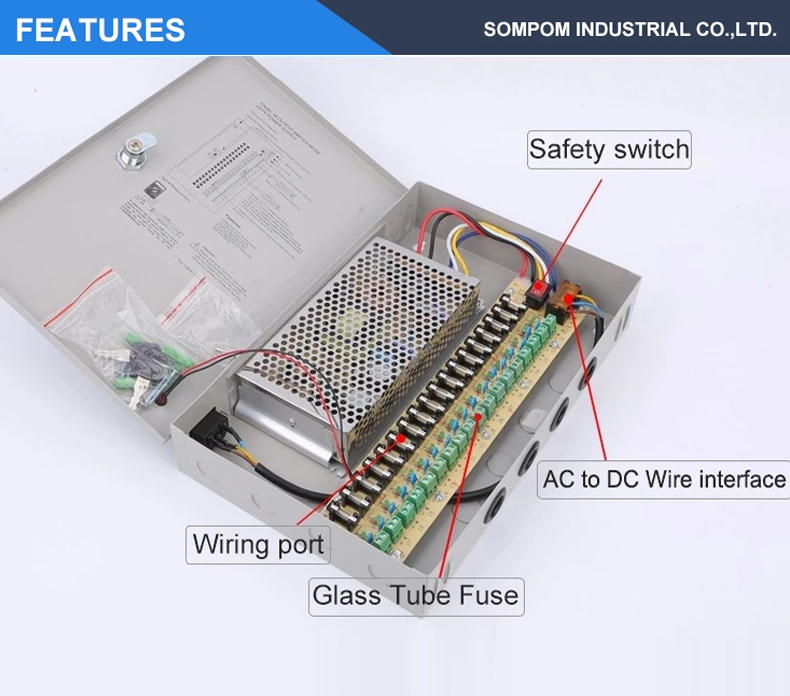

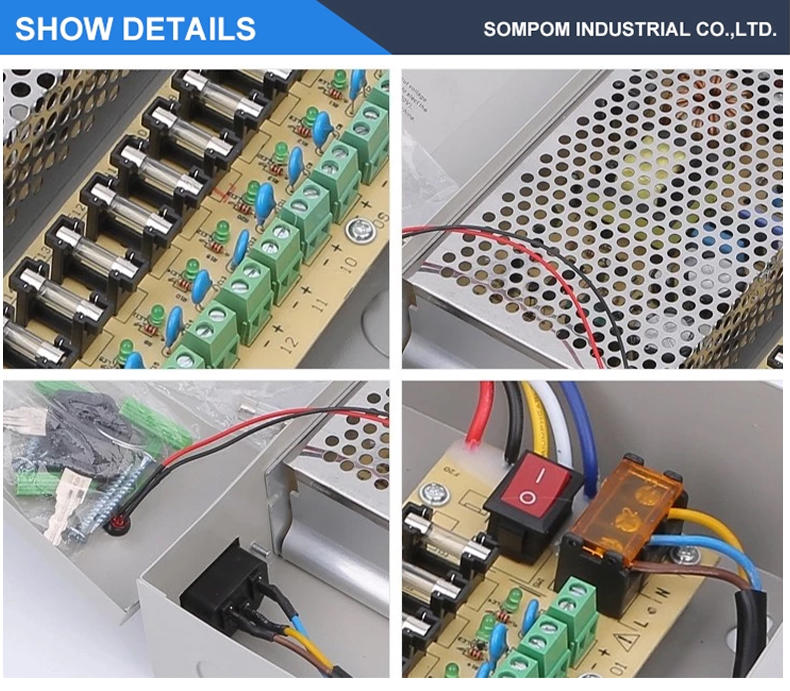

Golden Supplier Sompom 12V 15A 18CH Uninterruptible CCTV Camera Power Supply
-
$12.80 / 1 - 499 pieces
$12.30 / >=500 pieces - 1 piece
- Guangdong Province Sompom Industrial Co., Ltd.
- Guangdong, China
- Mr Jinlong zhang
Product Detail

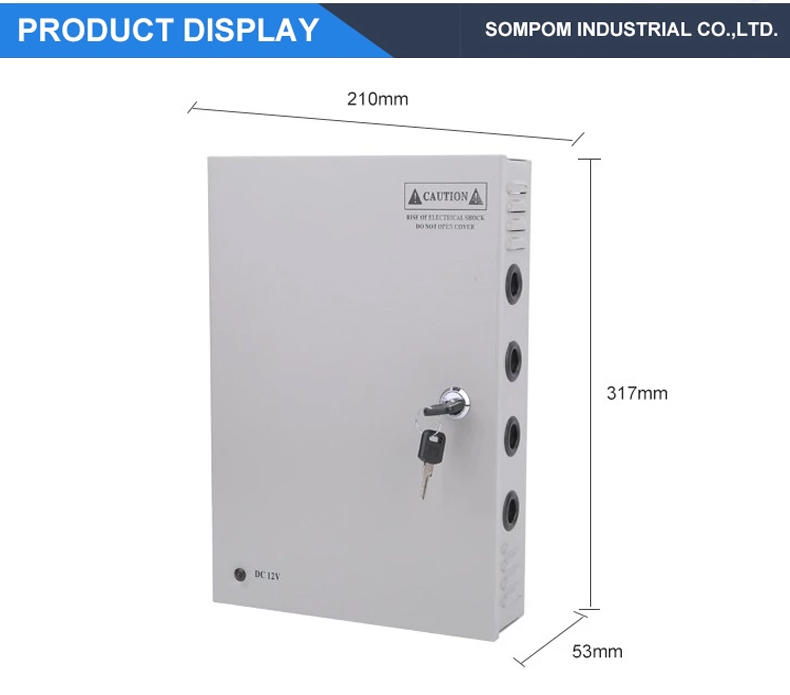

| size: | 317*210*53mm | channel: | 18CH |
| Origin: | Guangdong, China | Safeguard: | short circuit over temperature overload over voltage |
| type: | housing | brand: | Sompo |
| Packaging Details: | 1) Vacuum packing 2) Special protective carton for export products. 3) Packaging according to customer requirements. | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Certification: | CE & RoHS&FCC&ISO9001 | efficiency: | >82% |
| Warranty: | 2 years | weight: | 1.77 kg |
| model: | 12V 15A 18 channels | Input voltage: | 85-264VAC |
| Carton: | 14 | application: | cctv camera |

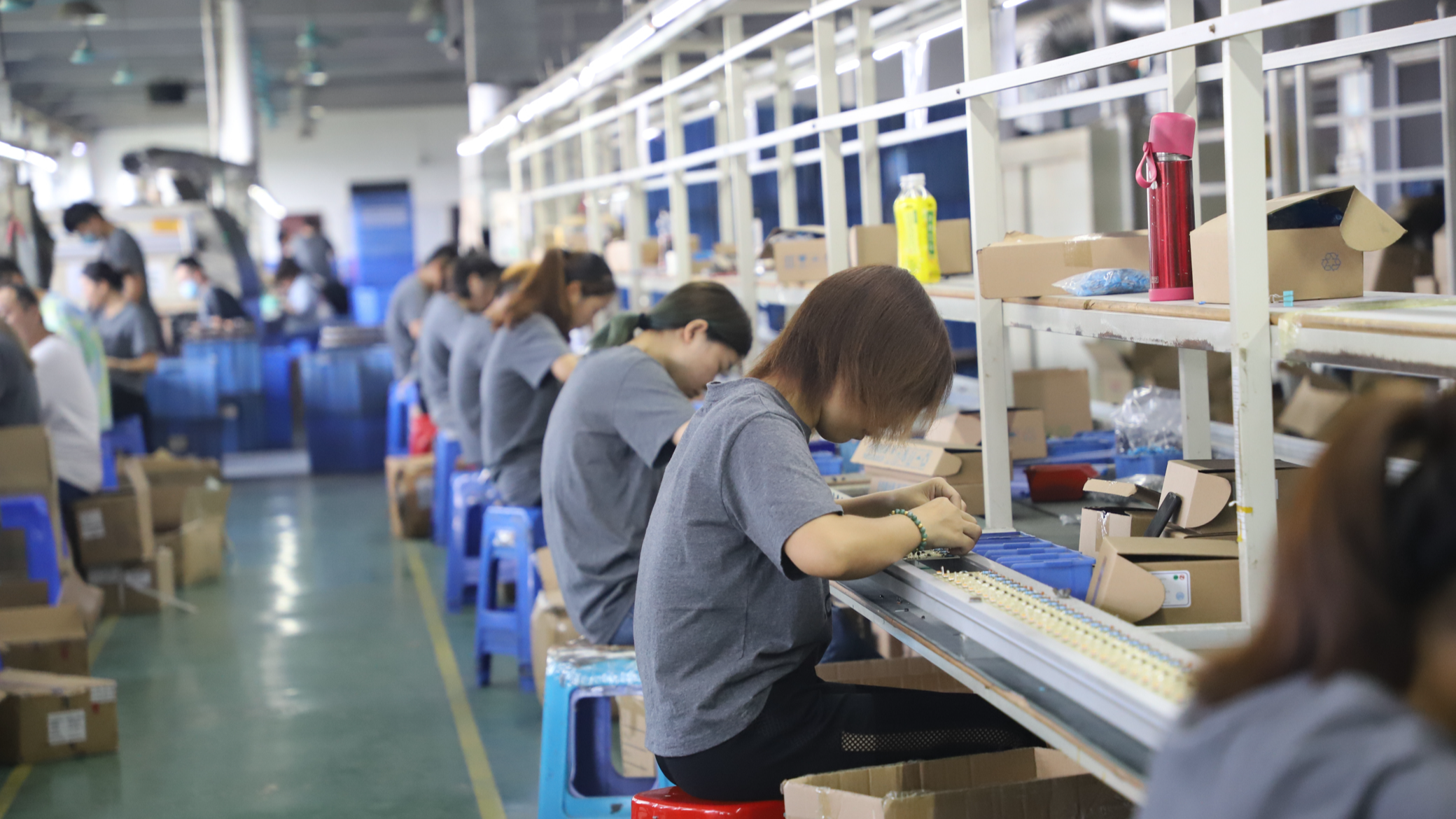

Our Factory 3D VR
Virtual Reality
Product Description
DC output | DC voltage: 12V |
DC current: 15A | |
Ripple and Noise: 80MV | |
DC adjustable range: ±10% of rated voltage | |
Voltage Tolerance: ±2.0% | |
Line regulation: ±0.5% | |
Load regulation: ±1% | |
Setup, rise time, hold time: 200ms, 50ms, 20ms/230VAC | |
AC input | AC voltage range: 190-240VAC |
Frequency range: 47-64Hz | |
Efficiency: >85% | |
AC current: 0.4A/230V | |
AC surge current: 40A/230V | |
Leakage current < 0.5mA /240VAC | |
Protect | Overload: 105%-150% hiccup mode, automatic recovery |
Overvoltage: 115%-135% cut off output, automatic recovery | |
overheating. : Shut down O/P voltage, automatic recovery | |
environment | Working temperature: -10~+60C° (refer to output load derating curve) |
Working humidity: 20 ~ 90% RH, non-condensing | |
Storage temperature: -10~ +60C° | |
Storage humidity: 10 ~ 95% RH | |
Safety | Isolation Resistance: I/PO/P, I/P-FG, O/P-FG: 100M Ohms/500VDC / 25C°/ 70% RH |
Withstand voltage: I/PO/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
Safety standard: CE, RoHS, FCC, ISO9001 |
