Factory Supplier 1000KG WIFI Swing Gate Automatic Opener
-
$245.00 / 1 - 29 sets
$225.00 / 30 - 88 sets
$215.00 / >=89 sets - 1 set
- Chisung Intelligence Technology (Shenzhen) Co., Limited
- Guangdong, China
- Mr Clinton Zhang
Product Detail
| Maximum weight per gate: | 500kg, namely double motor 500kg m x 2 | model: | CSSGO-10 |
| Runtime protection: | adjustable | model: | CSSGO-10 |
| brand: | seven stars | Project solution ability: | other |
| Maximum stroke of rod: | 400mm | port: | Shenzhen etc. |
| design style: | modern | application: | apartment |
| Name: | Swing Door Actuator Electric Swing Door Opener | Maximum length per leaf: | 3.5 meters, is a double motor 3.5 meters x 2 |
| place of origin; place of origin: | Guangdong, China | Packaging Details: | carton |
| Motor absorbed power: | 320w | Package preview: | |
| After-sales service: | Online technical support, no | Types of: | swing door opener |
| power supply: | AC220V±10V 50/60HZ, AC110V±10V, 60Hz | electric motor: | AC220/110V |
| Warranty: | 1 year | current: | 1.5A |
| payment terms: | L/C, Western Union, T/T, MoneyGram, PayPal | Supply capacity: | 1000 sets per month |
Product overview

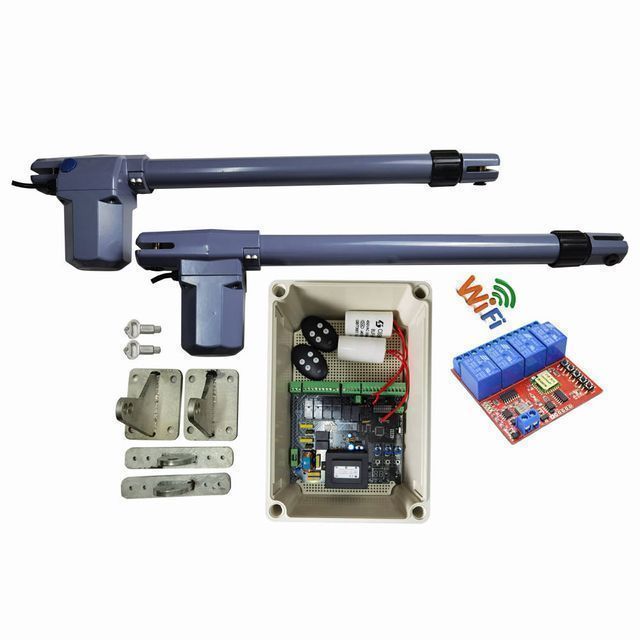

1000kg Swing Door Actuator Electric AC Lever Max Stroke 400mm Double Arm Automatic Swing Door Operator
product specification
product name | Linear Arm Actuator Electric Piston Swing Door Opener with Remote Complete Kit |
Model | CSSGO-10-1-AC common type |
power supply | AC220V±10V 50/60HZ, AC110V±10V, 60Hz |
electric motor | AC220/110V |
current | 1.5A |
Motor absorbed power | 320W |
Maximum length of each leaf | 3.5 meters, is a double motor 3.5 meters x 2 |
Maximum weight per gate | 500kg, namely double motor 500kg m x 2 |
Motor speed | 1.6 cm/s |
Rotating speed | 1450 rpm |
thrust | 3200N |
runtime protection | adjustable |
rod travel | 400mm |
Auto off delay time | Programmable (from 0 to 99 seconds) |
door moving speed | 12S/90 degrees |
Operating temperature | -20℃~+70℃ |
Relative humidity | 30% |
degree of protection | IP45 |
application | home automation |
limit switch | Do not |
condenser | 8F (AC220V), 25uf (AC110V) |
door opening angle | 90°,100°,110°,120° |
Package | 22kg, 1 box: 830*300*280mm |
