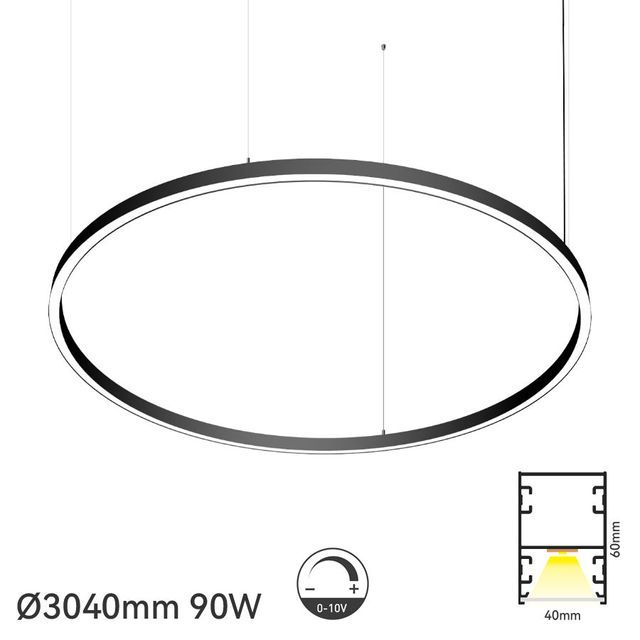

Ultra-thin 40mm wide aluminum profile diameter 3040mm 90W 0-10V dimmable round LED linear light

  • $588.00 / 2 - 99 pieces
    $582.00 / 100 - 299 pieces
    $576.00 / >=300 pieces
  • 2 pieces
  • Shenzhen Enrich Lighting Co., Ltd.
  • Guangdong, China
  • Ms Joan Chow

Product Detail

Input voltage (V):AC 85-265VProtection level:IP20
Lamp luminous efficiency (lm/w):110Color rendering index (Ra>):80
Beam angle (°):120Working temperature (℃):-25-45
Packaging details:standardLighting Solutions Services:Lighting and circuit design, DIALux evo layout, LitePro DLX layout, Agi32 layout, automatic CAD layout, on-site metrology, project installation
Working hours (hours):50000light source:lead
Product weight (kg):twenty threeWarranty period (years):5 years
Support dimmer:Yesport:Shenzhen
type:commercial lightingWorking life (hours):50000
Supply capacity:5000 pieces per monthapplication:office
Package preview:model:LC4060
Lamp body material:aluminumcolor:black, white
Lifespan (hours):50000Color temperature (correlated color temperature):4100K (neutral white)
Color rendering index (Ra):80aspect:Diameter 0.45-7.0m
payment terms:wire transfer
LED round halo light
*Voltage: AC100-277V/220-240V
* Lifespan: L80 B20 @ 50,000 hours
* Diameter: 0.45m~7.0m
* Shell color: black, white, silver, gold * Material: Aluminum alloy 6063-T5
* Diffuser: Opal PC/Prism* CCT: 3000K, 4000K, 6000K, tunable white light* Dimming: 0-10V/Triac/DALI/Zigbee/Kasabi
* Suspended, surface mounted, embedded * Warranty period: 5 years
Specification
Model
Dimensions (mm)
Power (Watts)
efficiency
Shell color
LC4060-450
Ø450x width 40x height 60
10













110-130 lumens/watt
LC4060-500
Ø540x width 40x height 60
10
LC4060-600
Ø640x width 40x height 60
15
LC4060-700
Ø740x width 40x height 60
20
LC4060-900
Ø900xwidth 40xheight 60
25
LC4060-1000
Ø1040x width 40x height 60
30
LC4060-1200
Ø1200x width 40x height 60
35
Black
LC4060-1500
Ø1540x width 40x height 60
40
Whitey
LC4060-1800
Ø1840x width 40x height 60
55
Tiaozi
LC4060-2000
Ø2040x width 40x height 60
60
gold
LC4060-2400
Ø2440x width 40x height 60
75
LC4060-3000
Ø3040x width 40x height 60
90
LC4060-3600
Ø3640x width 40x height 60
100
LC4060-4000
Ø4040x width 40x height 60
120
LC4060-4500
Ø4540xW40xH60
140
LC4060-5000
Ø5040x width 40x height 60
160
Features:
* No dark area, uniform light emission, excellent heat dissipation performance,
* High light efficiency: 110lm/W ±5% (optional value-added 130lm/W)
*Material: 1.5mm thick extruded aluminum shell, opal PC/prism diffuser (low glare)
* High color rendering index: Ra>80 (standard), Ra>90 (upgraded, available),
* Certified driver, flicker-free, built-in, power factor >0.9,
* Input voltage: AC220-240V (European version), AC100-240V (US version)
* LED PCB board, SMD2835, L80B10 (Ta=25℃)>50000hrs, long life,
* Diameters include 0.45m, 0.66m, 0.78m, 0.9m, 1.0m, 1.2m, 1.5m, 2m, 2.4m, 3m, 4m, 5m...
* Color temperature: 3000K, 4000K, 6000K (Optional value-addedAdjustable white light 2700~6500K)
* Shell color: white, black (standard color), silver, gold optional upgrade,
* Suspended, surface mounted, embedded
* Warranty period: 5 years

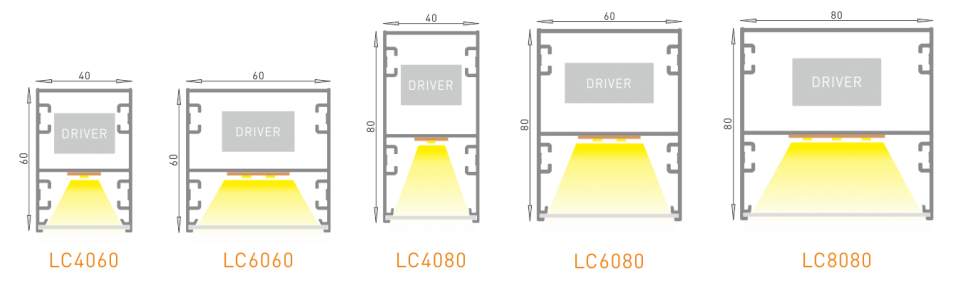

Popular profiles available in different sizes:
Width 40xH 60mm, Width 60xH 60mm, Width 40xH 80mm, Width 60xH 80mm, Width 80xH 80mm.

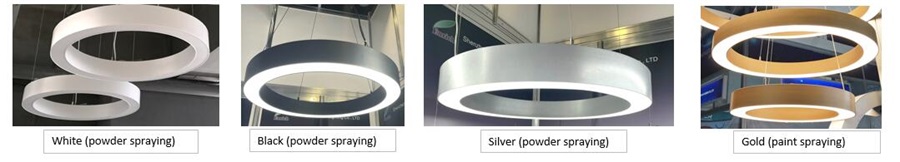

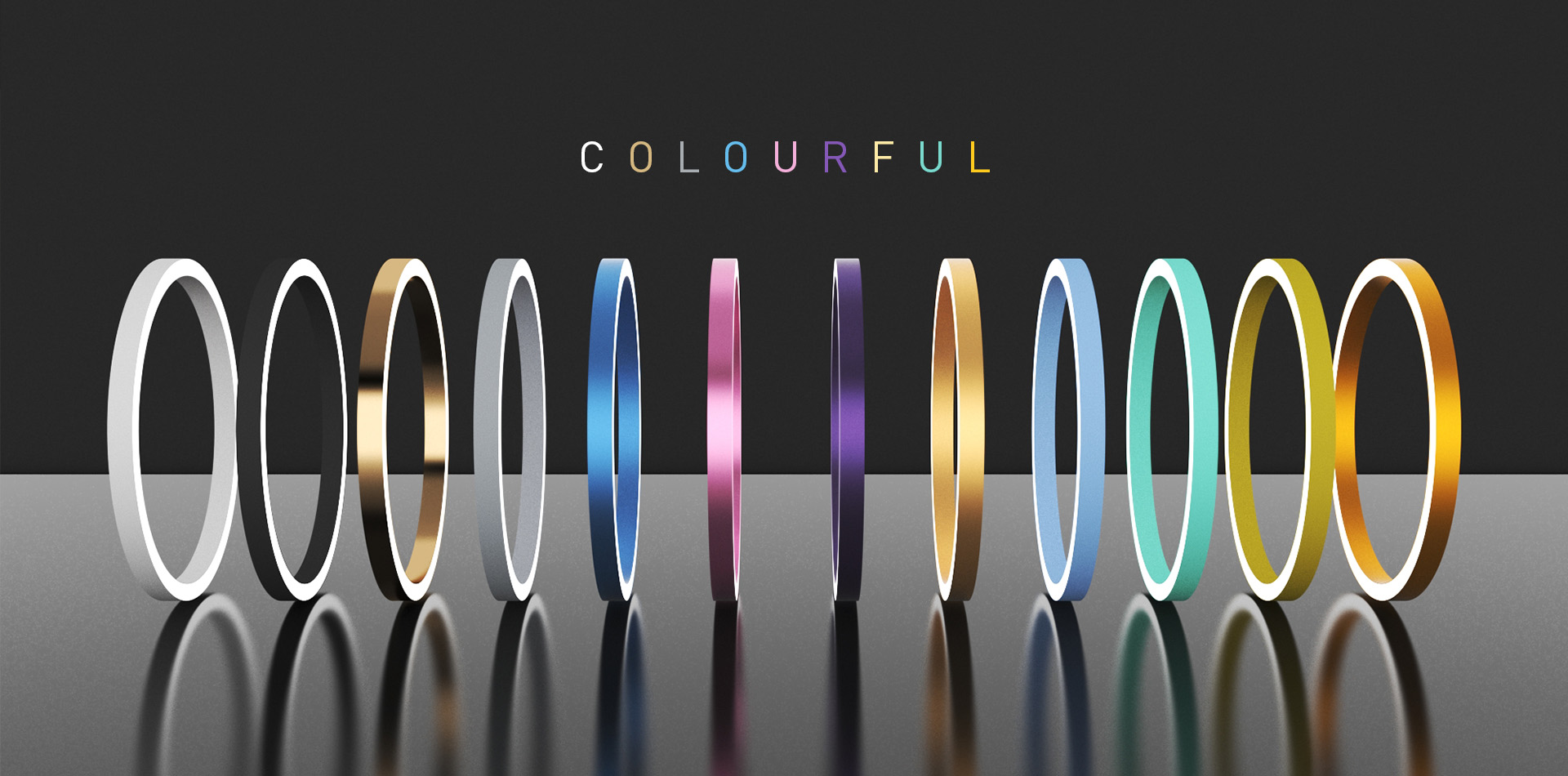

Shell color selection:
standard:
RAL 9005 black
RAL 9003 white

Optional value-added:
RAL 9006 silver
RAL 1036 gold

* Provided by customerRAL color cards available.

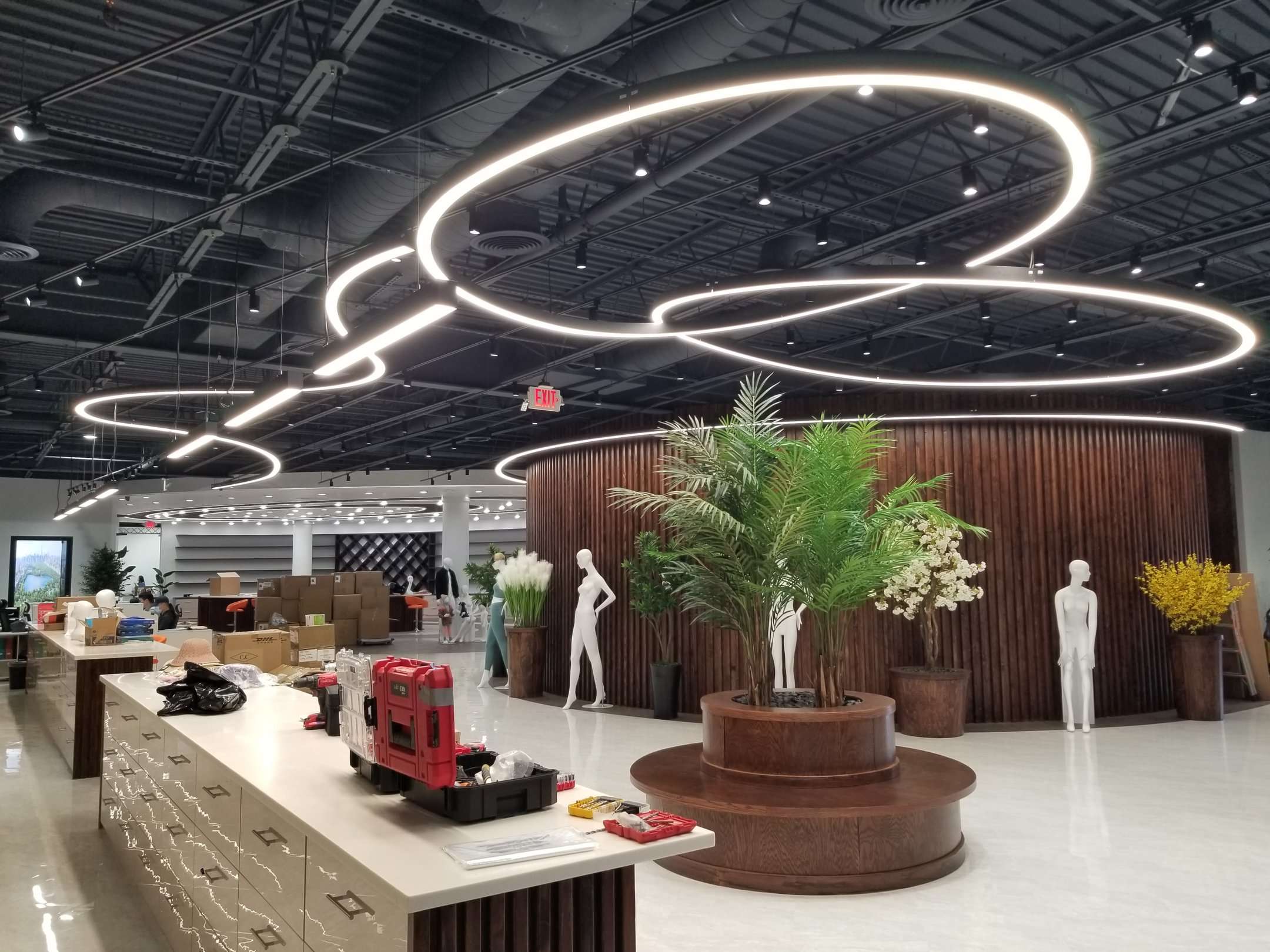

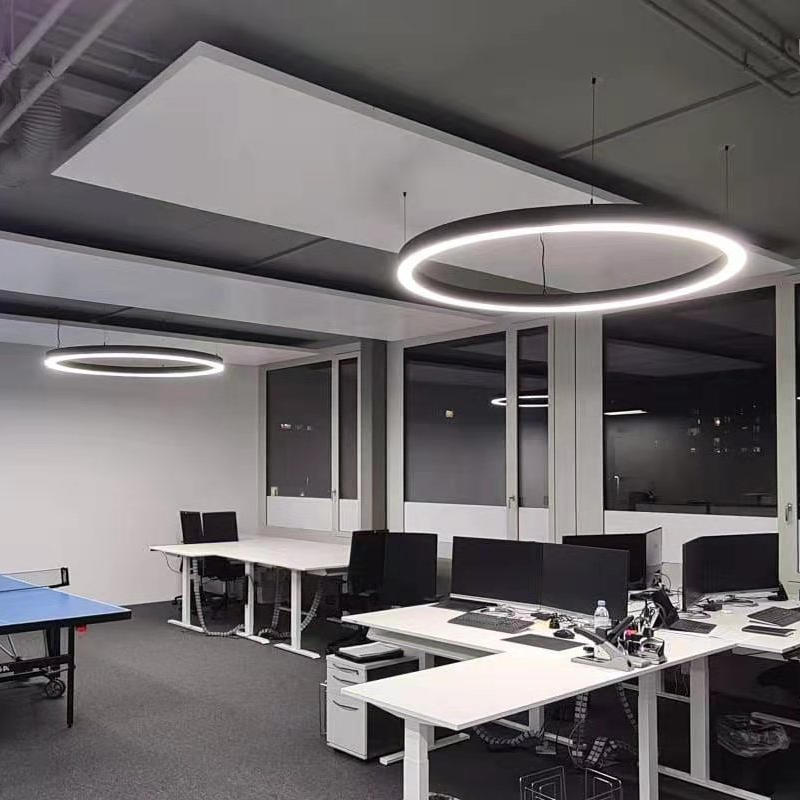

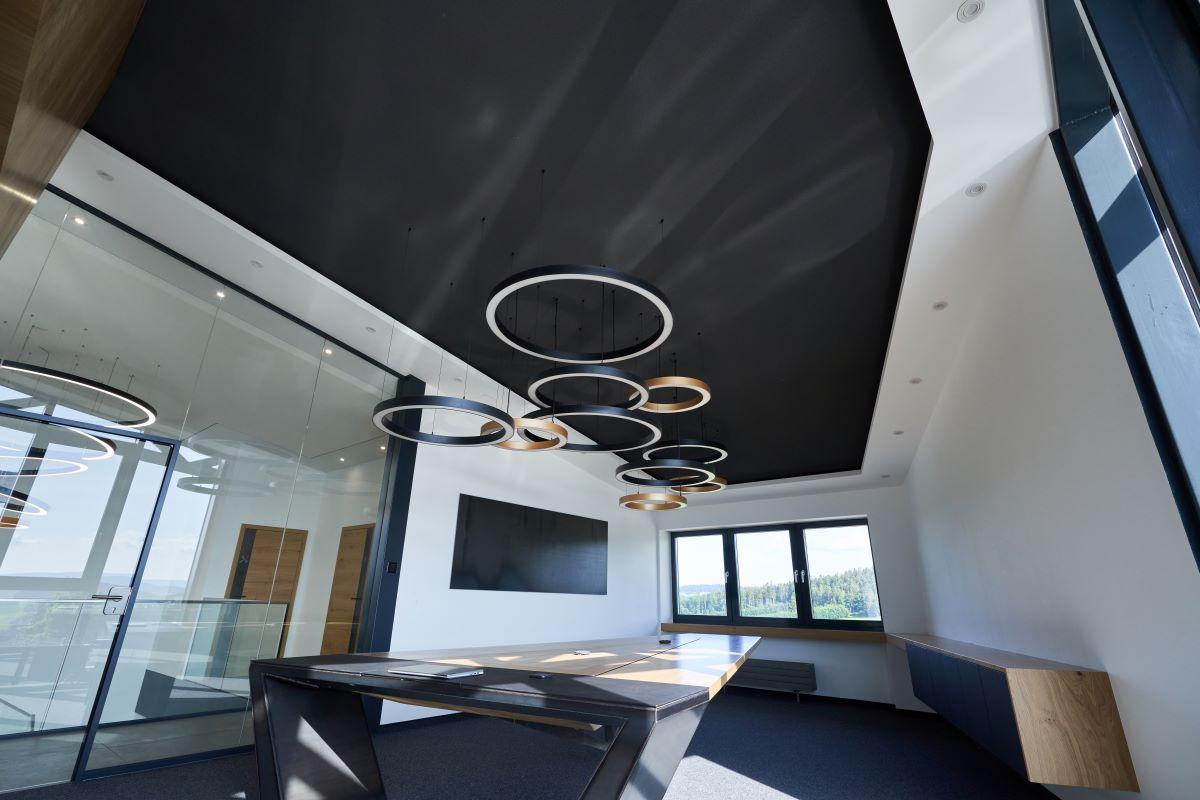

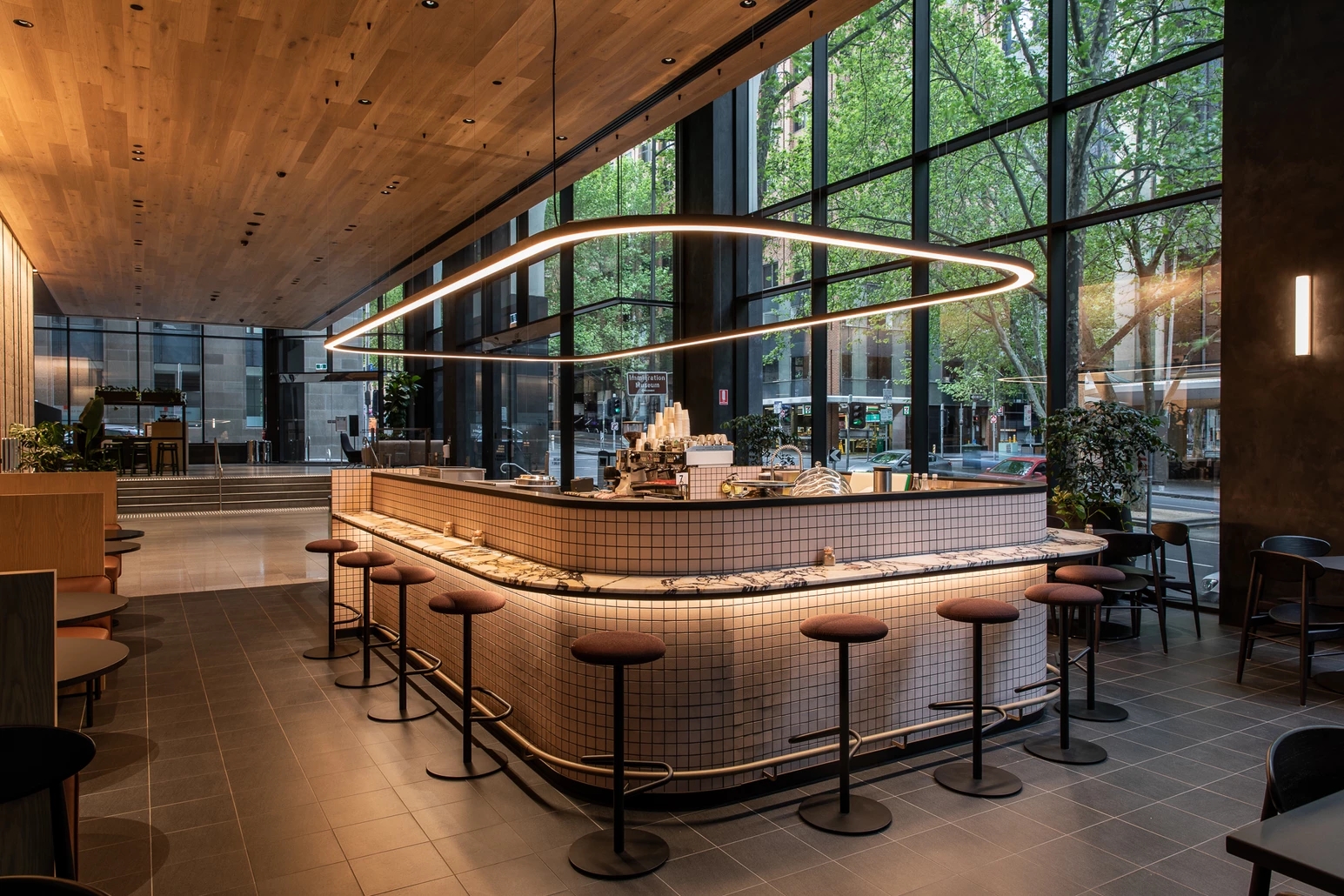

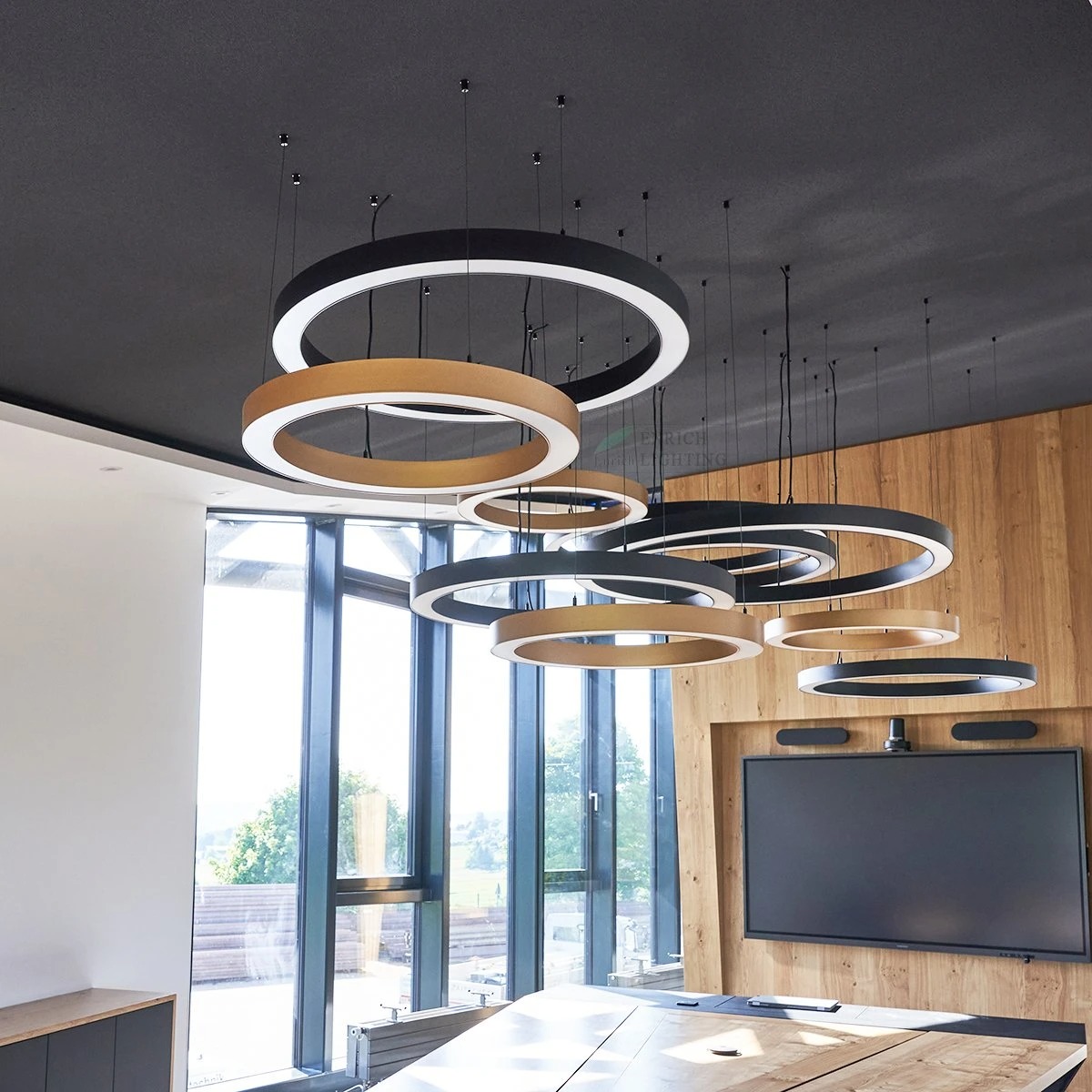

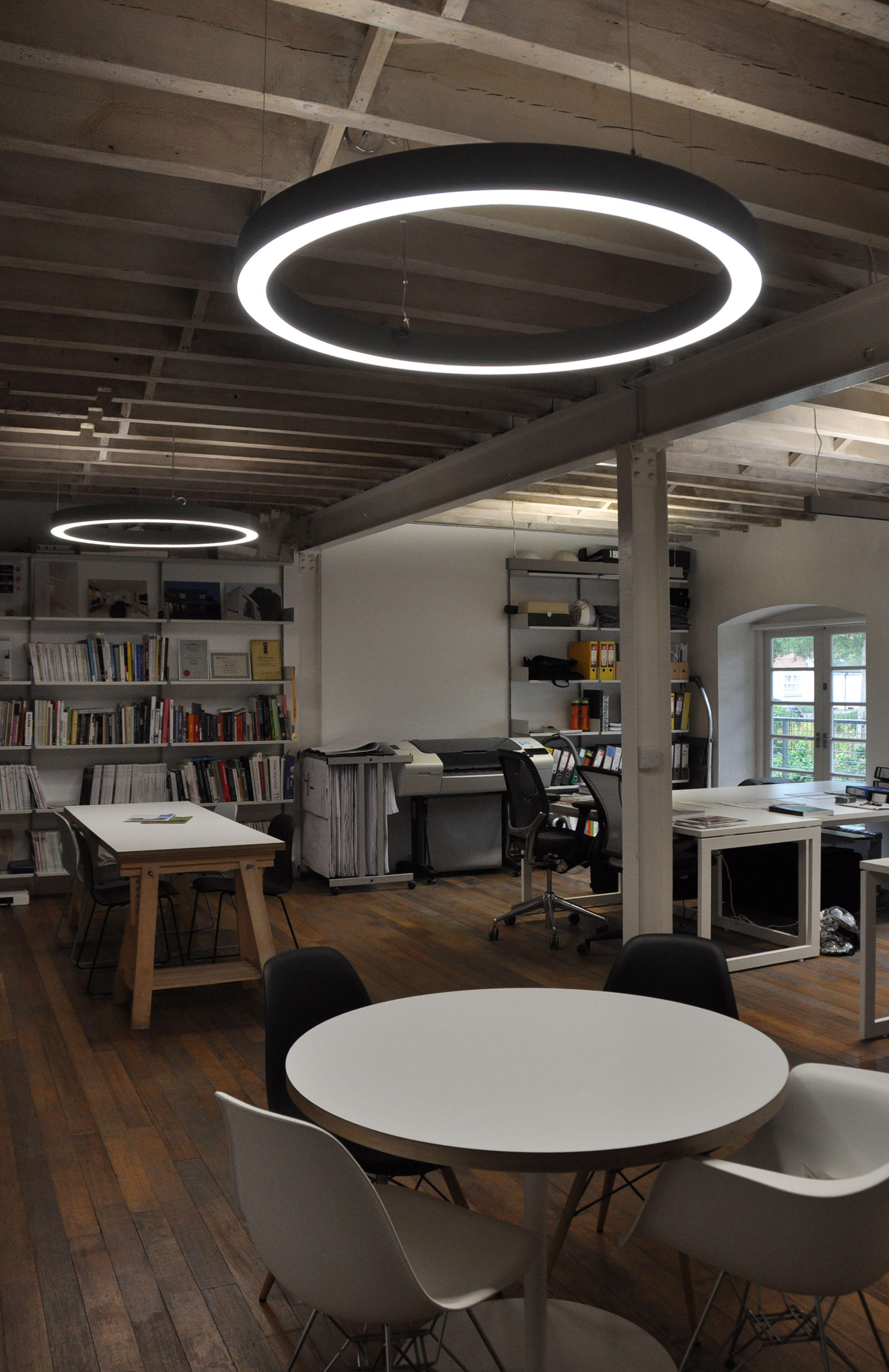

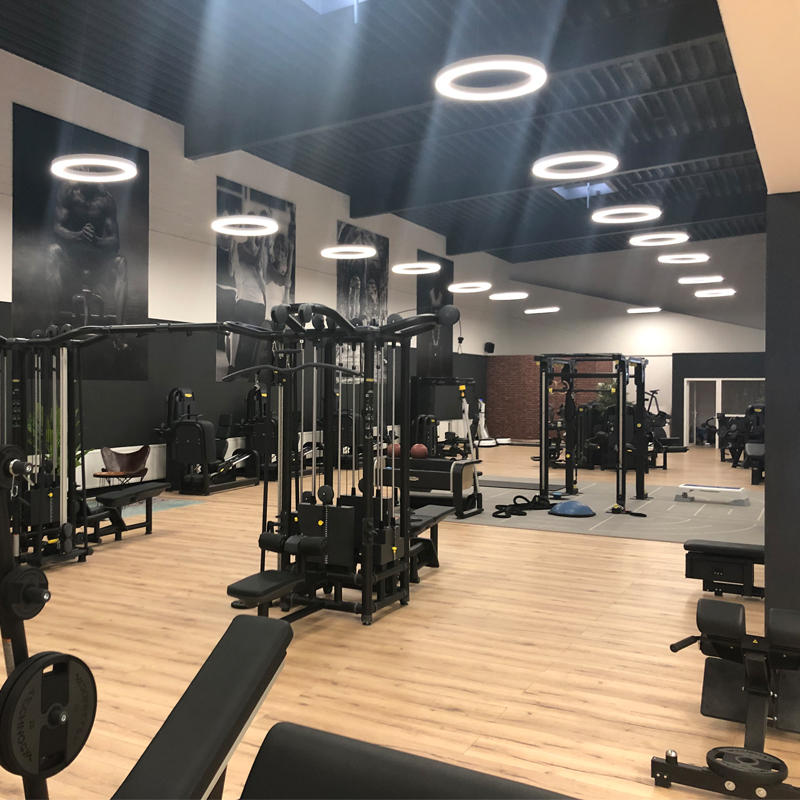

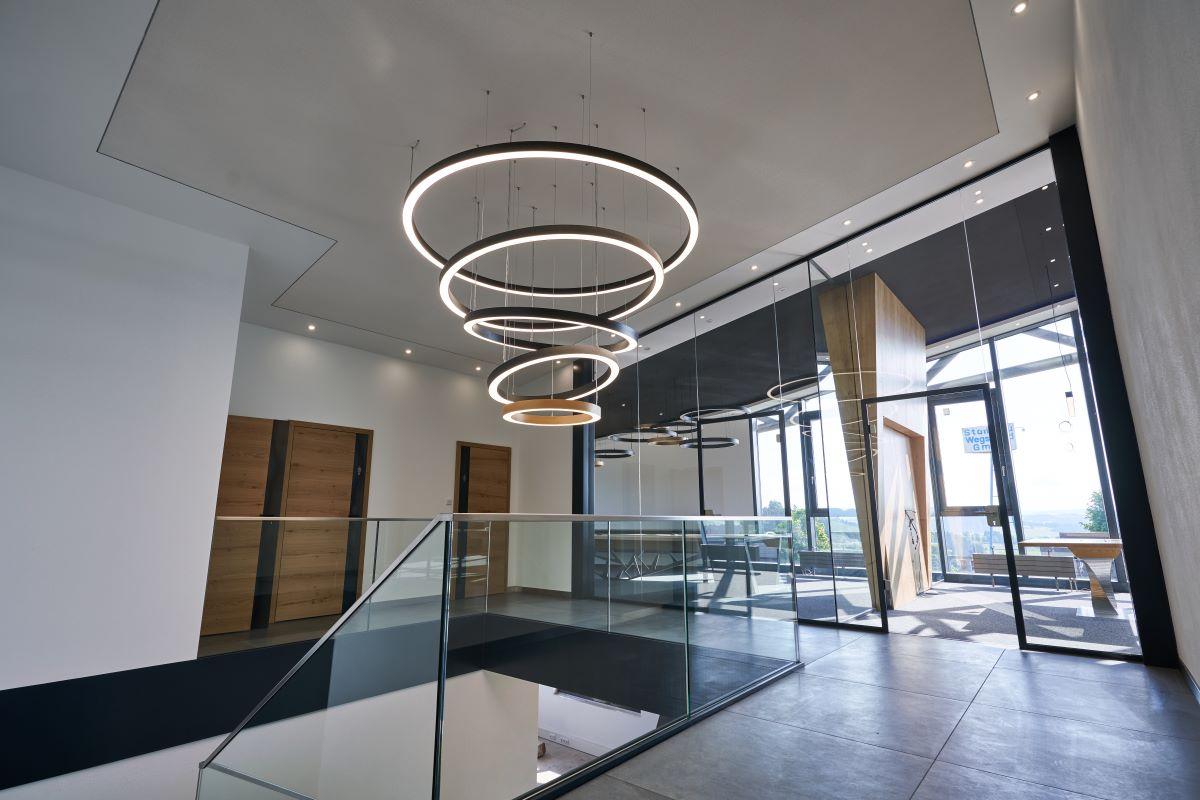

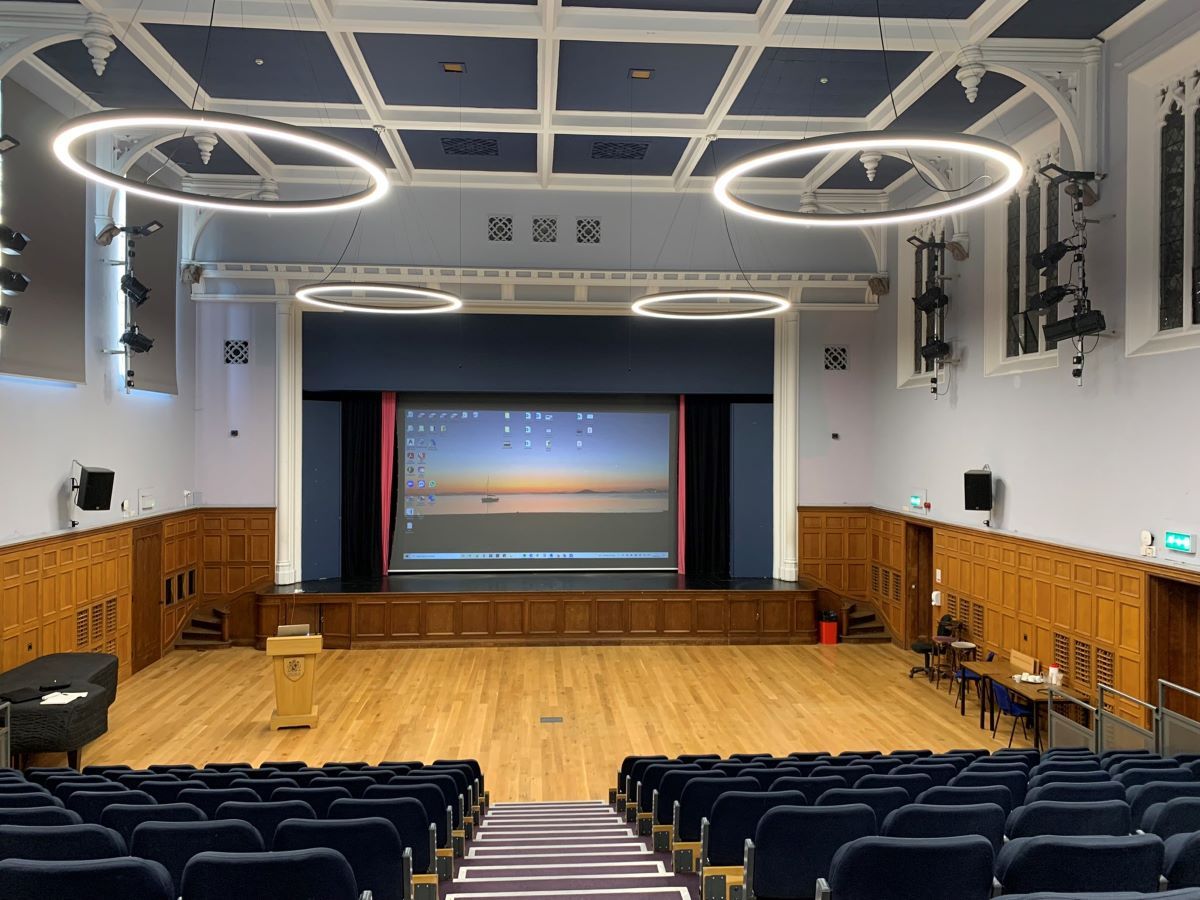

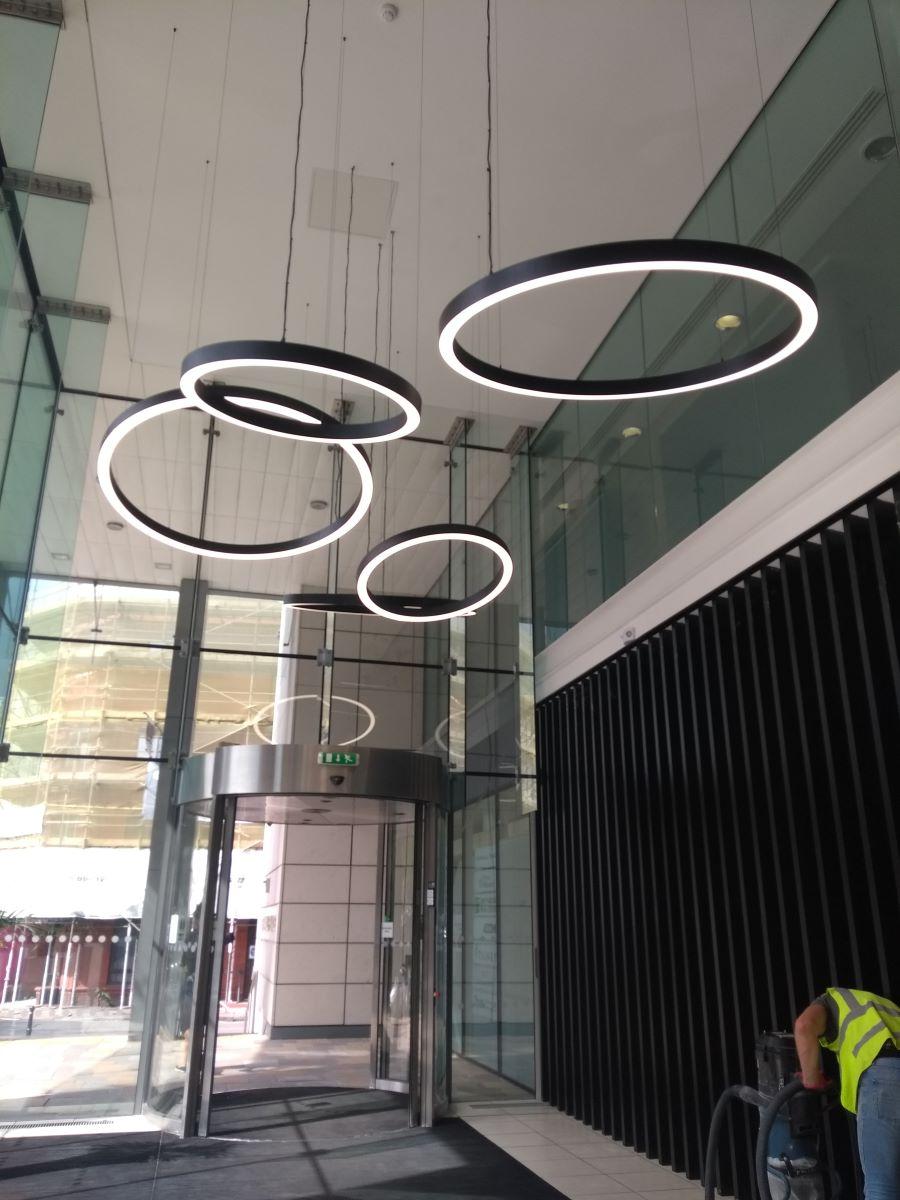

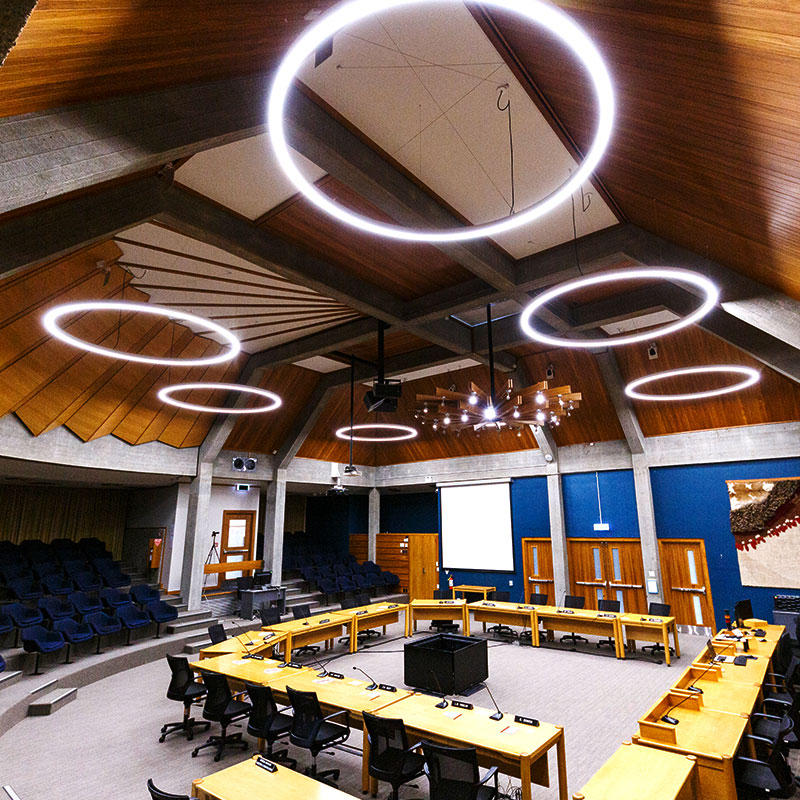

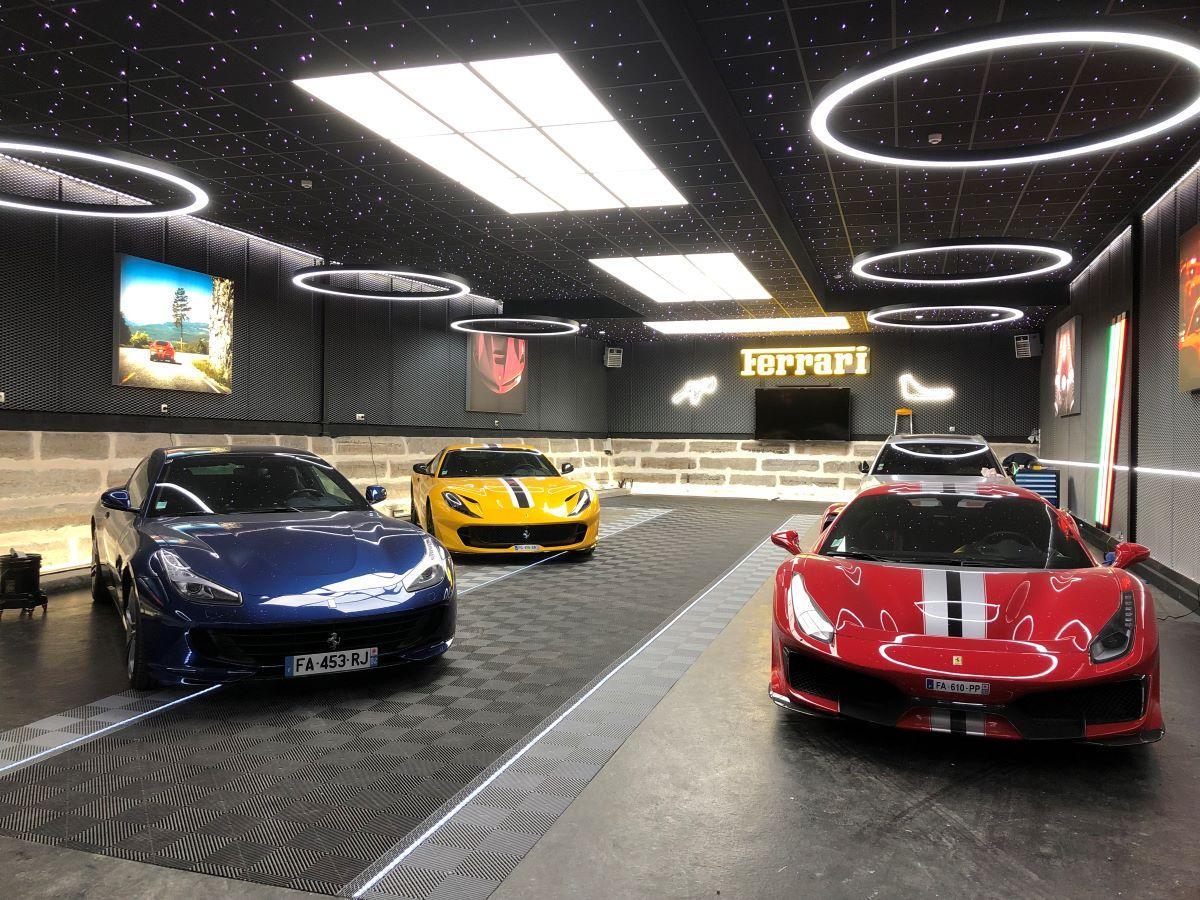

Case display:
The advantage of our company is that as a manufacturer, we are very professional in customizing designs according to the requirements of different projects, and we work efficiently and rigorously.
Customers can send CAD drawings, or describe the target design, and our team will work out the same or similar design.
Here are some ideas for you to consider:

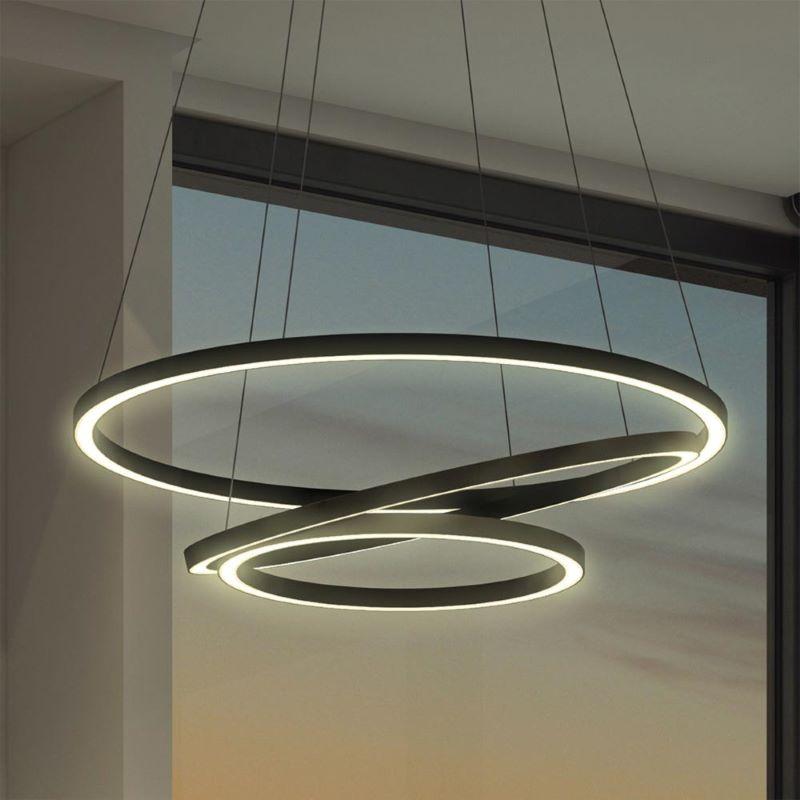

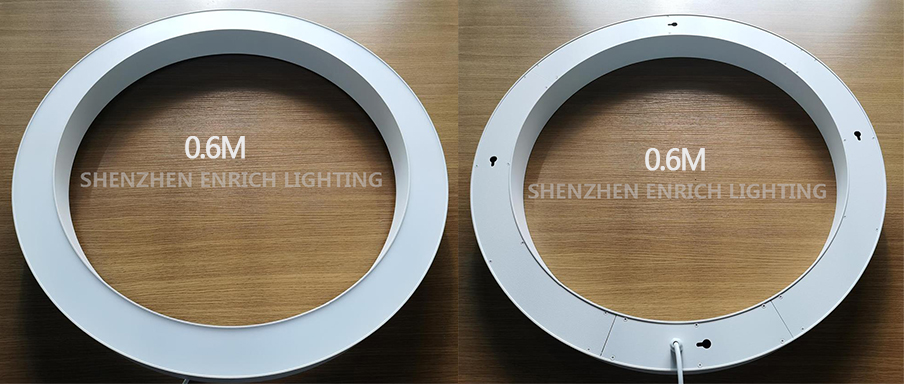

Product view:
