1.2m 40w LED Linear Light Hanging Profile LED Batten Light for Warehouse, Shop, Office

Product Detail

Beam Angle(°):120Lighting Solutions Services:Lighting and circuit design, DIALux evo layout, automatic CAD layout, on-site measurements
Light body material:Aluminum profile shellWarranty (year):5 years
aspect:0.6M, 1.2M, 1.5M, 1.8M, 2.4Mtype:straight line
Packaging Details:Sturdy carton and inner box packing, fully protected and suitable for air and sea shipments.payment terms:Western Union, T/T, MoneyGram
Color rendering index (Ra):83Product weight (kg):3
Watts:40Wcolor:black, white, silver
Light option:3000K, 4000K, 6000Klight source:to lead
product name:Suspended LED Linear Profile LightControl options:On/off, 0~10V dimming, DALI dimming, SCR dimming
Color temperature (CCT):3000K, 4000K, 6000Kport:Shenzhen, Guangzhou, Shanghai, Ningbo
Material:Aluminum Profile and Opal PCHousing Color Options:black, white, silver
Color rendering index (Ra>):83Protection class:IP20 For indoor use only, IP20
Working temperature(℃):-20 - 40Input voltage:AC110V, AC220V
Working life (hours):50000Supply capacity:6000 pieces per month
Product launch time:2018Supported dimmers:Yes
Package preview:Lamp Luminous Efficiency (lm/w):100 lumens/watt
model:ON-7575D-1.2MInput voltage (V):AC 85-265V
Working hours (hours):50000application:Commercial office buildings, stores, business centers, office buildings
Lifespan (hours):50000
Product Description

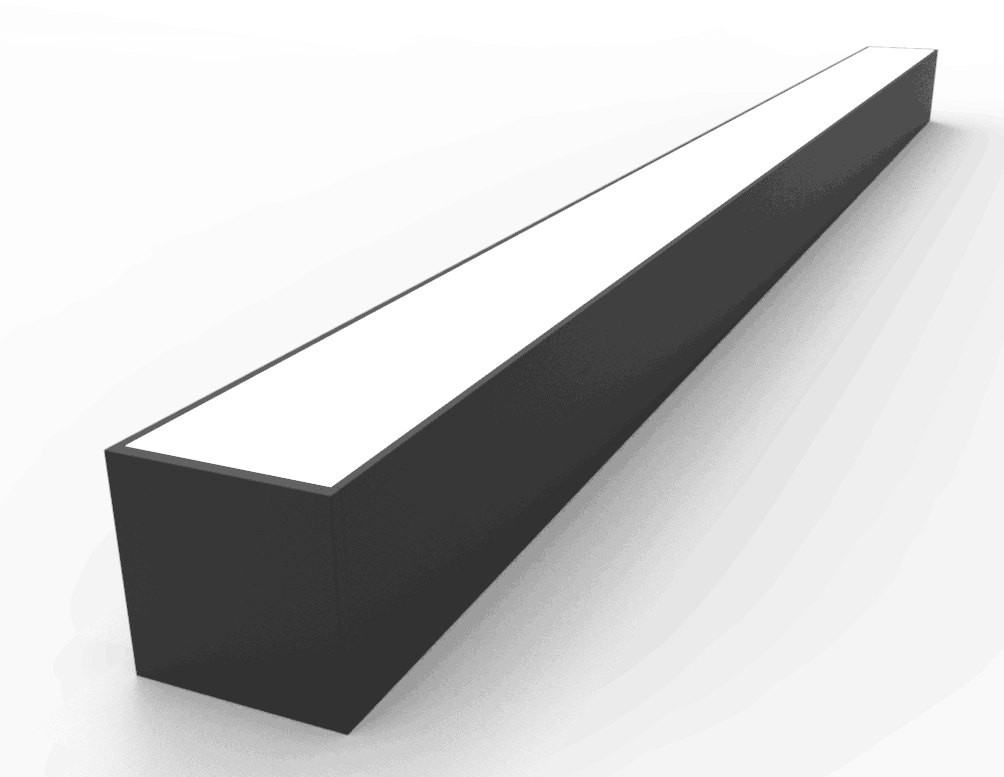

The 75x75mm series LED linear lights are available in 5 lengths of 0.6m, 1.2m, 1.5m, 1.8m and 2.4m.
And the lamps can be connected to 3m, 6m, 12m, 20m, 30m and other straight lights.

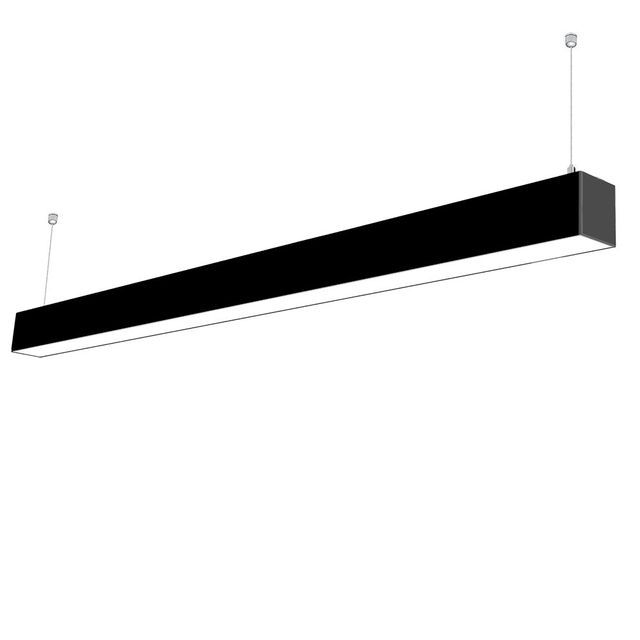

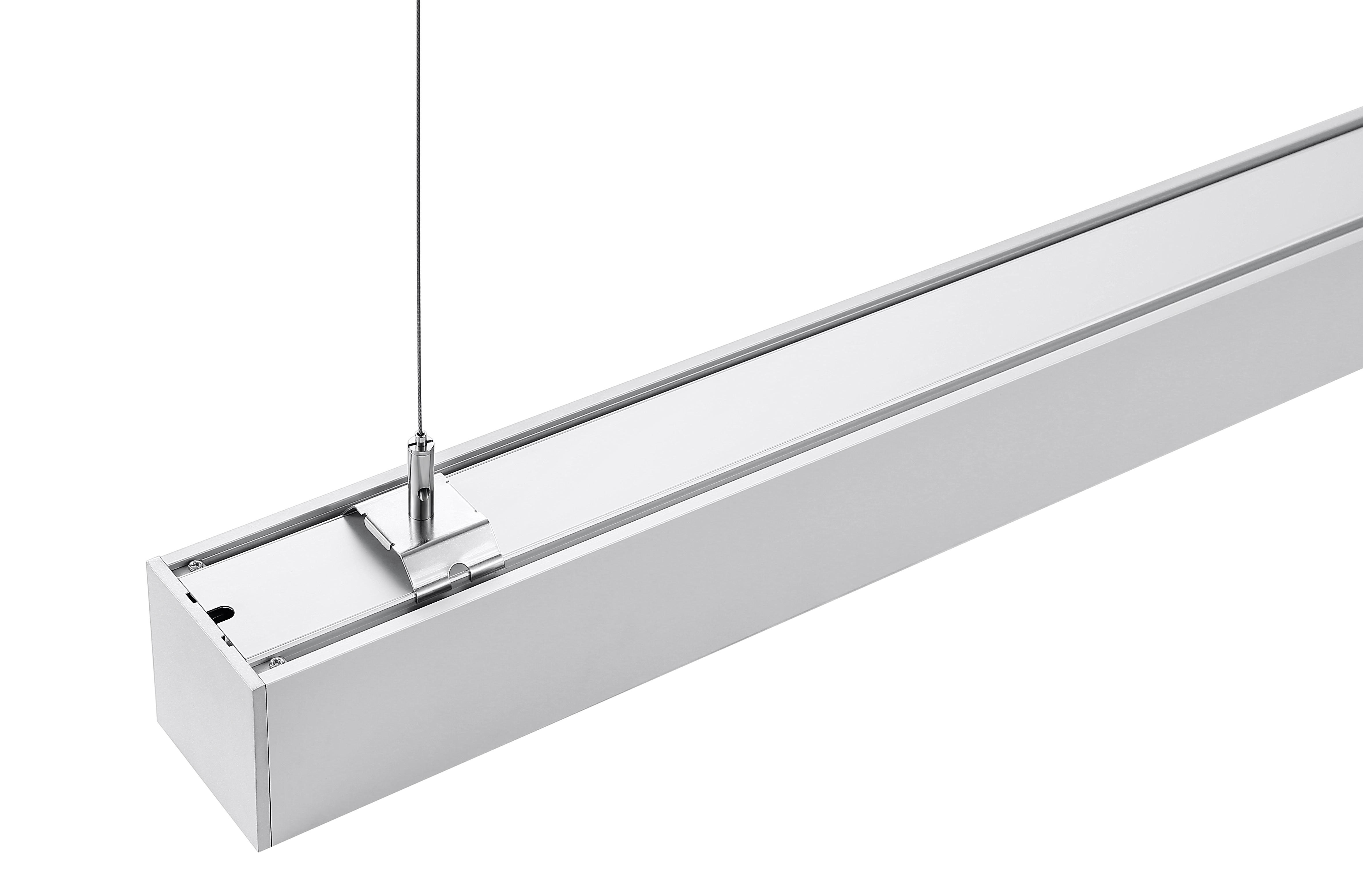

pendant
The position of the ceiling hole can be easily adjusted through the movable bracket installed on the back of the housing. We provide 1.5m long hanging rope, the installation height can be adjusted between 10~150cm from the ceiling.

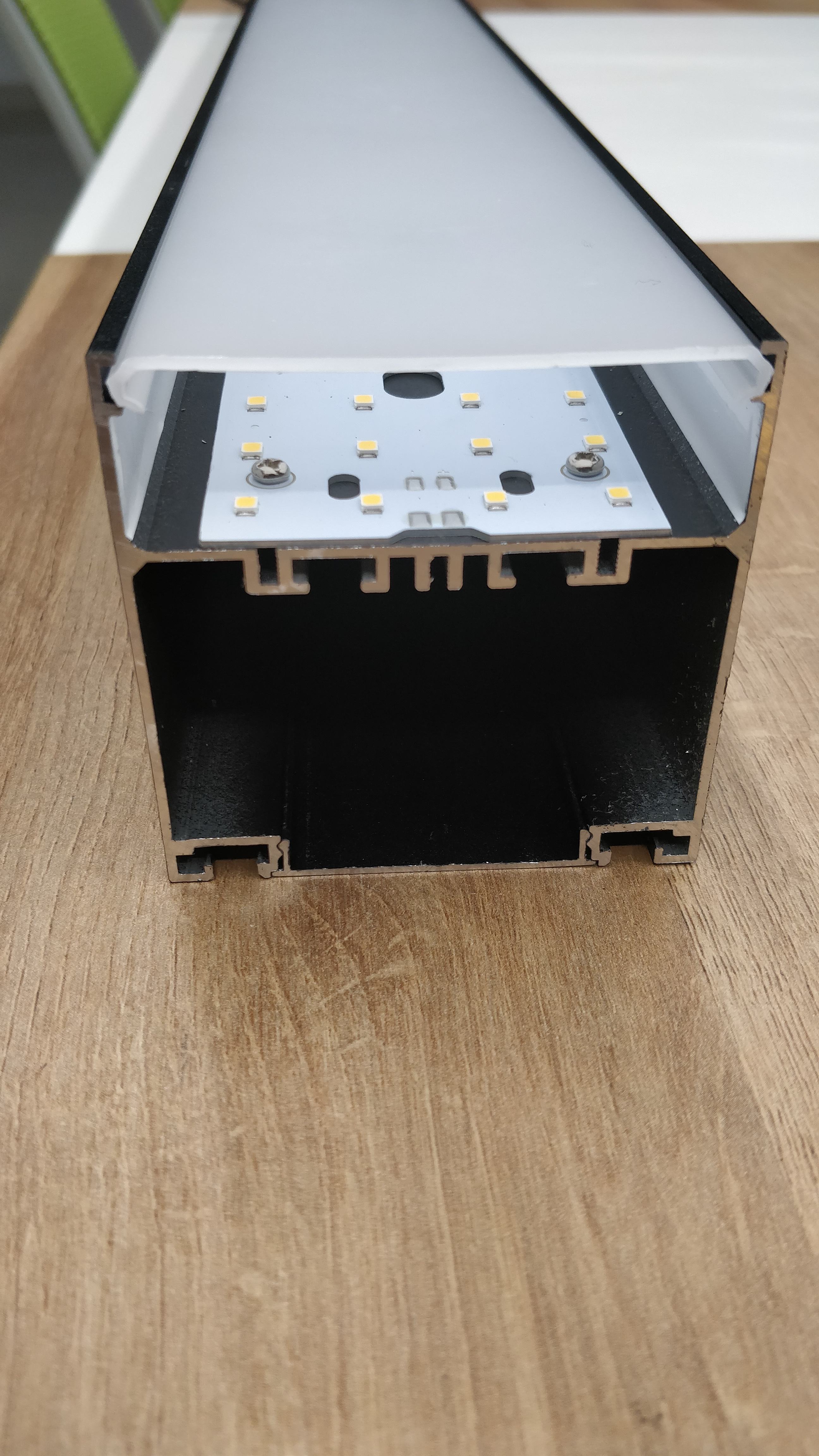

Extruded Opal PC Cover
The opal PC cover is fully recessed into the housing profile, with a light transmittance of 86%, and the aluminum end caps have no light leakage, and the entire surface emits light evenly.
There are no visible screws on the end caps, we designed the screws on the top, which is beautiful.
detailed image

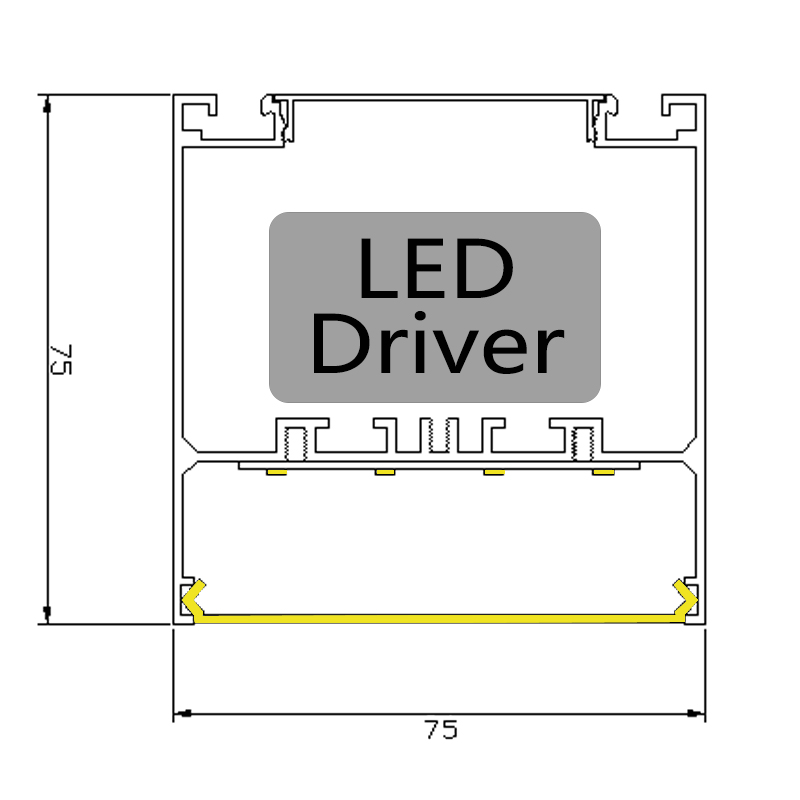

The overall dimensions of the lamp are 75mm x 75mm.

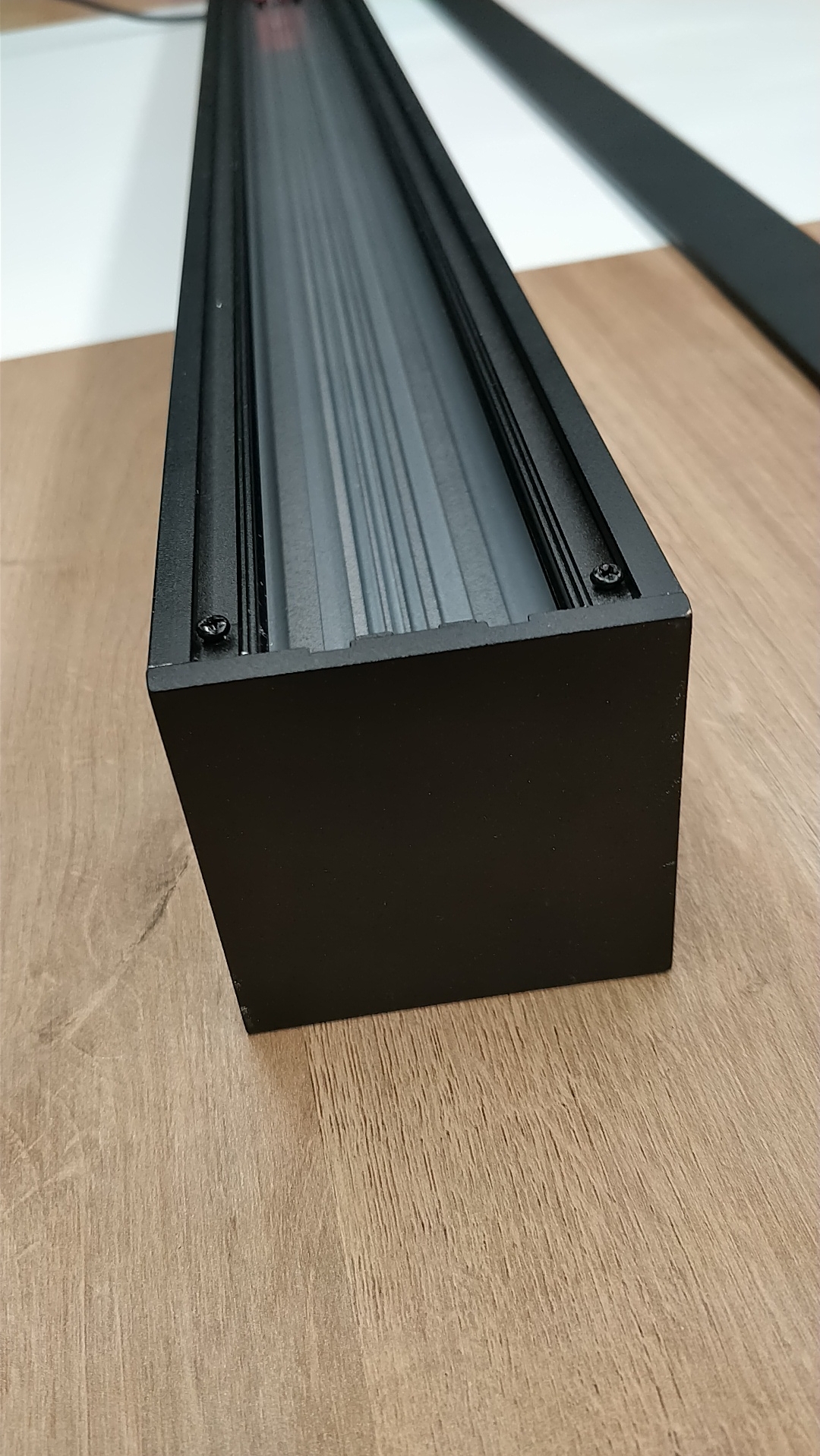

Product advantages: the metal cover on the back can be removed, which is very easy to maintain and connect.
Built-in brand power supply, stable and flicker-free. There is no screen flickering when taking photos or videos.
LED PCB board as a light source, has a goodHeat dissipation to ensure a long life of more than 50,000 hours.
Product parameters
Item Number
aspect
strength
shell color
light color
other specifications
ON-7575D-0.6M
L600xW75xH75mm
20W
white
Black
silver
3000K
4000K
6000K
100 lumens/watt,
Color rendering index>83,
PF>0.95,
LED PCB board,
no flicker
ON-7575D-1.2M
L1200xW75xH75mm
40W
ON-7575D-1.5M
L1500xW75xH75mm
50W
ON-7575D-1.8M
L1800xW75xH75mm
60W
ON-7575D-2.4M
L2400xW75xH75mm
80W

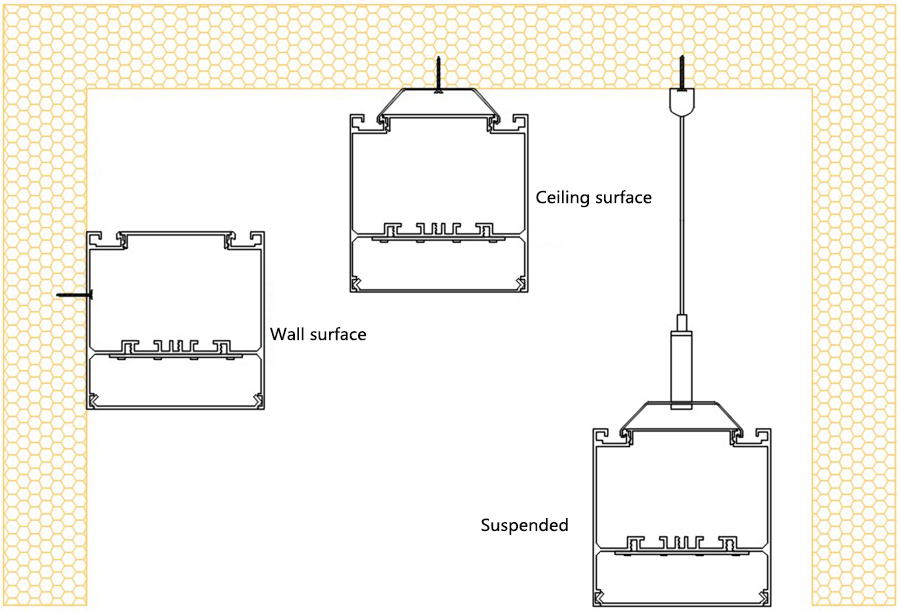

Installation Notes
There are 3 installation options.
wall mount: Allows installation on the wall as a linear wall light.
ceiling surface mount: Mounts directly on the ceiling, suitable for lower ceiling heights.

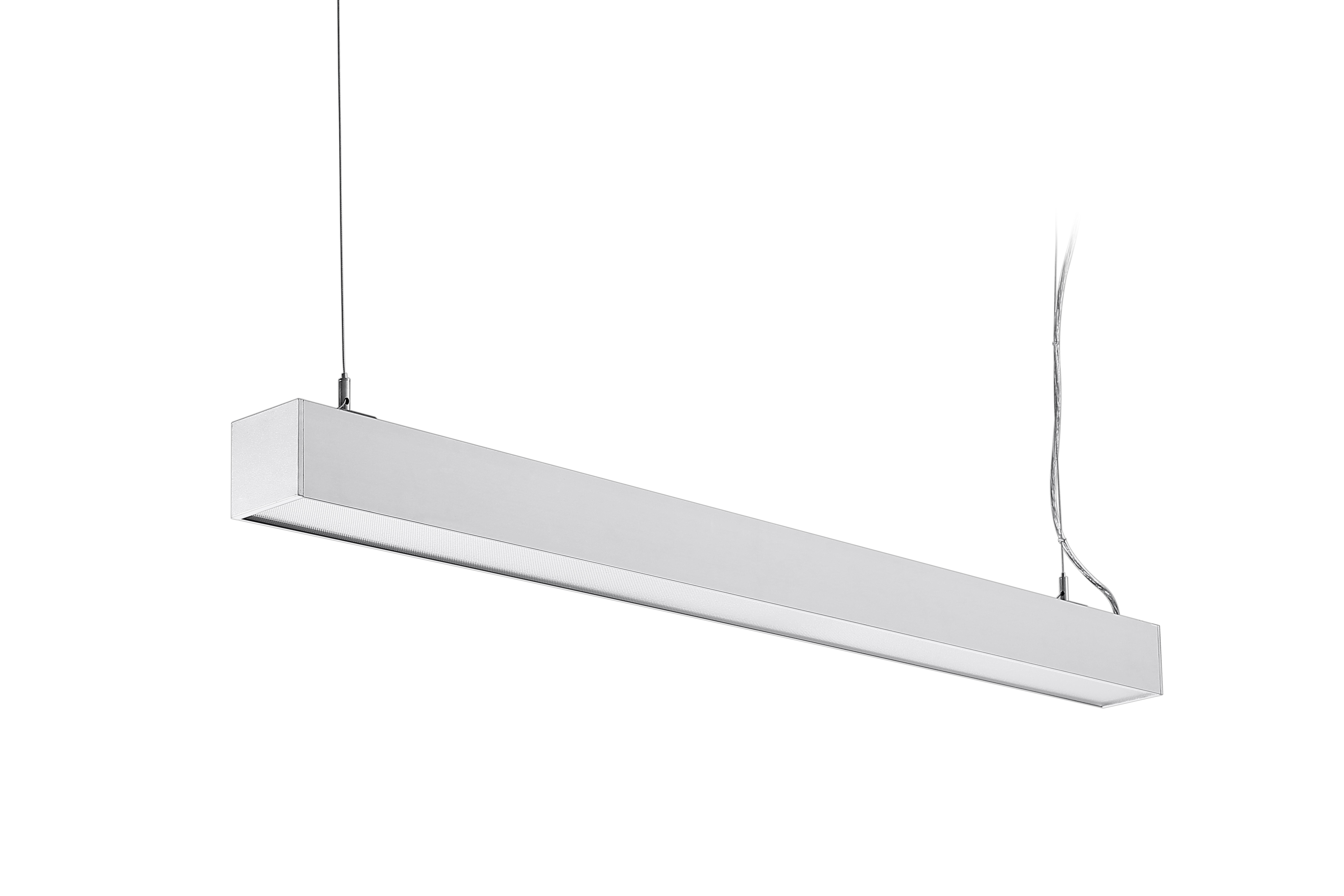

Hanging installation: The most popular installation method is to hang with steel rope. Suitable for most projects.
(No decoration flush installationAlso allowed, please contact our sales for more details if needed).

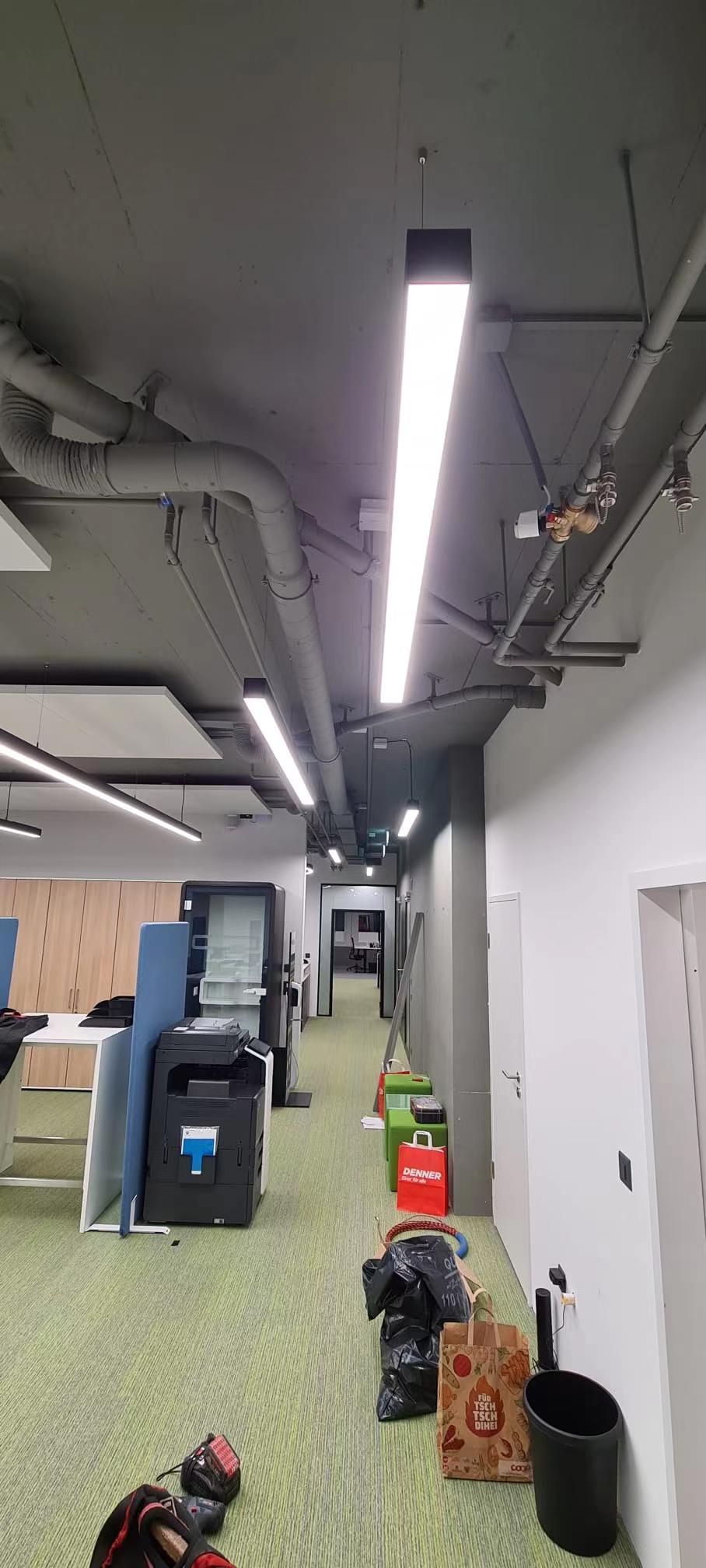

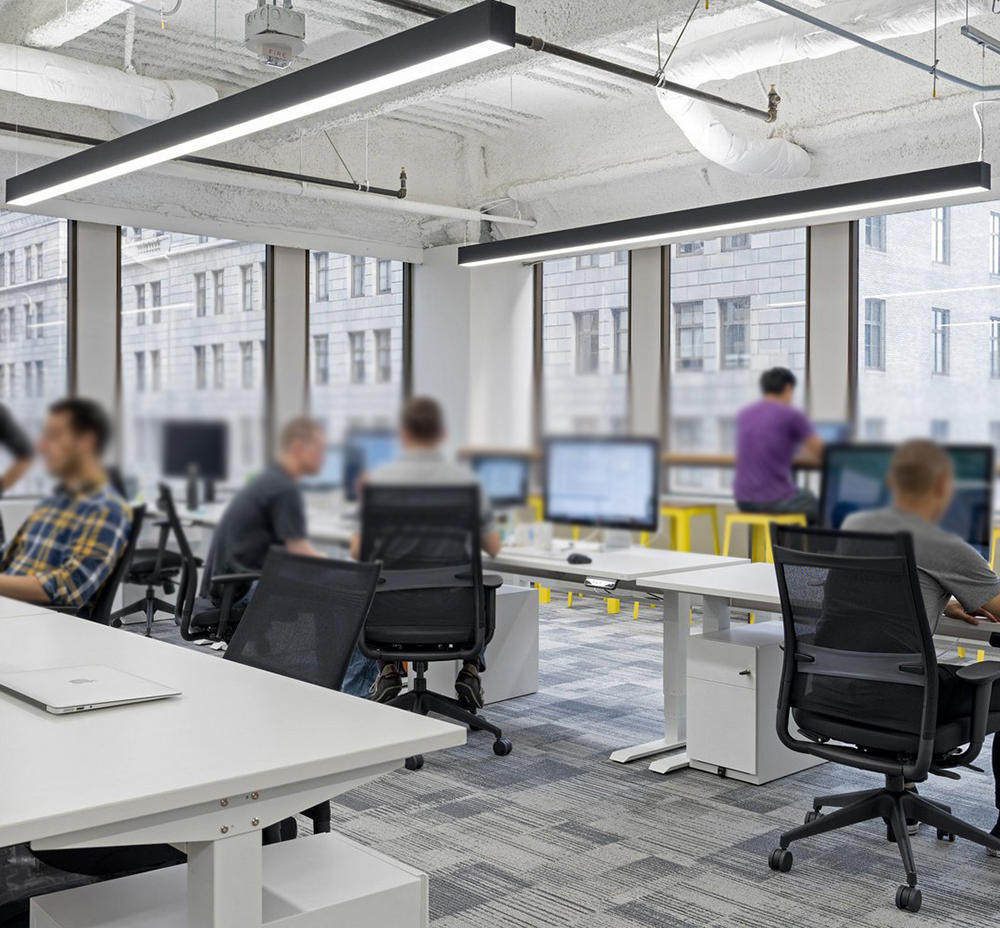

Applications

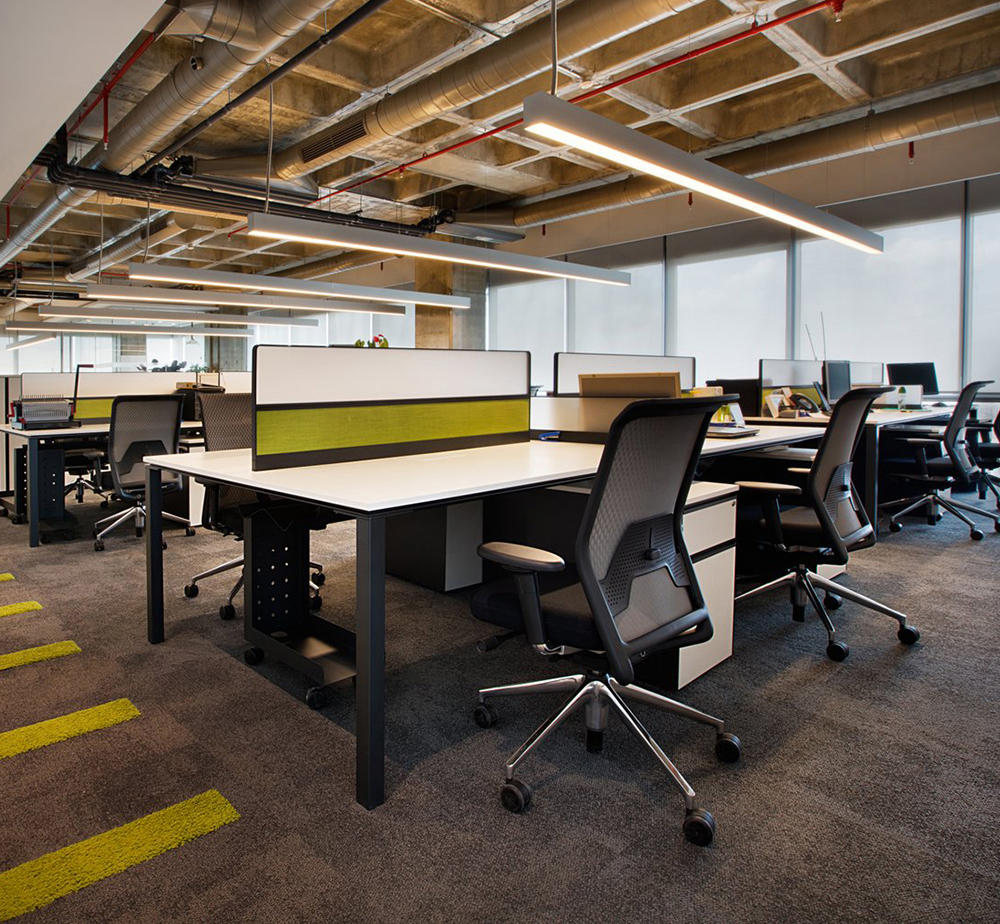

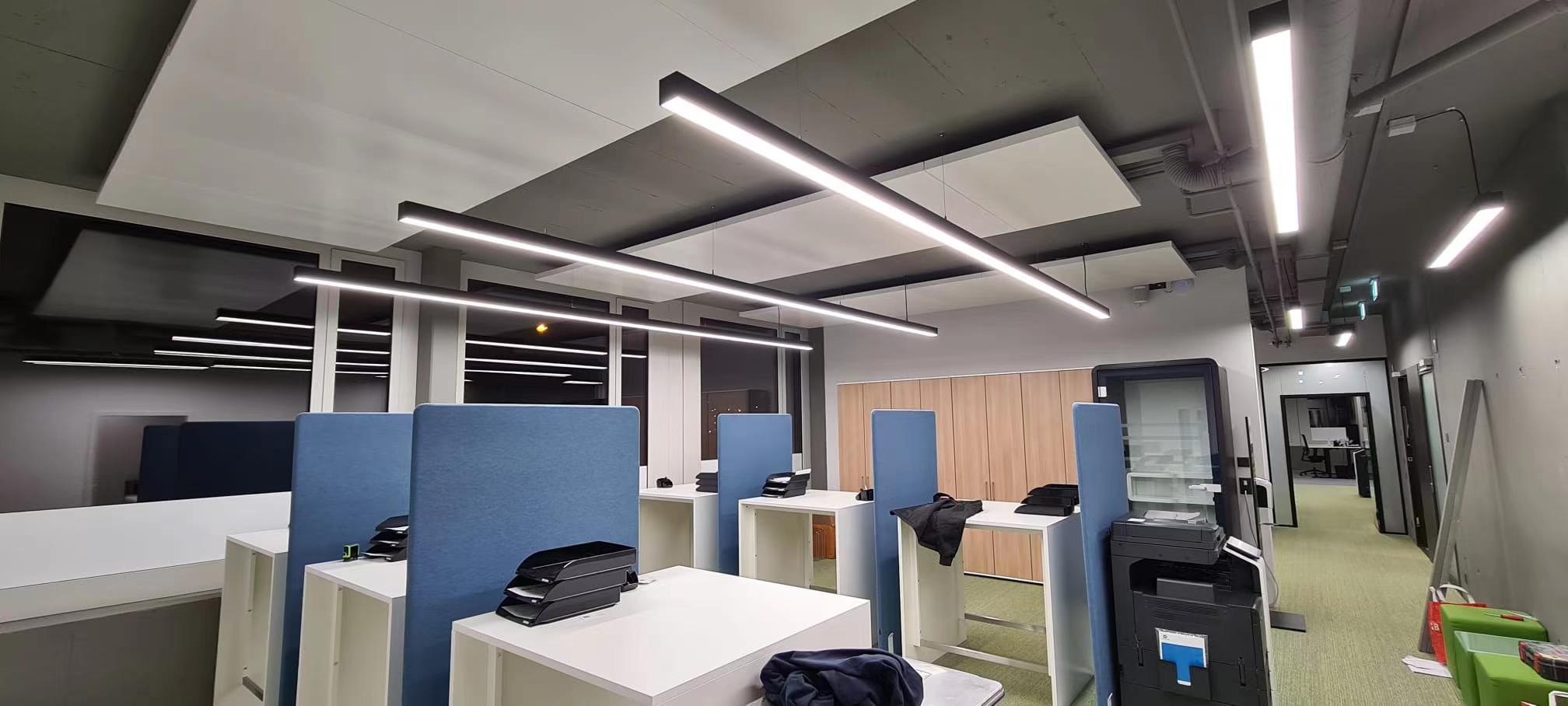

Suitable for shopping malls, commercial offices, schools, meeting rooms, retail stores, auto show centers, banks, hospitals, residences, lobbies, hotels,garage, warehouse,other indoor places
